supporting up to 256GB (64GB single DIMM capacity) of system memory
Optane Memory Support
No
Storage
Storage Interface
6.0Gb/s
M.2/SSD Expansion Slot
3
M.2/SSD Expansion Slot Details
3 x M.2 (1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0x4/x2 SSD support), 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support))
Graphics
Graphics
Integrated
Graphics Chipset
Intel HD Graphics Support
Multi-GPU Support
No
PCI Express Slot
1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16, 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x1
Audio & Video
Audio Chipset
Realtek Audio CODEC
Audio Channel
2/4/5.1/7.1
Network & Connectivity
LAN Chipset
Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
LAN Speed (Mbps)
2.5 Gbps/1 Gbps/100 Mbps
WiFi
Yes
WiFi Technology
Wi-Fi 7 (802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands)
Bluetooth
Bluetooth 5.4
Ports
USB Port

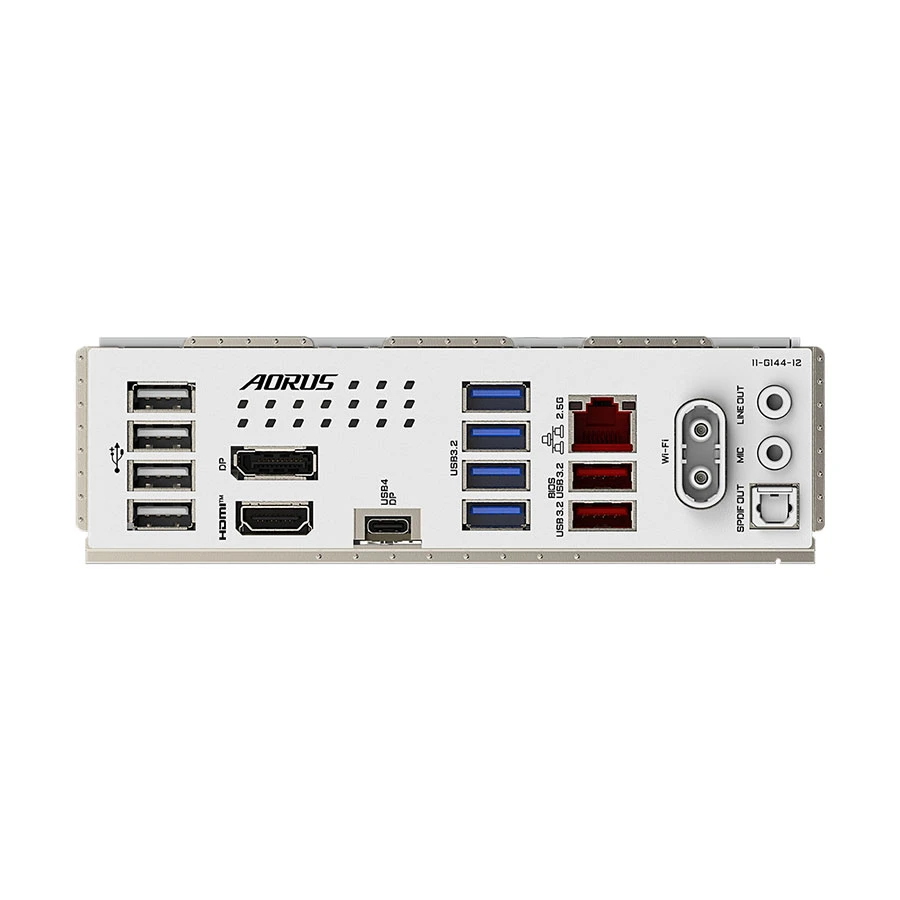

1 x USB 4 USB Type-C port (DisplayPort (Note)), 2 x USB 3.2 Gen 2 Type-A ports (red), 4 x USB 3.2 Gen 1 ports, 4 x USB 2.0/1.1 ports
VGA Port
No
DVI Port
No
HDMI Port
1
DisplayPort (DP)
1
IDE Port
No
SATA Port
4
Thunderbolt
No
TPM Port
Yes
COM Port
No
Technical Info
Back-Connect Design
No
Cable Management
Front
Heatsink
Yes
FireWire
No
CrossFire Support
No
Sli Support
No
Raid Support
RAID 0, 1, 5 and 10 for SATA storage devices
RGB Support
ARGB
RGB Sync
RGB Fusion
RGB Connector
3 x addressable RGB Gen2 LED strip headers, 1 x RGB LED strip header
Approx. Power Consumption
70W
Form Factor
ATX
Bios Information
BIOS Type
1 x 256 Mbit flash
BIOS Model
AMI UEFI BIOS
BIOS Version
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Compatibility
Supported Operating System
Windows 11 64-bit
Compatible Products
LGA1851 socket: Support for Intel Core Ultra Processors
Warranty
Warranty Details
3 year
Additional Info
Feature

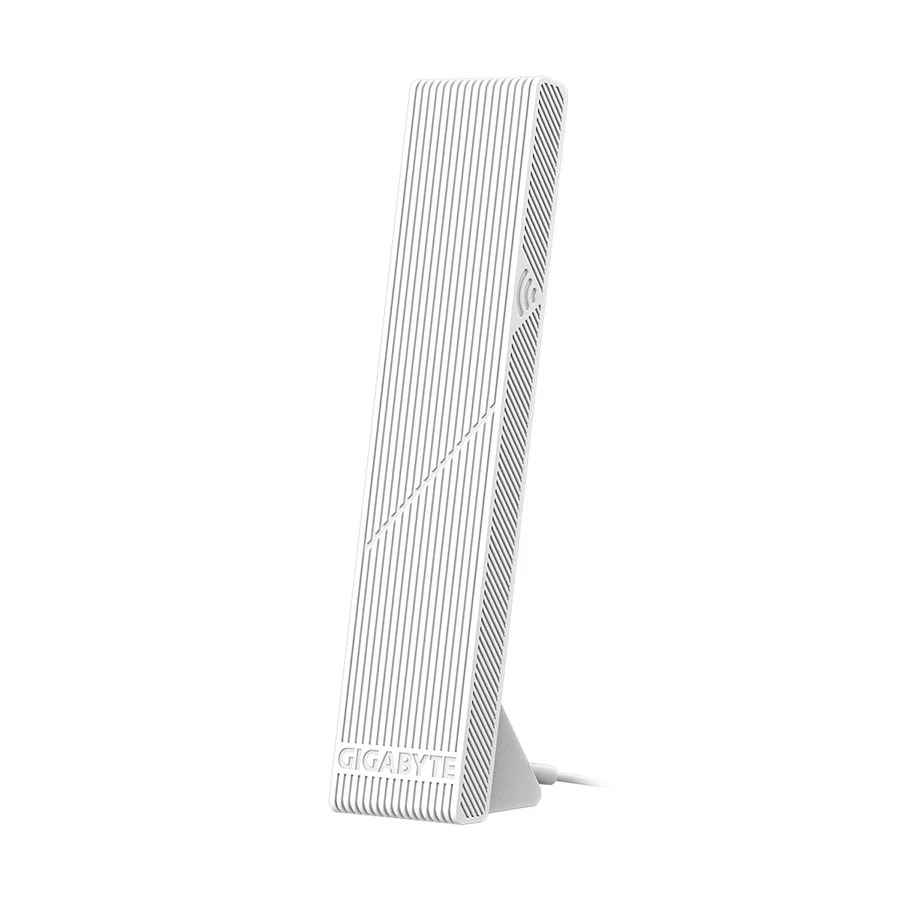

Supports Intel Core Ultra processors (Series 2), Digital twin 14+1+2 phases VRM solution, Dual Channel DDR5 : 4 x DIMMs with XMP Memory Module Support, D5 Bionic Corsa for Infinite Memory Performance, AI Perfdrive : Provides optimal and customized BIOS preset profile for users, WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation.
Others
EZ-Latch Plus : PCIe and M.2 slots with Quick Release & Screwless Design, EZ-Latch Click : M.2 heatsinks with screwless design, Sensor Panel Link : Onboard video port for hassle-free in-chassis panel setup, Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW, Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard Ext. Fast Networking : 2.5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna.
Country Of Origin
Taiwan
Made in/ Assemble
China
