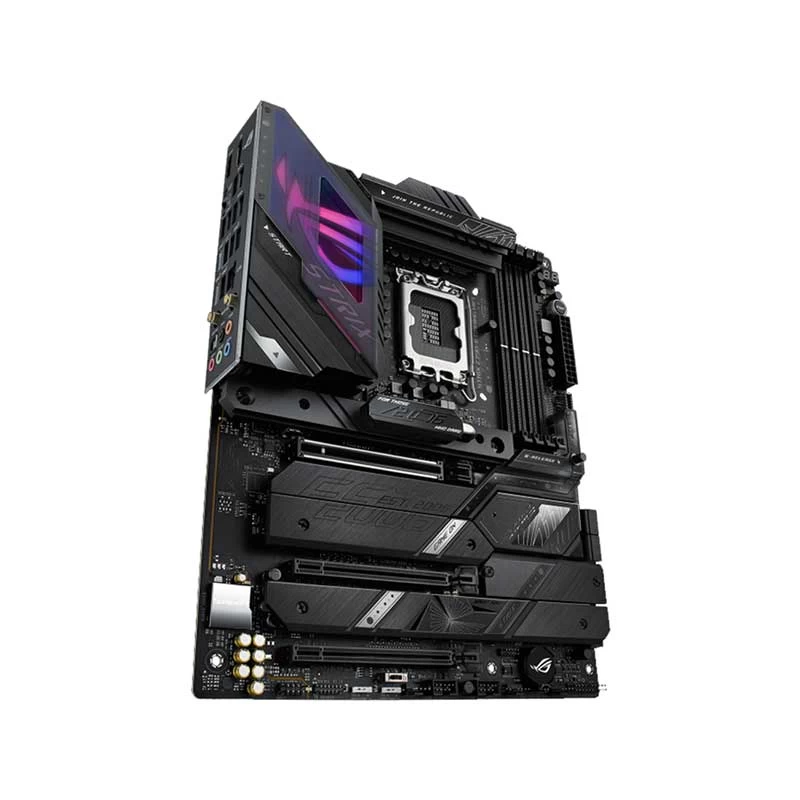

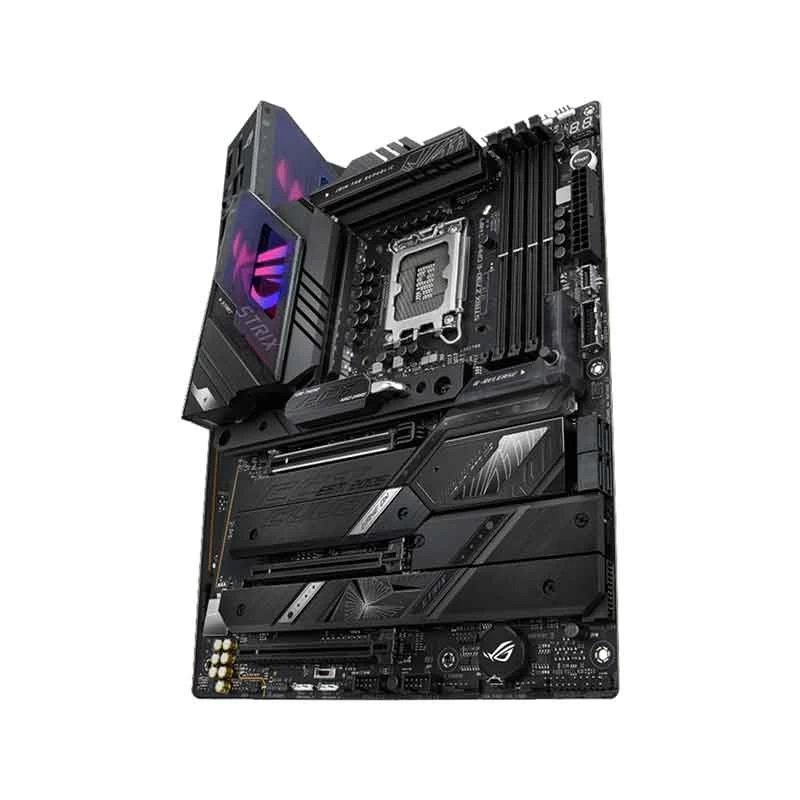

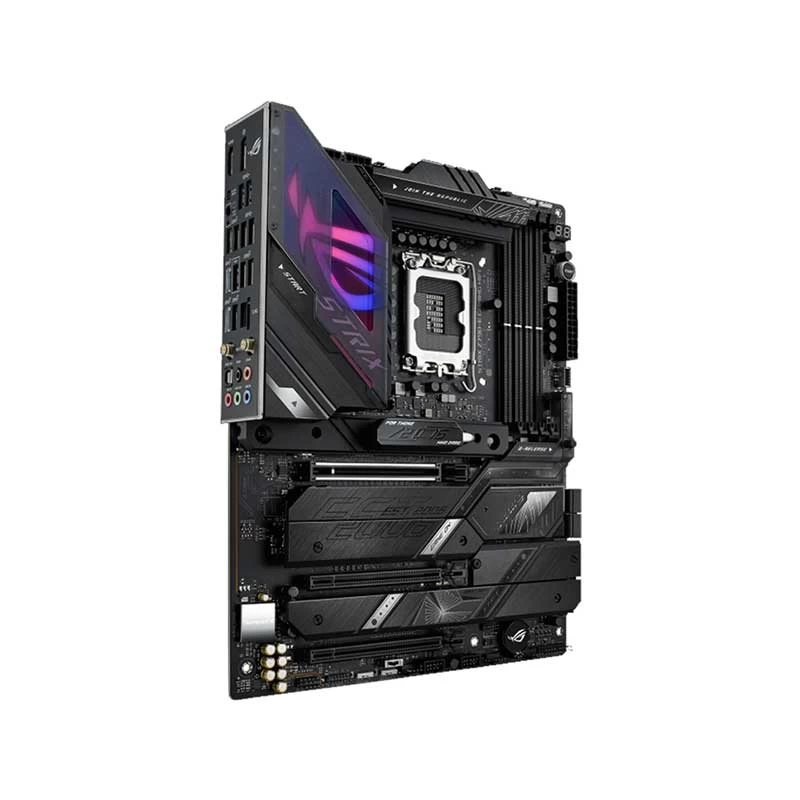

Asus ROG STRIX Z790-E GAMING (Wi-Fi 6E) DDR5 Intel Motherboard

Product Id: 02.01.006.429

Brand Asus

Regular Price Tk 0
Special Price Tk 0
Out Of Stock

See similar model

Quick Overview

  • Chipset - Intel Z790
  • Sockets Supported - LGA1700
  • Supported CPU - Intel Core, Pentium Gold and Celeron Processors
  • Generation - 12th/13th/14th
  • Memory Slot - 4
  • Memory Max. - 128GB
General
Brand
Asus

Model
Asus ROG STRIX Z790-E GAMING (Wi-Fi 6E)

Body Color
Black


CPU
Chipset Brand
Intel

Chipset
Intel Z790

Sockets Supported
LGA1700

Built-in Processor
No

Supported CPU
Intel Core, Pentium Gold and Celeron Processors

Generation
12th/13th/14th


Memory Support
Memory Type
DDR5

Memory MHz
7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800MHz non-ECC & Un-buffered Memory.

Memory Channel
Dual

Memory Slot
4

Memory Max.
128GB

Optane Memory Support
No


Storage
Storage Interface
6.0Gb/s

M.2/SSD Expansion Slot
5

M.2/SSD Expansion Slot Details
5 x M.2 (1 x M.2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode), 1 x M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode), 2 x M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode), 1 x M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode & SATA modes))


Graphics
Graphics
Integrated

Graphics Chipset
Integrated With Processor

Multi-GPU Support
No

PCI Express Slot
1 x PCIe 5.0 x16, 2 x PCIe 4.0 x16 (support x4 mode) 1 x PCIe 3.0 x1


Audio & Video
Audio Chipset
ROG SupremeFX Audio CODEC ALC4080

Audio Channel
7.1


Network & Connectivity
LAN Chipset
Intel 2.5Gb Ethernet

LAN Speed (Mbps)
10/ 100/ 1000/ 2500Mbps

WiFi
Yes

WiFi Technology
2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)

Bluetooth
Bluetooth 5.3


Ports
USB Port
6 x USB 3.2 Gen 1 USB Type-A, 4 x USB 2.0/1.1 USB Type-A, 2 x USB 3.2 Gen 2 Type-A, 1 x USB 3.2 Gen 2 Type-C, 1 x USB 3.2 Gen 2 Type-C

VGA Port
No

DVI Port
No

HDMI Port
1

DisplayPort (DP)
1

IDE Port
No

SATA Port
4 x SATA

Thunderbolt
1

TPM Port
No

COM Port
No


Technical Info
DirectX Support
No

FireWire
No

CrossFire Support
No

Sli Support
No

Raid Support
0,1,5,10

RGB Support
RGB

RGB Sync
AURA RGB

RGB Connector
1 x AURA RGB header

Approx. Power Consumption
70W

Form Factor
ATX


Bios Information
BIOS Type
256 Mb Flash ROM

BIOS Model
UEFI AMI BIOS


Compatibility
Supported Operating System
Windows 11, 10

Compatible Products
LGA1700 Socket 12th, 13th & 14th Gen Intel Processor


Warranty
Warranty
3 Year

Warranty Details
3 Years Replacement Warranty


Additional Info
Feature

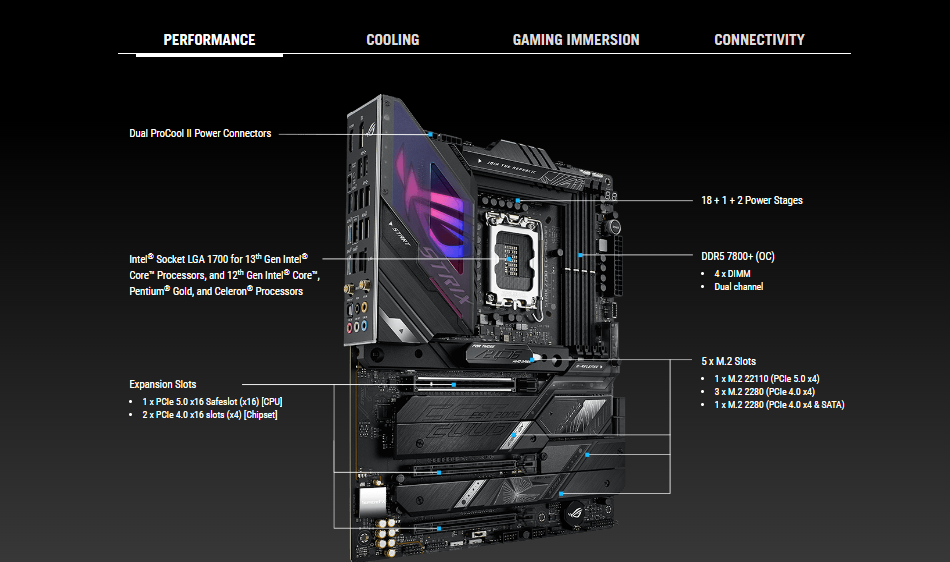

Extreme Engine Digi+: 5K Black Metallic Capacitors, ASUS Q-Design: M.2 Q-Latch, PCIe Slot Q-Release, Q-DIMM, Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]), Q-Slot, ASUS Thermal Solution: M.2 heatsink backplate, M.2 heatsink, VRM heatsink design, ASUS EZ DIY: BIOS FlashBack button, BIOS FlashBack LED, Clear CMOS button, CPU Socket lever protector, ProCool II, Pre-mounted I/O shield, SafeSlot, SafeDIMM.

Others
Internal I/O Connectors: 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 5 x 4-pin Chassis Fan headers, 1 x 24-pin Main Power connector 2 x 8-pin +12V Power connectors, 3 x Addressable Gen 2 headers 1 x Alternative PCIe Mode Switch 1 x AURA RGB header 1 x CPU Over Voltage jumper 1 x Front Panel Audio header (AAFP) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Start button 1 x Thermal Sensor header. Back Panel I/O Ports: 5 x Gold-plated audio jacks, 1 x Optical S/PDIF out port 1 x BIOS FlashBack button 1 x Clear CMOS button.

Country Of Origin
Taiwan

Made in/ Assemble
China


N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
