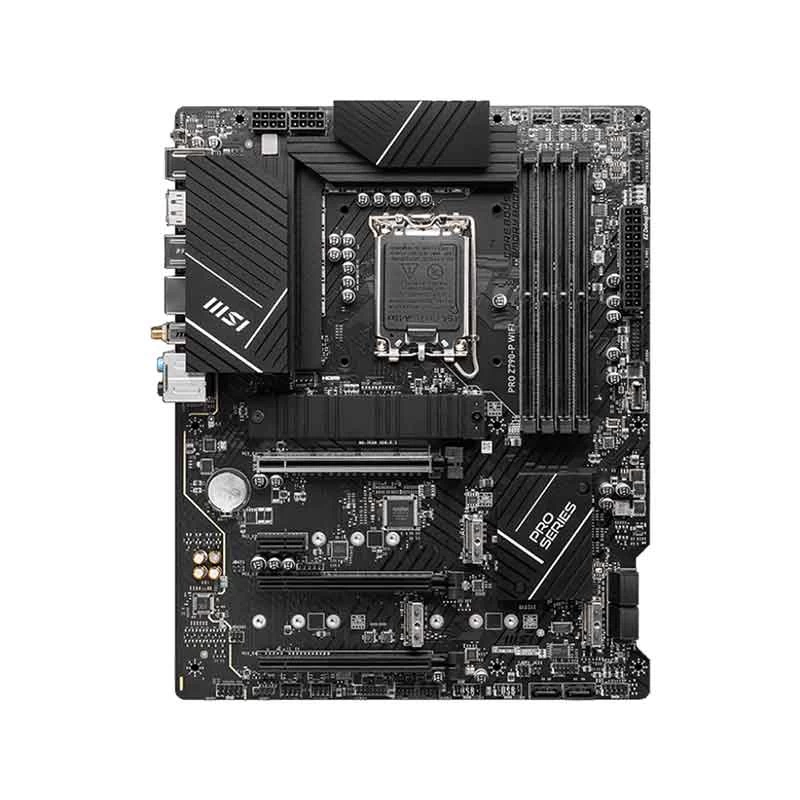

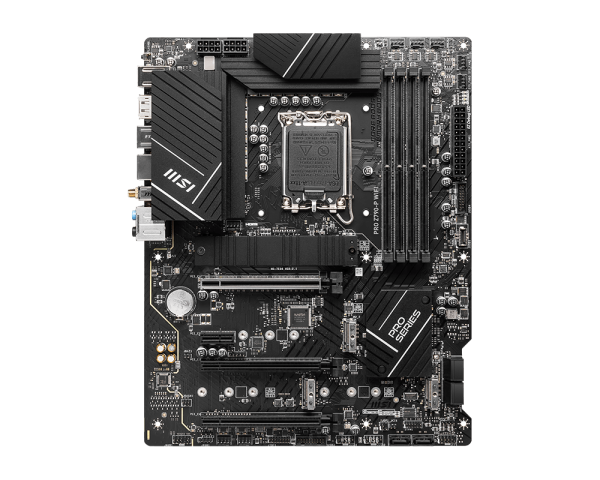

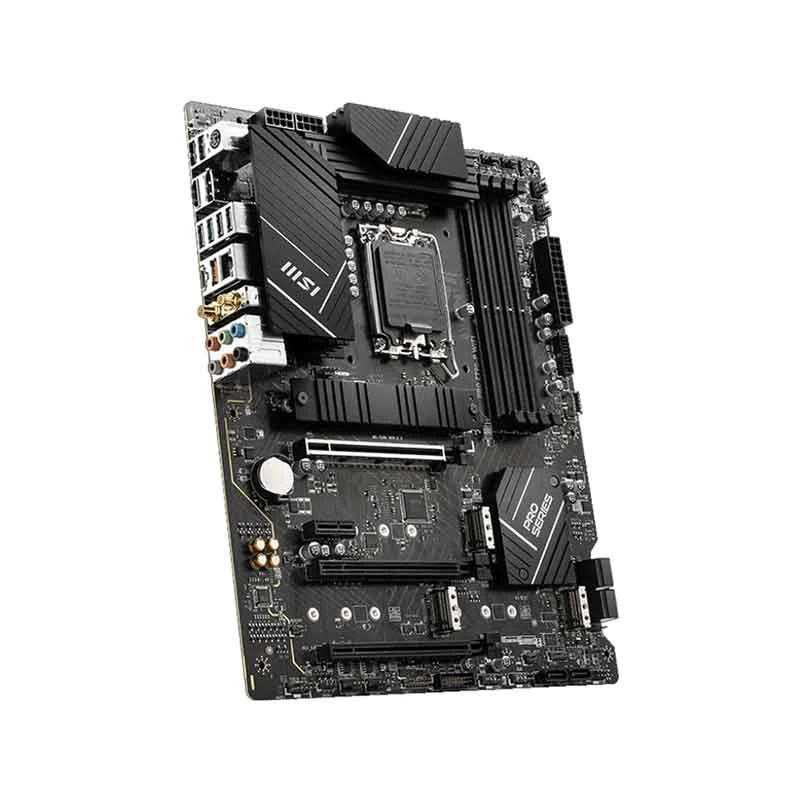

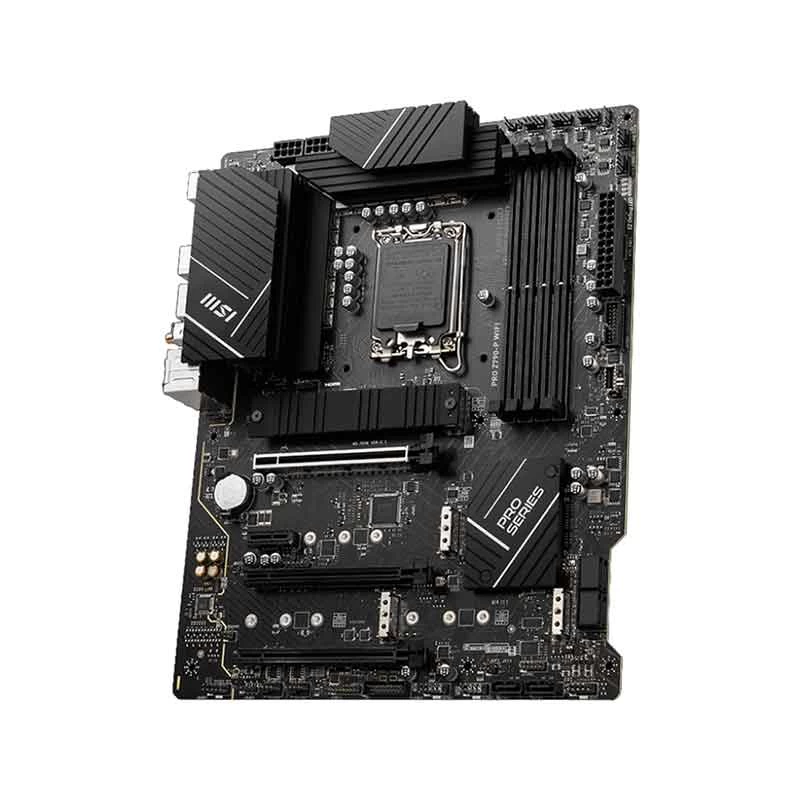

MSI PRO Z790-P (Wi-Fi 6E) DDR5 Intel LGA1700 Socket Motherboard

Product Id: 02.01.033.347

Brand MSI

Regular Price Tk 0
Special Price Tk 0
Out Of Stock

Quick Overview

  • Chipset - Intel Z790
  • Memory Max. - 128GB
  • Memory Slot - 4
  • Sockets Supported - LGA1700
  • Supported CPU - 12th/13th/14th Gen Intel Core, Pentium Gold and Celeron Processors
  • Generation - 12th/13th/14th
General
Brand
Msi

Model
Msi PRO Z790-P (Wi-Fi 6E)

Body Color
Black


CPU
Chipset Brand
Intel

Chipset
Intel Z790

Sockets Supported
LGA1700

Built-in Processor
No

Supported CPU
12th/13th/14th Gen Intel Core, Pentium Gold and Celeron Processors

Generation
12th/13th/14th


Memory Support
Memory Type
DDR5

Memory MHz
7000+(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC)MHz non-ECC & Un-buffered Memory

Memory Channel
Dual

Memory Slot
4

Memory Slot (Additional Info)
Supports Intel® XMP3.0 OC, Supports Dual-Controller Dual-Channel mode, Supports non-ECC, un-buffered memory.

Memory Max.
128GB

Memory Max. (Additional Info)
4x DDR5, Maximum Memory Capacity 128GB

Optane Memory Support
No


Storage
Storage Interface
6.0Gb/s

M.2/SSD Expansion Slot
4

M.2/SSD Expansion Slot Details
4 x M.2 (1 x M.2, PCIe 4.0 x4, supports 22110/2280/2260/2242), (1 x M.2, PCIe 4.0 x4, supports 2280/2260/2242), (2 x M.2, PCIe 4.0 x4 / SATA, supports 2280/2260/2242)


Graphics
Graphics
Integrated

Graphics Chipset
Integrated With Processor

Multi-GPU Support
No

PCI Express Slot
1 x PCIe 5.0 x16 slot, 1 x PCIe 4.0 x16 slot, 2 x PCIe 3.0 x1 slots


Audio & Video
Audio Chipset
Realtek ALC897 Codec

Audio Channel
7.1


Network & Connectivity
LAN Chipset
Intel 2.5Gbps LAN

LAN Speed (Mbps)
10/100/1000/2500Mbps

WiFi
Yes

WiFi Technology
Intel Wi-Fi 6E, MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz

Bluetooth
Bluetooth 5.2


Ports
USB Port
4 x USB 2.0 Type-A, 2 x USB 3.2 Gen1 Type A, 1 x USB 3.2 Gen2 Type A, 1 x USB 3.2 Gen 2 Type-C

VGA Port
No

DVI Port
No

HDMI Port
1

DisplayPort (DP)
1

IDE Port
No

SATA Port
6 x SATA

Thunderbolt
No

TPM Port
1

COM Port
No


Technical Info
CrossFire Support
No

Sli Support
No

Raid Support
0,1,5,10

RGB Support
ARGB

RGB Connector
2 x Addressable V2 RGB LED connector (JARGB_V2), 1x RGB LED connector(JRGB)

Approx. Power Consumption
70W

Form Factor
ATX


Compatibility
Supported Operating System
Windows 11/ 10

Compatible Products
LGA1700 Socket 14th, 13th and 12th Generation Intel Core, Pentium Gold and Celeron Intel Processors.


Warranty
Warranty
3 Year

Warranty Details
3 year


Additional Info
Feature
4x EZ Debug LED.

Others

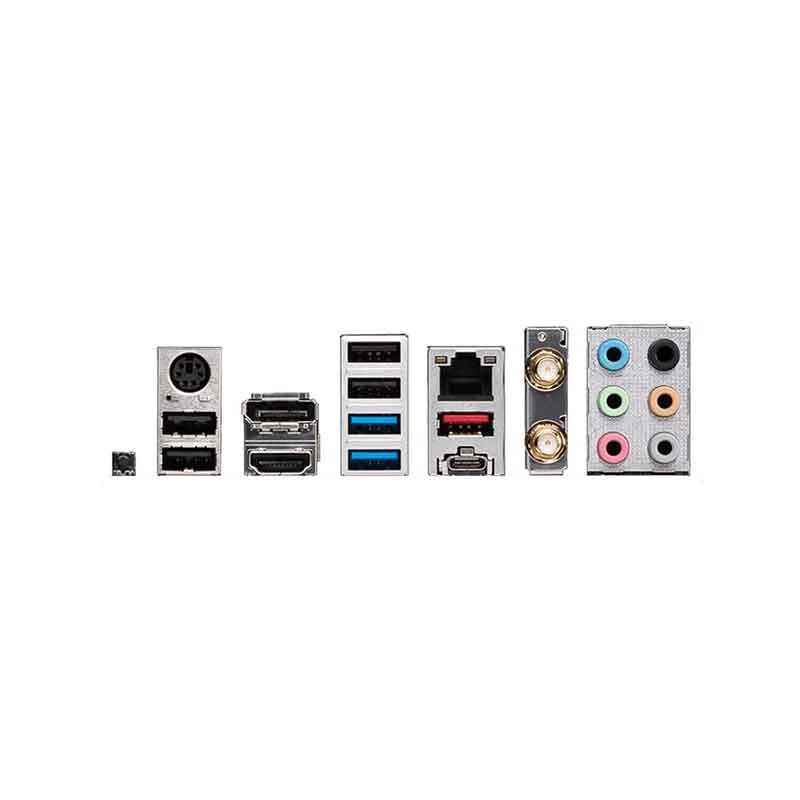

INTERNAL I/O: 1x Power Connector(ATX_PWR), 2x Power Connector(CPU_PWR), 1x CPU Fan, 1x Pump Fan, 6x System Fan, 2x Front Panel (JFP), 1x Chassis Intrusion (JCI), 1x Front Audio (JAUD), 1x TBT connector (JTBT, supports RTD3), 1x Tuning Controller connector(JDASH). LED FEATURE: 4x EZ Debug LED. BACK PANEL PORTS: 1 x Keyboard / Mouse, 1 x 2.5G LAN, 1 x Wi-Fi, 1 x Bluetooth, 6 x Audio Connectors, 1 x Flash BIOS Button

Country Of Origin
Taiwan

Made in/ Assemble
China
