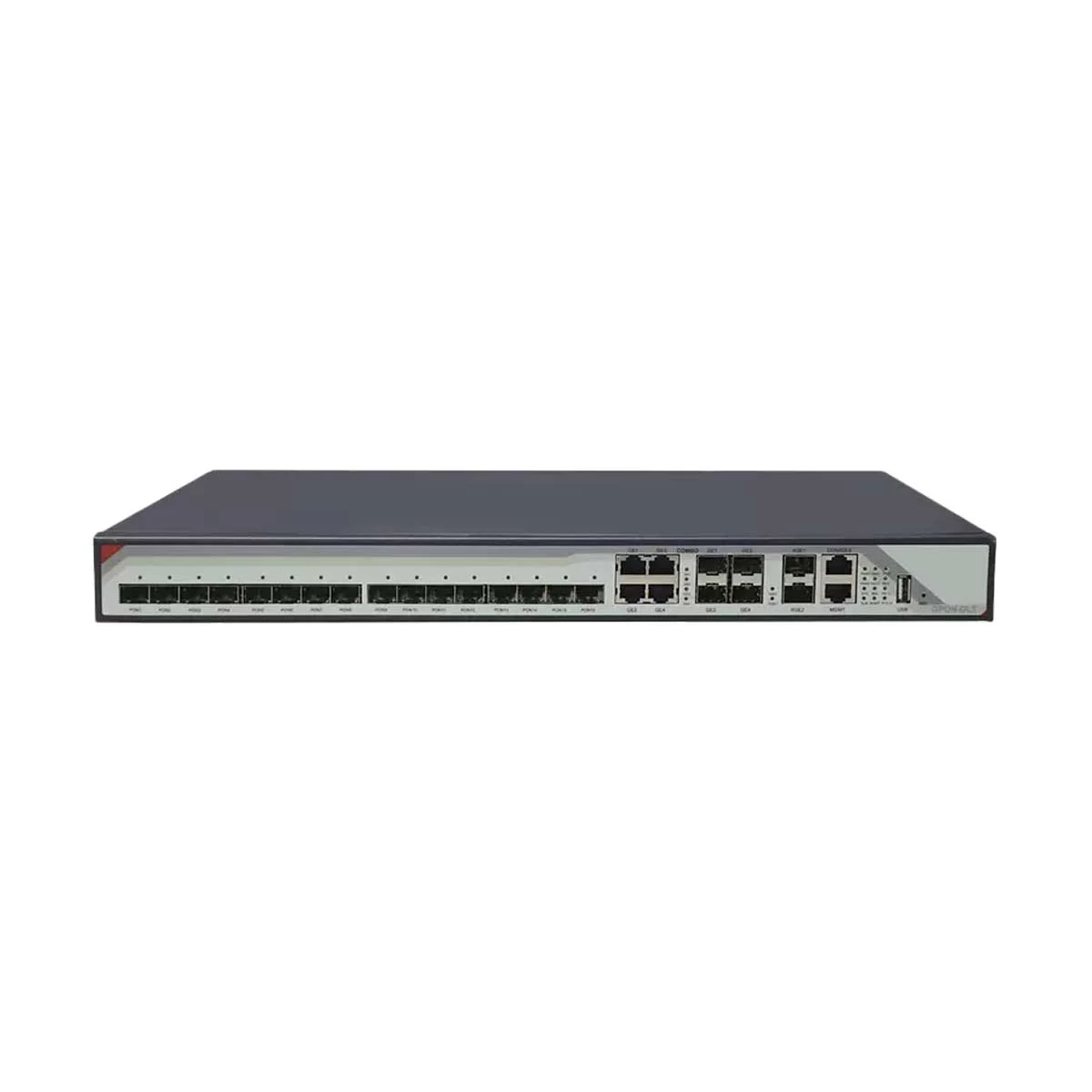

Features of C-Data FD1616SN-R1-DAP Optical Line Termination (OLT) In Bangladesh
Brand - C-Data, Model - C-Data FD1616SN-R1-DAP, Management Rack Type - 1U 19-inch standard box, Uplink COMBO Port - 4 x 10/100/1000M auto-negotiation Ethernet ports (4 SFP interfaces), Uplink 10-Gigabit Port - 2 SFP+ interfaces, PON Type - GPON, PON Port Quantity - 16, PON Port Physical Interface - SFP slot, PON Port Interface Type - ITU-TG.984.2 Class B+/Class C+, PON Port Max Splitting Ratio - 1:128, PON Port Transmission Distance - 20KM, PON Port Rate - Downstream: 2.5 Gbps, Upstream: 1.25 Gbps, PON Port Wavelength - Forwarding: 1490nm, Receiving: 1310nm, PON Port Interface Type/Connector - SC/UPC, PON Port Fiber Type - 9/125m SMF, PON Port Light Transmission Power - Class B+ +1.5 - +5dBm, Class C+ +3 - +7dBm, PON Port Receiving Sensitivity - Class B+ -28dBm, Class C+ -30dBm, PON Port Saturation Power - Class B+ -8dBm, Class C+ -12dBm, Management Port - 1 x 100/1000BASE-Tx out-band Ethernet port, 1 x CONSOLE local management port, USB Port - 1, USB Type - Type-C interface, Similar to the CONSOLE port function, used for serial port login, Network Management Method - Support CLI, SNMP, TELNET, SSH, WEB, Backplane Bandwidth - 108G, Management Function - Support device log, device upgrade, device management, condition monitoring, configuration management, and user management., Layer-Two Switch - Like port management, VLAN, RSTP, IGMP, ACL, QOS, Power Supply - AC: 90V - 240V, 47/63Hz -48, DC: -36V - -72V, Maximum Power - 70W, Working Temperature - 0 - 50 degree C, Storage Temperature - -40 - 85 degree C, Dimension - 440 x 300 x 44mm, Weight (Kg) - 4 kg, Specialty - GPON OLT FD1616SN-R1 completely meet relative standard of ITU G.984.x and FSAN, which is 1U rack-mounted device with1 USB interface, 4 uplink GE ports, 4 uplink optical ports, 2 10-gigabit uplink ports and 16 GPON ports, each GPON port supports the splitting ratio of 1:128 and provides downstream bandwidth of 2.5Gbps and upstream bandwidth of 1.25Gbps, system support 2048 GPON terminals accessing in for the most. This product meets the requirements in device performance and size of compact server room as the product has high performance and compact size, is convenient and flexible to use, and is easy to deploy as well. Moreover, the product meets the requirements of promoting network performance, improving reliability and reducing power consumption in the perspective of access network and enterprise network and is applicable to three-in-one broadcast television network, FTTP (Fiber to the premise), video monitoring network, enterprise LAN (Local Area Network), internet of things and other network applications with a very high price/performance ratio., Part/Model Number - FD1616SN-R1-DAP, Warranty - 2 Year
What is the price of C-Data FD1616SN-R1-DAP Optical Line Termination (OLT) In Bangladesh?
The price of C-Data FD1616SN-R1-DAP Optical Line Termination (OLT) not mentioned for stock unavailability.The price may vary due to your customization and product availability.
You can buy C-Data FD1616SN-R1-DAP Optical Line Termination (OLT) from our website or visit our showrooms nearby.
