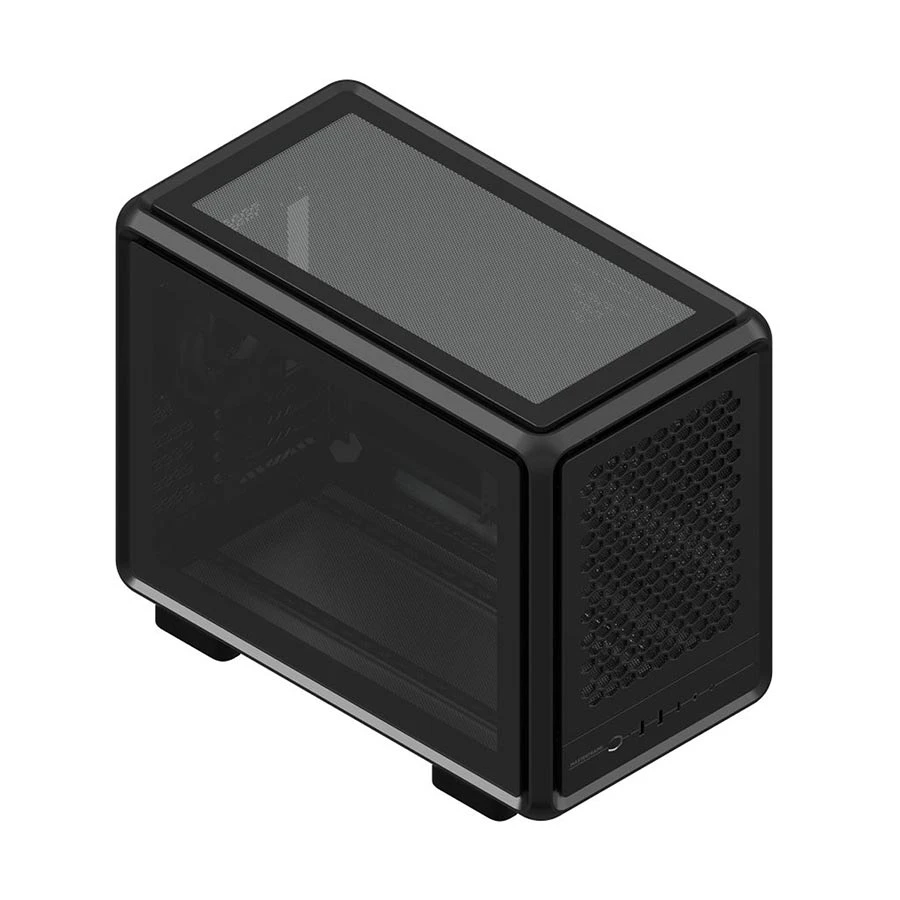

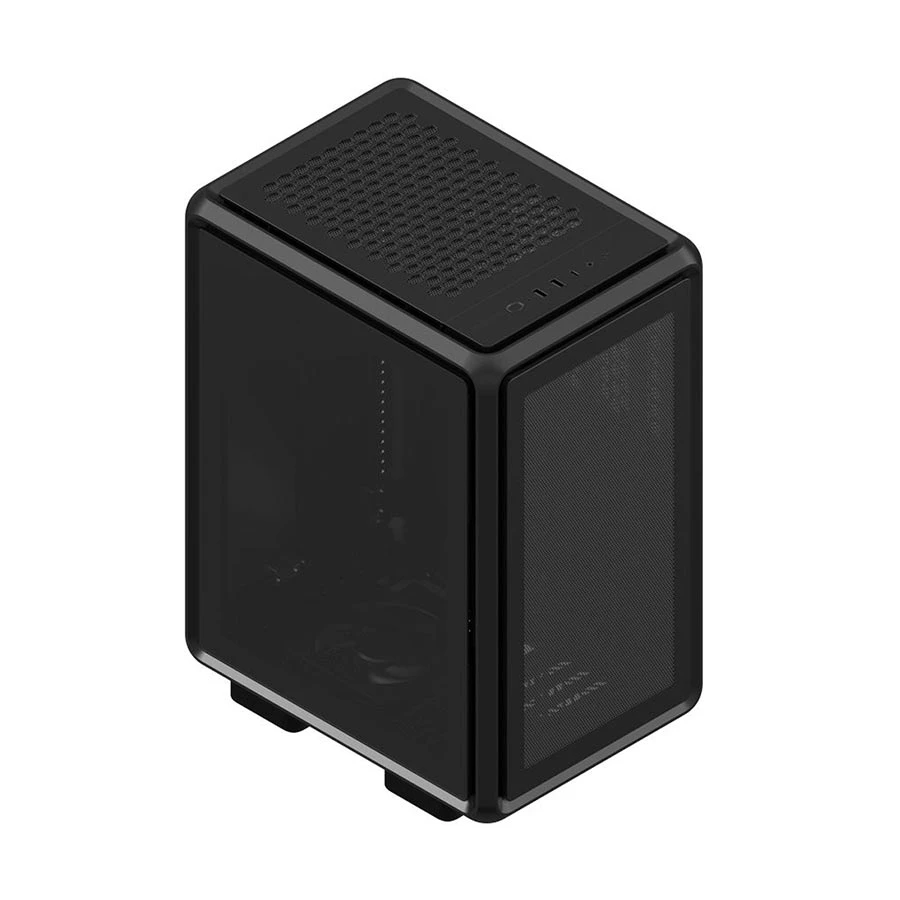

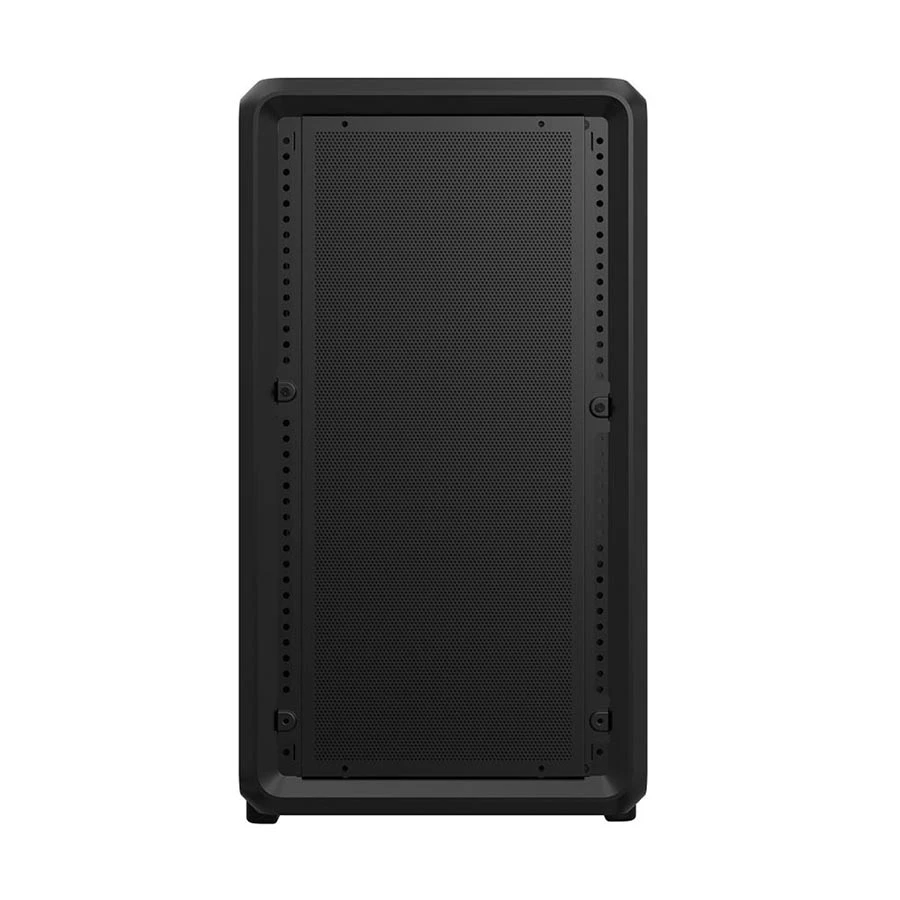

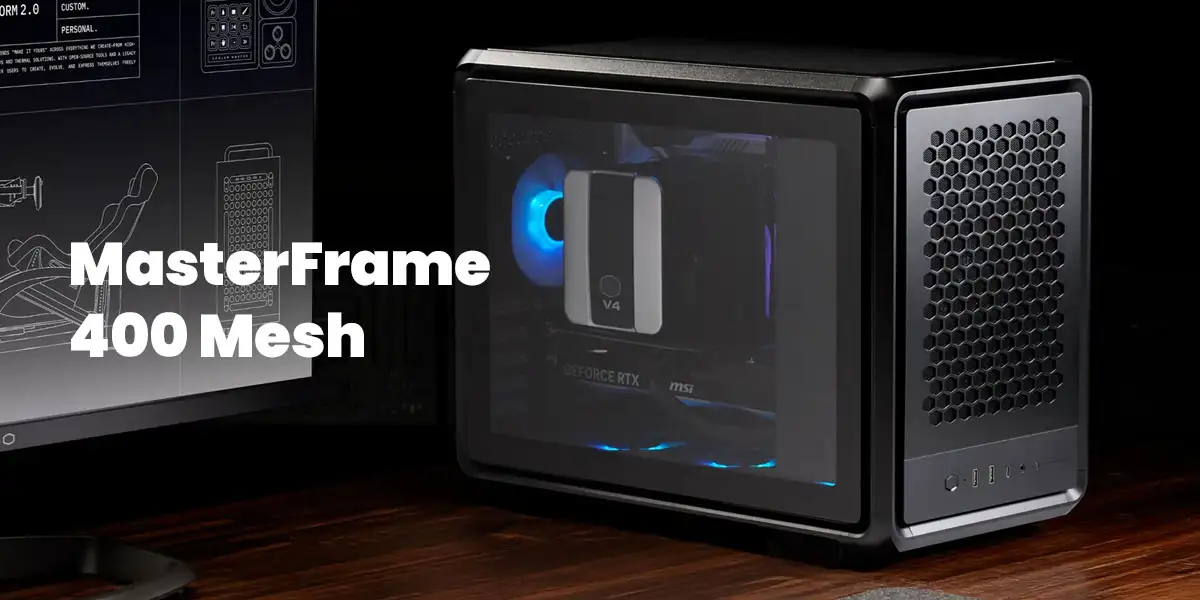

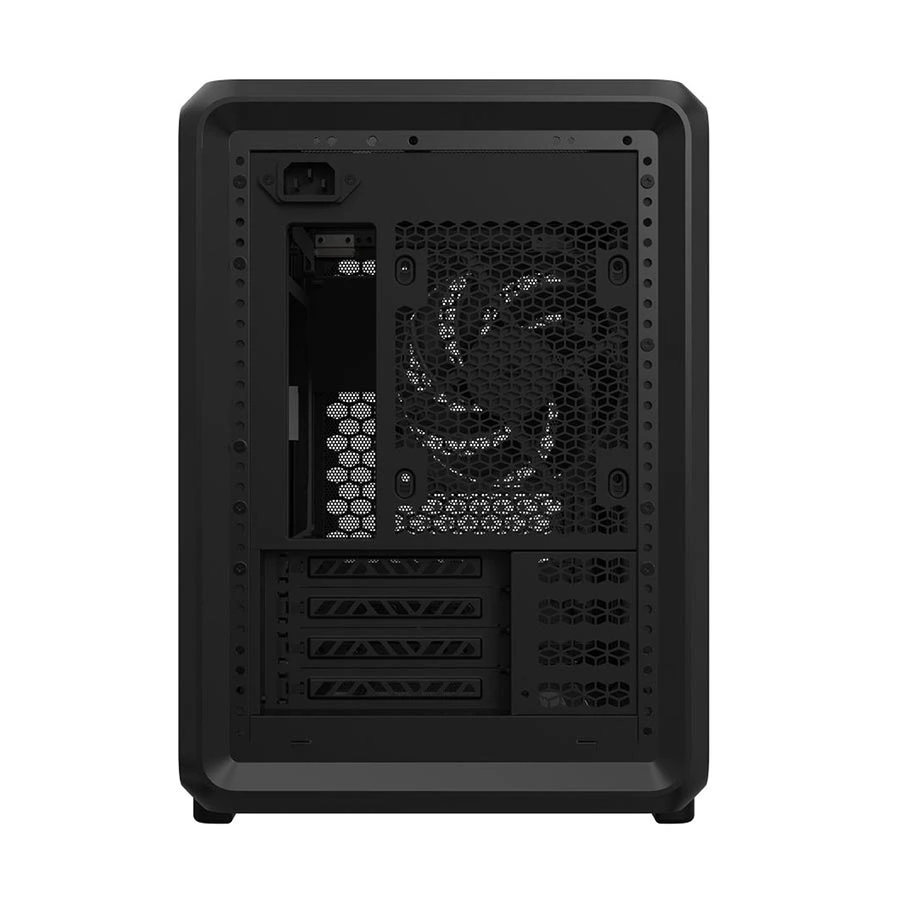

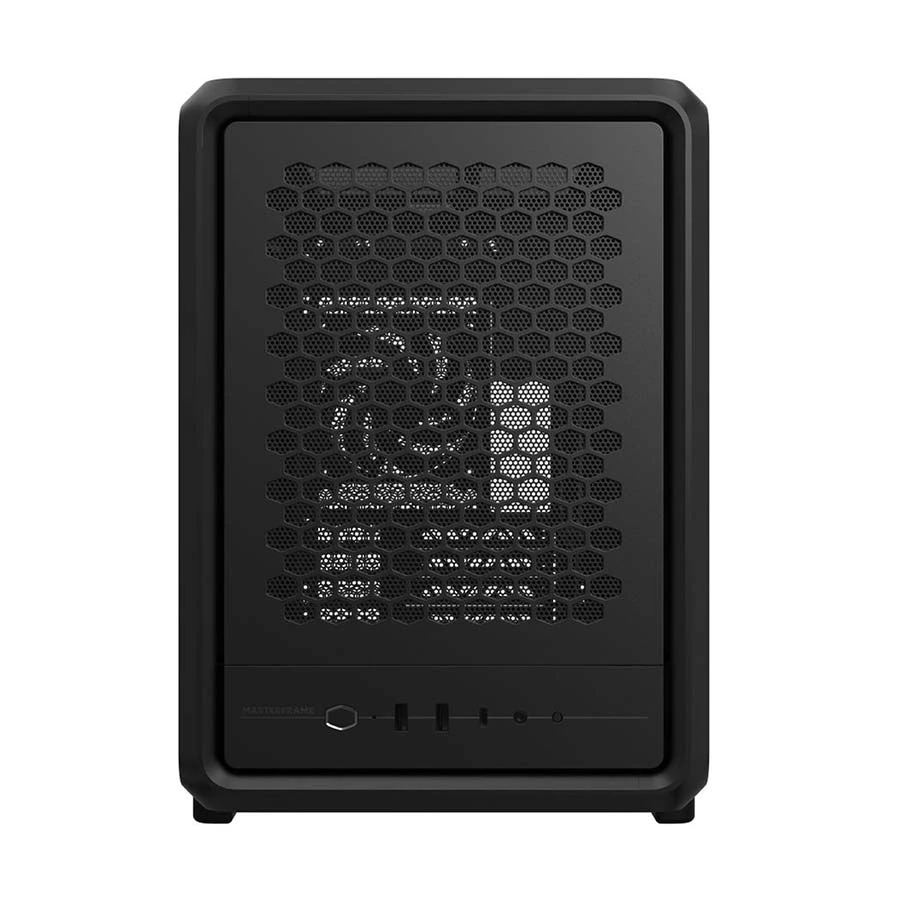

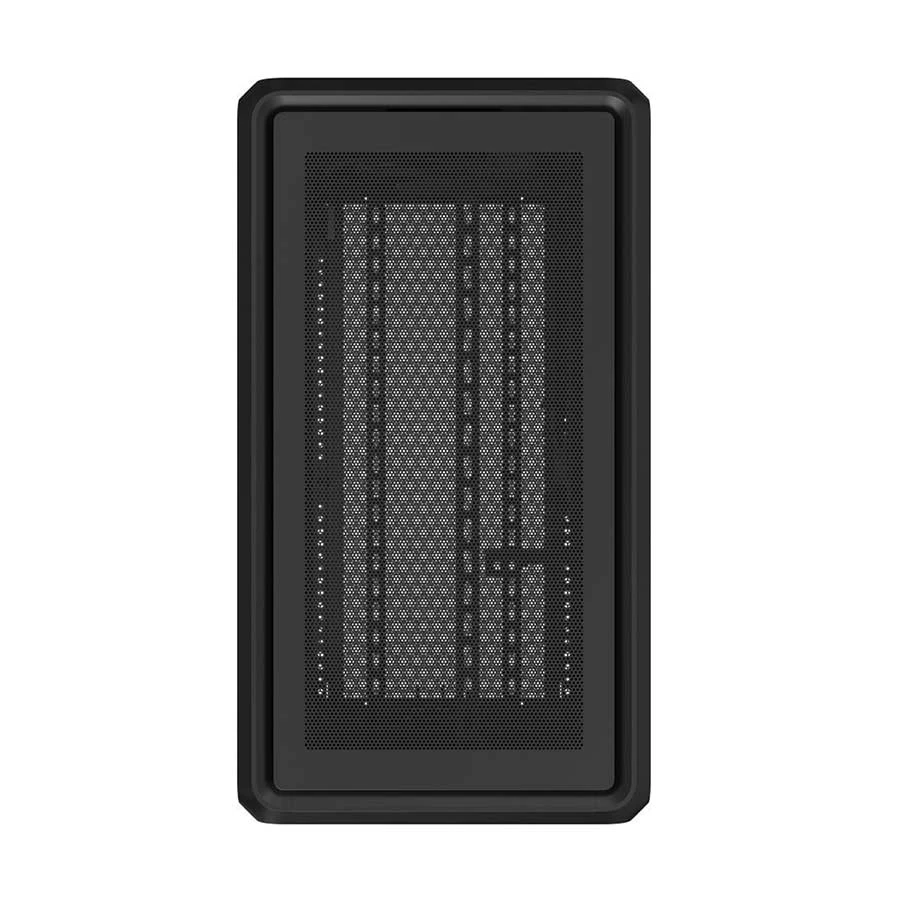

Cooler Master MasterFrame 400 Mesh Mid Tower Black Micro-ATX Gaming Desktop Case #MF400M-KHNN-S00
2 x USB 3.2 Gen 1 Type A / 1 x USB 3.2 Gen 2 x 2 Type C
Front/Top Audio Port
1x 3.5MIc/ Audio Combo Jack
Expansion Slots
4
Optical Drive Bay
No
Cooling Fan (Built-In)
1
Additional Fan Slot
8
Power Supply (Built-In)
No
Power Supply Type
ATX (Not Included)
Back-Connect Supported
No
Transparent Side Window
Yes
Dust Cover
Front, Side
Color
Black
Dimensions
471 x 261 x 373.8mm
Weight (Kg)
8Kg
Warranty Details
No warranty
General
Brand
Cooler Master
Model
Cooler Master MasterFrame 400 Mesh
Series
Gaming
Case Type
Mid Tower
Part No
MF400M-KHNN-S00
Technical Info
Supported Motherboard Type
Mini-ITX, Micro-ATX
Supported LED Strip
Unmentioned
Fan / Light Controller
Unmentioned
Back-Connect Supported
No
Graphics-Card Length
390mm
Supported CPU Cooler
Air Cooler or Liquid Cooler
CPU Cooler Height
190mm
PSU Length
160mm
Ports & Slots
Front/Top USB port
2 x USB 3.2 Gen 1 Type A / 1 x USB 3.2 Gen 2 x 2 Type C
Front/Top Audio Port
1x 3.5MIc/ Audio Combo Jack
5.25 Inch Drive Bay
No
3.5 Inch Drive Bay
1
2.5 Inch Drive Bay
1
1.8 Inch Drive Bay
No
Expansion Slots
4
Optical Drive Bay
No
Fan & Radiator Details
Cooling Fan (Built-In)
1
Additional Fan Slot
8
Pre-Installed Fan Size
1 x SickleFlow 120mm ARGB
Supported Fan Size
Front: 2 x120mm / 1 x 140mm*, 1 x 180mm*, 1 x 200mm*(*Conditional Support), Top: 3 x120mm / 2 x 140mm / 2 x 180mm*, 2 x 200mm* (*Fan thickness <= 25.5mm), Rear: 1x 120 mm, Bottom: 3x 120mm, 2x 140mm, 2x 180mm, 2x 200mm, and all fans up to 30mm thick
Lighting Fan
ARGB
Radiator Support Front/Top/Rear
Top: 240 / 280 / 360 mm, Rear: 120 mm
Radiator Support Max.
Up to 360mm
Power
Power Supply (Built-In)
No
Power Supply Type
ATX (Not Included)
Approx. Power Consumption
10W
Physical Description
Transparent Side Window
Yes
Mesh Design
Front Side
Case Windowed
Tempered Glass Side Window
Material
AL + SGCC + TG / Mesh
Dust Cover
Front, Side
Color
Black
Dimensions
471 x 261 x 373.8mm
Weight (Kg)
8Kg
Handle
No
Warranty
Warranty Details
No warranty
Additional Info
Others
Only supported without bottom fans. Shares 3.5 Inch and 2.5 Inch mounting positions. Behind MB Tray: 43mm.
Specialty
Signature Exoskeletal Structure A premium aluminum frame with a modern silhouette that reflects the MasterFrame design ethos. Compact Footprint, Big Potential Space-efficient design optimized for Micro-ATX and Mini-ITX builds without compromising functionality. Mesh-Optimized Airflow Full front mesh panel ensures maximum ventilation for superior thermal performance under load. Premium Minimalist Aesthetic Clean edges, curved corners, and tempered glass side panel create a refined showcase look. Advanced Cooling Configurations Supports up to 9 fans and multiple radiators, including 360 mm options for liquid cooling enthusiasts. High-Performance Compatibility Accommodates GPUs up to 390 mm and CPU coolers up to 190 mm, delivering uncompromised performance. ARGB-Enhanced Experience Includes a pre-installed SickleFlow 120 mm ARGB fan for cooling efficiency and personalized lighting effects.
Country Of Origin
Taiwan
