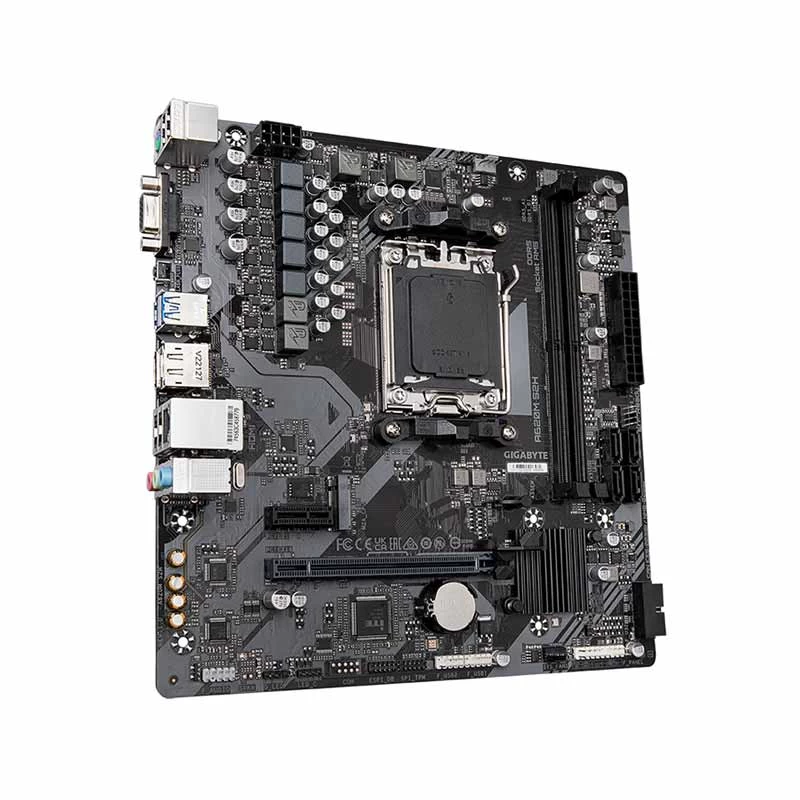

Gigabyte A620M S2H DDR5 AMD Motherboard

Item: Gigabyte A620M S2H DDR5 AMD Motherboard
Rating: 5
Author: Verified Buyer

12 reviews

Product Id: 02.02.018.491

Out Of Stock

See similar model

Quick Overview

Form Factor - Micro-ATX
Chipset - AMD A620
Sockets Supported - AM5
Supported CPU - AMD Socket AM5, support for: AMD Ryzen 7000 Series Processors
Generation - Not Applicable
Memory Slot - 2
Memory Max. - 96GB
Back-Connect Design - No
Body Color - Black

Payment Method Shipping & Charge Order Procedure

Brand

Gigabyte

Model

Gigabyte A620M S2H

Chipset

AMD A620

Sockets Supported

AM5

Built-in Processor

Generation

Not Applicable

Back-Connect Design

Memory Type

DDR5

Memory Slot

Memory Max.

96GB

Optane Memory Support

Graphics

Integrated

Graphics Chipset

Integrated With Processor

M.2/SSD Expansion Slot

WiFi

Form Factor

Micro-ATX

Supported Operating System

Windows 11, Windows 10

Body Color

Black

Warranty

3 year

General

Brand

Gigabyte

Model

Gigabyte A620M S2H

Body Color

Black

CPU

Chipset Brand

AMD

Chipset

AMD A620

Sockets Supported

AM5

Built-in Processor

Supported CPU

AMD Socket AM5, support for: AMD Ryzen 7000 Series Processors

Generation

Not Applicable

Memory Support

Memory Type

DDR5

Memory MHz

6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800/ 4400MHz non-ECC & Un-buffered Memory

Memory Channel

Dual

Memory Slot

Memory Max.

96GB

Optane Memory Support

Storage

Storage Interface

6.0Gb/s

M.2/SSD Expansion Slot

M.2/SSD Expansion Slot Details

1 x M.2 (Socket 3, M key, type 2580 PCIe 4.0 x4/x2 SSD support)

M.2/SSD Slot Gen

Up to Gen 4

Graphics

Integrated

Graphics Chipset

Integrated With Processor

Multi-GPU Support

PCI Express Slot

1 x PCI Express x 16 (supporting PCIe 4.0 and running at x16), 1 x PCI Express x 1 (PCIe 3.0 and running at x1)

Audio & Video

Audio Chipset

Realtek Audio CODEC

Audio Channel

2/4/5.1/7.1

Network & Connectivity

LAN Chipset

Realtek GbE LAN chip

LAN Speed (Mbps)

10/ 100/ 1000Mbps

WiFi

Ports

USB Port

4 x USB 2.0/1.1, 2 x USB 3.2 Gen 1

VGA Port

DVI Port

HDMI Port

DisplayPort (DP)

SATA Port

4 x SATA

Thunderbolt

TPM Port

Yes

Technical Info

Back-Connect Design

Cable Management

Front

Heatsink

CrossFire Support

Sli Support

Raid Support

0, 1, 10

RGB Support

RGB

RGB Connector

1 x RGB LED strip header

Approx. Power Consumption

60W

Form Factor

Micro-ATX

Bios Information

BIOS Type

1 x 256 Mbit flash

BIOS Model

AMI UEFI BIOS

BIOS Version

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Compatibility

Supported Operating System

Windows 11, Windows 10

Compatible Products

AMD Ryzen 7000 Series Desktop Processors

Warranty

3 year

Additional Info

Feature

H/W Monitoring: Voltage detection, Temperature detection, Fan speed detection, Water cooling flow rate detection, Fan fail warning, Fan speed control. Unique Features: Support for Q-Flash, Support for Q-Flash Plus.

Others

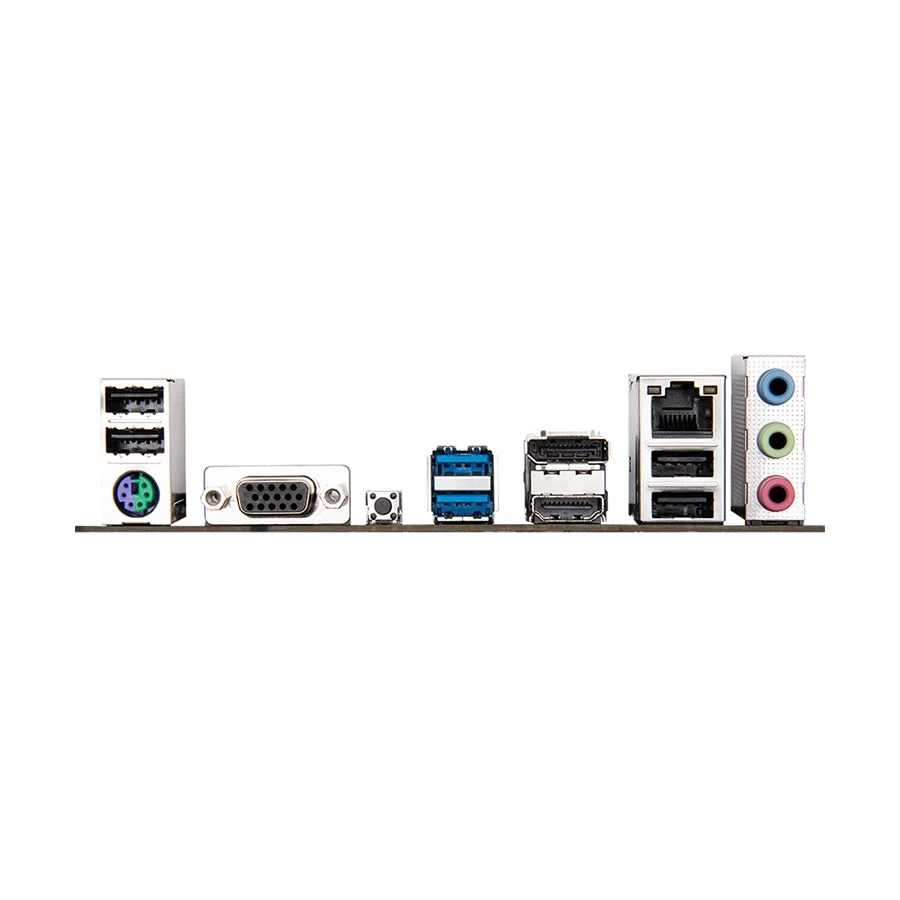

Internal I/O Connectors: 1 x 24-pin ATX main power connector, 1 x 8-pin ATX 12V power connector, 1 x CPU fan header, 2 x system fan headers, 1 x addressable LED strip header, 1 x front panel header, 1 x front panel audio header, 1 x Clear CMOS jumper, Back Panel Connectors: 1 x PS/2 keyboard/mouse port, 1 x Q-Flash Plus button, 1 x RJ-45 port, 3 x audio jacks.

Country Of Origin

Taiwan

Made in/ Assemble

China

Details

Features of Gigabyte A620M S2H Motherboard In Bangladesh

Gigabyte A620M S2H

AMD Socket AM5：Supports AMD Ryzen 7000 Series Processors
Unparalleled Performance：5+2+2 Phases Digital VRM Solution
Dual Channel DDR5：2*SMD DIMMs with AMD EXPO & Intel XMP Memory Module Support
SuperSpeed Storage：PCIe 4.0 x4 M.2 Connector
EZ-Latch：PCIe x16 Slot with Quick Release Design
Fast Networks：GbE LAN
Extended Connectivity：DP, HDMI, D-Sub
Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card
