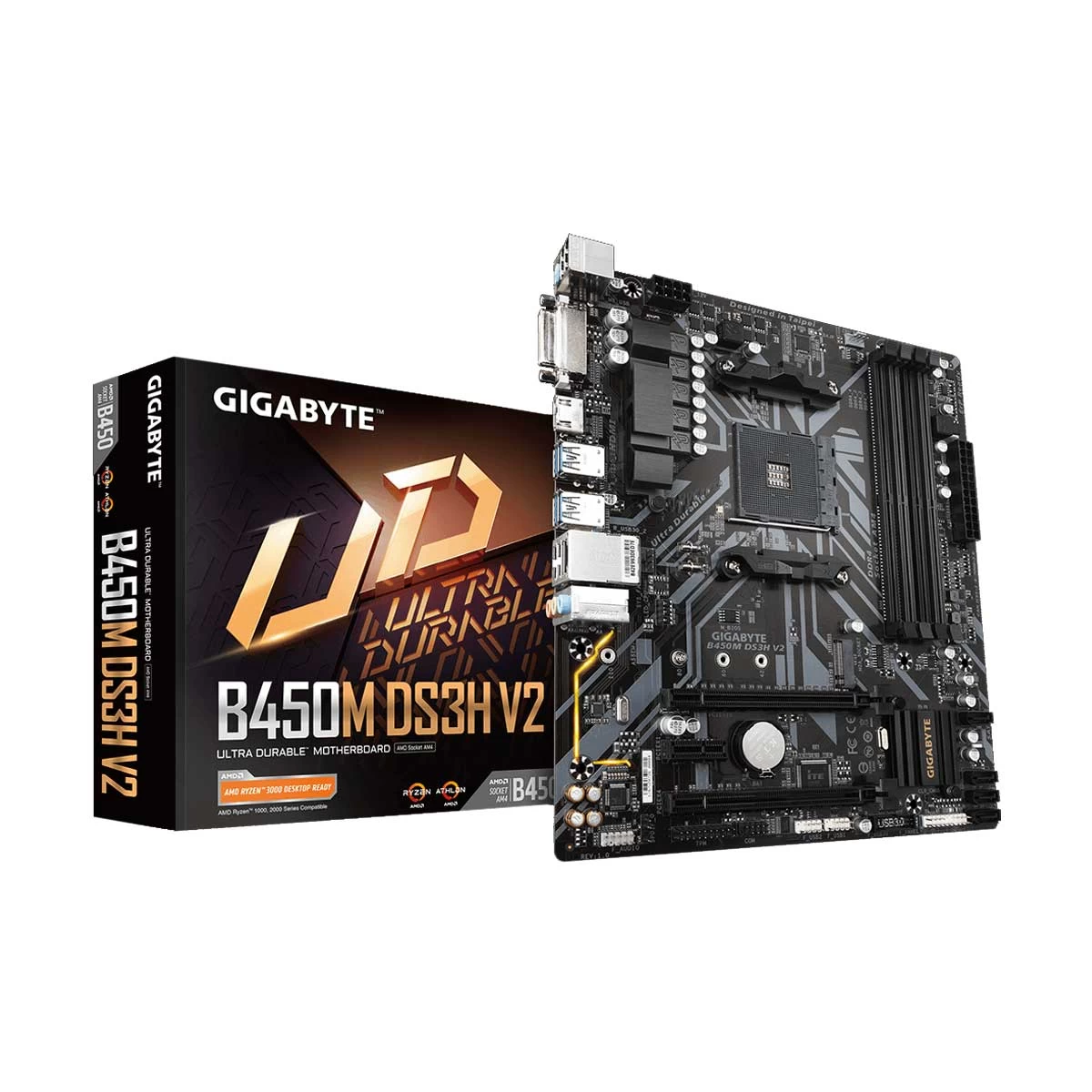

Gigabyte B450M DS3H V2 DDR4 AMD Motherboard

Item: Gigabyte B450M DS3H V2 DDR4 AMD Motherboard
Rating: 5
Author: Verified Buyer

2 reviews

Product Id: 02.02.018.339

Out Of Stock

See similar model

Quick Overview

Form Factor - Micro-ATX
Chipset - AMD B450
Sockets Supported - AM4
Supported CPU - 1st, 2nd and 3rd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics/ Athlon with Radeon Vega Graphics Desktop Processors
Generation - Not Applicable
Memory Slot - 4
Memory Max. - 128GB
Back-Connect Design - No
Body Color - Black

Payment Method Shipping & Charge Order Procedure

Brand

Gigabyte

Model

Gigabyte B450M DS3H V2

Chipset

AMD B450

Sockets Supported

AM4

Built-in Processor

Generation

Not Applicable

Back-Connect Design

Memory Type

DDR4

Memory Slot

Memory Max.

128GB

Optane Memory Support

Graphics

Integrated

Graphics Chipset

Integrated With Processor

M.2/SSD Expansion Slot

WiFi

Bluetooth

Form Factor

Micro-ATX

Supported Operating System

Windows 10

Body Color

Black

Warranty

3 year

General

Brand

Gigabyte

Model

Gigabyte B450M DS3H V2

Body Color

Black

CPU

Chipset Brand

AMD

Chipset

AMD B450

Sockets Supported

AM4

Built-in Processor

Supported CPU

1st, 2nd and 3rd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics/ Athlon with Radeon Vega Graphics Desktop Processors

Generation

Not Applicable

Memory Support

Memory Type

DDR4

Memory MHz

3600(O.C.) / 3466(O.C.) / 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz

Memory Channel

Dual

Memory Slot

Memory Slot (Additional Info)

4 x DIMM

Memory Max.

128GB

Optane Memory Support

Storage

Storage Interface

6.0Gb/s

M.2/SSD Expansion Slot

M.2/SSD Expansion Slot Details

1 x M.2 (Type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD)

M.2/SSD Slot Gen

Up to Gen 3

Graphics

Integrated

Graphics Chipset

Integrated With Processor

Multi-GPU Support

AMD Quad-GPU CrossFire and 2-Way AMD CrossFire

PCI Express Slot

2 x PCI Express x 16, 1 x PCI Express x 1

Audio & Video

Audio Chipset

Realtek ALC887 codec

Audio Channel

2/4/5.1/7.1

Network & Connectivity

LAN Chipset

Realtek GbE LAN chip

LAN Speed (Mbps)

10/100/1000 Mbps

WiFi

WiFi Technology

Bluetooth

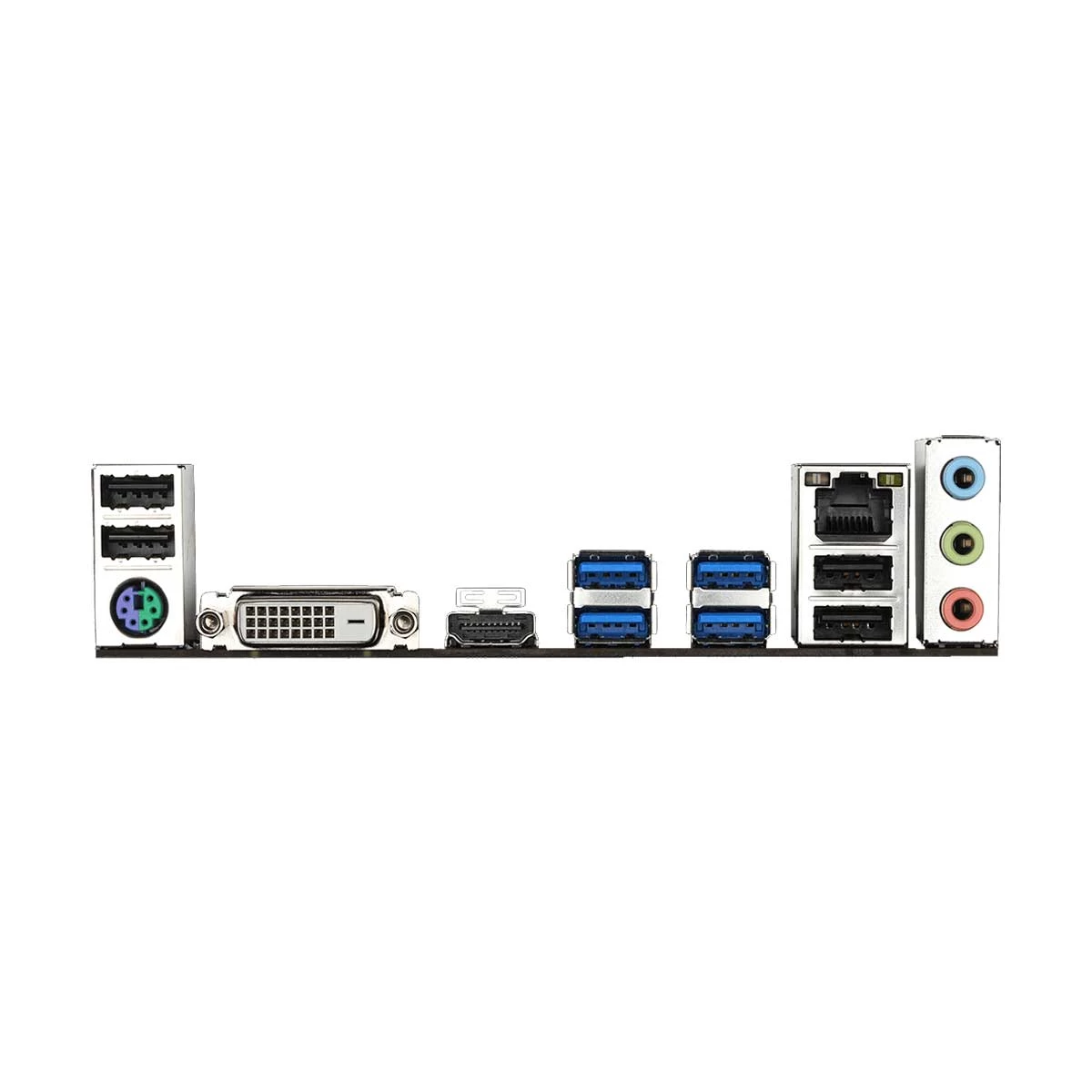

Ports

USB Port

4 x USB2.0/1.1, 4 x USB3.1 Gen 1

VGA Port

DVI Port

HDMI Port

DisplayPort (DP)

IDE Port

SATA Port

4 x SATA

Thunderbolt

TPM Port

Yes

COM Port

Technical Info

Back-Connect Design

Cable Management

Front

Heatsink

FireWire

CrossFire Support

Yes

Sli Support

Raid Support

0, 1, 10

RGB Support

RGB

RGB Sync

RGB Fusion supports RGB LED Strips in 7-Colors

RGB Connector

1 x RGB LED strip header

Approx. Power Consumption

60W

Form Factor

Micro-ATX

Bios Information

BIOS Type

1 x 128 Mbit flash

BIOS Model

AMI UEFI BIOS

BIOS Version

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Compatibility

Supported Operating System

Windows 10

Compatible Products

Supports AM4 Sockets 1st, 2nd and 3rd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics/ Athlon with Radeon Vega Graphics Desktop Processors

Warranty

3 year

Additional Info

Feature

Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs Feature Digital VRM Solution with Low RDS(on) MOSFETs HDMI, DVI-D Ports for Multiple Display Ultra-Fast PCIe Gen3 x4 M.2 with PCIe NVMe & SATA mode support High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management RGB Fusion supports RGB LED Strips in 7-Colors Smart Fan 5 Features 5 Temperature Sensors and 2 Hybrid Fan Headers with FAN STOP

Others

1 x 24-pin ATX main power connector, 1 x 8-pin ATX 12V power connector, 1 x CPU fan header, 1 x system fan header, 1 x M.2 Socket 3 connector, 1 x front panel header, 1 x front panel audio header, 1 x S/PDIF Out header, PCIe Gen3 x4.

Country Of Origin

Taiwan

Made in/ Assemble

China

Details

Features of Gigabyte B450M DS3H V2 Motherboard In Bangladesh

Gigabyte B450M DS3H V2 AMD Motherboard in Bangladesh

Gigabyte B450M DS3H V2 motherboard is a renowned motherboard in Bangladesh. The Gigabyte B450M DS3H V2 AMD Motherboard is an AMD mainboard. The motherboard used an AMD B450 chipset. AM4 Sockets Supported. In this motherboard, you can use an 1st, 2nd and 3rd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics/ Athlon with Radeon Vega Graphics Desktop Processors. The Gigabyte B450M DS3H V2 mainboard has a Dual memory channel and 4 memory slot. It supports DDR4 3600(O.C.) / 3466(O.C.) / 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz ram. Maximum ram supports 128GB. Also, you can use 1 M.2/SSD Expansion Slot. Storage Interface is 6.0Gb/s. Gigabyte B450M DS3H V2 AMD Motherboard comes with Graphics. PCI Express Slot are Two PCI Express x 16, One PCI Express x 1. The here audio chipset used Realtek ALC887 codec. Audio Channel available are 2/4/5.1/7.1, so you can enjoy crystal clear sound. For Network and Connectivity purposes the Gigabyte motherboard offers Realtek GbE LAN chip lan chipset and it’s speeds 1000/100 Mbit. USB port available Four USB2.0/1.1, Four USB3.1 Gen 1. Also, you will get VGA Port, DVI Port,HDMI Port, SATA Port and TPM Port. . It’s a Micro ATX motherboard. Yes it’s a RGB support motherboard, also you can RGB Connector RGB connector. The Gigabyte B450M DS3H V2 AMD Motherboard supported operating system is Windows 10 You will get a 3 year brand warranty.

What is the Gigabyte B450M DS3H V2 motherboard Price in Bangladesh?

The Gigabyte B450M DS3H V2 motherboard Price in Bangladesh is given upper. Ryans computers offer Gigabyte B450M DS3H V2 AMD Motherboard is the competitive price in BD. You can purchase it from our website or computer shop.

What is the price of Gigabyte B450M DS3H V2 Motherboard In Bangladesh?

The price of Gigabyte B450M DS3H V2 Motherboard not mentioned for stock unavailability.The price may vary due to your customization and product availability. You can buy Gigabyte B450M DS3H V2 Motherboard from our website or visit our showrooms nearby.
