1 x PCI Express x 16 (PCIEX16), 1 x PCI Express x 1
Audio & Video
Audio Chipset
Realtek Audio CODEC
Audio Channel
2/4/5.1/7.1
Network & Connectivity
LAN Chipset
Realtek 2.5GbE LAN
LAN Speed (Mbps)
10/ 100/ 1000/ 2500Mbps
WiFi
Yes
WiFi Technology
AzureWave Wi-Fi AW-CB304NF (Realtek RTL8821CE)
Bluetooth
Bluetooth 4.2
Ports
USB Port
4 x USB 2.0/1.1, 2 x USB 3.2 Gen 1
VGA Port
1
DVI Port
No
HDMI Port
1
DisplayPort (DP)
No
SATA Port
4 x SATA
Thunderbolt
No
TPM Port
1
COM Port
No
Technical Info
Back-Connect Design
No
Cable Management
Front
Heatsink
No
CrossFire Support
No
Sli Support
No
Raid Support
0, 1, 10
RGB Support
ARGB
RGB Connector
2 x addressable LED strip headers, 1 x RGB LED strip header
Approx. Power Consumption
60W
Form Factor
Micro-ATX
Bios Information
BIOS Type
1 x 256 Mbit flash
BIOS Model
AMI UEFI BIOS
BIOS Version
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Compatibility
Supported Operating System
Windows 11, 10
Warranty
Warranty
3 year
Additional Info
Feature

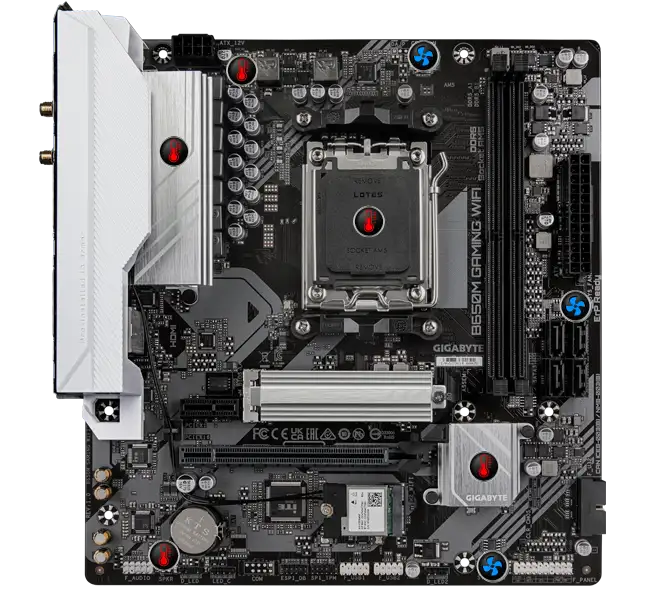

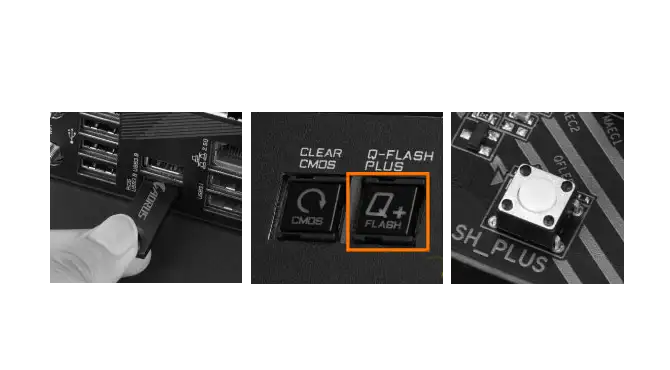

Unparalleled Performance: 5+2+2 Phases Digital VRM Solution. EZ-Latch: PCIe x16 Slot with Quick Release Design. Smart Fan 6: Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP. Q-Flash Plus: Update BIOS Without Installing the CPU, Memory and Graphics Card.
Others

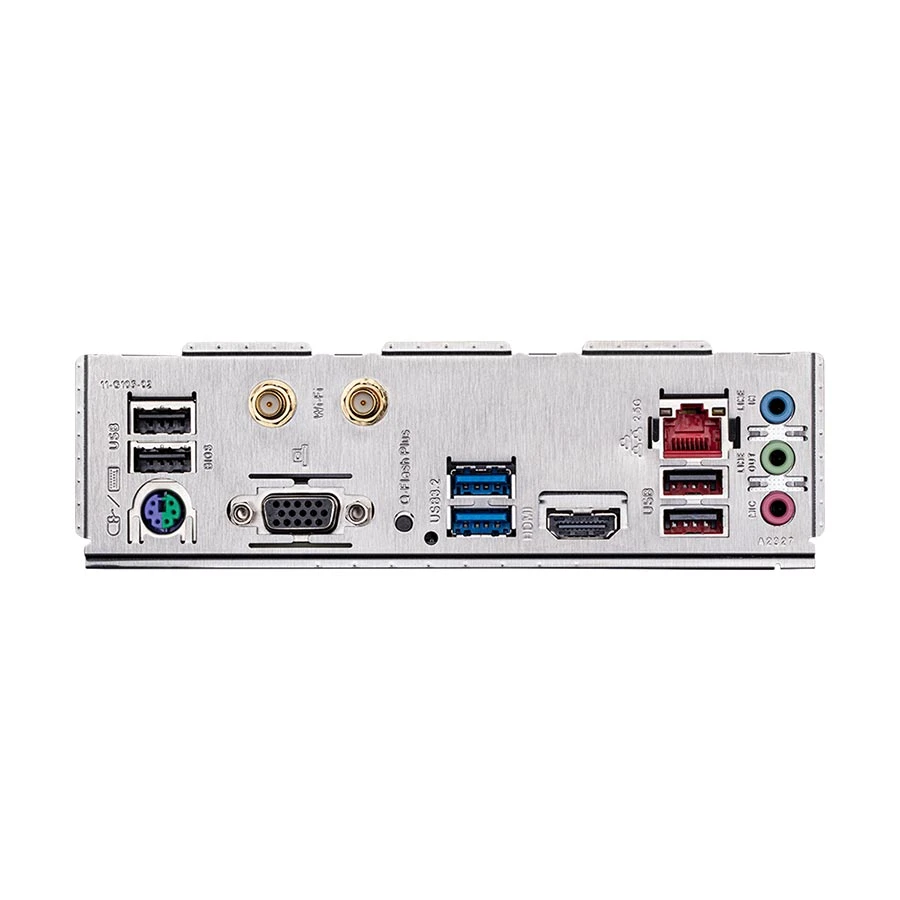

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules, Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme, High Definition Audio, WIFI 802.11 a, b, g, n, ac, supporting 2.4/5 GHz Dual-Band, Back Panel Connectors: 1 x PS/2 keyboard/mouse port, 1 x D-Sub port, 1 x Q-Flash Plus button, 1 x RJ-45 port, 3 x audio jacks, Internal I/O Connectors: 1 x 24-pin ATX main power connector, 1 x 8-pin ATX 12V power connector, 1 x CPU fan header, 2 x system fan headers, 1 x front panel header, 1 x front panel audio header, 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/ GC-TPM2.0 SPI V2 module only), 1 x Clear CMOS jumper.
Country Of Origin
Taiwan
Made in/ Assemble
China
