Brand

Gigabyte

Model

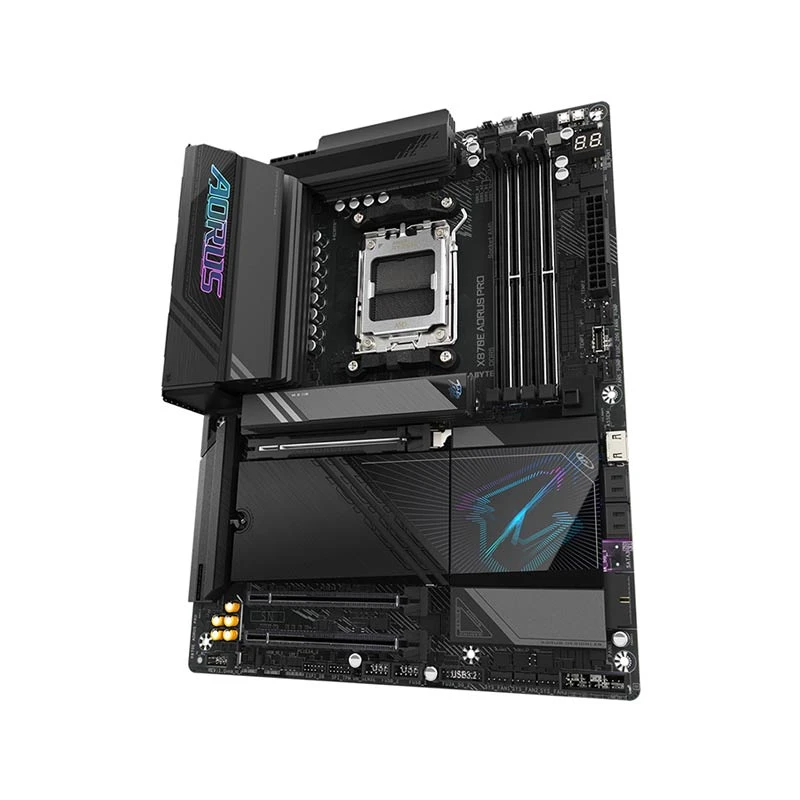

Gigabyte X870E AORUS PRO (1.0/1.1) (Wi-Fi 7)

Chipset

AMD X870E

Sockets Supported

AM5

Built-in Processor

Generation

Not Applicable

Back-Connect Design

Memory Type

DDR5

Memory Slot

Memory Max.

256GB

Optane Memory Support

Graphics

Integrated

Graphics Chipset

Integrated With Processor

M.2/SSD Expansion Slot

WiFi

Yes

Bluetooth

Bluetooth 5.4

Form Factor

ATX

Supported Operating System

Windows 11

Body Color

Black

Warranty Details

3 year

General

Brand

Gigabyte

Model

Gigabyte X870E AORUS PRO (1.0/1.1) (Wi-Fi 7)

Body Color

Black

Part No

X870E AORUS PRO

CPU

Chipset Brand

AMD

Chipset

AMD X870E

Sockets Supported

AM5

Built-in Processor

Supported CPU

AMD Ryzen 9000 Series Processors/ AMD Ryzen 8000 Series Processors/ AMD Ryzen 7000 Series Processors

Generation

Not Applicable

Memory Support

Memory Type

DDR5

Memory MHz

8200(OC) / 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules

Memory Channel

Dual

Memory Slot

Memory Slot (Additional Info)

Memory Max.

256GB

Optane Memory Support

Storage

Storage Interface

6.0Gb/s

M.2/SSD Expansion Slot

M.2/SSD Expansion Slot Details

4 x M.2 (1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSD, 2 x M.2 connectors (M2B_CPU, M2C_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSD, 1 x M.2 connector (M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD)

M.2/SSD Slot Gen

Up to Gen 5

Graphics

Integrated

Graphics Chipset

Integrated With Processor

Multi-GPU Support

PCI Express Slot

1x PCI Express x16 slot (PCIEX16), 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4_1), 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4_2)

Audio & Video

Audio Chipset

Realtek ALC1220 CODEC

Audio Channel

2/4/5.1/7.1

Network & Connectivity

LAN Chipset

Realtek 2.5GbE LAN

LAN Speed (Mbps)

10/ 100/ 1000/ 2500Mbps

WiFi

Yes

WiFi Technology

Qualcomm Wi-Fi 7 QCNCM865

Bluetooth

Bluetooth 5.4

Ports

USB Port

2 x USB 2.0/1.1 Type-A, 4 x USB 3.2 Gen Type-A, 2 x USB4 USB Type-C port (DisplayPort (Note)), 3 x USB 3.2 Gen 2 Type-A ports (red)

VGA Port

DVI Port

HDMI Port

DisplayPort (DP)

SATA Port

4 x SATA

Thunderbolt

Technical Info

Back-Connect Design

Cable Management

Front

Heatsink

Yes

CrossFire Support

Sli Support

Raid Support

0, 1, 5, 10

RGB Support

ARGB

RGB Connector

3 x addressable RGB Gen2 LED strip headers, 1 x RGB LED strip header

Approx. Power Consumption

70W

Form Factor

ATX

Bios Information

BIOS Type

1 x 256 Mbit flash

BIOS Model

AMI UEFI BIOS

BIOS Version

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Compatibility

Supported Operating System

Windows 11

Compatible Products

AM5 Socket Amd Ryzen 7000/ Ryzen 8000/ Ryzen 9000 Series Processors

Warranty

Warranty Details

3 year

Additional Info

Feature

Support for GIGABYTE Control Center (GCC), Support for Q-Flash, Support for Q-Flash Plus, Support for Smart Backup. VRM Thermal Armor Advanced, Smart Fan 6, AORUS AI SNATCH Bullet Point, Auto DDR5 Memory Boost, One-Click Acceleration: Real time Analyze, OC accuracy UP, EZ to Pro, Zenith of the Memory. ORUS motherboards come with advanced full-metal thermal design and durable heatsinks to keep your system cool and efficient.

Others

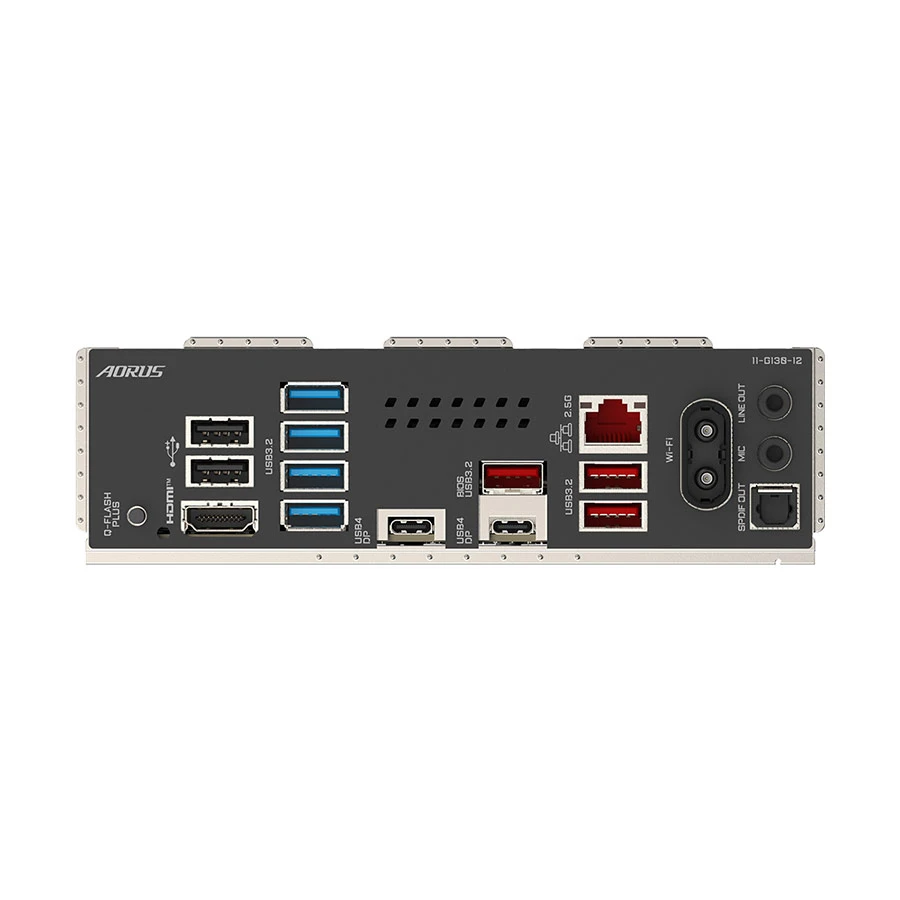

High Definition Audio, Internal I/O Connectors: 1 x 24-pin ATX main power connector, 2 x 8-pin ATX 12V power connectors, 1 x CPU fan header, 1 x CPU fan/water cooling pump header, 4 x system fan headers, 2 x system fan/water cooling pump headers, 3 x addressable RGB Gen2 LED strip headers, 1 x RGB LED strip header, 4 x SATA 6Gb/s connectors, 1 x front panel header, 1 x front panel audio header, 1 x USB Type-C header, with USB 3.2 Gen 2x2 support, 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI2.0/GC-TPM2.0 SPI V2 module only), 1 x power button, 1 x reset button, 2 x temperature sensor headers, 1 x reset jumper, 1 x Clear CMOS jumper, Back Panel Connectors: 1 x Q-Flash Plus button, 1 x RJ-45 port, 2 x antenna connectors (2T2R), 1 x optical S/PDIF Out connector, 2 x audio jacks. I/O Controller: iTE I/O Controller Chip, H/W Monitoring: Voltage detection, Temperature detection, Fan speed detection, Water cooling flow rate detection, Fan fail warning, Fan speed control, Noise detection.

Country Of Origin

Taiwan

Made in/ Assemble

China

Details

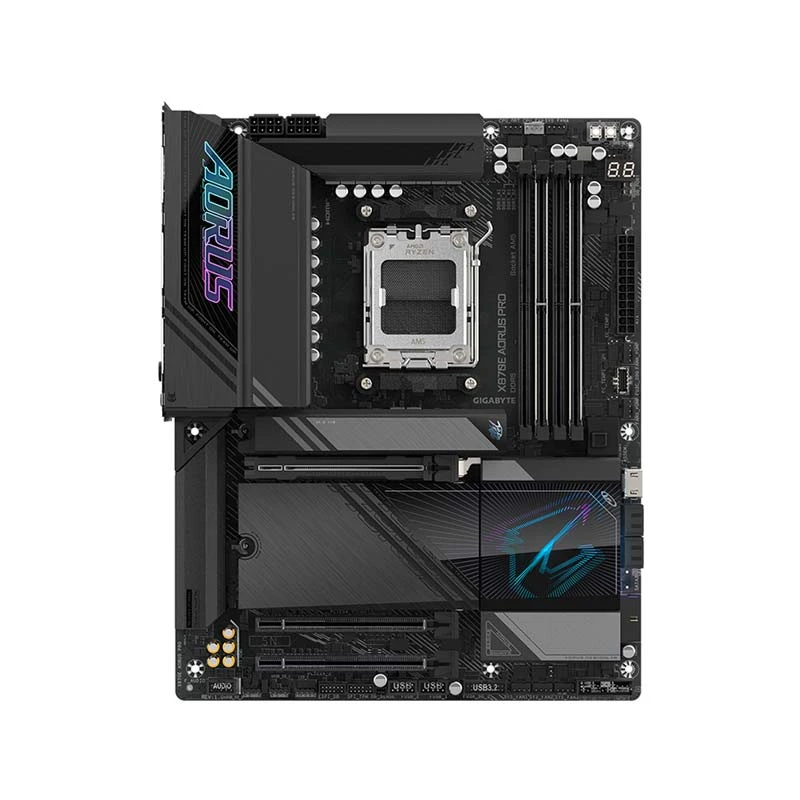

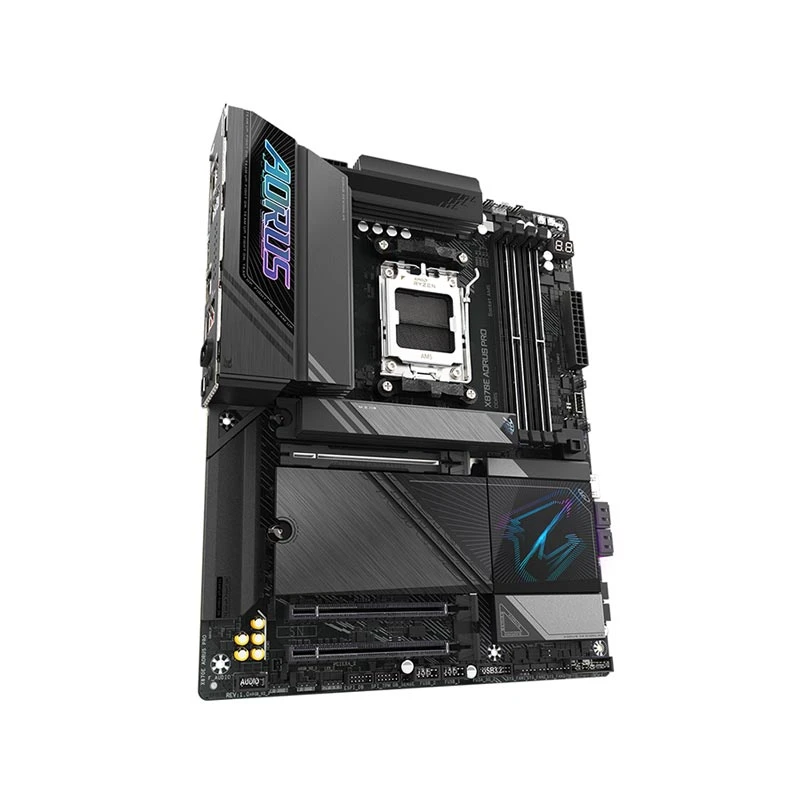

Features of Gigabyte X870E AORUS PRO (1.0/1.1) (Wi-Fi 7) Motherboard In Bangladesh

The Gigabyte X870E AORUS PRO is a high-end gaming motherboard designed for professionals and gamers who want unmatched speed and reliability. Built with Wi-Fi 7 and DDR5 support, this motherboard ensures next-generation connectivity and faster performance for smooth multitasking, gaming, and content creation.

Why This Motherboard is Special

This motherboard stands out because of its premium build quality, advanced thermal design, and PCIe 5.0 support. With Wi-Fi 7, users get faster internet speeds, reduced latency, and a more stable connection. The robust power delivery system ensures that even the latest AMD Ryzen processors run at their full potential.

Features to Notice Before Buying

Before buying, you should notice:

DDR5 Memory Support for higher speed and efficiency.
Wi-Fi 7 Technology for ultra-fast wireless connectivity.
PCIe 5.0 Slots for next-gen graphics and storage.
Smart Fan 6 Technology for better cooling and quiet operation.
Robust VRM Design for stable CPU performance.

Why Choose Ryans Computers

Ryans Computers offers genuine Gigabyte motherboards at competitive prices. You also get expert advice, after-sales support, and warranty facilities, making it the best place to purchase your X870E AORUS PRO.

Call to Action

Upgrade your gaming rig today with the Gigabyte X870E AORUS PRO. Buy now from Ryans Computers for the best price and reliable support.

FAQs

Q1: Does this motherboard support overclocking? Yes, it supports AMD Ryzen overclocking with stable power delivery.

Q2: Can I use DDR4 RAM with this motherboard? No, it only supports DDR5 RAM.

Q3: Is Wi-Fi 7 better than Wi-Fi 6E? Yes, Wi-Fi 7 offers faster speed, lower latency, and improved stability.

What is the price of Gigabyte X870E AORUS PRO (1.0/1.1) (Wi-Fi 7) Motherboard In Bangladesh?

The price of Gigabyte X870E AORUS PRO (1.0/1.1) (Wi-Fi 7) Motherboard starts from 55,000 . The price may vary due to your customization and product availability. You can buy Gigabyte X870E AORUS PRO (1.0/1.1) (Wi-Fi 7) Motherboard from our website or visit our showrooms nearby.
