3 x M.2 (1 x PCIe 5.0 M.2 UD Slot, 2 x PCIe 4.0 M.2 Slots)
M.2/SSD Slot Gen
Up to Gen 5
Graphics
Graphics
Integrated
Graphics Chipset
AMD Radeon Graphics support
Multi-GPU Support
No
PCI Express Slot
1 x PCIe 5.0 x16 with PCIe UD Slot, 2 x PCIe 3.0 x1 slots
Audio & Video
Audio Chipset
Realtek Audio CODEC, High Definition Audio
Audio Channel
7.1
Network & Connectivity
LAN Chipset
Realtek 2.5GbE LAN chip
LAN Speed (Mbps)
100/ 1000/ 2500Mbps
WiFi
Yes
WiFi Technology
Wi-Fi 7
Bluetooth
Bluetooth 5.4
Ports
USB Port

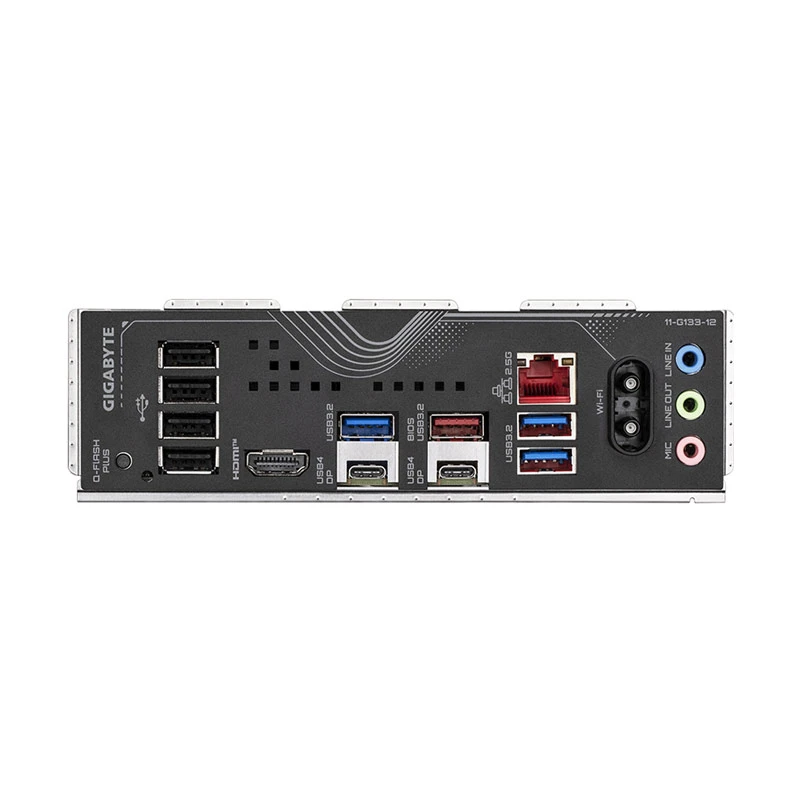

2 x USB4 USB Type-C ports (DisplayPort), 1 x USB 3.2 Gen 2 Type-A port (red), 3 x USB 3.2 Gen 1 ports, 4 x USB 2.0/1.1 ports
VGA Port
No
DVI Port
No
HDMI Port
1
DisplayPort (DP)
No
SATA Port
4
Thunderbolt
No
TPM Port
1
Technical Info
Back-Connect Design
No
Cable Management
Front
Heatsink
Yes
FireWire
No
CrossFire Support
No
Sli Support
No
Raid Support
0, 1, 5, 10
RGB Support
RGB
Approx. Power Consumption
70W
Form Factor
ATX
Bios Information
BIOS Type
1 x 256 Mbit flash
BIOS Model
AMI UEFI BIOS
BIOS Version
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Compatibility
Supported Operating System
Windows 11
Compatible Products
AMD Socket AM5, support for: AMD Ryzen 9000/ 8000/ 7000 Series Processors
Warranty
Warranty
3 year
Additional Info
Feature
Digital twin 14+2+2-phase VRM solution, Dual Channel DDR5: 4 x DIMMs with AMD EXPO Memory Module Support, WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation, EZ-Latch Plus: PCIe and M.2 slots with Quick Release & Screwless Design, EZ-Latch Click: M.2 heatsinks with screwless design, Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW. Ultra-Fast Storage: 3 x M.2 slots, including 1x PCIe 5.0 x4, Efficient Thermal: VRM Thermal Armor Advanced & M.2 Thermal Guard, Fast Networking: 2.5GbE LAN & Wi-Fi 7 with Ultra-high Gain Antenna, Extended Connectivity: Dual USB4 Type-C with DP-Alt, HDMI
Others
I/O Controller: iTE I/O Controller Chip, H/W Monitoring: Voltage detection, Temperature detection, Fan speed detection, Water cooling flow rate detection, Fan fail warning, Fan speed control, Unique Features: Support for GIGABYTE Control Center (GCC), Support for Q-Flash, Support for Q-Flash Plus, Support for Smart Backup, Bundled Software: Norton Internet Security (OEM version), LAN bandwidth management software
Country Of Origin
Taiwan
Made in/ Assemble
China
