Brand

Asus

Model

Asus TUF GAMING B850-PRO W NEO (Wi-Fi 7)

Chipset

AMD B850

Sockets Supported

AM5

Built-in Processor

Generation

Not Applicable

Back-Connect Design

Memory Type

DDR5

Memory Slot

Memory Max.

256GB

Optane Memory Support

Graphics

Integrated

Graphics Chipset

Integrated With Processor

M.2/SSD Expansion Slot

WiFi

Yes

Bluetooth

Bluetooth 5.4

Form Factor

ATX

Supported Operating System

Windows 11

Body Color

White

Warranty

3 Year Replacement

General

Brand

Asus

Model

Asus TUF GAMING B850-PRO W NEO (Wi-Fi 7)

Body Color

White

Part No

TUF GAMING B850-PRO WIFI7 W NEO

CPU

Chipset Brand

AMD

Chipset

AMD B850

Sockets Supported

AM5

Built-in Processor

Supported CPU

AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors

Generation

Not Applicable

Memory Support

Memory Type

DDR5

Memory MHz

Up to 8400+MT/s(OC)/8200+MT/s(OC) with Ryzen 9000 Series Processors, 9000+MT/s(OC)/8600+MT/s(OC) with Ryzen 8000 Series Processors, 8000+MT/s(OC)/8000+MT/s(OC) with Ryzen 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM.

Memory Channel

Dual

Memory Slot

Memory Slot (Additional Info)

4 x DIMM Slot

Memory Max.

256GB

Optane Memory Support

Storage

Storage Interface

6.0Gb/s

M.2/SSD Expansion Slot

M.2/SSD Expansion Slot Details

3 x M.2 Slot (AMD Ryzen 9000 & 7000 Series Processors: M.2_1 slot Key M, type 2280 supports PCIe 5.0 x4 mode, M.2_2 slot Key M, type 2242/2260/2280/22110 supports PCIe 4.0 x4 mode. AMD Ryzen 8000 Series Desktop Processors: M.2_1 slot Key M, type 2280, supports PCIe 4.0 x4 mode, M.2_2 slot Key M, type 2242/2260/2280/22110 supports PCIe 4.0 x4/x2 mode. M.2_3 slot Key M, type 2280 supports PCIe 4.0 x4 mode)

M.2/SSD Slot Gen

Up to Gen 5

Graphics

Integrated

Graphics Chipset

Integrated With Processor

PCI Express Slot

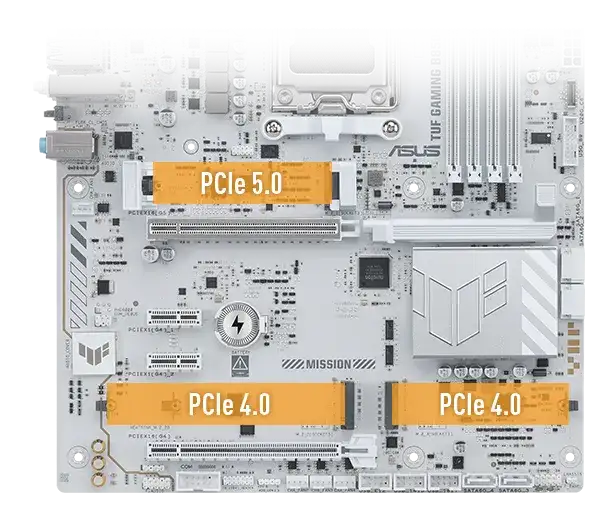

1 x PCIe 5.0 x16 SafeSlot, 1 x PCIe 4.0 x16 Slot (max x4), 2 x PCIe 4.0 x1 Slots.

Network & Connectivity

LAN Speed (Mbps)

10/100/1000/2500Mbps

WiFi

Yes

WiFi Technology

Wi-Fi 7: Realtek RTL8922AE, 2x2 802.11be, 2.4/5/6GHz Frequency Band, 160MHz Bandwidth.

Bluetooth

Bluetooth 5.4

Ports

USB Port

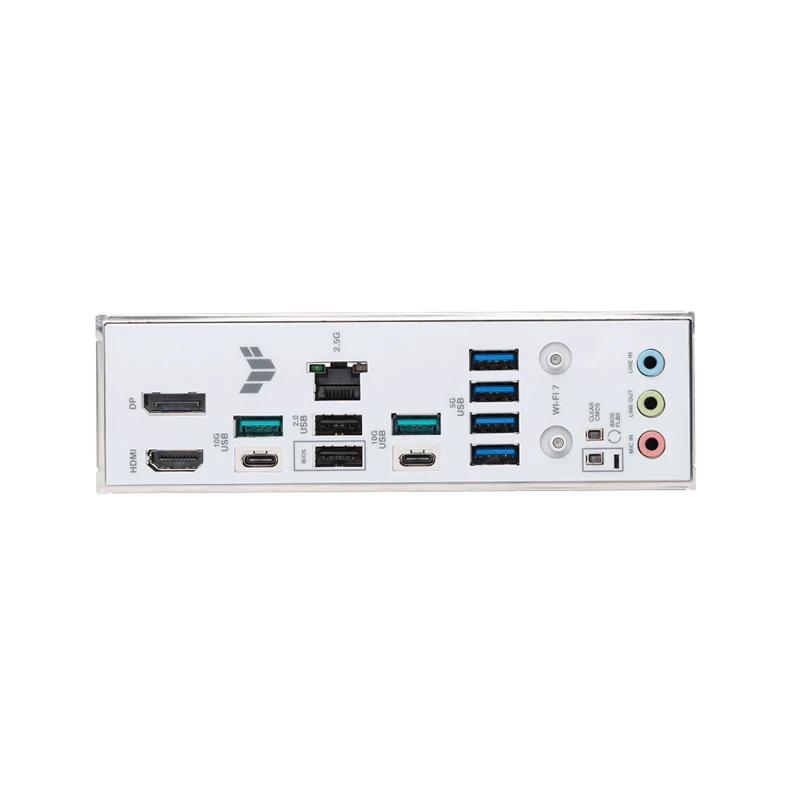

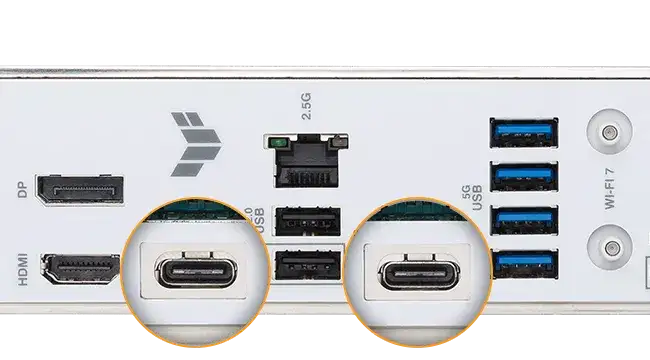

4 x USB 10Gbps ports (2 x Type-A + 2 x USB Type-C), 4 x USB 5Gbps ports (4 x Type-A), 2 x USB 2.0 ports (2 x Type-A).

VGA Port

DVI Port

HDMI Port

DisplayPort (DP)

SATA Port

Thunderbolt

COM Port

1 x COM Port header

Technical Info

Back-Connect Design

Cable Management

Front

Heatsink

Yes

CrossFire Support

Sli Support

Raid Support

RAID 0/1/5/10

RGB Support

ARGB

RGB Sync

Aura Sync

RGB Connector

3 x Addressable RGB Gen 2 headers

Approx. Power Consumption

70W

Form Factor

ATX

Bios Information

BIOS Type

64MB (512Mb) Flash ROM

BIOS Model

UEFI AMI BIOS

Compatibility

Supported Operating System

Windows 11

Compatible Products

AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors

Warranty

3 Year Replacement

Additional Info

Feature

Dual channel memory architecture. Supports AMD Extended Profiles for Overclocking (EXPO). ASUS Enhanced Memory Profile (AEMP). Supports max. 8K 30Hz as specified in DisplayPort 1.4. Supports 4K 60Hz as specified in HDMI 2.1. AMD RAIDXpert2 Technology. Ryzen 9000 & 8000 & 7000 Series Processors: RAID 0/1/5/10. Realtek 2.5Gb Ethernet, TUF LANGuard. Audio Shielding. Premium audio capacitors. Dedicated audio PCB layers. Audio cover. Unique de-pop circuit. A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio. Asynchronous Clock. ASUS TUF PROTECTION. DIGI+ VRM (- Digital power design with DrMOS). ESD Guards. TUF LANGuard. Overvoltage protection. SafeSlot. Stainless-steel back I/O. ASUS Q-Design. M.2 Q-Latch. M.2 Q-Release. PCIe Slot Q-Release. Q-Antenna. Q-Dashboard. Q-DIMM. Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]). Q-Slot. ASUS Thermal Solution. M.2 heatsink. VRM heatsink design. ASUS EZ DIY. BIOS FlashBack button. BIOS FlashBack LED. Clear CMOS button. ProCool. Pre-mounted I/O shield. Aura Sync Addressable RGB Gen 2 headers.

Others

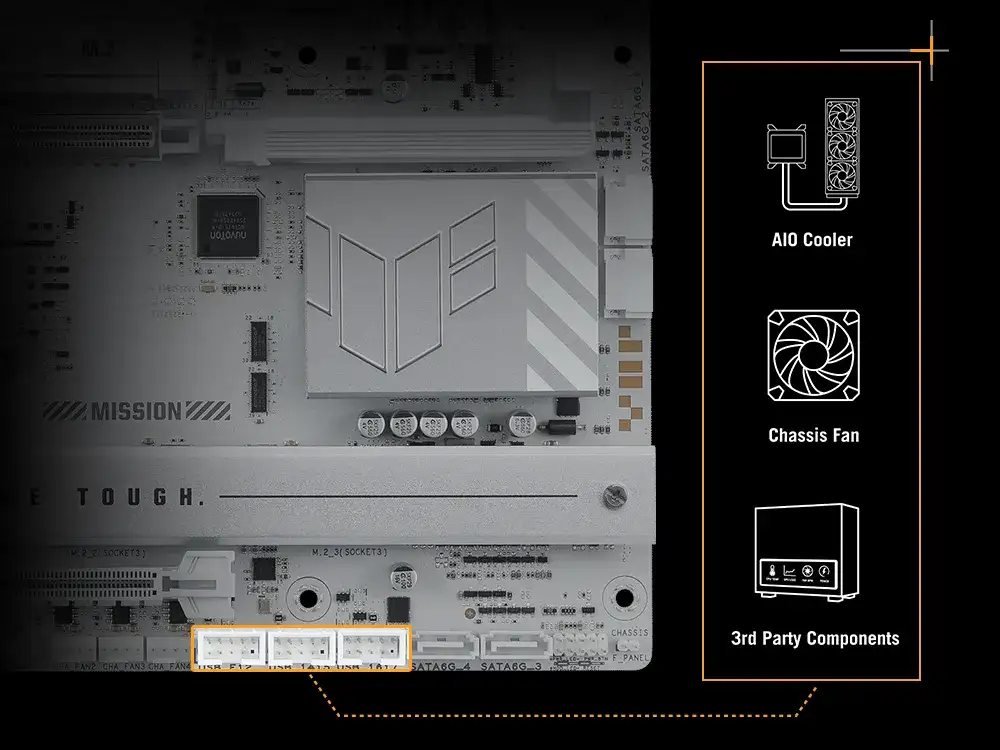

Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC. Impedance sense for front and rear headphone outputs. Internal audio Amplifier to enhance the highest quality sound for headphone and speakers. Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking. High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in). Supports up to 32-Bit/192 kHz playback. Manageability: WOL by PME, PXE. Accessories: Cables, 2 x SATA 6Gb/s cables, Miscellaneous- 1 x ASUS WiFi Q-Antenna, 1 x TUF Gaming sticker, 2 x M.2 rubber packages, Documentation, 1 x Quick start guide, Back Panel I/O Ports, 4 x USB 10Gbps ports (2 x Type-A + 2 x USB Type-C), 4 x USB 5Gbps ports (4 x Type-A), 2 x USB 2.0 ports (2 x Type-A), 1 x DisplayPort, 1 x HDMI port, 1 x Wi-Fi module, 1 x Realtek 2.5Gb Ethernet port, 3 x Audio jacks, 1 x BIOS FlashBack button, 1 x Clear CMOS button, Internal I/O Connectors: Fan and Cooling Related, 1 x 4-pin CPU Fan header, 1 x 4-pin CPU OPT Fan header, 1 x 4-pin AIO Pump header, 4 x 4-pin Chassis Fan headers, Power Related: 1 x 24-pin Main Power connector, 2 x 8-pin +12V CPU Power connectors, Storage Related: 3 x M.2 slots (Key M), 4 x SATA 6Gb/s ports, USB: 1 x USB 20Gbps connector (supports USB Type-C), 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports, 3 x USB 2.0 headers support 6 additional USB 2.0 ports, Miscellaneous: 3 x Addressable RGB Gen 2 headers, 1 x Chassis Intrusion header, 1 x COM Port header, 1 x Front Panel Audio header (F_AUDIO), 1 x S/PDIF Out header, 1 x 10-1 pin Front Panel System header, 1 x Thunderbolt (USB4) header.

Details

Features of Asus TUF GAMING B850-PRO W NEO (Wi-Fi 7) Motherboard In Bangladesh

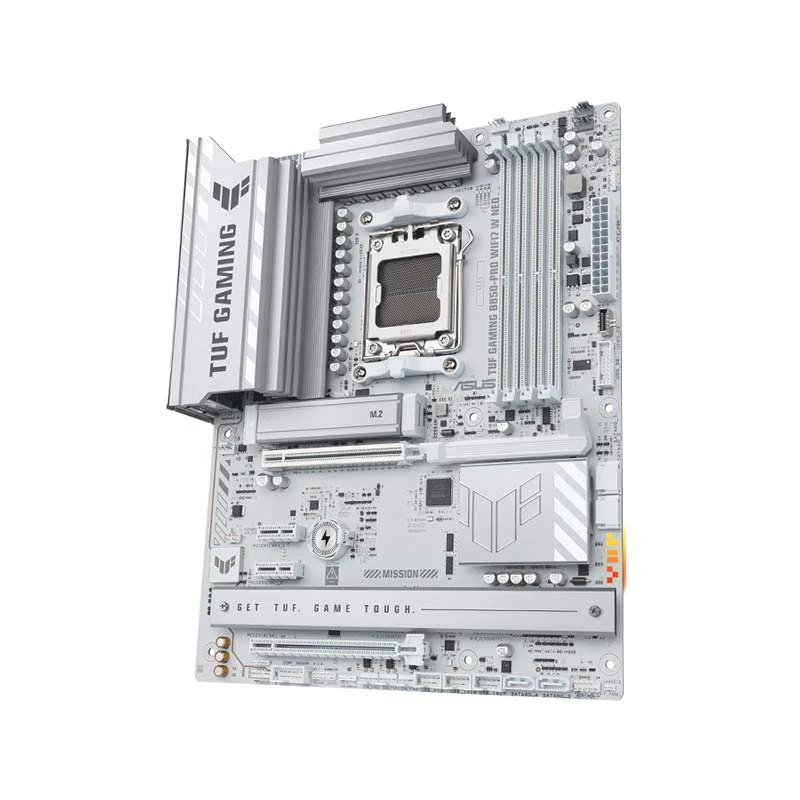

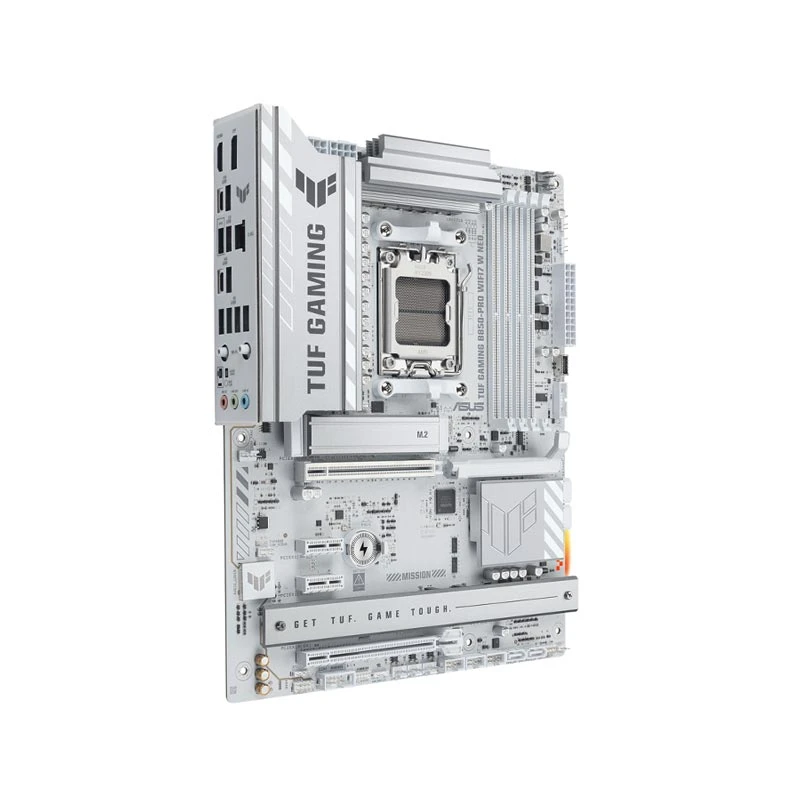

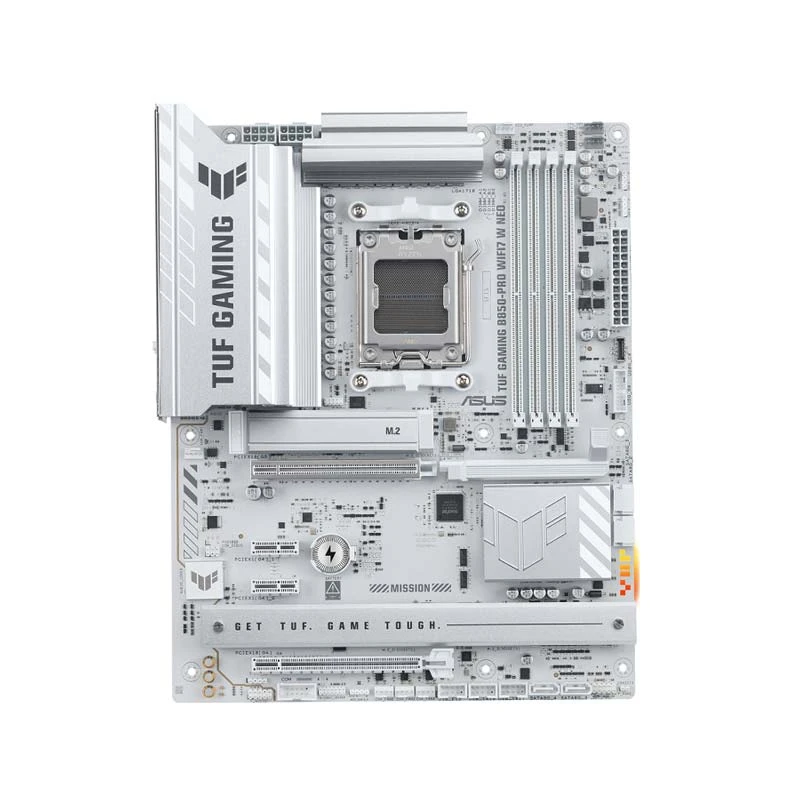

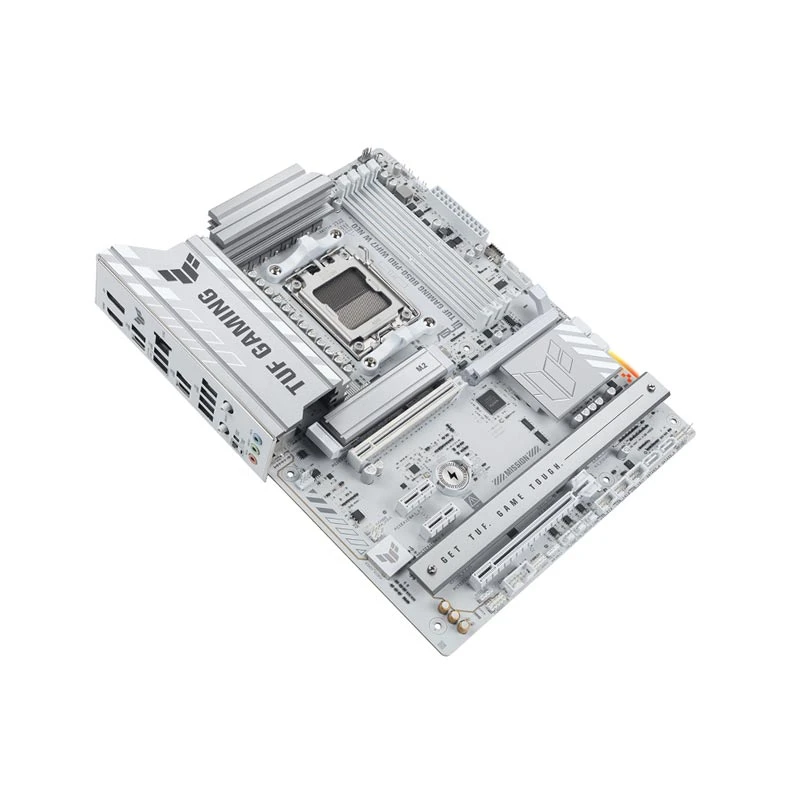

Asus TUF GAMING B850-PRO W NEO Motherboard is built for AMD AM5 processors. It uses the AMD B850 chipset and supports DDR5 memory. It has four memory slots and can handle up to 256GB RAM. The motherboard comes with an ATX form factor and a white body color. It supports integrated graphics through the processor. It also includes three M.2 slots for SSD expansion. WiFi 7 is built in for fast wireless connection. The Asus TUF GAMING B850-PRO W NEO Motherboard gives support for storage, memory, and wireless connectivity in one board. It delivers stable performance for gaming, work, and everyday use with modern connectivity and support features options.

What Makes The Asus TUF GAMING B850-PRO W NEO Motherboard Special?

The Asus TUF GAMING B850-PRO W NEO Motherboard stands out with its modern platform and connectivity. It supports AMD AM5 processors and uses the B850 chipset. DDR5 memory support allows faster performance and better efficiency. With four memory slots, it can reach up to 256GB RAM. The board includes three M.2 slots for fast SSD storage expansion. WiFi 7 provides strong and fast wireless internet. Bluetooth 5.4 allows easy connection with devices. It uses an ATX form factor for standard PC cases. The white body color gives a clean look. Integrated graphics support comes through the processor.

Who Should Buy The Asus TUF GAMING B850-PRO W NEO Motherboard

Users who want a modern AMD AM5 platform can consider the Asus TUF GAMING B850-PRO W NEO Motherboard. It is suitable for people building a new desktop PC with DDR5 memory support. It works well for users who need strong storage options with M.2 SSD slots. It is also good for those who want fast wireless connection with WiFi 7 and Bluetooth 5.4. The motherboard is a good choice for gamers and everyday users who want stable performance. It fits standard ATX cases. It supports Windows 11. It is not for users who need a built-in processor system support.

Is The Asus TUF GAMING B850-PRO W NEO Motherboard Worth Buying?

Yes,this Motherboard is worth buying for users who want a modern and stable AMD platform. It supports AM5 processors and uses the B850 chipset. DDR5 memory support gives better speed and performance. With four memory slots and up to 256GB capacity, it allows strong system upgrades. Overall, it is a balanced motherboard for gaming, work, and everyday use. The Asus TUF GAMING B850-PRO W NEO Motherboard offers modern features and stable performance in one package for all users. If you're looking to buy the Asus TUF GAMING B850-PRO W NEO Motherboard in Bangladesh, Ryans Computers offers the best price in the market.

What is the price of Asus TUF GAMING B850-PRO W NEO (Wi-Fi 7) Motherboard In Bangladesh?

The price of Asus TUF GAMING B850-PRO W NEO (Wi-Fi 7) Motherboard starts from 42,200 . The price may vary due to your customization and product availability. You can buy Asus TUF GAMING B850-PRO W NEO (Wi-Fi 7) Motherboard from our website or visit our showrooms nearby.
