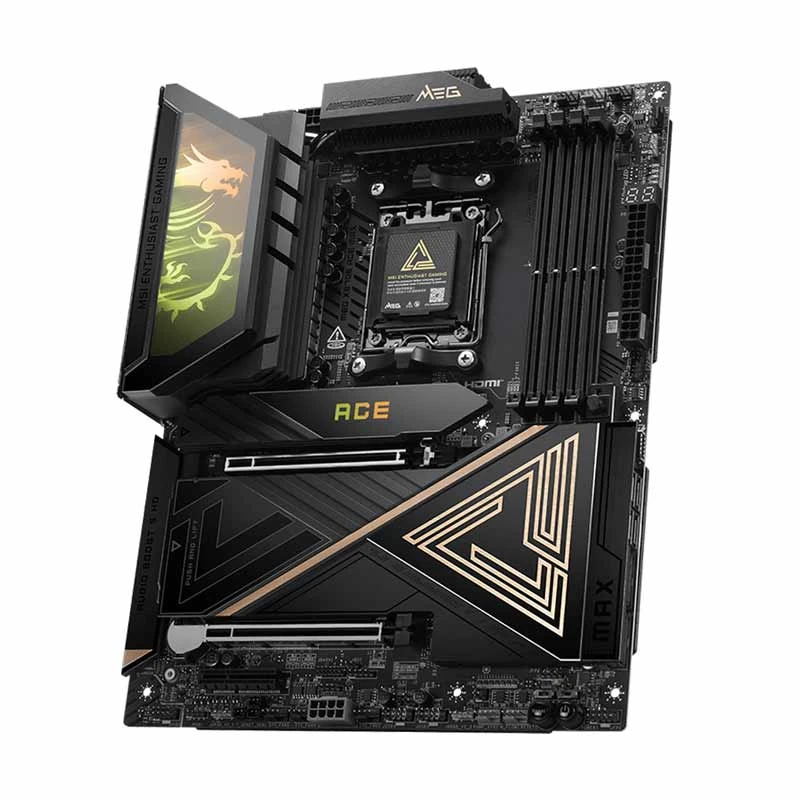

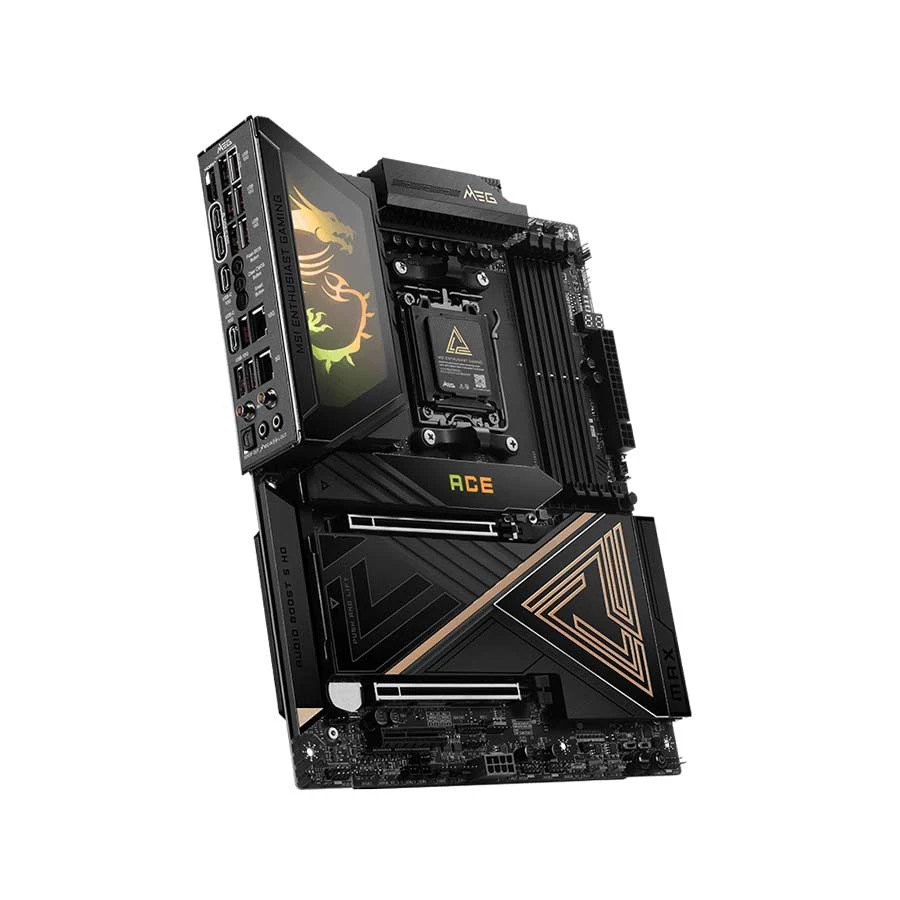

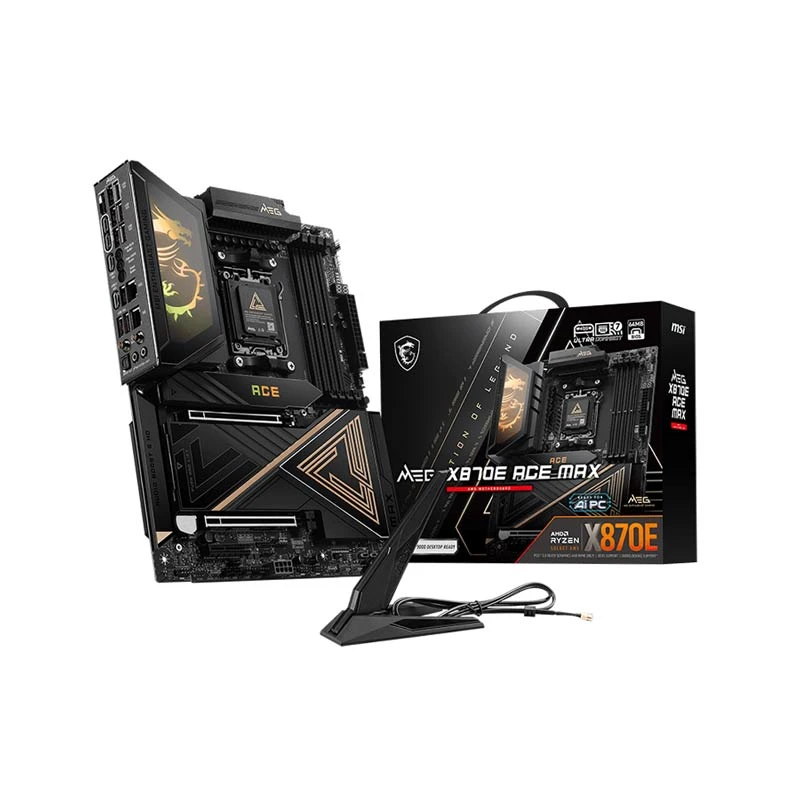

MSI MEG X870E ACE MAX Wi-Fi 7 DDR5 AMD AM5 Socket Gaming Motherboard

Item: MSI MEG X870E ACE MAX Wi-Fi 7 DDR5 AMD AM5 Socket Gaming Motherboard
Rating: 5
Author: Verified Buyer

Product Id: 02.02.033.596

Special Price
Tk 95,000

Regular Price

Tk 103,080

EMI TK 8,590

Delivery in 1 days

Quick Overview

Form Factor - ATX
Chipset - AMD X870E
Sockets Supported - AM5
Supported CPU - AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors
Generation - Not Applicable
Memory Slot - 4
Memory Max. - 256GB
Back-Connect Design - No
Body Color - Black

Avail EMI Offer

EMI starts from Tk 11,453/months

Payment Method Shipping & Charge Order Procedure

Brand

MSI

Model

MSI MEG X870E ACE MAX (Wi-Fi 7)

Chipset

AMD X870E

Sockets Supported

AM5

Built-in Processor

Generation

Not Applicable

Back-Connect Design

Memory Type

DDR5

Memory Slot

Memory Max.

256GB

Optane Memory Support

Graphics

Integrated

Graphics Chipset

Integrated With Processor

M.2/SSD Expansion Slot

WiFi

Yes

Bluetooth

Bluetooth 5.4

Form Factor

ATX

Supported Operating System

Windows 11

Body Color

Black

Warranty

3 year

General

Brand

MSI

Model

MSI MEG X870E ACE MAX (Wi-Fi 7)

Body Color

Black

CPU

Chipset Brand

AMD

Chipset

AMD X870E

Sockets Supported

AM5

Built-in Processor

Supported CPU

AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors

Generation

Not Applicable

Memory Support

Memory Type

DDR5

Memory MHz

9000 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s

Memory Channel

Memory Slot

Memory Max.

256GB

Optane Memory Support

Storage

Storage Interface

6.0Gb/s

M.2/SSD Expansion Slot

M.2/SSD Expansion Slot Details

5 x M.2 (M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices, M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices, M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices, M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices, M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280 devices)

M.2/SSD Slot Gen

Up to Gen 5

Graphics

Integrated

Graphics Chipset

Integrated With Processor

Multi-GPU Support

PCI Express Slot

2x PCI-E x16 slot, 1x PCI-E x4 slot

Audio & Video

Audio Chipset

Realtek ALC4082 Codec + ESS9219Q Combo DAC/HPA

Audio Channel

7.1

Network & Connectivity

LAN Chipset

Marvell AQC113CS & Realtek 8126

LAN Speed (Mbps)

10/ 100/ 1000/ 10000Mbps & 10/ 100/ 1000/ 5000Mbps

WiFi

Yes

WiFi Technology

Wi-Fi 7 802.11 a/ b/ g/ n/ ac/ ax/ be

Bluetooth

Bluetooth 5.4

Ports

USB Port

4x USB 2.0, 4x USB 5Gbps Type A, 1x USB 20Gbps Type C (Front), 9x USB 10Gbps Type A, 2x USB 10Gbps Type C, 2x USB 40Gbps Type C (Rear)

VGA Port

DVI Port

HDMI Port

SATA Port

4 x SATA

Thunderbolt

TPM Port

Technical Info

Back-Connect Design

Cable Management

Front

Heatsink

Yes

CrossFire Support

Sli Support

Raid Support

0, 1, 10 (SATA), 0, 1, 5, 10 (M.2)

RGB Support

ARGB

RGB Connector

3x Addressable V2 RGB LED connector (JARGB_V2), 1x RGB LED connector(JRGB)

Approx. Power Consumption

40W

Form Factor

ATX

Bios Information

BIOS Type

1 x 64 Mbit Flash

Compatibility

Supported Operating System

Windows 11

Compatible Products

AM5, compatible with Ryzen 7000/ 8000/ 9000 series processors

Warranty

3 year

Additional Info

Feature

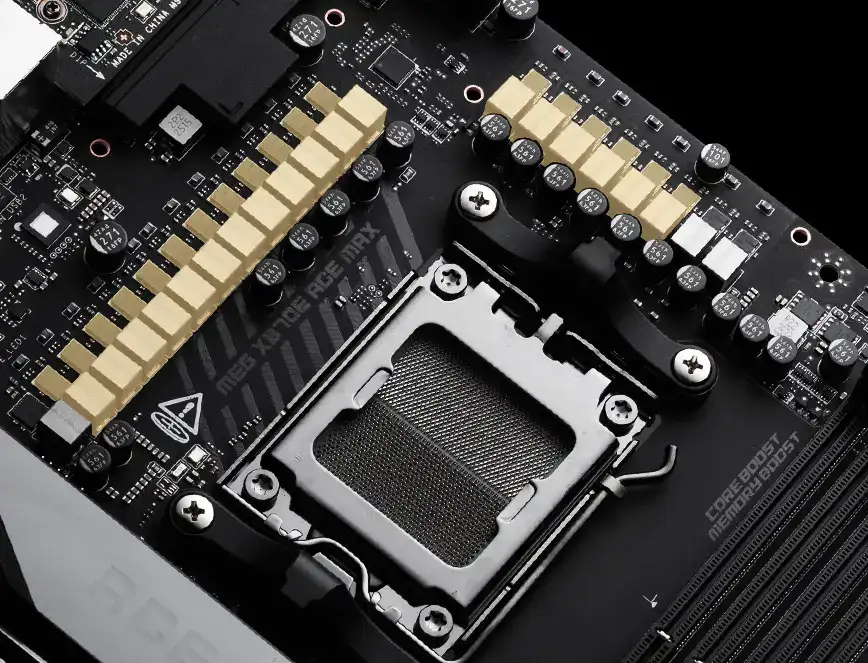

OC Engine, With the clock generator, the OC Engine technology releases the maximum power of CPU, 64MB BIOS, A larger BIOS ROM capacity allows the motherboard to support next-level CPU upgrades with better compatibility, Ultra Power +, The ultimate power solution with 18+2+1 DRPS, 110A SPS, and OC Engine unleashes maximum CPU performance, Frozr Design, Wavy Fin Design, Direct Touch Cross Heat-pipe, Aluminum Cover, Double-sided M.2 Shield Frozr, Metal Backplate and Frozr AI software ensure the utmost performance with low temp, 10G Super LAN + 5G LAN, Onboard 10G plus 5G LAN provide the next level network speed, secure networking with the fastest data throughput to deliver the best online gaming experience, Wi-Fi 7, The latest wireless solution with a new 320MHz channel, achieving a maximum transmission speed of 5.8Gbps, which is 2.4 times faster than Wi-Fi 6/6E, Lightning USB 40G, Featuring a built-in USB 4 port, it offers a lightning-fast 40Gbps transmission speed, Lightning Gen 5, The latest PCIe 5.0 solution with up to 128GB/s bandwidth for maximum transfer speed, Quintuple M.2 Connectors, Onboard 5x M.2 connectors with dual Lightning Gen 5 solution for the maximum storage performance, EZ PCIe Release, A simple press of a button to effortlessly lock or unlock the PCIe slot, simplifying the installation and removal of the graphics card, Audio Boost 5 HD, Ultimate audio solution with premium audio processor combining ESS audio DAC and amplifier deliver the breathtaking experience.

Others

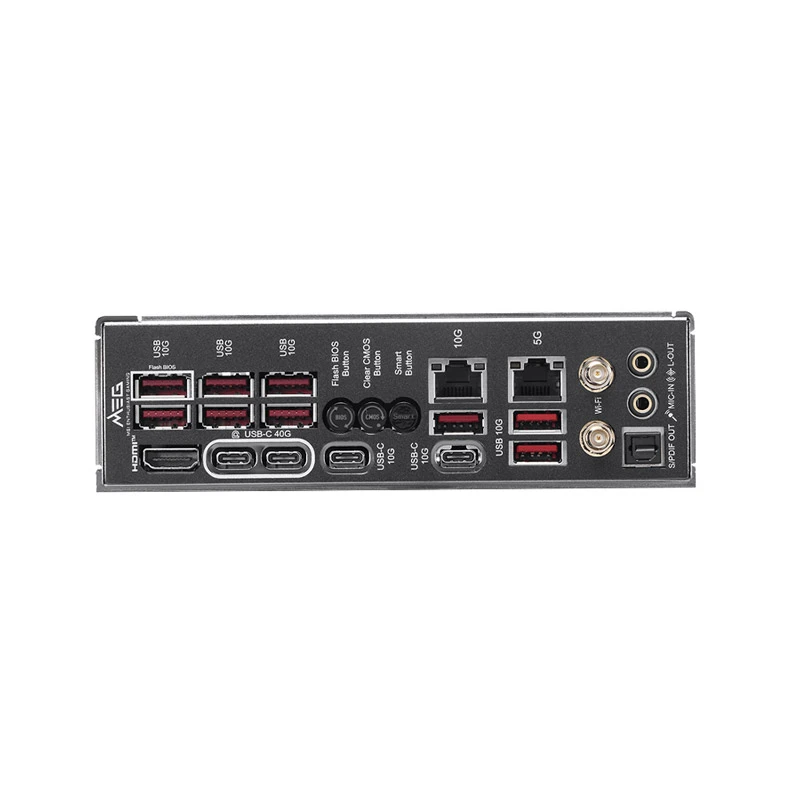

Internal IO: 1x Power Connector(ATX_PWR), 2x Power Connector(CPU_PWR), 1x Power Connector(PCIE_PWR 8pin), 1x CPU Fan, 2x Combo Fan (Pump_Sys Fan), 5x System Fan, 1x EZ Conn-header (JAF_2), 2x Front Panel (JFP), 1x Chassis Intrusion (JCI), 1x Water Flow connector, 1x Front Audio (JAUD), 2x Thermal Sensor connectors(T_SEN), 1x Tuning Controller connector(JDASH), 1x TPM pin header(Support TPM 2.0), V-check point, 2x Direct OC Jumper (JBCLK), LED FEATURE: 1x EZ Digi-Debug LED, 4x EZ Debug LED, 1x EZ Memory Detection LED, 1x EZ LED Control switch, BACK PANEL PORTS: Flash BIOS Button, Clear CMOS Button, Smart Button, 10G LAN, 5G LAN, HD Audio Connectors, HDMI 2.1 Port, Optical S/PDIF-Out.

Country Of Origin

Taiwan

Made in/ Assemble

China

Details

Features of MSI MEG X870E ACE MAX (Wi-Fi 7) Motherboard In Bangladesh

What is the price of MSI MEG X870E ACE MAX (Wi-Fi 7) Motherboard In Bangladesh?

The price of MSI MEG X870E ACE MAX (Wi-Fi 7) Motherboard starts from 95,000 . The price may vary due to your customization and product availability. You can buy MSI MEG X870E ACE MAX (Wi-Fi 7) Motherboard from our website or visit our showrooms nearby.
