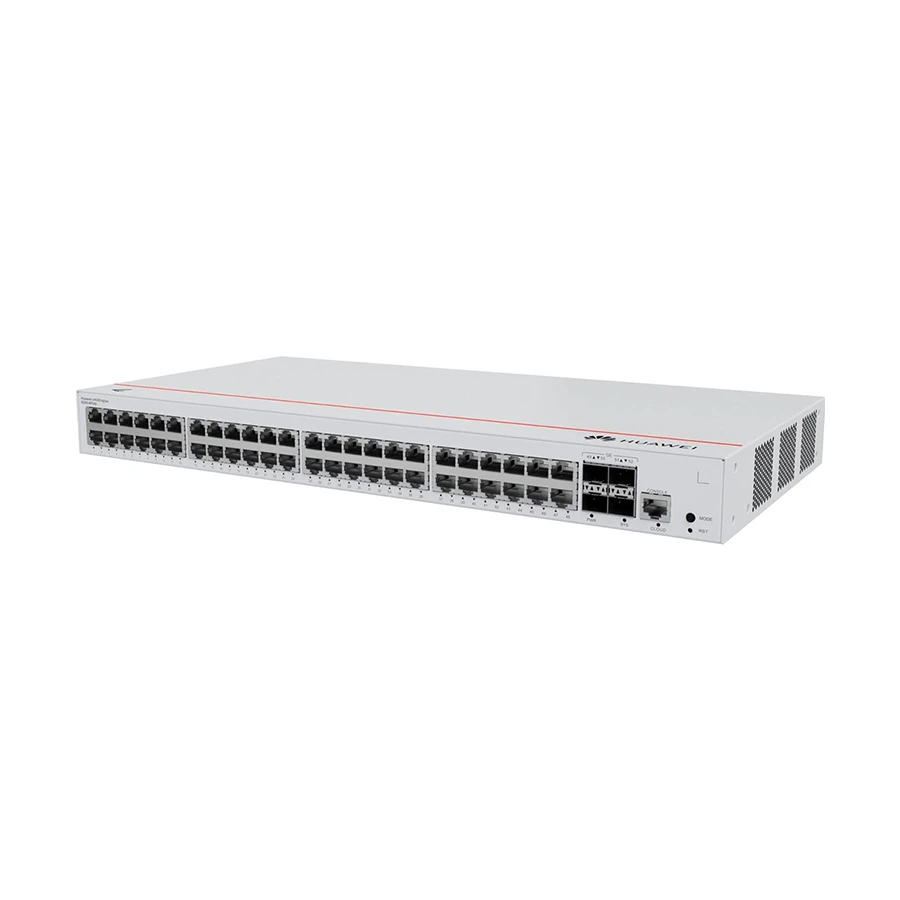

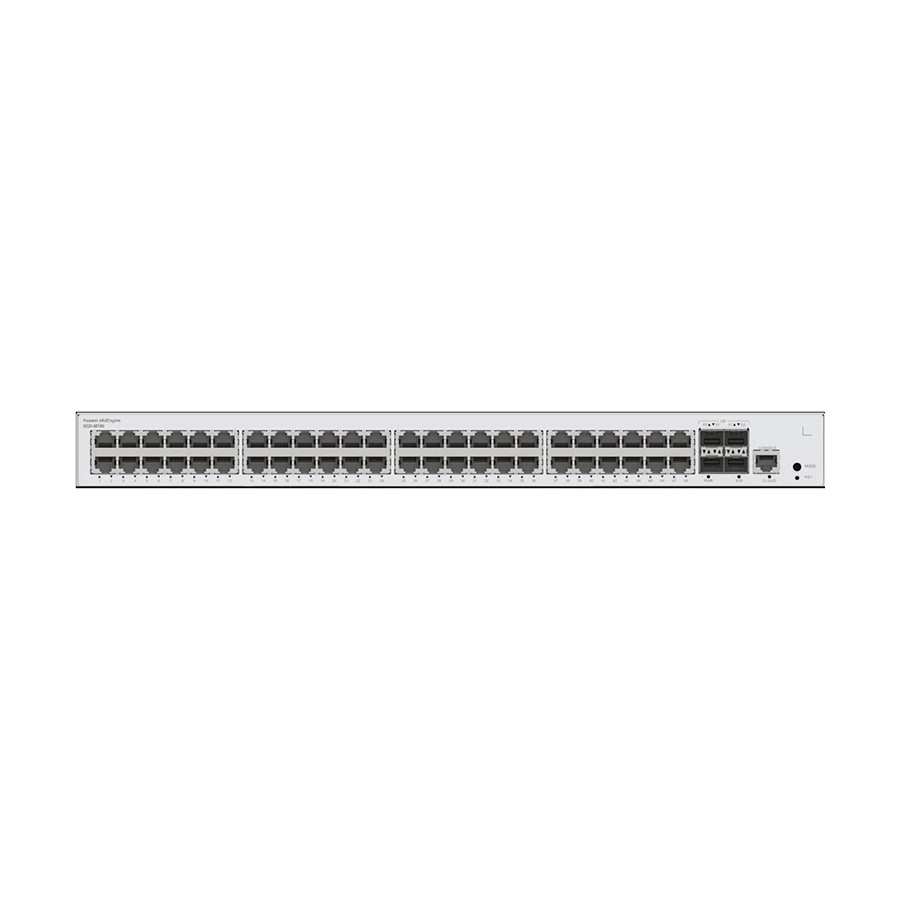

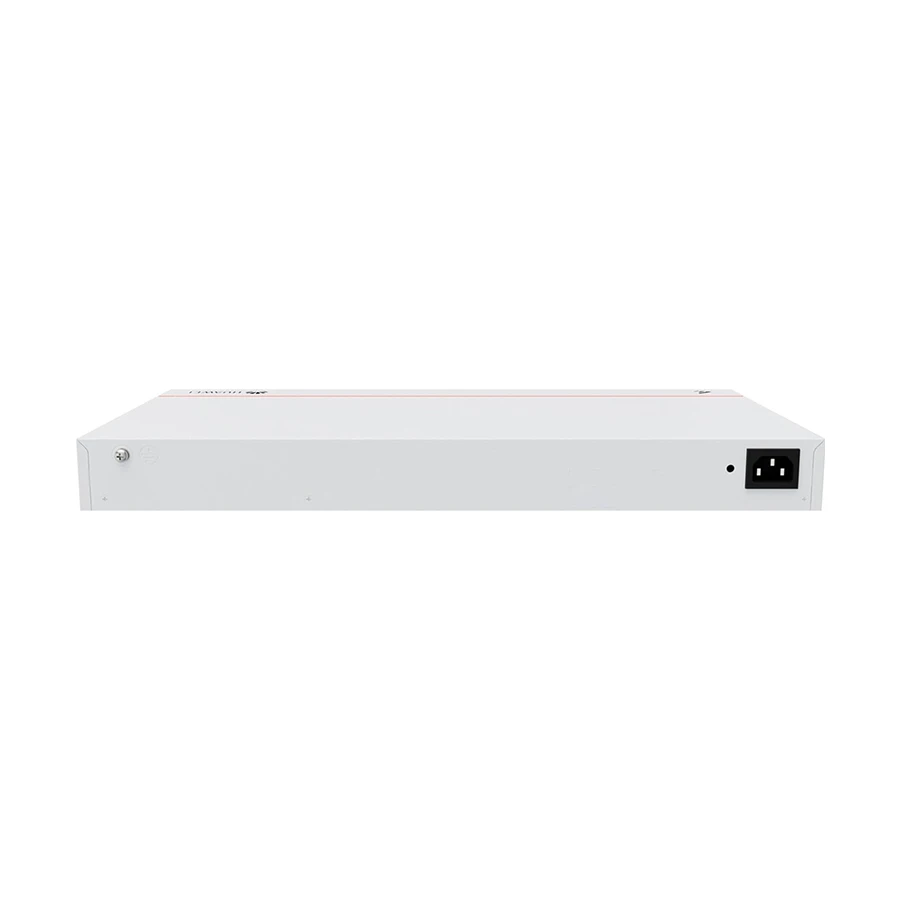

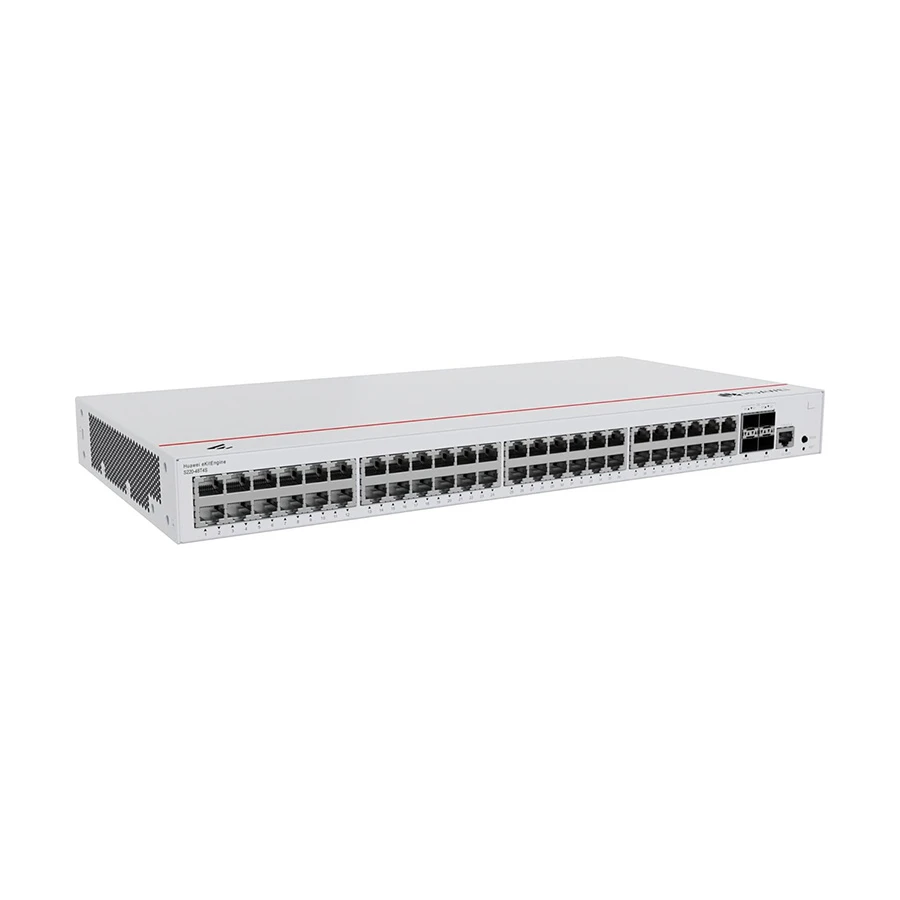

Huawei S220-48T4S 52 Port Managed eKit SMB Switch

Product Id: 29.05.487.23

Brand Huawei

Special Price
Tk 55,000  (Estimated)
Regular Price
Tk 59,570 (Estimated)
EMI TK 4,965

Delivery in 1 days

Quick Overview

  • Type - Network Switch
  • Number of Total Port - 52 Port
  • PoE - No
  • Manageability - Managed
  • Data Transfer Rate - 10/100/1000 Mbps
  • Form Factor - 1U Rack-mountable
General
Brand
Huawei

Model
Huawei S220-48T4S

Type
Network Switch


Ports & Slots
Number of Total Port
52 Port

Gigabit Port
52

SFP Port
4


Technical Info
PoE
No

Manageability
Managed

Interface(s)
48 x 10/100/1000Mbps Ethernet, 4 x 10/100/1000Mbps SFP

Data Transfer Rate
10/100/1000 Mbps

Memory
2GB

Connector Type
48 x 10/100/1000 Mbps RJ45, 4 x 10/100/1000Mbps SFP

MTBF
355987.26 Hours


Physical Description
Fan/Fanless
Fan

Indicators
PWR, SYS (Fast blinking, Steady on, Slow blinking), CLOUD (Fast blinking, Slow blinking)

Body Material
Metal

Body Color
White

Form Factor
1U Rack-mountable

Dimension
43.6 x 442 x 220mm

Weight
2.71 Kg

Packet Contents
Huawei S220-48T4S Switch, User Manual, Warranty Card


Power
Power Supply
100 - 240 V AC; 50/60 Hz

Approx. Power Consumption
36.15 W (Typical), 43.3 W (Max.), 18.8 W(Static)


Warranty
Warranty Details
1 Year (Without Adapter)


Additional Info
Others
Typical heat dissipation: 123.35 BTU/hour, Maximum heat dissipation: 147.74 BTU/hour, MTTR: 2 hours, Availability: > 0.99999, Noise at normal temperature (acoustic power): 46.6 dB(A), Noise at normal temperature (acoustic pressure): 34.6 dB(A), Number of fans modules: 1, Long-term operating temperature: - 5 Degree C to 50 Degree C at an altitude of 0 -1800m (0-5906 ft.), Restriction on the operating temperature variation rate: When the altitude is 1800 - 5000 m (5906-16404 ft.), the highest operating temperature reduces by 1 Degree C every time the altitude increases by 220 m (722 ft.), Devices cannot start when the temperature is lower than 0 Degree C. The operating temperature ranges from - 5 degree C to +45 Degreee C when optical modules with transmission distances greater than or equal to 60 km are used. The device does not support dying gasp when the ambient temperature is higher than 40 Degree C, Storage temperature: -40 Degree C to 70 Degree C, Long-term operating relative humidity: 5% RH to 95% RH (non-condensing), Long-term operating altitude: 0 - 5000 m (0 - 16404 ft.), Storage altitude: 0 - 5000 m (0 - 16404 ft.), Power supply mode: AC built-in, Rated input voltage: AC input: 100 - 240 V AC; 50/60 Hz, Input voltage range: AC input: 90 V AC to 264 V AC; 45 Hz to 65 Hz, Maximum input current: 1.6 A, Flash memory: Physical space: 1 GB, Console port: RJ45, Service port surge protection: Common mode: -+7 kV, Power supply surge protection: Differential mode: -+6 kV; common mode: -+6 kV, Ingress protection level (dustproof/waterproof): IP20, Types of fans: Built-in, Heat dissipation mode: Air cooling for heat dissipation, intelligent fan speed adjustment, Airflow direction: Air intake from left and air exhaust from right, Certification: EMC certification, Safety certification, Manufacturing certification

Country Of Origin
China

Made in/ Assemble
China


N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
