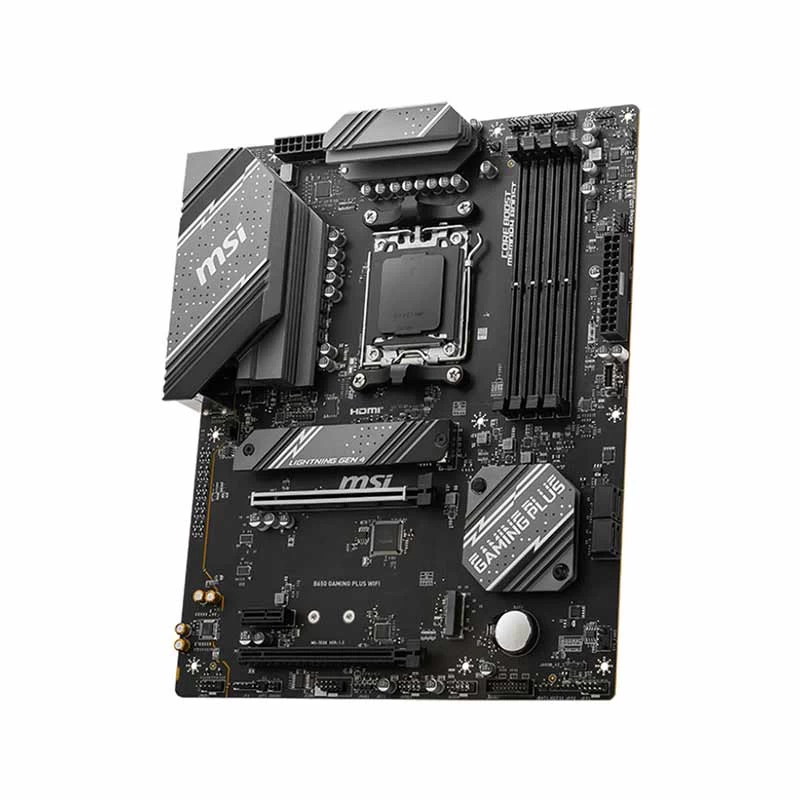

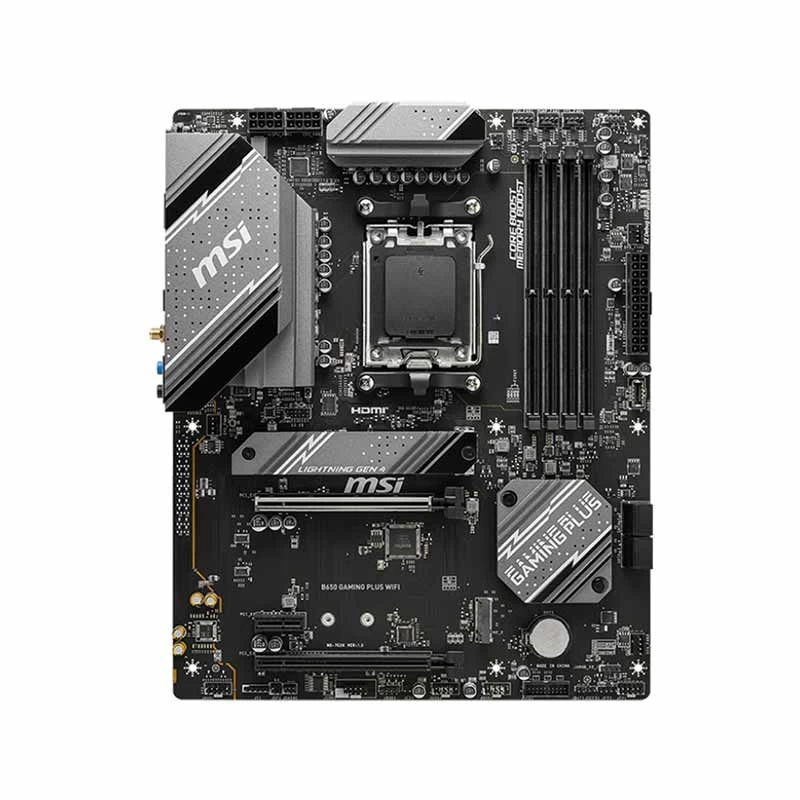

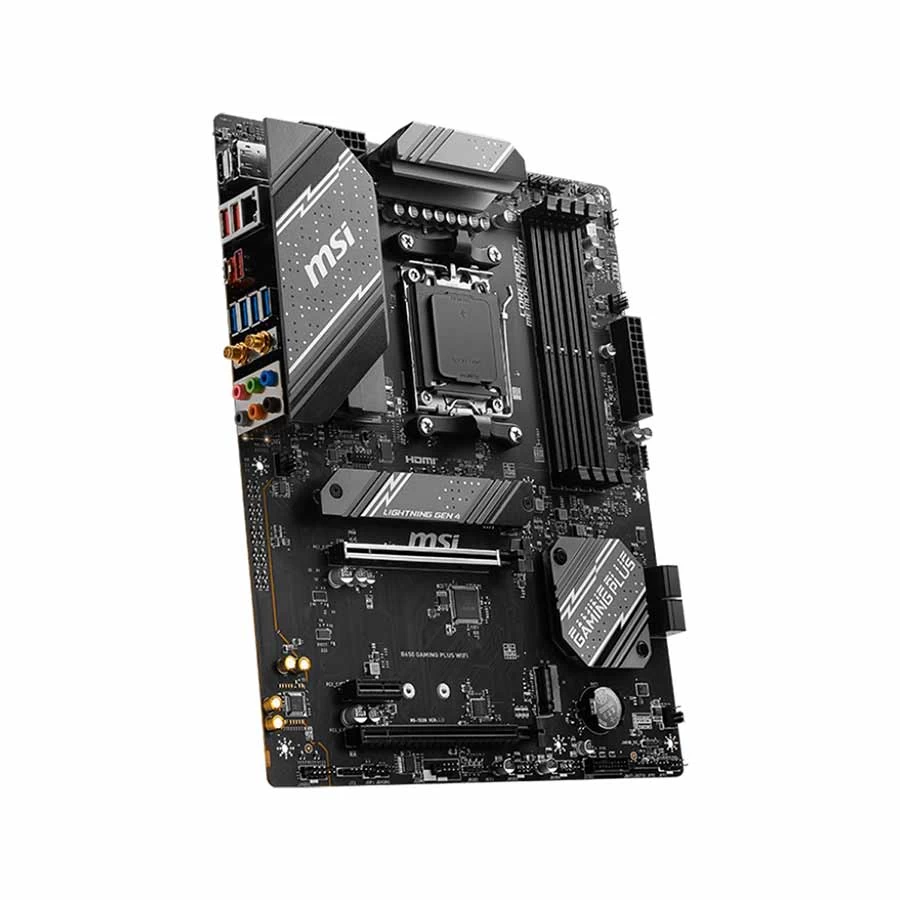

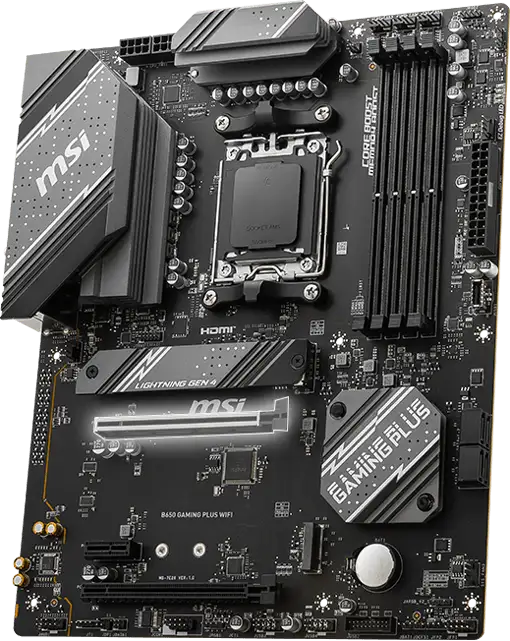

MSI B650 GAMING PLUS (Wi-Fi 6E) DDR5 AMD Motherboard
2x M.2 (M.2_1 supports 22110/2280 devices, supports up to PCIe 4.0 x4 (From CPU)), (M.2_2 supports 2280/2260 devices supports up to PCIe 4.0 x4 (From CPU))
M.2/SSD Slot Gen
Up to Gen 4
Graphics
Graphics
Integrated
Graphics Chipset
Integrated With Processor
Multi-GPU Support
AMD MULTI-GPU
PCI Express Slot
2x PCI-E x16 slot, 1x PCI-E x1 slot
Audio & Video
Audio Chipset
Realtek ALC897 Codec High Definition Audio
Audio Channel
7.1
Network & Connectivity
LAN Chipset
Realtek 8125BG 2.5G LAN
LAN Speed (Mbps)
10/100/1000/2500 Mb/s
WiFi
Yes
WiFi Technology
AMD Wi-Fi 6E Supports 802.11 a/ b/ g/ n/ ac/ ax, MU-MIMO TX/RX, 20MHz, 40MHz, 80MHz bandwidth in 2.4GHz/ 5GHz or 6GHz bands
Bluetooth
Bluetooth 5.3
Ports
USB Port
1 x USB 3.2 Gen 2x2 Type-C, 3 x USB 3.2 Gen 2 Type-A, 4 x USB 3.2 Gen 1 Type-A
VGA Port
No
DVI Port
No
HDMI Port
1
DisplayPort (DP)
1
SATA Port
4
Thunderbolt
No
TPM Port
1
COM Port
1
Technical Info
Back-Connect Design
No
Cable Management
Front
DirectX Support
No
Heatsink
Yes
FireWire
No
CrossFire Support
No
Sli Support
No
RGB Support
ARGB
RGB Connector
2x Addressable V2 RGB LED, 2x RGB LED
Approx. Power Consumption
70W
Form Factor
ATX
Compatibility
Supported Operating System
Windows 10/ 11
Warranty
Warranty
3 year
Additional Info
Feature

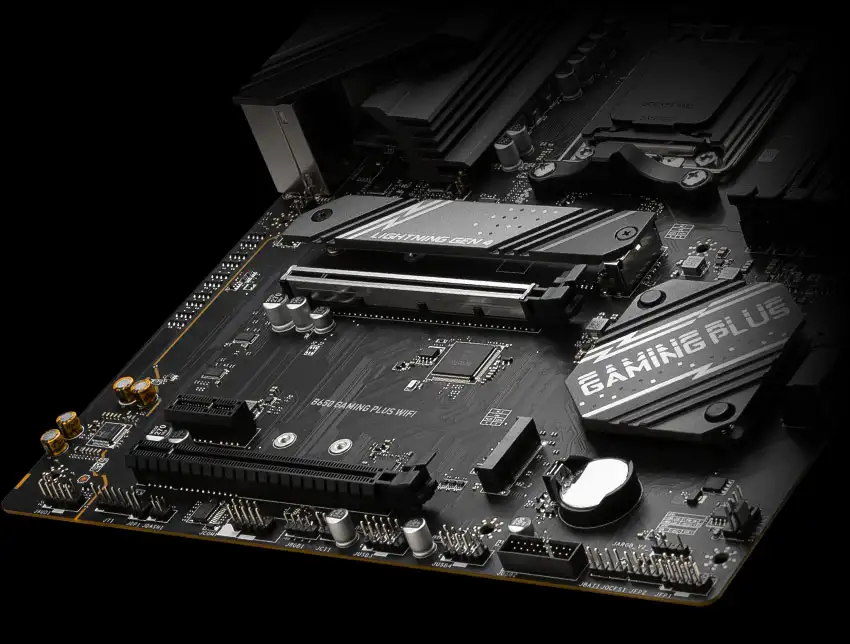

Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop work, Lightning Fast Game experience: PCIe 4.0 slots, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, USB 3.2 Gen 2x2 20G, 2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection, High Quality PCB: 6-layer PCB made by 2oz thickened copper, Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience
Others

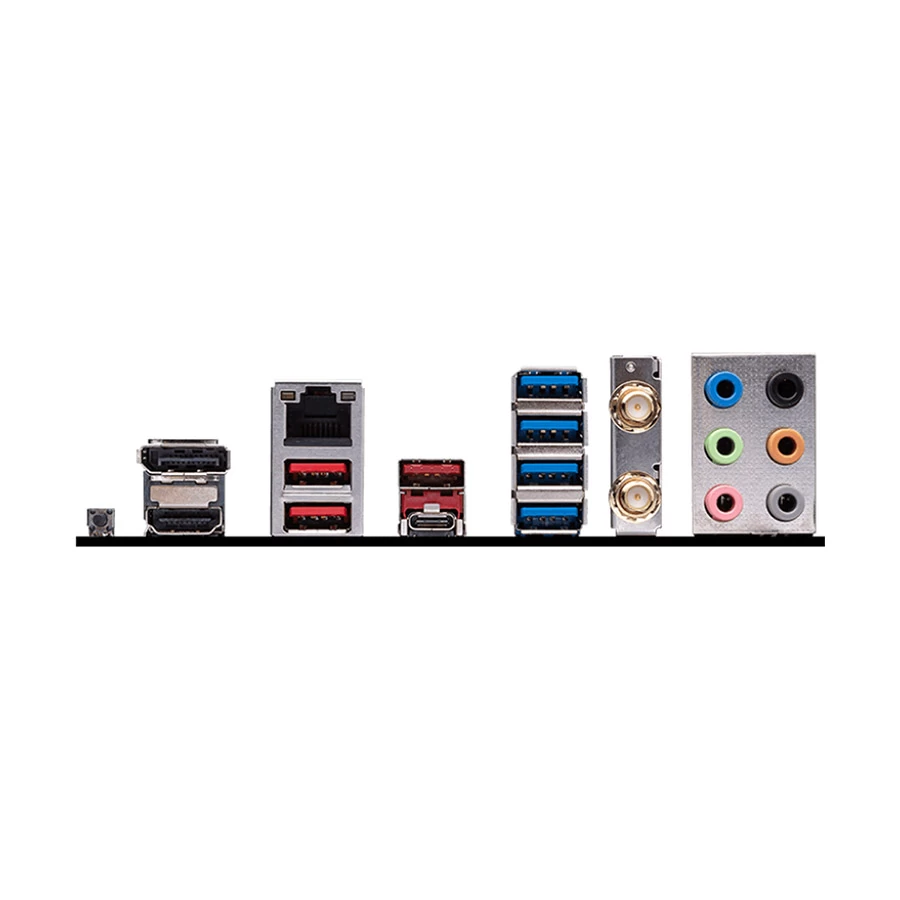

MEMORY - Max. overclocking frequency: DPC 1R Max speed up to 6000+ MHz, 1DPC 2R Max speed up to 6000+ MHz, 2DPC 1R Max speed up to 6000+ MHz, 2DPC 2R Max speed up to 5400+ MHz, Supports AMD EXPO, EXPANSION SLOT - PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU), PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset), PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset), RAID - Supports RAID 0, RAID 1 and RAID 1 for SATA storage devices, Supports RAID 0 and RAID 1 for M.2 NVMe storage devices, INTERNAL I/O - 1x Power Connector(ATX_PWR), 2x Power Connector(CPU_PWR), 1x CPU Fan, 1x Pump Fan, 4x System Fan, 2x Front Panel (JFP), 1x Chassis Intrusion (JCI), 1x Front Audio (JAUD), 1x Tuning Controller connector(JDASH), portsLED FEATURE - 4x EZ Debug LED, BACK PANEL PORTS - 2.5G LAN, Wi-Fi / Bluetooth, Audio connectors, Flash BIOS Button
Country Of Origin
Taiwan
Made in/ Assemble
China
N.B. Specification may differ
with actual product. In that case, Ryans will execute full refund within 5 days.
Details
QUESTION & ANSWER
Customer Questions
Q:
এইটাতে কি সাতা এসএসডি লাগানো যাবে
Asked By Sheikh akib
A:
প্রিয় গ্রাহক, সর্বোচ্চ ৪ টি Sata SSD লাগানো যাবে। ধন্যবাদ।
Answered By Ryans Computers Ltd.
, 21 May 2026
Q:
When this board will be restock
Asked By Siam
A:
Dear Customer. It is not possible to provide specific information about when the product will be in stock. We will update the website when the product is in stock. Thanks.
Answered By Ryans Computers Ltd.
, 16 Jan 2026
Q:
Isn't 9000 series supported in this mobo
The specs says it only supports 7000 series but as far as I know B650 supports upto 9000 series
Asked By Tanvir
A:
Dear Customer, Supported CPU - AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors. Thank you.
Answered By Ryans Computers Ltd.
, 03 Jun 2025
Q:
RTX 50 series GPU support kore?
Asked By Ryan
A:
প্রিয় গ্রাহক জি সাপোর্ট করবে ধন্যবাদ
Answered By Ryans Computers Ltd.
, 26 Apr 2025
Q:
9000 series support korey?
Asked By
A:
প্রিয় গ্রাহক, প্রসেসরের নির্দিষ্ট মডেল নাম্বার শেয়ার করবেন ধন্যবাদ
Answered By Ryans Computers Ltd.
, 14 Apr 2025
Q:
Can I exchange this motherboard with a new msi mag b550 tomahawk(imported from Germany)?
Asked By Mahbub
A:
Dear Sir, No way to exchange, Thanks for your query!
Answered By Ryans Computers Ltd.
, 04 Nov 2023
