Brand

MSI

Model

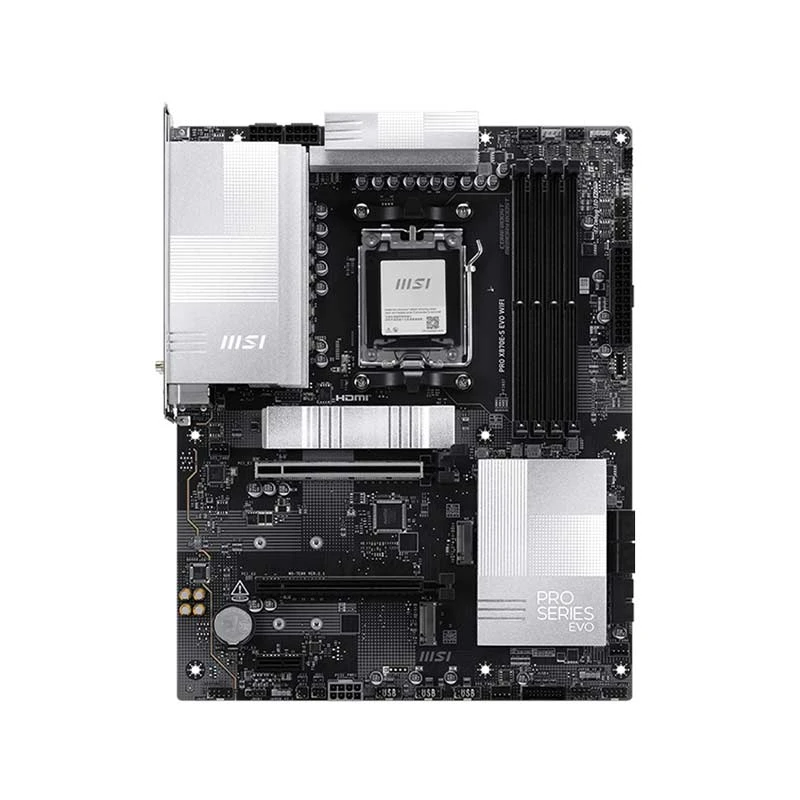

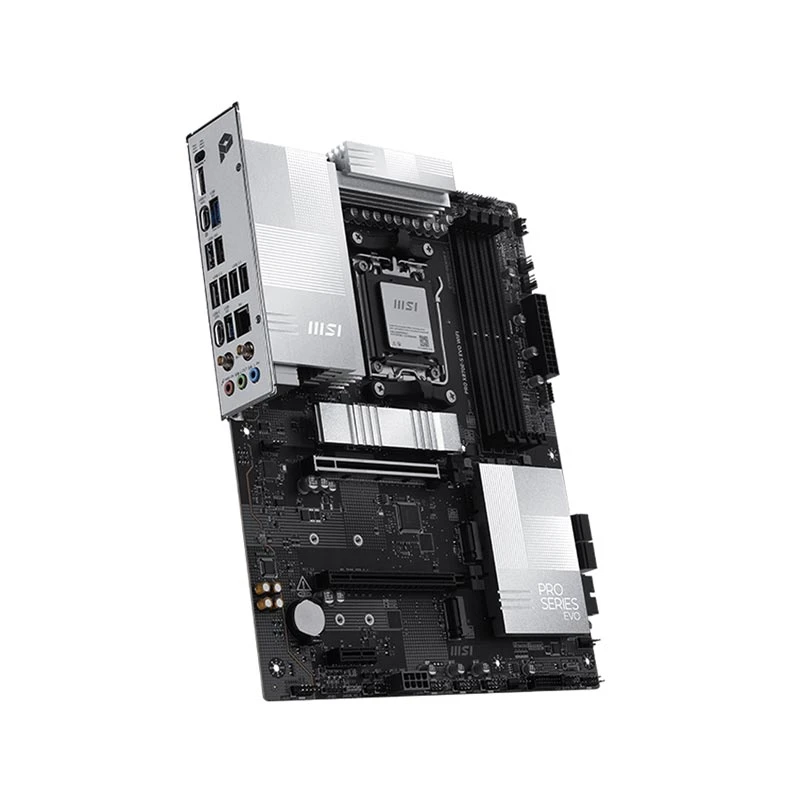

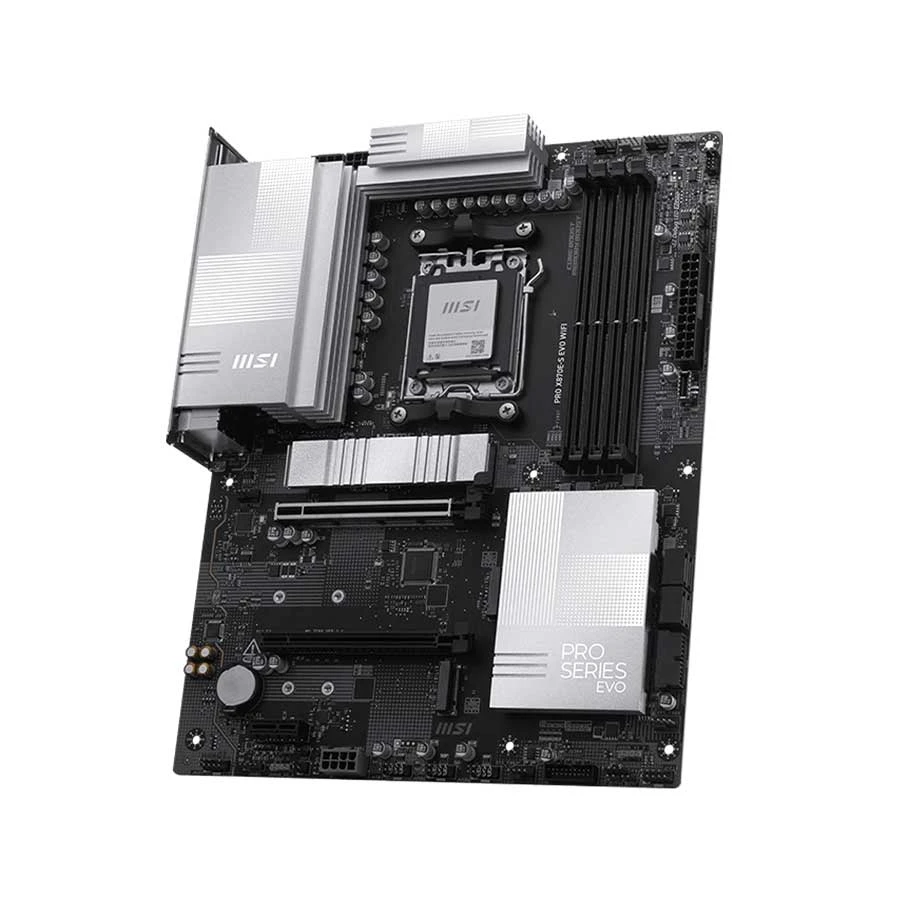

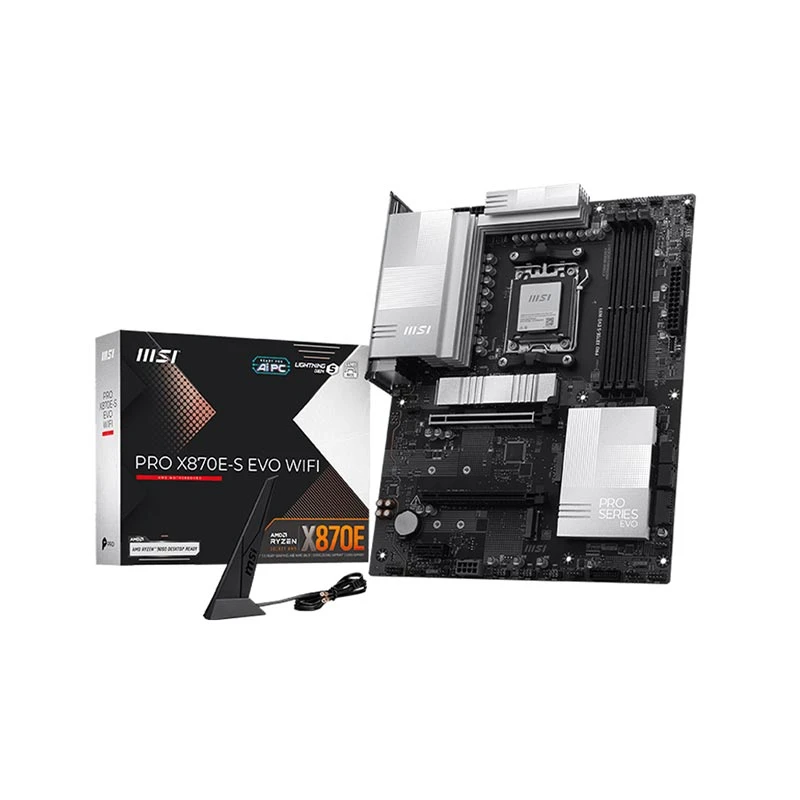

MSI PRO X870E-S EVO (Wi-Fi 7)

Chipset

AMD X870E

Sockets Supported

AM5

Built-in Processor

Generation

Not Applicable

Back-Connect Design

Memory Type

DDR5

Memory Slot

Memory Max.

256GB

Optane Memory Support

Graphics

Integrated

Graphics Chipset

Integrated With Processor

M.2/SSD Expansion Slot

WiFi

Yes

Bluetooth

Bluetooth 5.4

Form Factor

ATX

Supported Operating System

Windows 11

Body Color

Black

Warranty

3 year

General

Brand

MSI

Model

MSI PRO X870E-S EVO (Wi-Fi 7)

Body Color

Black

Part No

PRO X870E-S EVO WIFI

CPU

Chipset Brand

AMD

Chipset

AMD X870E

Sockets Supported

AM5

Built-in Processor

Supported CPU

AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors

Generation

Not Applicable

Memory Support

Memory Type

DDR5

Memory MHz

DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s

Memory Channel

Dual

Memory Slot

Memory Max.

256GB

Optane Memory Support

Storage

Storage Interface

6.0Gb/s

M.2/SSD Expansion Slot

M.2/SSD Expansion Slot Details

3x M.2 (1 x M.2) (From CPU) supports up to PCIe 5.0 x4, supports 2280/2260 devices, (1 x M.2) (From Chipset) supports up to PCIe 4.0 x4, supports 22110/2280 devices, (1 x M.2) (From Chipset) supports up to PCIe 4.0 x4, supports 2280/2260 devices

M.2/SSD Slot Gen

Up to Gen 5

Graphics

Integrated

Graphics Chipset

Integrated With Processor

Multi-GPU Support

PCI Express Slot

2x PCI-E x16 slot, 1x PCI-E x1 slot

Audio & Video

Audio Chipset

Realtek ALC897, 7.1-Channel High Definition Audio

Audio Channel

7.1

Network & Connectivity

LAN Chipset

Realtek 8126VB 5G LAN

LAN Speed (Mbps)

1000/ 2500/ 5000Mbps

WiFi

Yes

WiFi Technology

Wi-Fi 7

Bluetooth

Bluetooth 5.4

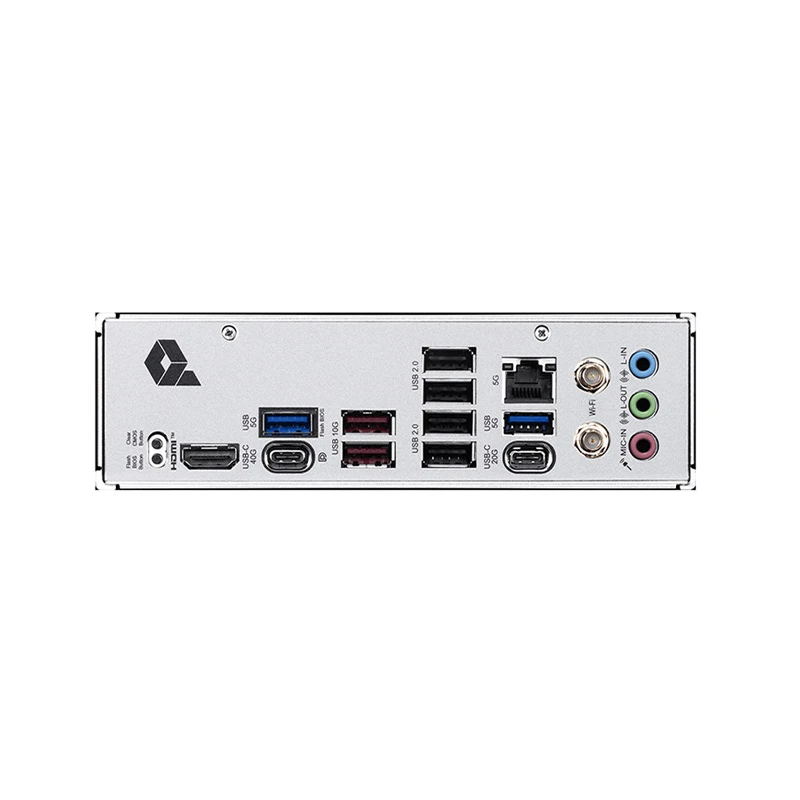

Ports

USB Port

4x USB 2.0 (Rear), 6x USB 2.0 (Front), 2x USB 5Gbps Type A (Rear), 4x USB 5Gbps Type A (Front), 2x USB 10Gbps Type A (Rear), 1x USB 10Gbps Type C (Front), 1x USB 20Gbps Type C (Rear), 1x USB 40Gbps Type C (Rear)

VGA Port

DVI Port

HDMI Port

DisplayPort (DP)

IDE Port

SATA Port

Thunderbolt

TPM Port

Technical Info

Back-Connect Design

Cable Management

Front

Heatsink

Yes

FireWire

CrossFire Support

Sli Support

Raid Support

0, 1, 5, 10 (SATA), 0, 1, 5 (M.2)

RGB Support

RGB

RGB Connector

3x Addressable V2 RGB LED connector (JARGB_V2), 1x RGB LED connector(JRGB)

Approx. Power Consumption

70W

Form Factor

ATX

Compatibility

Supported Operating System

Windows 11

Compatible Products

Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors, Socket AM5

Warranty

3 year

Additional Info

Feature

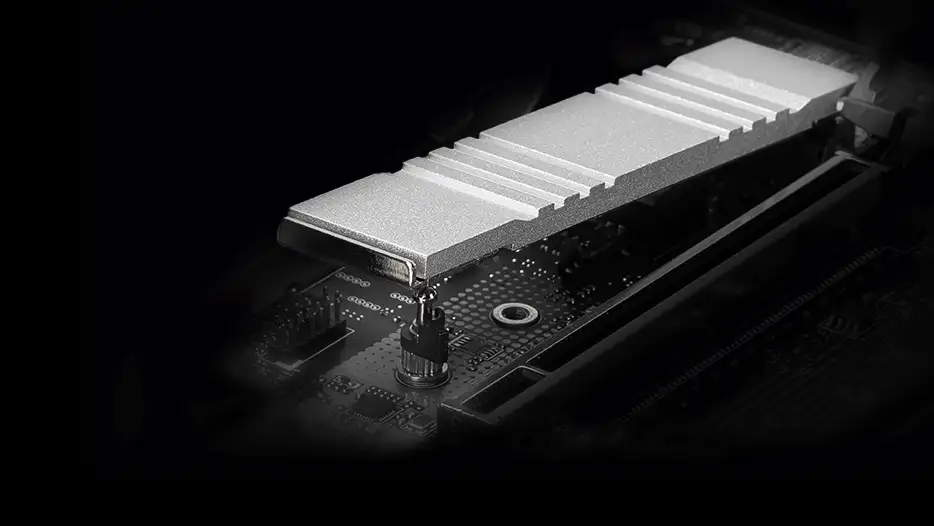

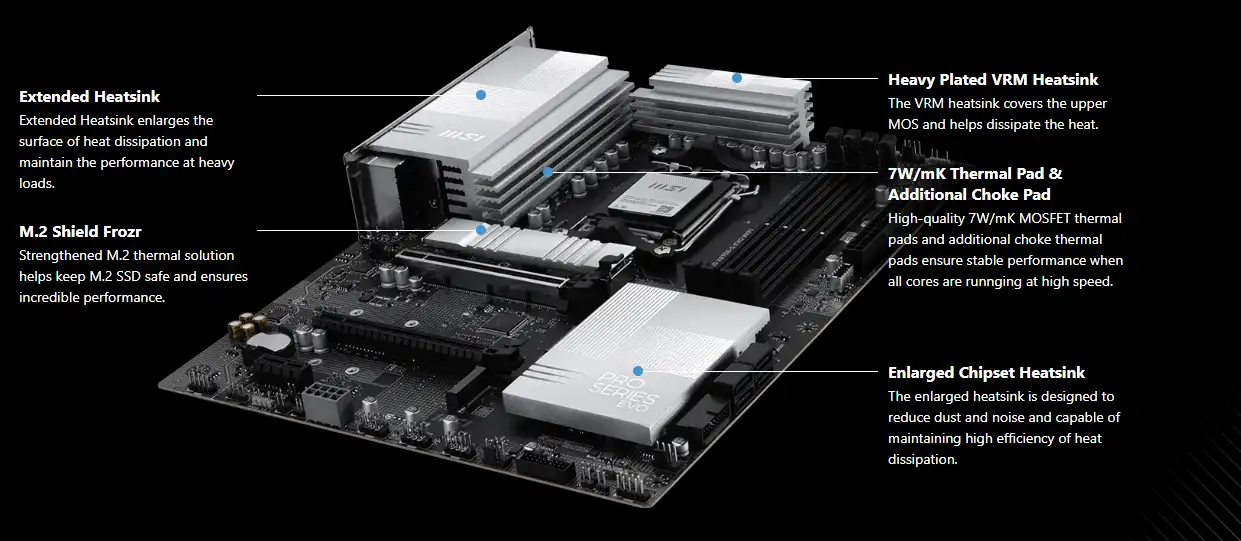

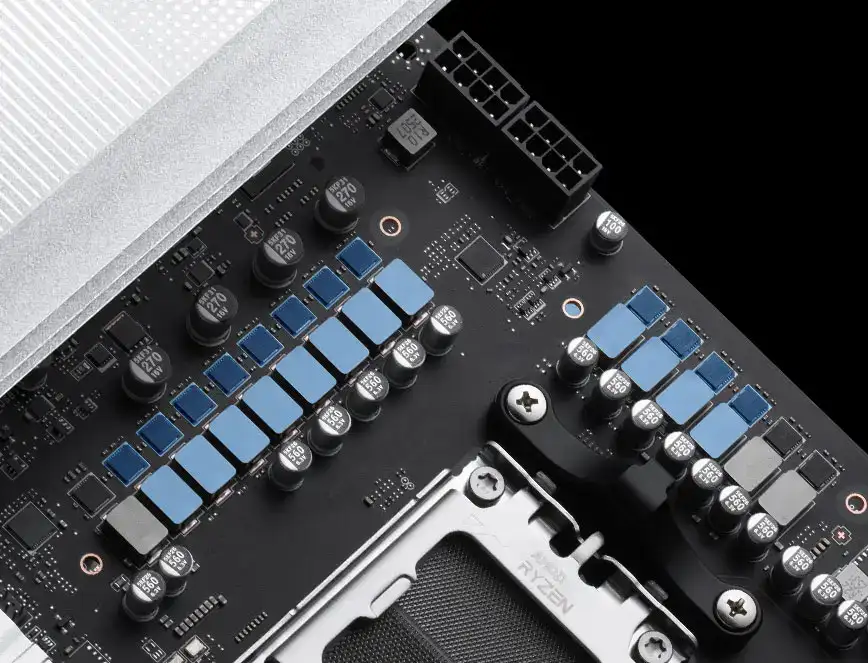

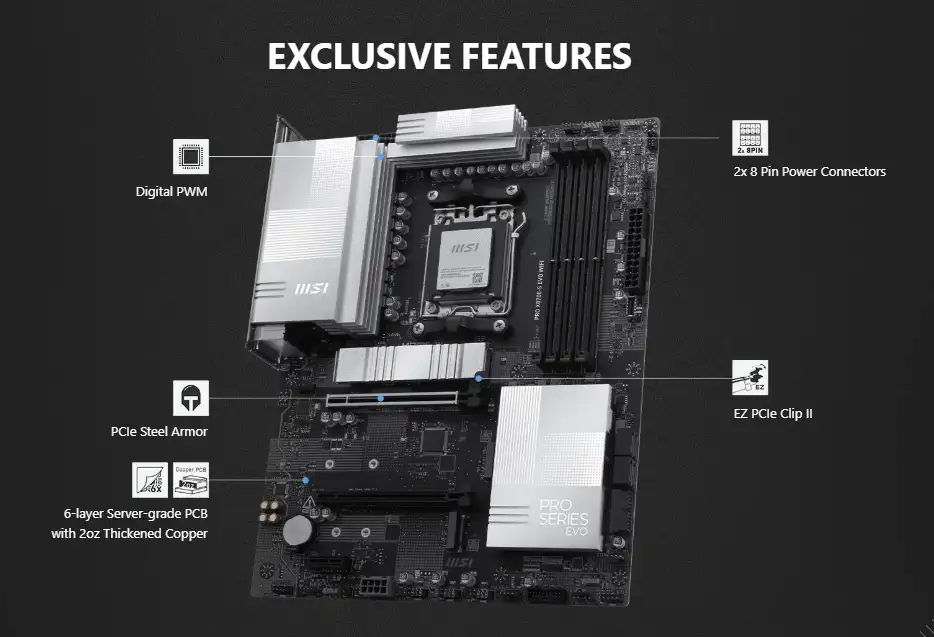

64MB BIOS - A larger BIOS ROM capacity allows the motherboard to support next-level CPU upgrades with better compatibility, Wi-Fi 7 - The latest wireless solution with a new 160MHz channel, achieving a maximum transmission speed of 2.9Gbps, Lightning USB 40G - Featuring a built-in USB 4 port, it offers a lightning-fast 40Gbps transmission speed, 5G Network Solution - Featuring premium 5G LAN to deliver better network experience, EZ M.2 Shield Frozr II - The new tool-less design makes installing or removing your M.2 SSD and Shield Frozr much easier, EZ Antenna - EZ Antenna makes the process effortless by simply attaching fasteners to the motherboard without rotation, EZ PCIe Clip II - Allows for easy removal of the graphics card by pressing the taillike lock with one finger, even in the cramped case spaces, Latest DDR5 Memory - A huge step of DDR performance enhancement with the latest DDR5 memory and MSI Memory Boost technology, Lightning Gen 5- The latest PCIe 5.0 solution with up to 128GB/s bandwidth for maximum transfer speed, Extended Heatsink Design, MSI extended PWM heatsink and enhanced circuit design ensures even high-end processors to run in full speed, Pre-installed I/O Shielding, Better EMI protection and more convenience for installation

Others

Internal IO: 1x Power Connector(ATX_PWR), 2x Power Connector(CPU_PWR), 1x Power Connector(PCIE_PWR 8pin), 1x CPU Fan, 1x Combo Fan (Pump_Sys Fan), 6x System Fan, 2x Front Panel (JFP), 1x Chassis Intrusion (JCI), 1x Front Audio (JAUD), 1x Tuning Controller connector(JDASH), LED FEATURE: 4x EZ Debug LED, 1x EZ Memory Detection LED

Country Of Origin

Taiwan

Made in/ Assemble

China

Details

Features of MSI PRO X870E-S EVO (Wi-Fi 7) Motherboard In Bangladesh

What is the price of MSI PRO X870E-S EVO (Wi-Fi 7) Motherboard In Bangladesh?

The price of MSI PRO X870E-S EVO (Wi-Fi 7) Motherboard starts from 34,900 . The price may vary due to your customization and product availability. You can buy MSI PRO X870E-S EVO (Wi-Fi 7) Motherboard from our website or visit our showrooms nearby.
