MSI MAG X870E TOMAHAWK (Wi-Fi 7) DDR5 AMD Gaming Motherboard #MAG X870E TOMAHAWK WIFI

Item: MSI MAG X870E TOMAHAWK (Wi-Fi 7) DDR5 AMD Gaming Motherboard #MAG X870E TOMAHAWK WIFI
Rating: 5
Author: Verified Buyer

10 reviews

Product Id: 02.02.033.576

Out Of Stock

Quick Overview

Form Factor - ATX
Chipset - AMD X870E
Sockets Supported - AM5
Supported CPU - Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors
Generation - Not Applicable
Memory Slot - 4
Memory Max. - 256GB
Back-Connect Design - No
Body Color - Black

Payment Method Shipping & Charge Order Procedure

Brand

MSI

Model

MSI MAG X870E TOMAHAWK (Wi-Fi 7)

Chipset

AMD X870E

Sockets Supported

AM5

Built-in Processor

Generation

Not Applicable

Back-Connect Design

Memory Type

DDR5

Memory Slot

Memory Max.

256GB

Optane Memory Support

Graphics

Integrated

Graphics Chipset

Integrated With Processor

M.2/SSD Expansion Slot

WiFi

Yes

Bluetooth

Bluetooth 5.4

Form Factor

ATX

Supported Operating System

Windows 11

Body Color

Black

Warranty

3 year

General

Brand

MSI

Model

MSI MAG X870E TOMAHAWK (Wi-Fi 7)

Body Color

Black

Part No

MAG X870E TOMAHAWK WIFI

CPU

Chipset Brand

AMD

Chipset

AMD X870E

Sockets Supported

AM5

Built-in Processor

Supported CPU

Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors

Generation

Not Applicable

Memory Support

Memory Type

DDR5

Memory MHz

8400 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s

Memory Channel

Dual

Memory Slot

Memory Max.

256GB

Optane Memory Support

Storage

Storage Interface

6.0Gb/s

M.2/SSD Expansion Slot

M.2/SSD Expansion Slot Details

4 x M.2 (M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices, M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices, M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices, M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices)

M.2/SSD Slot Gen

Up to Gen 5

Graphics

Integrated

Graphics Chipset

Integrated With Processor

Multi-GPU Support

PCI Express Slot

3x PCI-E x16 (PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU), PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset), PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset))

Audio & Video

Audio Chipset

Realtek ALC4080 Codec

Audio Channel

7.1

Network & Connectivity

LAN Chipset

1x Realtek 8126 5G LAN

LAN Speed (Mbps)

10/ 100/ 1000/ 2500/ 5000Mbps

WiFi

Yes

WiFi Technology

Wi-Fi 7 802.11 a/ b/ g/ n/ ac/ ax/ be

Bluetooth

Bluetooth 5.4

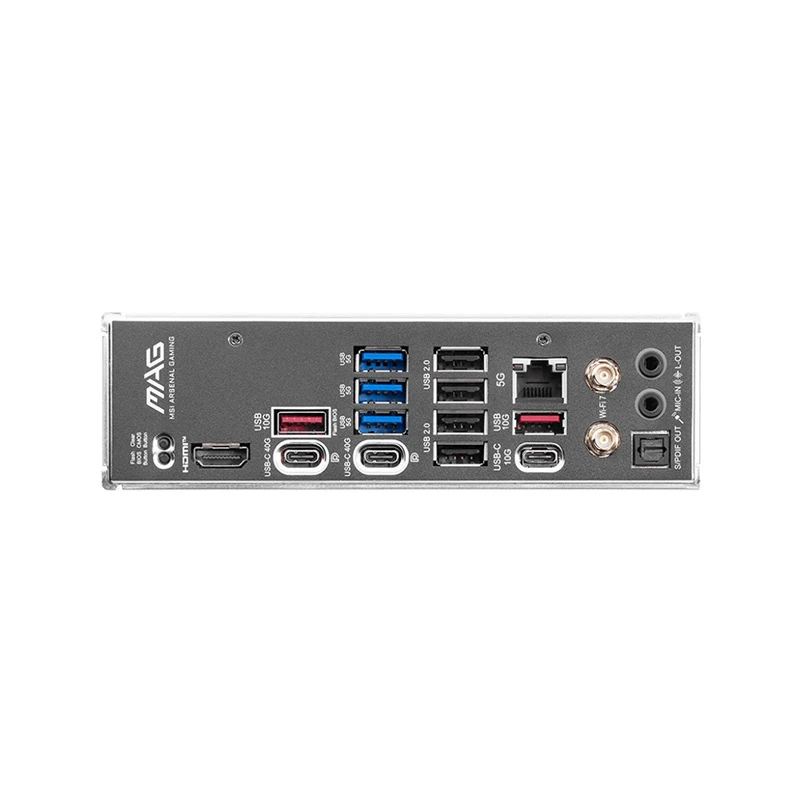

Ports

USB Port

4 x USB 2.0 Type-A, 3 x USB 5Gbps Type-A, 2 x USB 10Gbps Type-A, 1 x USB 10Gbps Type-C, 2 x USB 40Gbps Type-C

VGA Port

DVI Port

HDMI Port

DisplayPort (DP)

SATA Port

4 x SATA

Thunderbolt

Technical Info

Back-Connect Design

Cable Management

Front

Heatsink

Yes

CrossFire Support

Sli Support

Raid Support

0, 1, 5, 10

RGB Support

ARGB

RGB Connector

3x Addressable V2 RGB LED connector (JARGB_V2), 1x RGB LED connector(JRGB)

Approx. Power Consumption

70W

Form Factor

ATX

Compatibility

Supported Operating System

Windows 11

Compatible Products

AM5, compatible with Ryzen 7000/ 8000/ 9000 series processors

Warranty

3 year

Additional Info

Feature

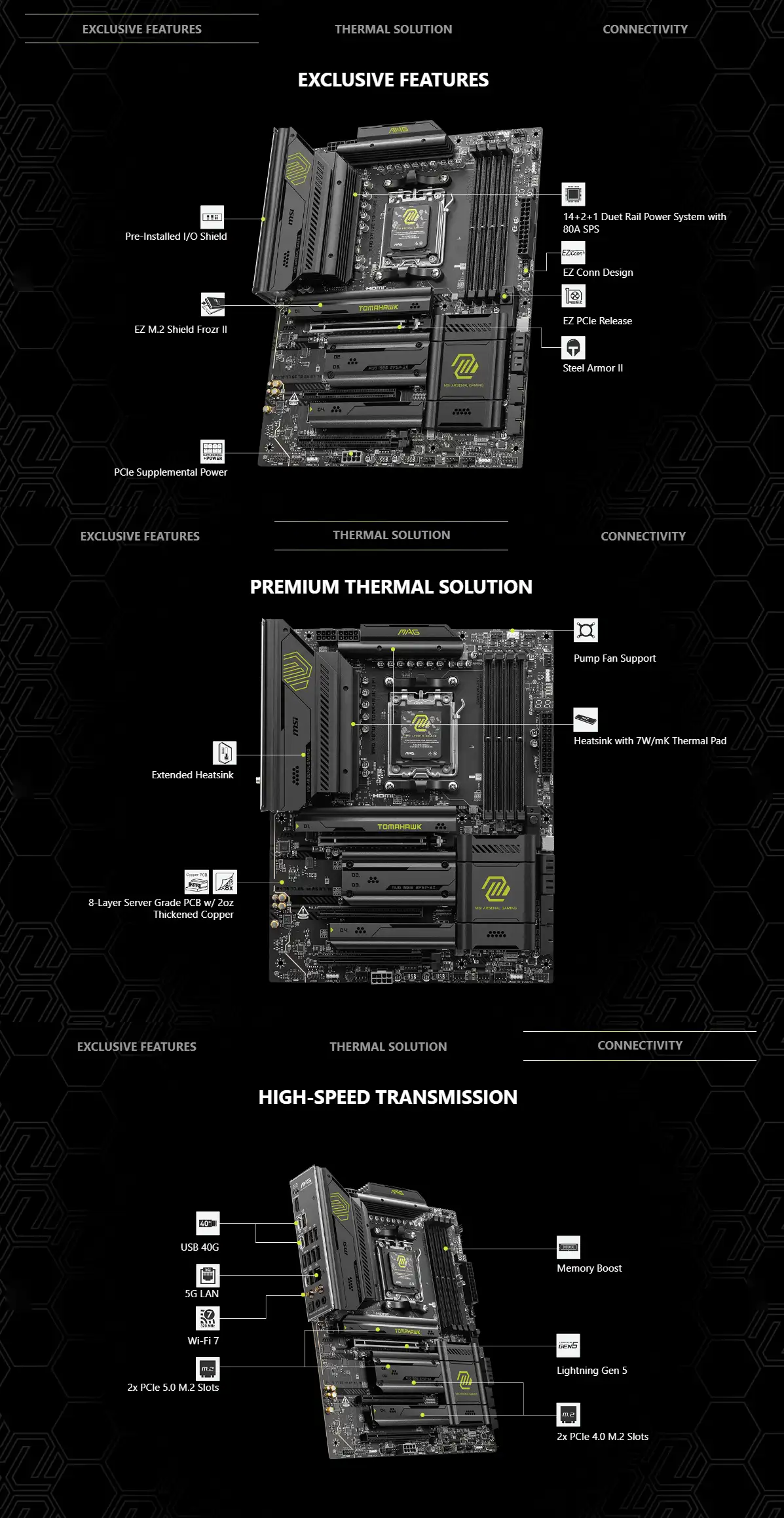

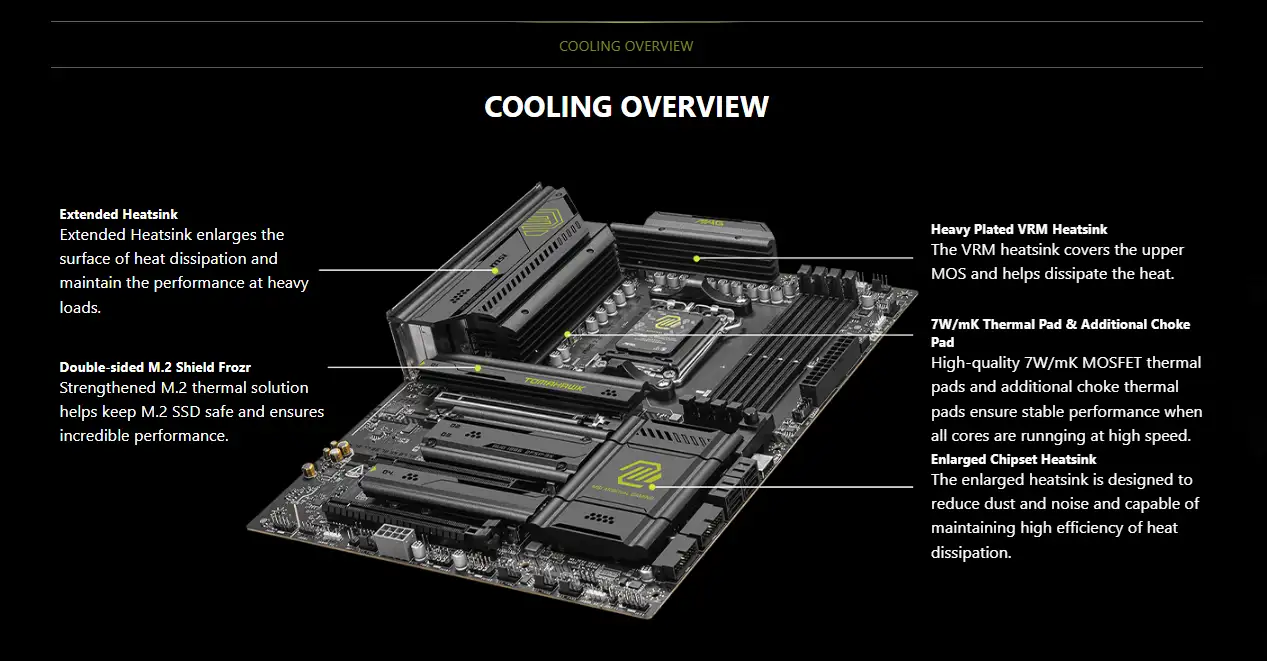

4x EZ Debug LED, 1x EZ Digit Debug LED, High-Bandwidth And Low-Latency Network, The Next Gen Wi-Fi Solution - Wi-Fi 7, Ai Lan Manager, The Isolated Analogy Structure for Audio Connectors, Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience.

Others

Internal IO: 1x Power Connector(ATX_PWR), 2x Power Connector(CPU_PWR), 1x Power Connector(PCIE_PWR 8pin), 1x CPU Fan, 1x Combo Fan (Pump_Sys Fan), 6x System Fan, 1x EZ Conn-header (JAF_2), 2x Front Panel (JFP), 1x Chassis Intrusion (JCI), 1x Front Audio (JAUD), 3x Addressable V2 RGB LED connector (JARGB_V2), 1x RGB LED connector(JRGB), 1x TPM pin header(Support TPM 2.0), 4x USB 2.0 ports, 4x USB 5Gbps Type A ports, 1x USB 20Gbps Type C ports. Back Panel Ports: Clear CMOS Button, 5G LAN, Flash BIOS Button.

Country Of Origin

Taiwan

Made in/ Assemble

China

Details

Features of MSI MAG X870E TOMAHAWK (Wi-Fi 7) Motherboard In Bangladesh

The MSI MAG X870E TOMAHAWK (Wi-Fi 7) DDR5 Motherboard is built for high-performance gaming and productivity. It supports the latest AMD Ryzen 7000, 8000, and 9000 series processors. With DDR5 memory support up to 256GB, it ensures faster speeds and smoother multitasking. Its strong build, advanced cooling, and wide connectivity make it a reliable choice. Designed in a sleek black finish, it combines power and style for modern PC setups.

What Makes The MSI MAG X870E TOMAHAWK (Wi-Fi 7) DDR5 Motherboard Special?

This motherboard comes with the AMD X870E chipset, offering next-gen features. It has four M.2 slots, including two PCIe 5.0 slots for ultra-fast SSDs. The PCIe 5.0 x16 slot supports the latest graphics cards with maximum bandwidth. For connectivity, it offers 5G LAN, Wi-Fi 7, and Bluetooth 5.4. Audio is powered by the Realtek ALC4080 codec, giving immersive 7.1 channel sound. Its cooling system includes extended heatsinks, MOSFET pads, and EZ M.2 Shield Frozr II for stability under load. RGB headers allow custom lighting for gamers who love personalization.

Who Should Buy The MSI MAG X870E TOMAHAWK (Wi-Fi 7) DDR5 Motherboard?

This motherboard is ideal for gamers who want cutting-edge performance. Creators working with 4K video, 3D rendering, or design tools will also benefit from its speed. Streamers and multitaskers will enjoy the stability of DDR5 memory and high-speed storage options. Professionals who rely on fast networks will appreciate 5G LAN and Wi-Fi 7 support. Anyone planning to build a powerful AM5 system with future-ready technology should consider this model.

Is the MSI MAG X870E TOMAHAWK (Wi-Fi 7) DDR5 Motherboard Worth Buying?

Yes, this motherboard delivers advanced features that match modern needs. It supports the latest processors and memory, ensuring long-term performance. With PCIe 5.0, multiple M.2 slots, and high-bandwidth connectivity, it handles both gaming and professional workloads with ease. The strong thermal design keeps systems running smoothly even under stress. If you're looking to buy the MSI MAG X870E TOMAHAWK (Wi-Fi 7) DDR5 Motherboard in Bangladesh, Ryans Computers offers the best price in the market.

What is the price of MSI MAG X870E TOMAHAWK (Wi-Fi 7) Motherboard In Bangladesh?

The price of MSI MAG X870E TOMAHAWK (Wi-Fi 7) Motherboard not mentioned for stock unavailability.The price may vary due to your customization and product availability. You can buy MSI MAG X870E TOMAHAWK (Wi-Fi 7) Motherboard from our website or visit our showrooms nearby.
