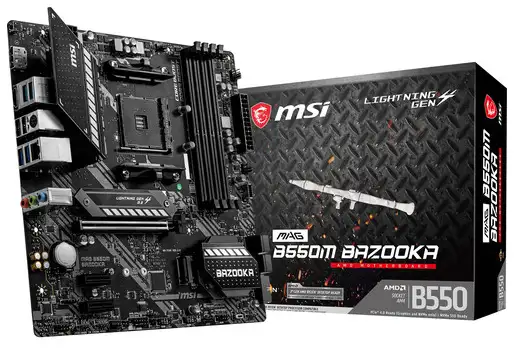

MSI MAG B550M BAZOOKA Gaming AMD Motherboard
Product Id: 02.02.033.244
Brand
MSI
Quick Overview
- Chipset - AMD B550
- Sockets Supported - AM4
- Supported CPU - AMD Ryzen 3rd Generation Processors
- Generation - 3rd
- Memory Slot - 4
- Memory Max. - 128GB
- Back-Connect Design - No
Brand
MSI
Model
MSI MAG B550M BAZOOKA
Chipset
AMD B550
Sockets Supported
AM4
Built-in Processor
No
Generation
3rd
Back-Connect Design
No
Memory Type
DDR4
Memory Slot
4
Memory Max.
128GB
Optane Memory Support
No
Graphics
Integrated
Graphics Chipset
Integrated With Processor
M.2/SSD Expansion Slot
2
WiFi
No
Bluetooth
No
Form Factor
Micro-ATX
Supported Operating System
Windows 10
Body Color
Black
Warranty Details
3 year
N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
Details
Features of MSI MAG B550M BAZOOKA Motherboard In Bangladesh
MSI MAG B550M BAZOOKA
Set the foundation of your next custom gaming-focused PC with the MAG B550M Bazooka Micro-ATX Motherboard from MSI. The micro-ATX form factor provides the utility of larger boards in a compact size. Built upon the AMD B550 chipset, you get an AM4 CPU socket, ideal for RYZEN brand processors. Install up to a total of 128GB of dual-channel DDR4 memory with speeds up to 4400 MHz to experience quick multitasking and smooth system performance. Store your virtual gaming library with four SATA III ports and two M.2 PCIe NVMe SSD interfaces for faster application loading speeds. Further expand the capabilities of the MAG B550M with one PCIe 4.0 x16 slot for graphics cards, while two PCIe 3.0 x1 slots allow the installation of game capture, audio, and wireless networking cards.
You can utilize six USB 3.2 Gen 1 Type-A and Type-C ports for resource demanding devices such as external storage or microphones. Another six USB 2.0 Type-A ports are available for low-resource devices such as keyboards and mice. An RJ45 gigabit Ethernet port provides speedy wired networking capabilities for a low-latency online experience. This motherboard is compatible with Windows 10 (64-bit) operating system.
Do It Yourself Friendly
Embracing the ever-growing culture of custom PC building, the B550M is clearly designed with easily accessible and defined ports. Keep Out Zone ensures case standoffs don't interact with electrical components while installing, keeping your motherboard safe from accidental short circuits. An enlarged PCIe clip helps eject graphics cards without damaging any components. An EZ Debug LED system indicates the sources of possible problems, notifying you if any errors exist within the CPU, DRAM, VGA, or Boot system. You can even switch this function off if you wish with the flick of an on-board switch. A BIOS flashback button allows you to quickly go back to a prior BIOS version, allowing you to continue gaming within moments.
Performance and Protection
MSI designed the B550M with a mindfulness, starting with a 2oz thickened copper printed circuit board which increases conductivity and improves heat dissipation. A 4+2+1 Duet Rail CPU power system utilizes phasing technology, enabling core boost capabilities that empower the processor for overclocking, while reducing electrical loads. Load line calibration and overvoltage protection stabilizes CPU voltage and protects critical components from short-circuiting under heavy operational loads. ESD protection provides additional grounding layers around the mounting holes, preventing potential static discharge from damaging the motherboard. Additionally, the PCIe slot features steel-armor covering, preventing the weight of heavy graphics cards from affecting the motherboard by heavily reinforcing soldered connections.
Performance Boosting Technology
Lightning Gen 4 works with the two M.2 PCIe NVMe SSD slots to provide you with enhanced data transfer speeds up to 64 Gb/s, increasing loading times and general operating system performance. Audio Boost also provides studio-grade sound for immersive gaming experiences. Game Boost is a quick one-second enhancement that allows your system to enable overclocking with just the press of a button. HDMI and DisplayPort outputs allow up to 4K resolution depending on the CPU installed.
Thermal Solutions
MSI provides multiple thermal solutions to keep your motherboard and components cool as you game. Pump fan support allows you to attach various water cooling systems while also reducing radiator noise. Extended heatsinks and cooler pads provides better heat transference through the board, reducing temperature throughout the system. The M.2 Shield Frozr is a specialized heatsink designed for M.2 PCIe NVMe solid-state drives, preventing damage caused by overheating.
MSI Dragon Center
Adjust operation parameters and monitor performance with the MSI Dragon Center software. This program allows you to fine-tune various aspects of your build, streamlining fan control and making custom changes simple and easy. With the LAN Manager, you can prioritize your games over other applications, adjust bandwidth properties, and run multiple tests to ensure optimized gaming performance. Dragon Center also enables you to change lighting settings for compatible RGB-enabled components such as fans and peripherals like mice and keyboards.
What is the price of MSI MAG B550M BAZOOKA Motherboard In Bangladesh?
The price of MSI MAG B550M BAZOOKA Motherboard not mentioned for stock unavailability. The price may vary due to your customization and product availability. You can buy MSI MAG B550M BAZOOKA Motherboard from our website or visit our showrooms nearby.
