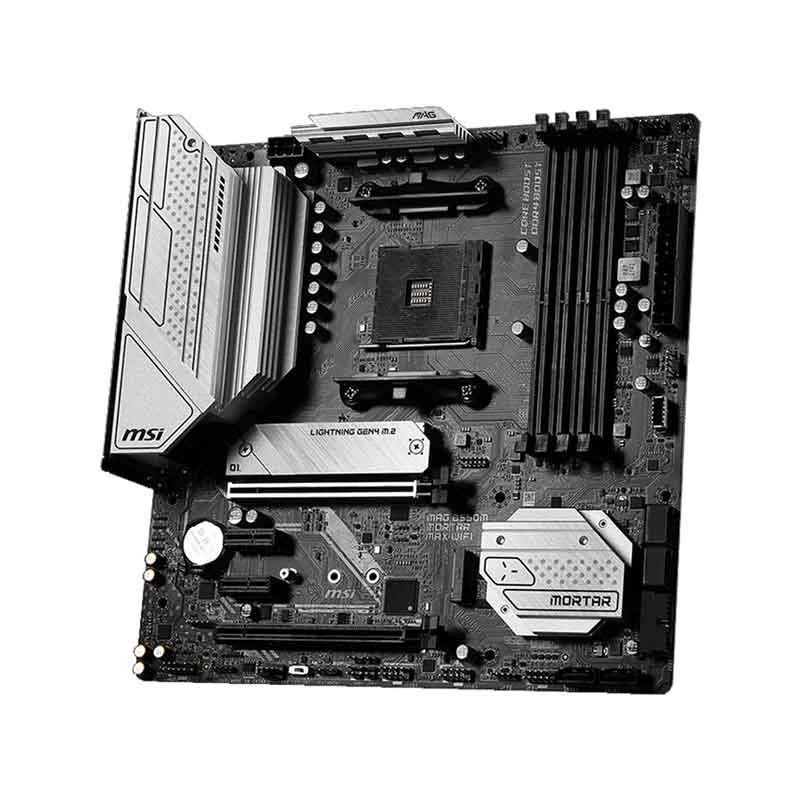

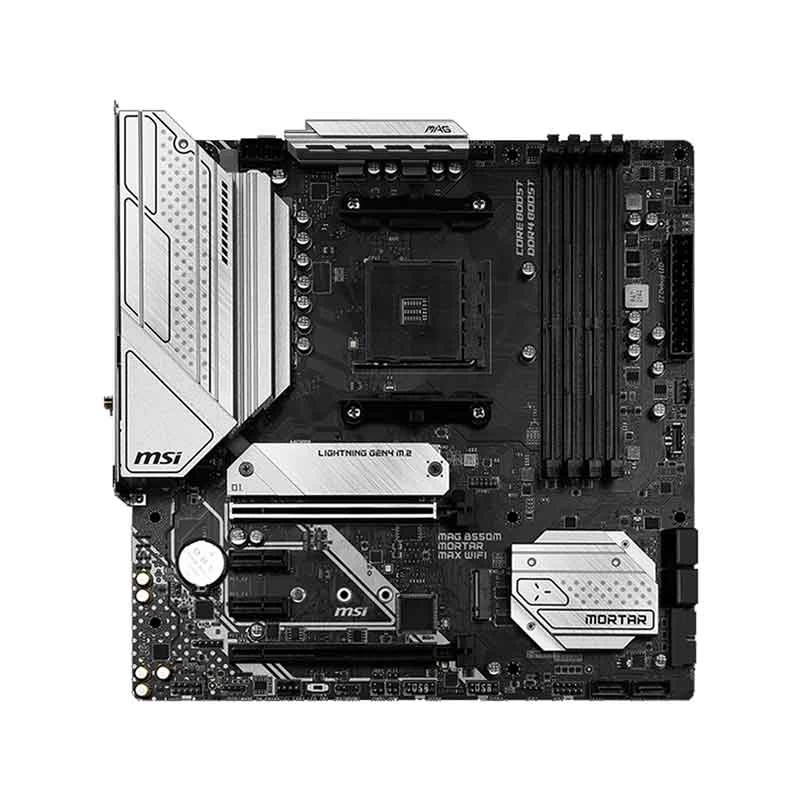

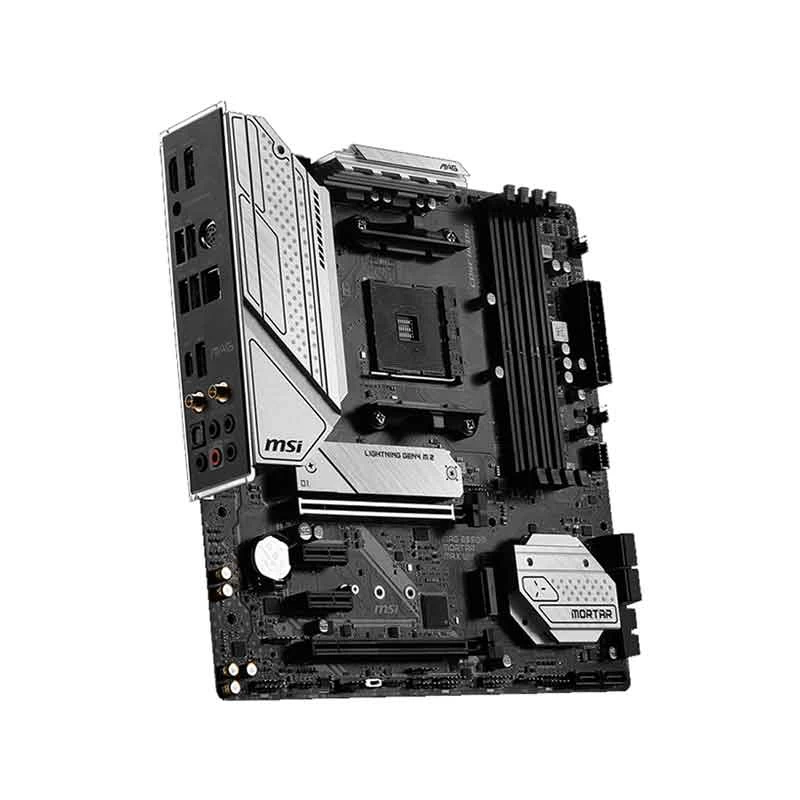

MSI MAG B550M MORTAR MAX (Wi-Fi 6) DDR4 AMD Gaming Motherboard

Product Id: 02.02.033.354

Brand MSI

Regular Price Tk 23,760 Monthly EMI Tk 1,980
Special Price Tk 21,900

Quick Overview

  • Chipset - AMD B550
  • Memory Max. - 128GB
  • Memory Slot - 4
  • Sockets Supported - AM4
  • Supported CPU - AMD Ryzen 5000 Series, 5000 G-Series, 4000G-Series, and 3000 Series processors
  • Generation - Not Applicable
General
Brand
MSI

Model
MSI MAG B550M MORTAR MAX (Wi-Fi 6)

Body Color
Black


CPU
Chipset Brand
AMD

Chipset
AMD B550

Sockets Supported
AM4

Built-in Processor
No

Supported CPU
AMD Ryzen 5000 Series, 5000 G-Series, 4000G-Series, and 3000 Series processors

Generation
Not Applicable


Memory Support
Memory Type
DDR4

Memory MHz
1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400+MHz

Memory Channel
Dual

Memory Slot
4

Memory Slot (Additional Info)
4 x DDR4 DIMM

Memory Max.
128GB

Memory Max. (Additional Info)
128GB

Optane Memory Support
No


Storage
Storage Interface
6.0Gb/s

M.2/SSD Expansion Slot
2

M.2/SSD Expansion Slot Details
2 x M.2 ( 1 x M.2 (Key M) PCIe 4.0/ 3.0 x4, SATA 6Gb/s, 2242/ 2260/ 2280 storage devices, 1 x M.2 (from AMD B550 chipset), PCIe 3.0x4, 2242/ 2260/ 2280 storage devices)


Graphics
Graphics
Integrated

Graphics Chipset
Integrated With Processor

Multi-GPU Support
2-Way AMD CrossFire

PCI Express Slot
1 x PCIe 3.0/ 4.0 x 16, 1 x PCIe 3.0 x 16, 2 x PCIe 3.0 x 1


Audio & Video
Audio Chipset
Realtek ALC1200/ALC1220P Codec

Audio Channel
8


Network & Connectivity
LAN Chipset
Realtek RTL8125B

LAN Speed (Mbps)
10/ 100/ 1000/ 2500 Mbps

WiFi
Yes

WiFi Technology
Wi-Fi 6E

Bluetooth
Bluetooth 5.2

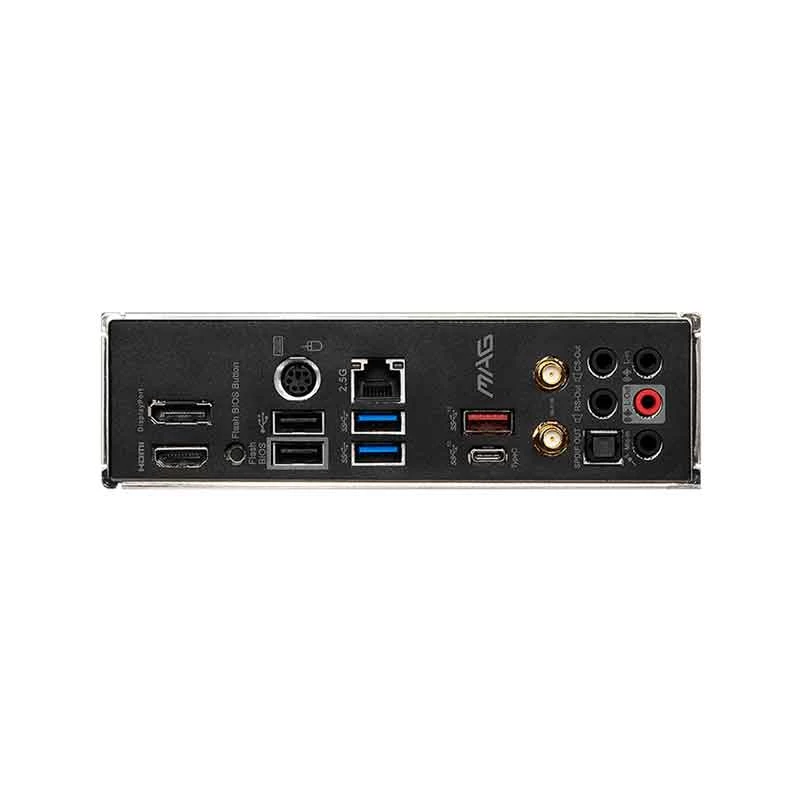

Ports
USB Port
1 x USB 3.2 Gen 2 Type C, 3 x USB 3.2 Gen 2 Type A, 2 x USB 2.0

VGA Port
No

DVI Port
No

HDMI Port
1

DisplayPort (DP)
1

IDE Port
No

SATA Port
6

Thunderbolt
No

TPM Port
No

COM Port
No


Technical Info
DirectX Support
12

FireWire
No

CrossFire Support
Yes

Sli Support
No

Raid Support
0/1/10

RGB Support
RGB

RGB Connector
1 x 4-pin RGB LED connector

Approx. Power Consumption
60W

Form Factor
Micro-ATX


Compatibility
Supported Operating System
Windows 10/ 11

Compatible Products
Sockets Supported AM4: AMD Ryzen 5000 Series, 5000 G-Series, 4000G-Series, and 3000 Series processors


Warranty
Warranty
3 Year

Warranty Details
3 year


Additional Info
Feature
Extended Heatsink Design, Wi-Fi 6E, M.2 Shield FROZR, mCore Boost, Lightning Gen4 Solution, 2.5G Network Solution, Audio Boost, DDR4 Boost, 2oz Thickened Copper PCB

Others
MSI extended PWM heatsink and enhanced circuit design ensures even high-end processors to run in full speed.The latest wireless solution supports 6GHz spectrum, MU-MIMO and BSS color technology, delivering speeds up to 2400Mbps.With premium layout and fully digital power design to support more cores and provide better performance

Country Of Origin
Taiwan

Made in/ Assemble
China


N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
