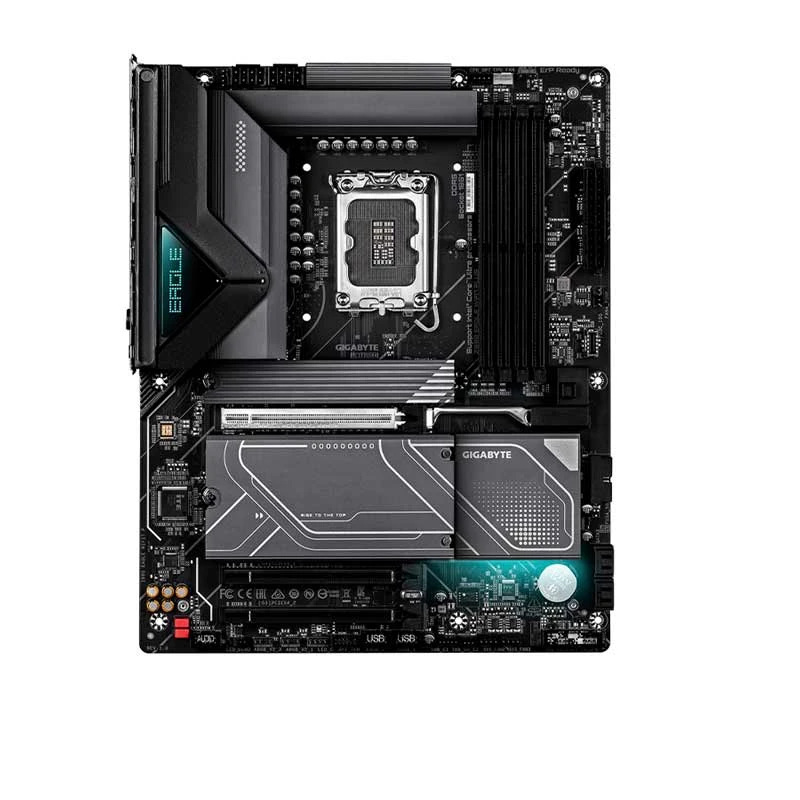

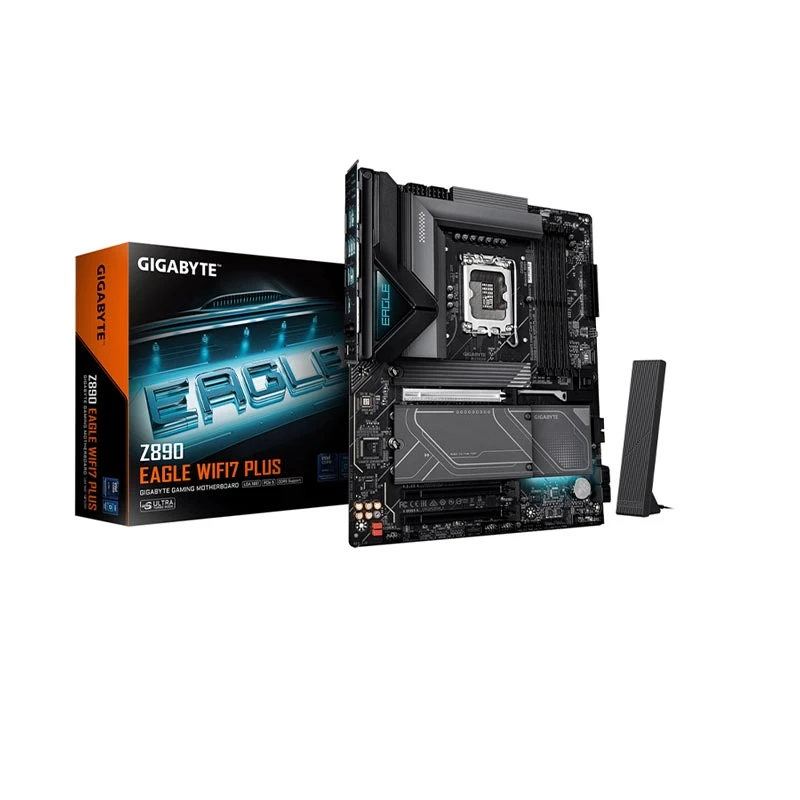

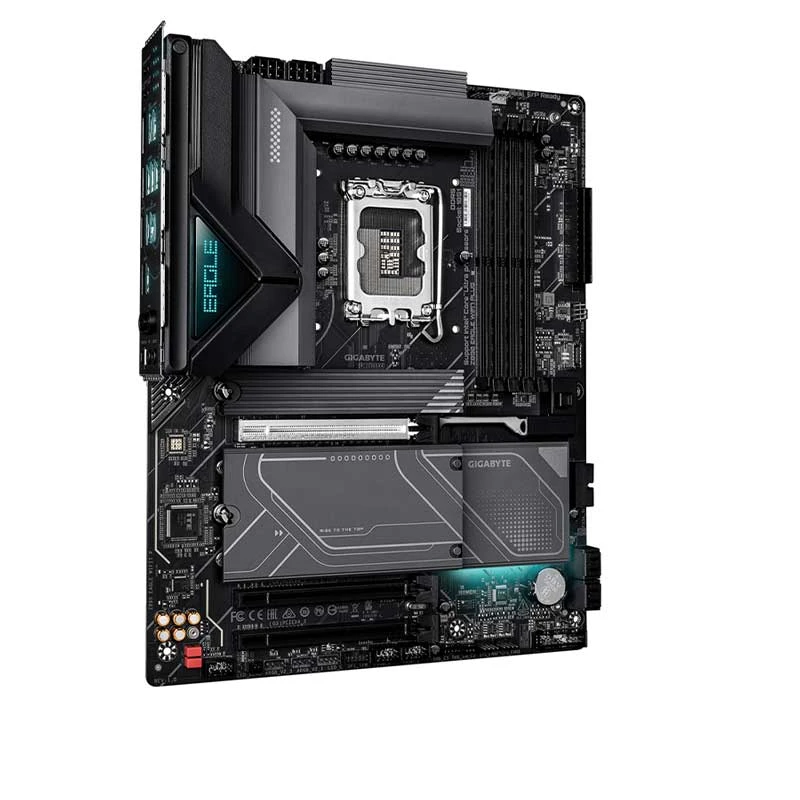

Gigabyte Z890 EAGLE PLUS (Wi-Fi 7) DDR5 (Intel Core Ultra LGA1851 Socket) Motherboard

Item: Gigabyte Z890 EAGLE PLUS (Wi-Fi 7) DDR5 (Intel Core Ultra LGA1851 Socket) Motherboard
Rating: 5
Author: Verified Buyer

Product Id: 02.01.018.611

Coming Soon

Quick Overview

Form Factor - ATX
Chipset - Intel Z890
Sockets Supported - LGA1851
Supported CPU - Intel Core Ultra Processors
Generation - Ultra
Memory Slot - 4
Memory Max. - 256GB
Back-Connect Design - No
Body Color - Black

Payment Method Shipping & Charge Order Procedure

Brand

Gigabyte

Model

Gigabyte Z890 EAGLE PLUS (Wi-Fi 7)

Chipset

Intel Z890

Sockets Supported

LGA1851

Built-in Processor

Generation

Ultra

Back-Connect Design

Memory Type

DDR5

Memory Slot

Memory Max.

256GB

Optane Memory Support

Graphics

Integrated

Graphics Chipset

Integrated With Processor

M.2/SSD Expansion Slot

WiFi

Yes

Bluetooth

Bluetooth 5.4

Form Factor

ATX

Supported Operating System

Windows 11

Body Color

Black

Warranty

3 year

General

Brand

Gigabyte

Model

Gigabyte Z890 EAGLE PLUS (Wi-Fi 7)

Body Color

Black

Part No

Z890 EAGLE WIFI7 P

CPU

Chipset Brand

Intel

Chipset

Intel Z890

Sockets Supported

LGA1851

Built-in Processor

Supported CPU

Intel Core Ultra Processors

Generation

Ultra

Memory Support

Memory Type

DDR5

Memory MHz

9466+MT/s (OC)

Memory Channel

Dual

Memory Slot

Memory Max.

256GB

Optane Memory Support

Storage

Storage Interface

6.0Gb/s

M.2/SSD Expansion Slot

M.2/SSD Expansion Slot Details

4 x M.2 (1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU), 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU), 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB), 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB))

M.2/SSD Slot Gen

Up to Gen 5

Graphics

Integrated

Graphics Chipset

Integrated With Processor

PCI Express Slot

1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16), 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1/2)

Audio & Video

Audio Chipset

Realtek ALC1220 CODEC

Audio Channel

2/4/5.1/7.1

Network & Connectivity

LAN Chipset

Realtek 2.5GbE

LAN Speed (Mbps)

10/ 100/ 1000/ 2500Mbps

WiFi

Yes

WiFi Technology

Intel Wi-Fi 7 BE202 (BE200NGW M)

Bluetooth

Bluetooth 5.4

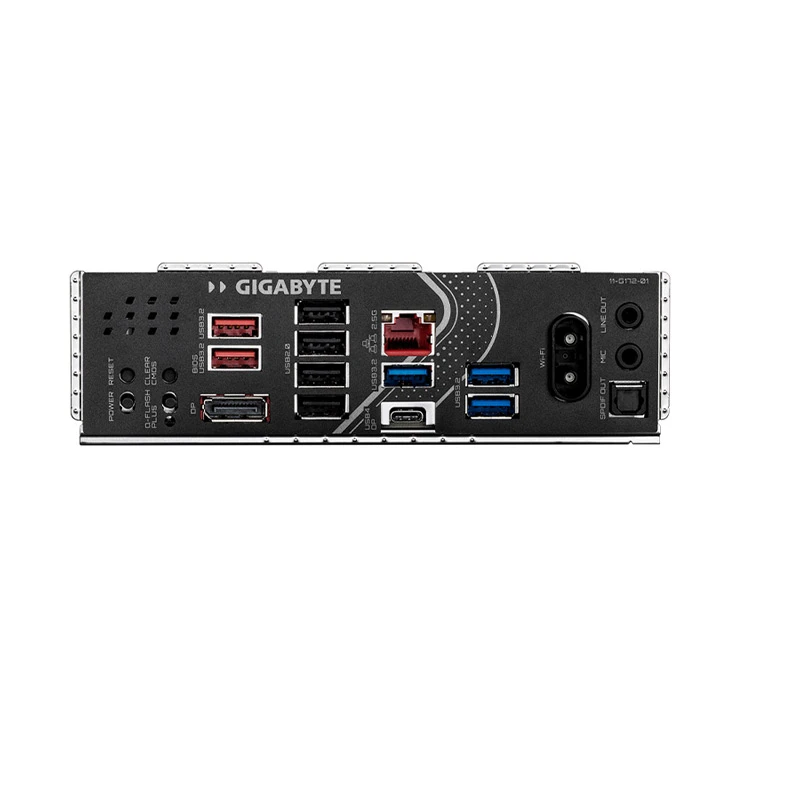

Ports

USB Port

1 x USB4 USB Type-C (DisplayPort (Note)), 2 x USB 3.2 Gen 2 Type-A (red), 3 x USB 3.2 Gen 1, 4 x USB 2.0/1.1

VGA Port

DVI Port

HDMI Port

DisplayPort (DP)

SATA Port

4 x SATA

Thunderbolt

Technical Info

Back-Connect Design

Cable Management

Front

Heatsink

Yes

CrossFire Support

Sli Support

Raid Support

0, 1, 5, 10

RGB Support

ARGB

RGB Connector

3 x addressable RGB Gen 2 LED strip headers, 1 x RGB LED strip header

Approx. Power Consumption

70W

Form Factor

ATX

Bios Information

BIOS Type

1 x 512 Mbit flash

BIOS Model

AMI UEFI BIOS

BIOS Version

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Compatibility

Supported Operating System

Windows 11

Compatible Products

Compatible with LGA1851 Core Ultra Processors

Warranty

3 year

Additional Info

Feature

Support for GIGABYTE Control Center (GCC), Support for Q-Flash, Support for Q-Flash Plus, Support for Smart Backup, Norton Internet Security (OEM version). Ultra Turbo Mode, Infinite Memory Performance, D5 Bionic Corsa, Steady Power, AORUS AI SNATCH, AI SNATCH Engine, AI-Driven PCB Design, HyperTune BIOS.

Others

Support Non-ECC, Un-buffered, Clocked Unbuffered DIMM (CUDIMM), 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands, Internal I/O Connectors: 1 x 24-pin ATX main power connector, 2 x 8-pin ATX 12V power connectors, 1 x CPU fan header, 1 x CPU fan/water cooling pump header, 3 x system fan headers, 1 x system fan/water cooling pump header, 1 x front panel header, 1 x front panel audio header, 2 x Thunderbolt add-in card connectors (For GIGABYTE Thunderbolt™ 5 add-in card only), 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only), 1 x reset jumper, 1 x Clear CMOS jumper. Back Panel Connectors: 1 x power button, 1 x reset button, 1 x Q-Flash Plus button, 1 x Clear CMOS button, 2 x antenna connectors (2T2R), 1 x RJ-45 port, 2 x audio jacks, 1 x optical S/PDIF Out connector. iTE I/O Controller Chip, H/W Monitoring: Voltage detection, Temperature detection, Fan speed detection, Water cooling flow rate detection, Fan fail warning, Fan speed control.

Country Of Origin

Taiwan

Made in/ Assemble

China

Details

Features of Gigabyte Z890 EAGLE PLUS (Wi-Fi 7) Motherboard In Bangladesh

What is the price of Gigabyte Z890 EAGLE PLUS (Wi-Fi 7) Motherboard In Bangladesh?

The price of Gigabyte Z890 EAGLE PLUS (Wi-Fi 7) Motherboard not mentioned for stock unavailability.The price may vary due to your customization and product availability. You can buy Gigabyte Z890 EAGLE PLUS (Wi-Fi 7) Motherboard from our website or visit our showrooms nearby.
