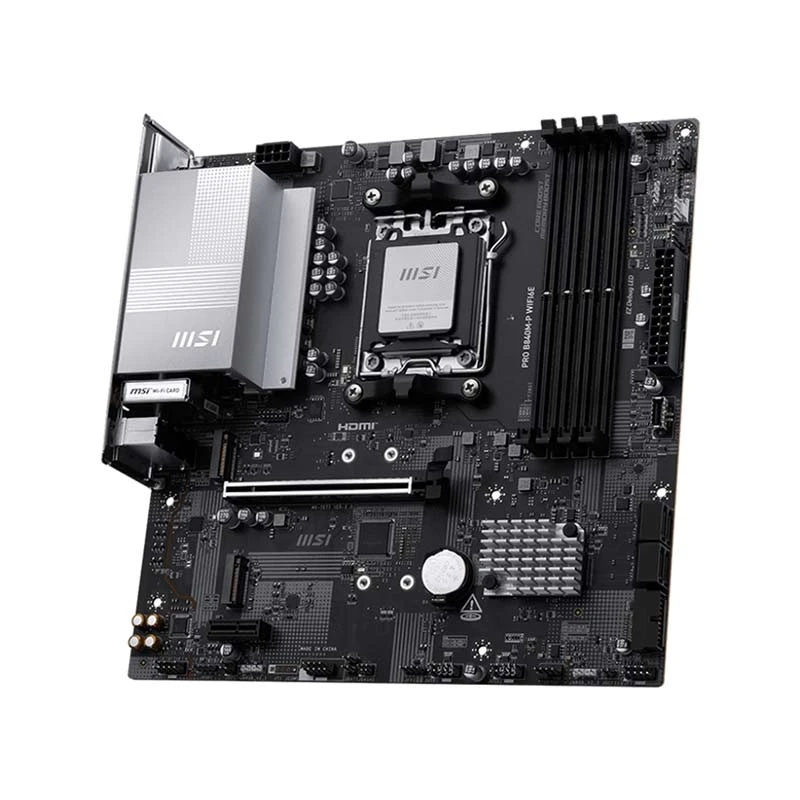

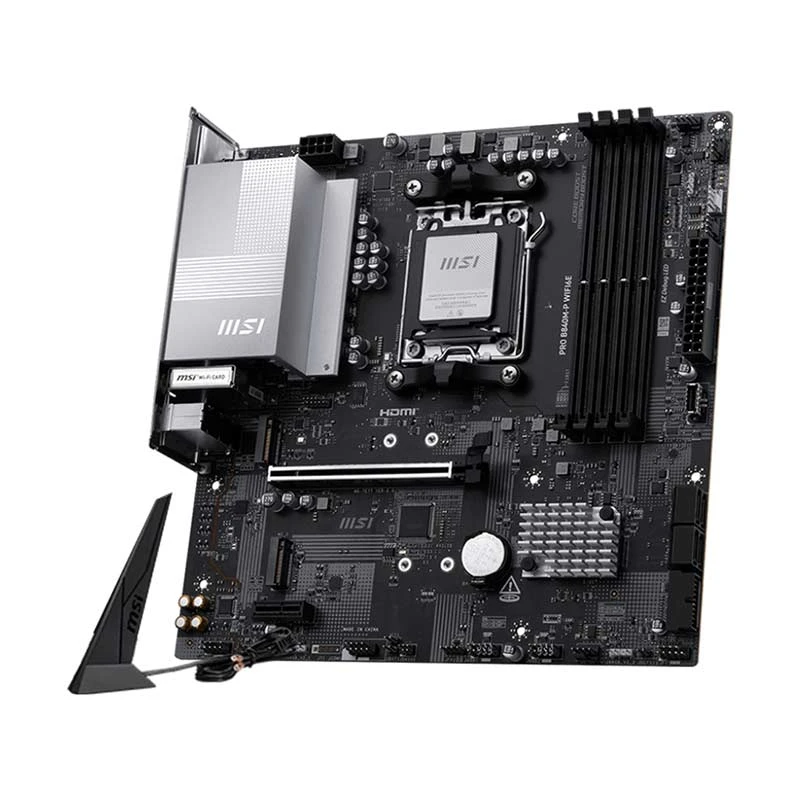

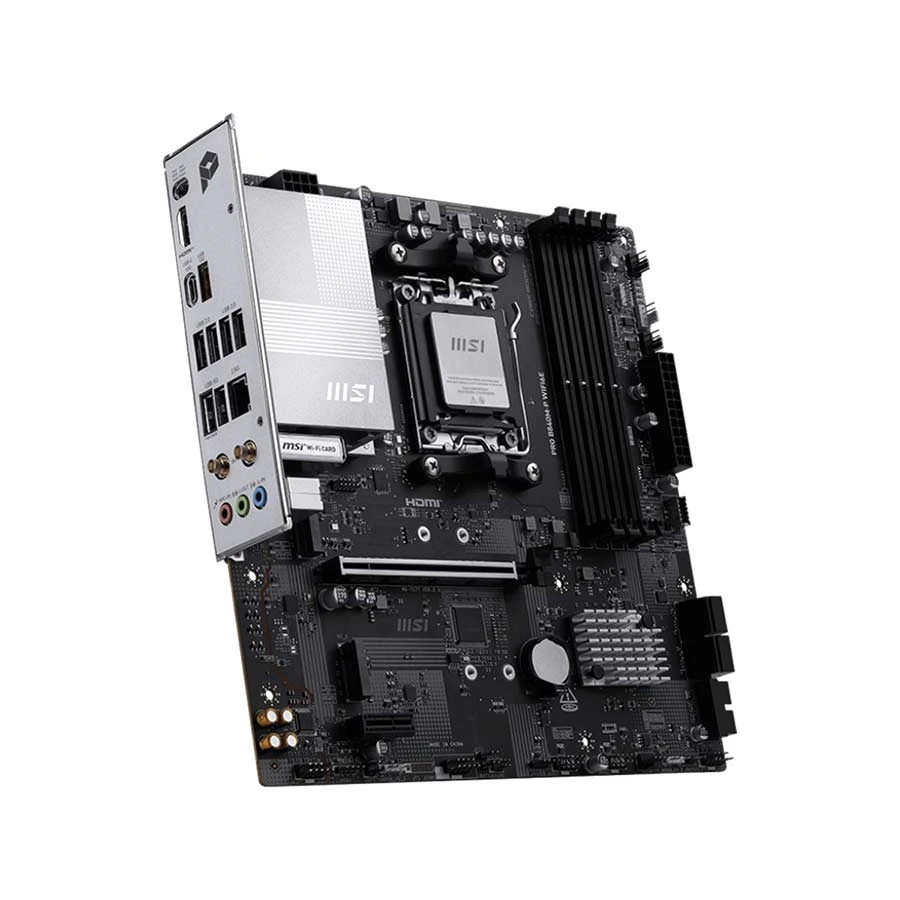

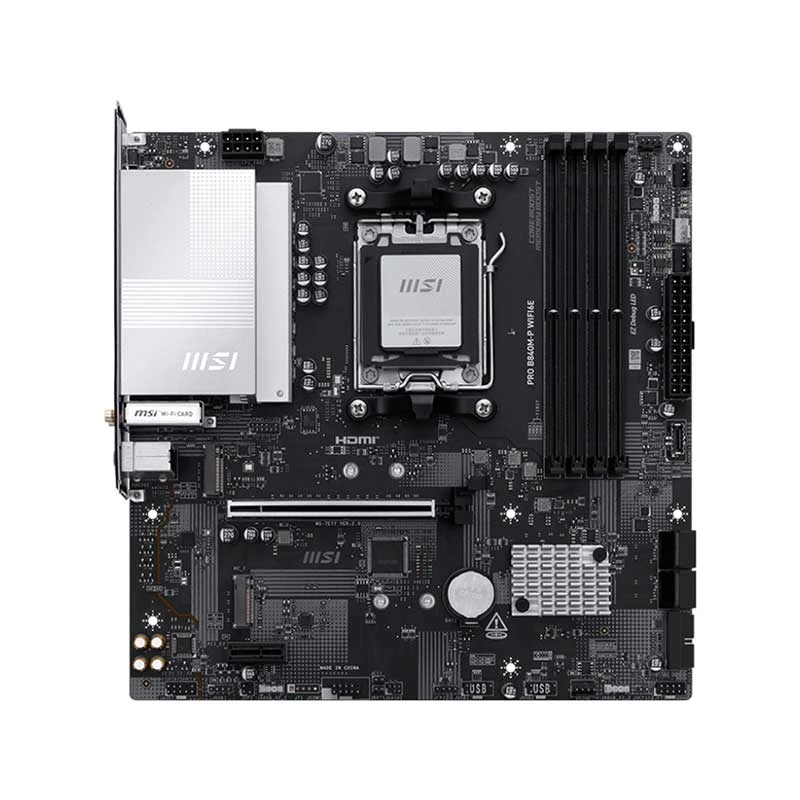

MSI PRO B840M-P (Wi-Fi 6E) DDR5 AMD AM5 Socket Motherboard #PRO B840M-P WIFI6E

Item: MSI PRO B840M-P (Wi-Fi 6E) DDR5 AMD AM5 Socket Motherboard #PRO B840M-P WIFI6E
Rating: 5
Author: Verified Buyer

9 reviews

Product Id: 02.02.033.584

Out Of Stock

Quick Overview

Form Factor - Micro-ATX
Chipset - AMD B840
Sockets Supported - AM5
Supported CPU - AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors
Generation - Not Applicable
Memory Slot - 4
Memory Max. - 256GB
Back-Connect Design - No
Body Color - Black

Payment Method Shipping & Charge Order Procedure

Brand

MSI

Model

MSI PRO B840M-P (Wi-Fi 6E)

Chipset

AMD B840

Sockets Supported

AM5

Built-in Processor

Generation

Not Applicable

Back-Connect Design

Memory Type

DDR5

Memory Slot

Memory Max.

256GB

Optane Memory Support

Graphics

Integrated

Graphics Chipset

Integrated

M.2/SSD Expansion Slot

WiFi

Yes

Bluetooth

Bluetooth 5.3

Form Factor

Micro-ATX

Supported Operating System

Windows 11

Body Color

Black

Warranty

3 year

General

Brand

MSI

Model

MSI PRO B840M-P (Wi-Fi 6E)

Body Color

Black

Part No

PRO B840M-P WIFI6E

CPU

Chipset Brand

AMD

Chipset

AMD B840

Sockets Supported

AM5

Built-in Processor

Supported CPU

AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors

Generation

Not Applicable

Memory Support

Memory Type

DDR5

Memory MHz

8000 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s

Memory Channel

Dual

Memory Slot

Memory Max.

256GB

Optane Memory Support

Storage

Storage Interface

6.0Gb/s

M.2/SSD Expansion Slot

M.2/SSD Expansion Slot Details

2 x M.2 (M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices, M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices)

M.2/SSD Slot Gen

Up to Gen 4

Graphics

Integrated

Graphics Chipset

Integrated

Multi-GPU Support

PCI Express Slot

1x PCI-E x16 slot, 1x PCI-E x1 slot

Audio & Video

Audio Chipset

Realtek ALC897

Audio Channel

7.1

Network & Connectivity

LAN Chipset

Realtek 8125D 2.5G LAN

LAN Speed (Mbps)

10/ 100/ 1000/ 2500Mbps

WiFi

Yes

WiFi Technology

Wi-Fi 6E 802.11 a/ b/ g/ n/ ac/ ax

Bluetooth

Bluetooth 5.3

Ports

USB Port

4x USB 2.0, 2x USB 5Gbps Type A, 1x USB 10Gbps Type A, 1x USB 10Gbps Type C

VGA Port

DVI Port

HDMI Port

DisplayPort (DP)

SATA Port

4 x SATA

Thunderbolt

Technical Info

Back-Connect Design

Cable Management

Front

Heatsink

Yes

CrossFire Support

Sli Support

Raid Support

0, 1, 10

RGB Support

ARGB

RGB Connector

3x Addressable V2 RGB LED connector (JARGB_V2), 1x RGB LED connector(JRGB)

Approx. Power Consumption

60W

Form Factor

Micro-ATX

Compatibility

Supported Operating System

Windows 11

Compatible Products

AM5 Socket Amd Ryzen 7000/ Ryzen 8000/ Ryzen 9000 Series Processors

Warranty

3 year

Additional Info

Feature

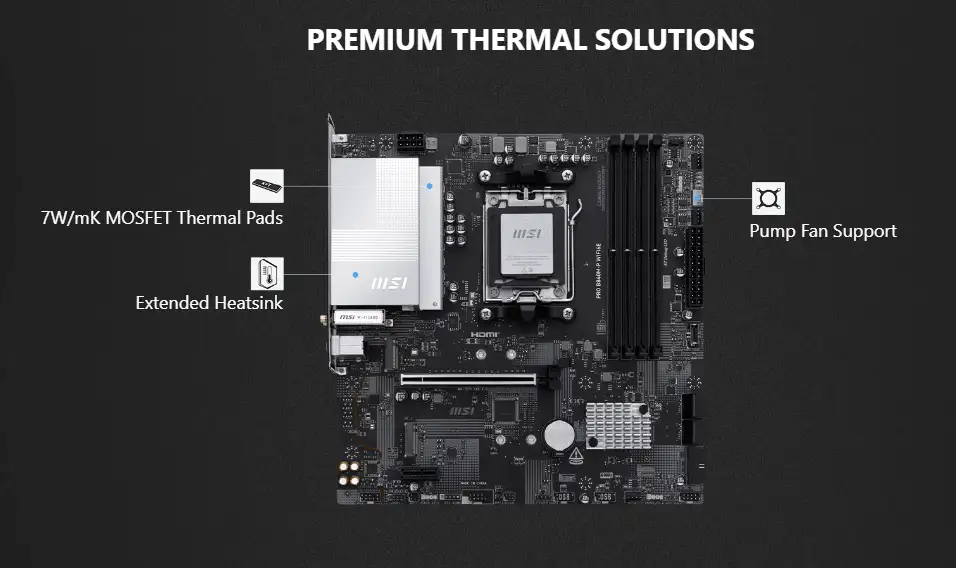

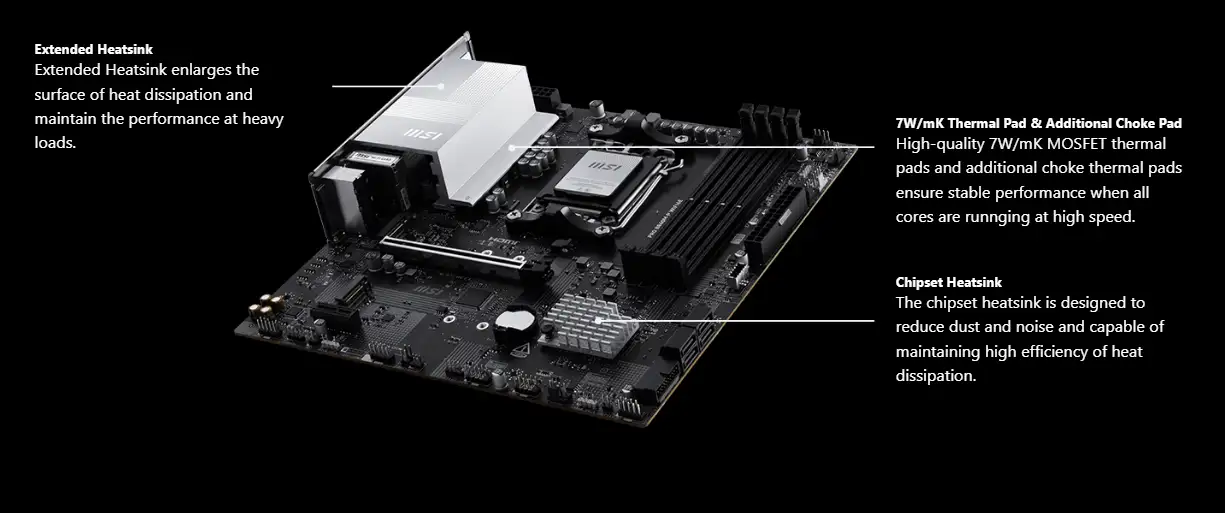

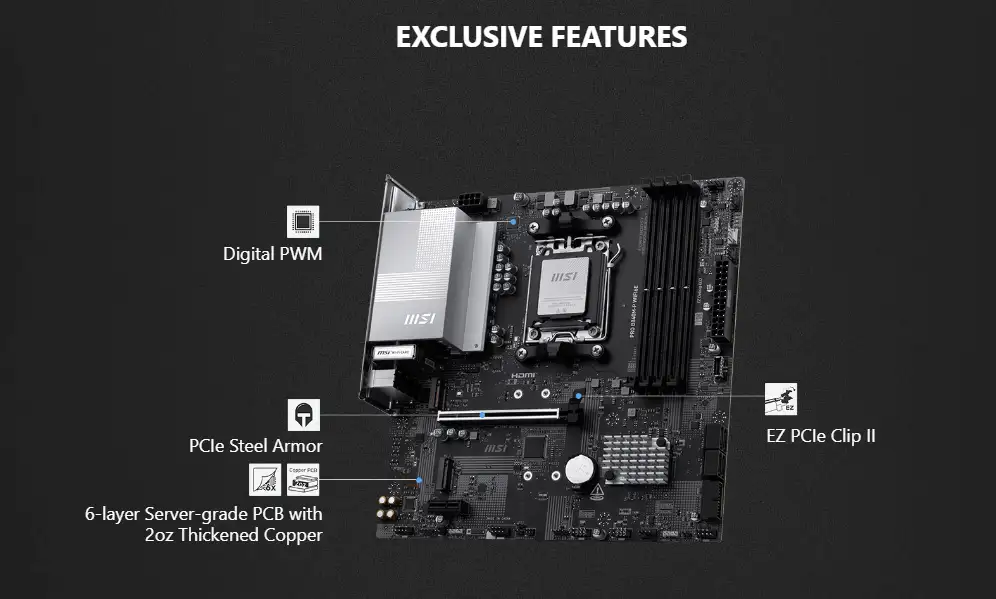

EZ PCIe Clip II: Allows for easy removal of the graphics card by pressing the taillike lock with one finger, even in the cramped case spaces. Latest DDR5 Memory: A huge step of DDR performance enhancement with the latest DDR5 memory and MSI Memory Boost technology. Lightning Gen4 Solution: The latest Gen4 PCI-E and M.2 solution with up to 64GB/s bandwidth for maximum transfer speed. Wi-Fi 6E: The latest wireless solution supports 6GHz spectrum, MU-MIMO and BSS color technology, delivering speeds up to 2400Mbps. 2.5G Network Solution: Featuring premium 2.5G LAN to deliver better network experience. Extended Heatsink Design: MSI extended PWM heatsink and enhanced circuit design ensures even high-end processors to run in full speed. Pre-installed I/O Shielding: Better EMI protection and more convenience for installation Frozr AI Cooling: Detect CPU & GPU temperatures and automatically adjust system fan duty to a proper value.

Others

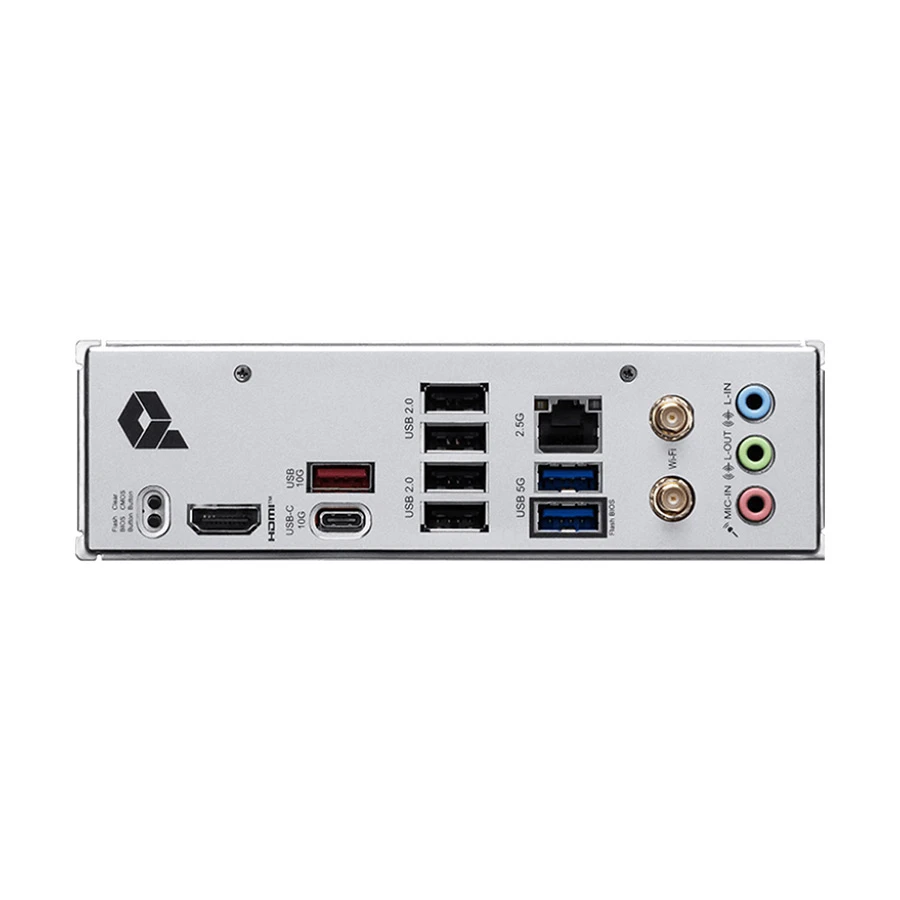

Supports AMD POR Speed and JEDEC Speed, Supports Memory Overclocking and AMD EXPOTM, Supports Dual-Channel mode, Supports Non-ECC, Un-buffered memory, Supports CUDIMM, Clock Driver bypass mode only, High Definition Audio, Internal IO: 1x Power Connector(ATX_PWR), 1x Power Connector(CPU_PWR), 1x CPU Fan, 1x Combo Fan (Pump_Sys Fan), 3x System Fan, 2x Front Panel (JFP), 1x Chassis Intrusion (JCI), 1x Front Audio (JAUD), 1x Com Port (JCOM), 1x Tuning Controller connector(JDASH), 3x Addressable V2 RGB LED connector (JARGB_V2), 1x RGB LED connector(JRGB), 1x TPM pin header(Support TPM 2.0), LED Feature : 4x EZ Debug LED, 1x EZ Memory Detection LED, Back Panel Ports: Clear CMOS Button, Wi-Fi / Bluetooth, Audio connectors, Flash BIOS Button.

Country Of Origin

Taiwan

Made in/ Assemble

China

Details

Features of MSI PRO B840M-P (Wi-Fi 6E) Motherboard In Bangladesh

The MSI PRO B840M-P Motherboard is built for modern AMD desktop systems. It supports AMD Ryzen 7000, 8000, and 9000 series processors using the AM5 socket. The Micro-ATX form factor makes it suitable for compact yet powerful PC builds. It offers DDR5 memory support with high speeds for smooth multitasking. This motherboard is designed for stability, performance, and daily productivity needs.

What Makes The MSI PRO B840M-P (Wi-Fi 6E) Motherboard Special?

The MSI PRO B840M-P Motherboard features the AMD B840 chipset for reliable system performance. It supports up to 256GB of DDR5 memory with dual-channel architecture. Two PCIe Gen4 M.2 slots provide fast storage expansion options. Built-in Wi-Fi 6E and Bluetooth 5.3 ensure strong wireless connectivity. The 2.5G LAN chipset delivers faster and more stable wired networking. Extended heatsink design and Frozr AI Cooling help maintain optimal temperatures. EZ PCIe Clip II makes graphics card removal simple and quick. Pre-installed I/O shielding improves installation ease and EMI protection.

Who Should Buy The MSI PRO B840M-P (Wi-Fi 6E) Motherboard?

The MSI PRO B840M-P Motherboard is ideal for users building an AMD Ryzen-based PC. It suits professionals who need stable performance for work and multitasking. Gamers can benefit from fast memory support and Gen4 storage speeds. Content creators will appreciate reliable networking and expanded storage options. It is also a good choice for users wanting a compact Micro-ATX system with modern features. Anyone upgrading to DDR5 and AM5 platforms can consider this motherboard confidently.

Is The MSI PRO B840M-P Motherboard Worth Buying?

The MSI PRO B840M-P Motherboard is worth buying for its balanced feature set. It combines DDR5 memory support, Gen4 connectivity, and modern wireless technology. The motherboard offers strong cooling support for consistent system operation. Multiple USB ports, SATA connections, and RGB headers add flexibility for different builds. With support for the latest AMD Ryzen processors, it is future-ready and practical. If you're looking to buy the MSI PRO B840M-P Motherboard in Bangladesh,Ryans Computers offers the best price in the market.

What is the price of MSI PRO B840M-P (Wi-Fi 6E) Motherboard In Bangladesh?

The price of MSI PRO B840M-P (Wi-Fi 6E) Motherboard not mentioned for stock unavailability.The price may vary due to your customization and product availability. You can buy MSI PRO B840M-P (Wi-Fi 6E) Motherboard from our website or visit our showrooms nearby.
