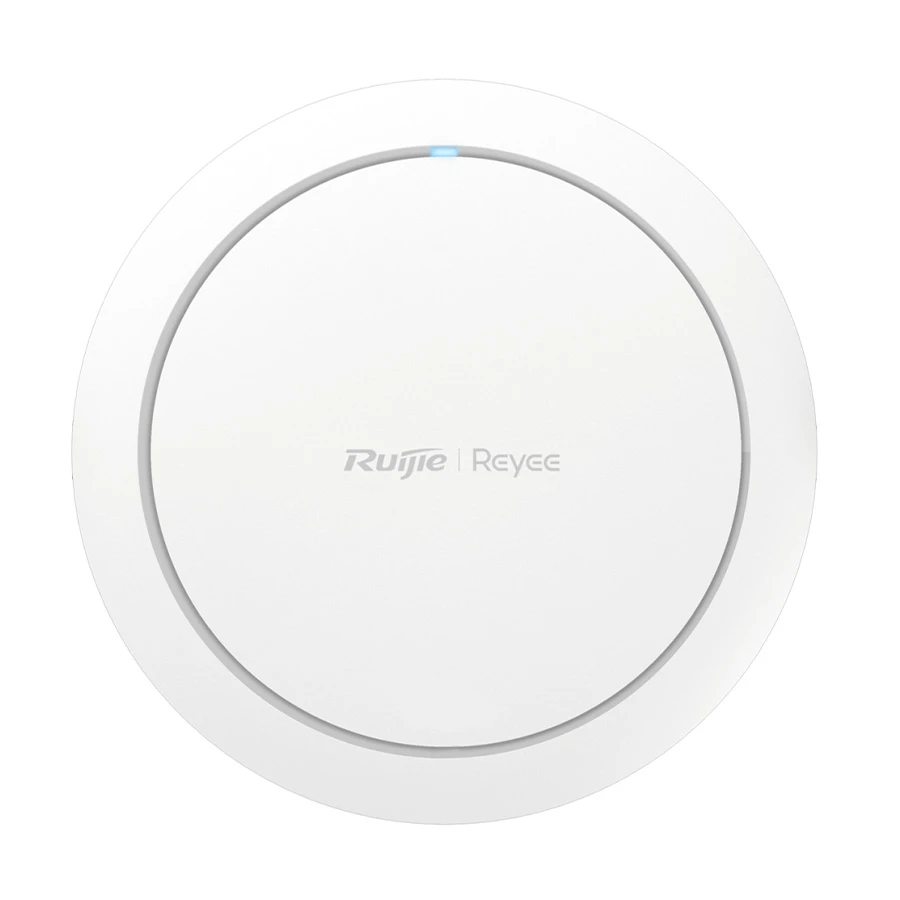

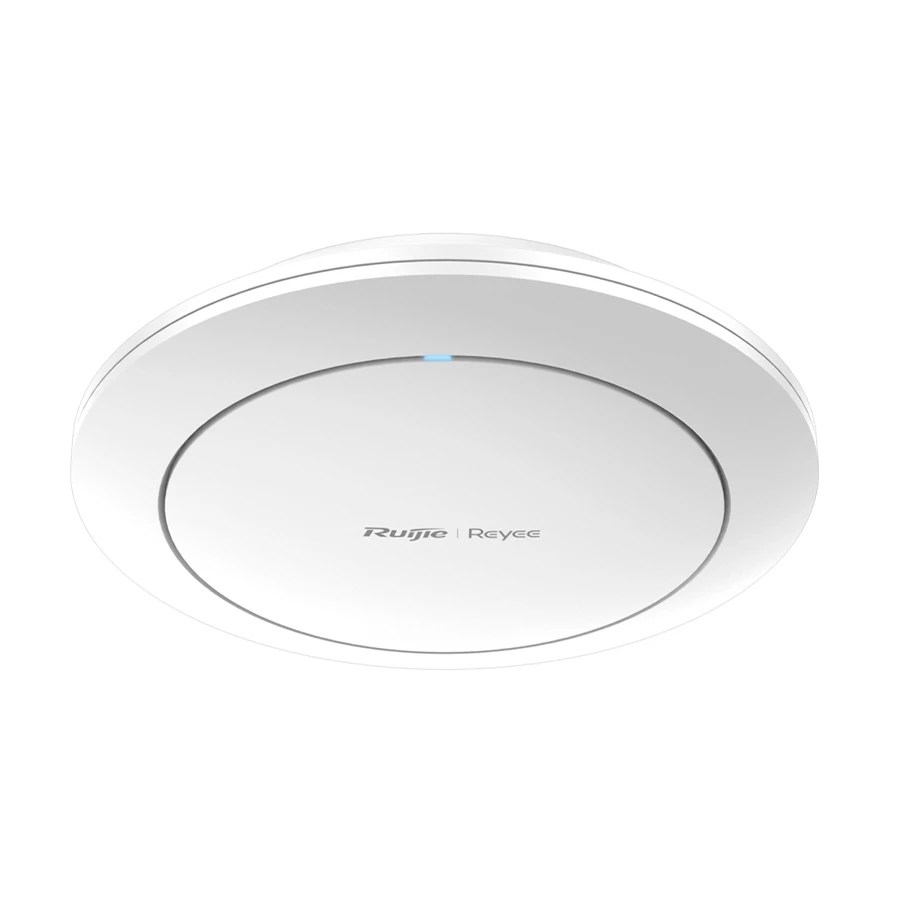

Ruijie RG-RAP2266 (Wi-Fi 6) AX3000 Mbps Wireless Dual Band Ceiling Mount Access Point

Item: Ruijie RG-RAP2266 (Wi-Fi 6) AX3000 Mbps Wireless Dual Band Ceiling Mount Access Point
Rating: 5
Author: Verified Buyer

Product Id: 29.02.925.92

Coming Soon

Quick Overview

Network Standards - 802.111b/g/n/ac/ax (Wi-Fi 6)
Data Transfer Rates - 3000 Mbps
Band - Dual
Interface(s) - 1 x 10/100/1000 Base-T
Antenna (Type & Qty) - 5 x Internal
Color - White

Payment Method Shipping & Charge Order Procedure

Brand

Ruijie

Model

Ruijie RG-RAP2266

Network Standards

802.111b/g/n/ac/ax (Wi-Fi 6)

Data Transfer Rates

3000 Mbps

Band

Dual

Interface(s)

1 x 10/100/1000 Base-T

Number of WAN Port

Number of LAN Port

Bluetooth

Antenna (Type & Qty)

5 x Internal

Memory

256MB

Storage (MB/GB/TB)

128MB

Max. Concurrent Clients

512

MU-MIMO Support

2x2 @2.4GHz, 2x2 @5GHz

Multi-User MIMO

Yes

Power Method

DC Power Adapter

Max. Power Consumption

18W

Operating Mode

AP mode and routing mode

Outdoor Use

Mounting

Yes

Color

White

Dimensions

194 x 194 x 35mm

Weight (gm)

500 gm

Warranty

3 Year (Without Adapter)

General

Brand

Ruijie

Model

Ruijie RG-RAP2266

Hardware

Network Standards

802.111b/g/n/ac/ax (Wi-Fi 6)

Data Transfer Rates

3000 Mbps

LAN Network Standard

10/100/1000

Memory

256MB

Memory Type

DDR3

Storage (MB/GB/TB)

128MB

Storage Type

Flash

Interface

Interface(s)

1 x 10/100/1000 Base-T

Number of WAN Port

Number of LAN Port

Wireless

Band

Dual

Frequency

2.4GHz - 5GHz

Bluetooth

Antenna (Type & Qty)

5 x Internal

Antenna Gain

5.15 dBi (5 GHz), 3.53 dBi (2.4 GHz)

Antenna Placement

Internal

MU-MIMO Support

2x2 @2.4GHz, 2x2 @5GHz

Multi-User MIMO

Yes

Management

Max. Concurrent Clients

512

SSID Numbers

Operating Mode

AP mode and routing mode

Management

Free Cloud Management

Web-Based Management

Yes

Performance

IP Rating

IP41

OFDM/OFDMA

OFDMA

Technical Info

Ideal Use

Hospitality, Enterprise, Education, Government, Retail etc.

Outdoor Use

DHCP

Yes

MTBF

400,000 hours

Electrical

Power Method

DC Power Adapter

DC Input Power

12V/1.5A DC Adaptor

Max. Power Consumption

18W

Passive PoE Power Supply

IEEE 802.3at (PoE+)

Environmental

Operating Temperature

0 degree - 40 degree C

Operating Humidity

5% - 95% (non-condensing)

Storing/Storage Temperature

-40 degree - 70 degree C

Storing/Storage Humidity

5% - 95% (non-condensing)

Physical Description

LED Indicators

Single indicator

Mounting

Yes

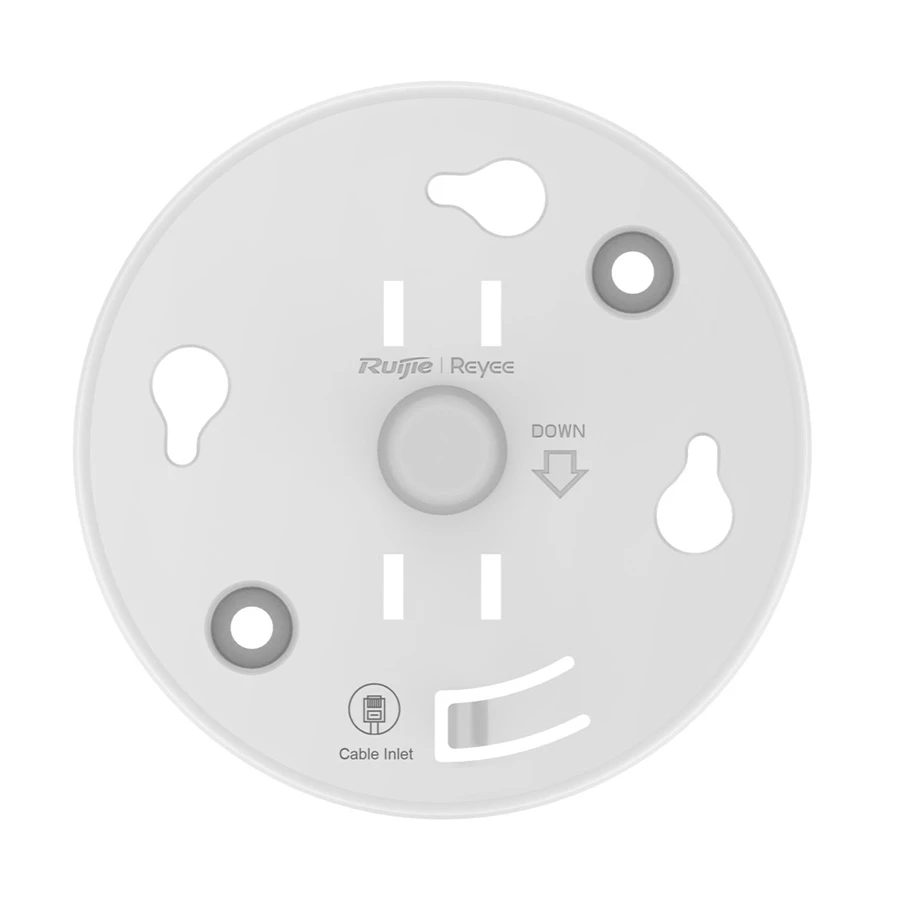

Mount Options

Ceiling/Wall Mounting

Dimensions

194 x 194 x 35mm

Color

White

Weight (gm)

500 gm

Packet Contents

1 x AP, 1 x Mounting bracket, 2 x Cross pan head screws (ST4.2 x 20 mm), 2 x Plastic expansion anchors (9 x 25.4 mm), 1 x User Manual, 1 x Warranty Card

Warranty

3 Year (Without Adapter)

Additional Info

Others

Antenna: Built-in Omni-directional (2.4 GHz: 2 built-in omnidirectional antennas, 5 GHz: 3 built-in omnidirectional antennas), Reset button: 1, Surge protection: Ethernet port: +-2 kV for common mode, Mesh management: Yes, AP Mesh: Yes, Wireless repeater mode: Yes

Specialty

Reyee Wi-Fi 6 AX3000 Indoor Ceiling-Mount Access Point, Dual-radio performance, gigabit wireless Ceiling-mounted AP, Capable of Reyee Mesh and 802.11K/V, Easy installation, rotating and done, New circular aesthetics, more in line with the hotel decoration style, Powerful Standalone Portal via Ruijie Cloud

Country Of Origin

China

Made in/ Assemble

China
