ASUS TUF GAMING H770-PRO (Wi-Fi 6) DDR5 Motherboard

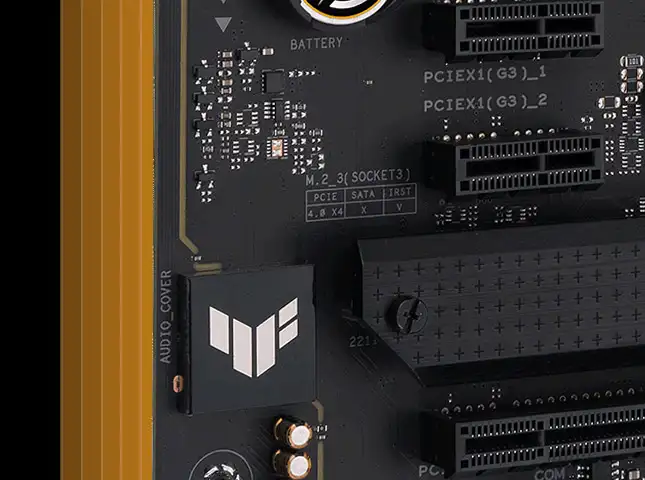

4 x M.2 slots (M.2_1 slot (Key M), type 2242/2260/2280 supports PCIe 4.0 x4, M.2_2 slot (Key M) type 2242/2260/2280 supports PCIe 4.0 x4 mode, M.2_3 slot (Key M) type 2242/2260/2280/22110 supports PCIe 4.0 x4 mode, M.2_4 slot (Key M) type 2242/2260/2280 supports PCIe 4.0 x4 & SATA modes)
M.2/SSD Slot Gen
Up to Gen 4
Graphics
Graphics
Integrated
Graphics Chipset
Integrated With Processor
Multi-GPU Support
No
PCI Express Slot
1 x PCIe 5.0 x16 slot, 1 x PCIe 4.0 x16 slot (supports x4 mode), 2 x PCIe 3.0 x1 slots
Audio & Video
Audio Chipset
Realtek 7.1 Surround Sound High Definition Audio CODEC
Audio Channel
7.1
Network & Connectivity
LAN Chipset
1 x Intel 2.5Gb Ethernet
LAN Speed (Mbps)
10/10/1000/2500Mbps
WiFi
Yes
WiFi Technology
Wi-Fi 6 2x2 (802.11 a/b/g/n/ac/ax)
Bluetooth
Bluetooth 5.2
Ports
USB Port
1 x USB 3.2 Gen 2x2 Type-C, 2 x USB 3.2 Gen 2 Type-A, 4 x USB 3.2 Gen 1 Type-A
VGA Port
No
DVI Port
No
HDMI Port
1
DisplayPort (DP)
1
IDE Port
No
SATA Port
4 x SATA
Thunderbolt
1
TPM Port
No
COM Port
No
Technical Info
Back-Connect Design
No
Cable Management
Front
Heatsink
Yes
FireWire
No
CrossFire Support
No
Sli Support
No
Raid Support
0, 1, 5, 10
RGB Support
ARGB
RGB Sync
AURA Sync
RGB Connector
1 x Aura RGB header
Approx. Power Consumption
70W
Form Factor
ATX
Bios Information
BIOS Type
192 (128+64) Mb Flash ROM
BIOS Model
UEFI AMI BIOS
Compatibility
Supported Operating System
Windows 10 / 11
Compatible Products
Compatible with LGA1700 Socket 12th, 13th Gen & 14th Gen Intel Processor.
Warranty
Warranty
3 Years Replacement Warranty
Additional Info
Others
Internal I/O Connectors: (1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 4 x M.2 slots (Key M) 4 x SATA 6Gb/s ports 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thunderbolt (USB4) header), Back Panel I/O Ports: (1 x Wi-Fi Module 5 x Audio jacks 1 x Optical S/PDIF out port)
Country Of Origin
Taiwan
Made in/ Assemble
China
