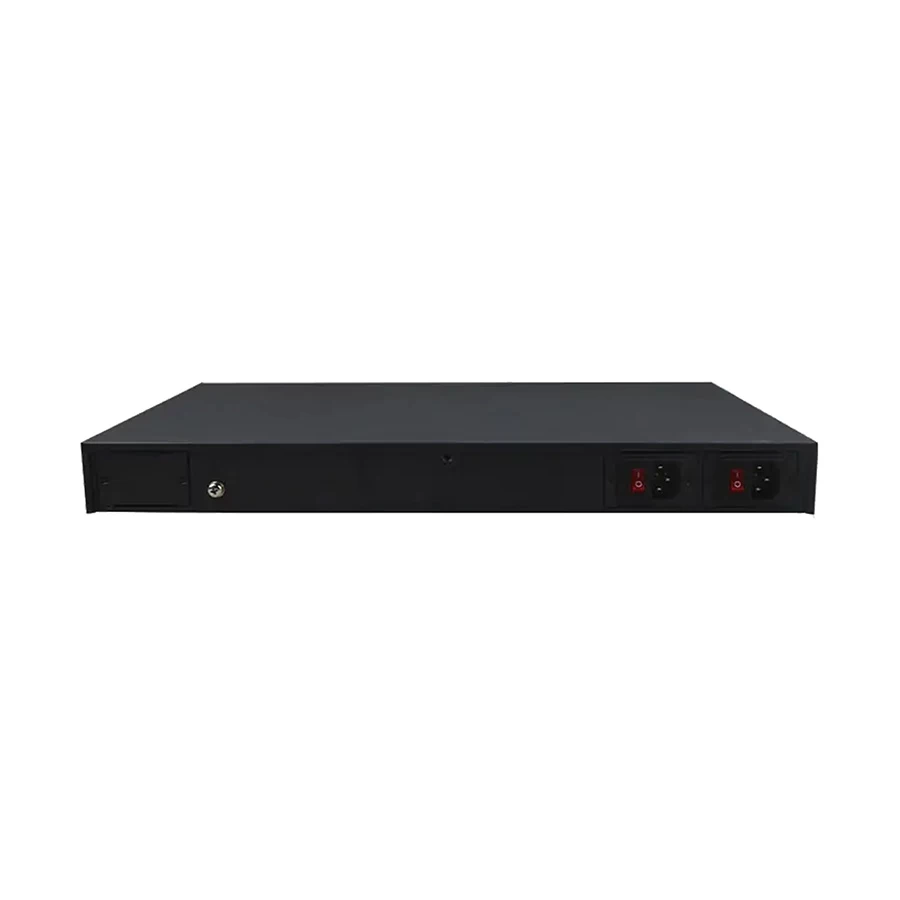

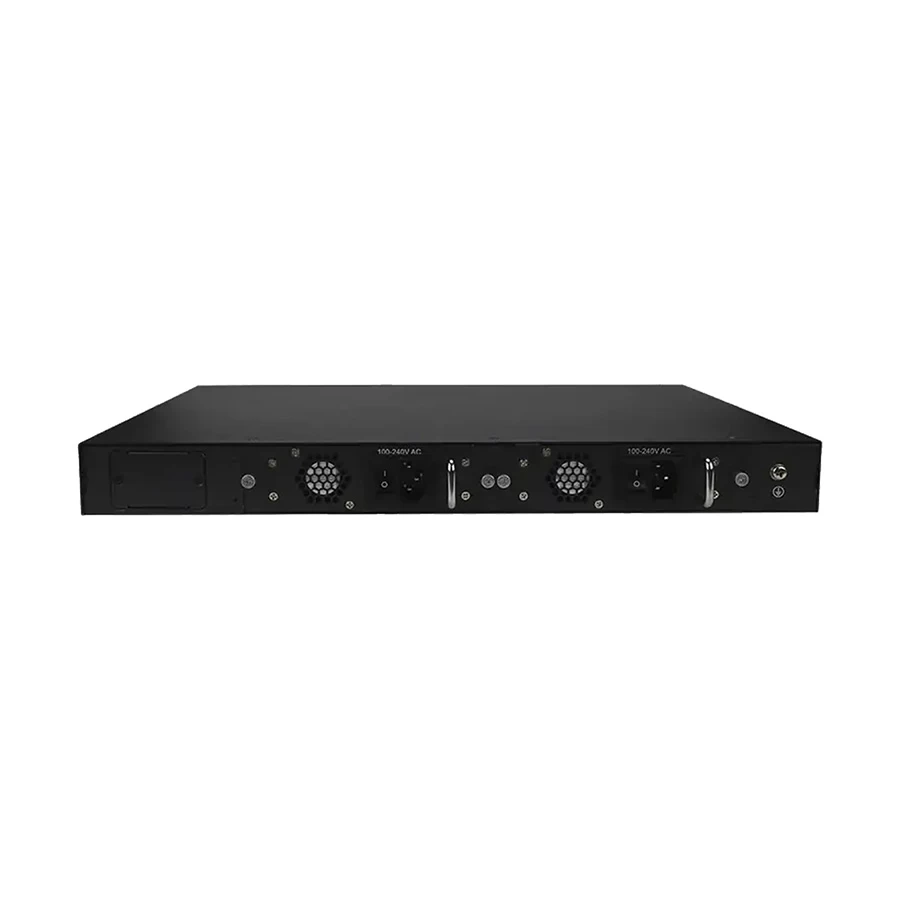

C-Data FD1604S-B0 4 Port G-PON OLT

Product Id: 29.11.798.19

Brand C-data

Regular Price Tk 90,820 Monthly EMI Tk 7,568
Special Price Tk 84,000

Delivery in 1 days

Quick Overview

  • Management Rack Type - 1U
  • Uplink COMBO Port - 4 x 10/100/1000M auto-negotiation Ethernet ports (4 SFP interfaces)
  • USB Port - 1
Brand
C-Data

Model
C-Data FD1604S-B0

Management Rack Type
1U

Uplink COMBO Port
4 x 10/100/1000M auto-negotiation Ethernet ports (4 SFP interfaces)

Uplink 10-Gigabit Port
2 x SFP+ interfaces

Uplink Port Quantity
2

PON Port Quantity
4

PON Port Physical Interface
SFP slot

PON Port Interface Type
ITU-TG.984.2 Class B+/Class C+

PON Port Max. Splitting Ratio
1:128

PON Port Transmission Distance
20KM

PON Port Rate
Downstream: 2.5Gbps, Upstream: 1.25Gbps

PON Port Wavelength
Forwarding: 1490nm, Receiving: 1310nm

PON Port Interface Type/Connector
SC/UPC

PON Port Fiber Type
9/125m SMF (Single Mode Fiber)

PON Port Light Transmission Power
Class B+ +1.5 - +5dBm, Class C+ +3- +7dBm

PON Port Receiving Sensitivity
Class B+ -28dBm, Class C+ -30dBm

PON Port Saturation Power
Class B+ -8dBm, Class C+ -12dBm

Management Port
1 x 100/1000BASE-Tx out-band Ethernet port, 1 x CONSOLE local management port

USB Port
1

Network Management Method
Support CLI, SNMP, TELNET, SSH, WEB

Backplane Bandwidth
63G

Layer-Two Switch
Unmentioned

Power Supply
220VAC - AC: 100V - 240V, 47/63Hz, -48DC - DC:-40V- -72V, BBU: DC: 11V- 14V

Maximum Power
60W

Working Temperature
-15 - 50 Degree C

Storage Temperature
-40 - 85 Degree C

Relative Humidity
5- 90% (Non-condensing)

Dimension
440 x 240 x 44 (L x W x H)

Weight (Kg)
4kg

Others
1U 19-inch standard box

Warranty Details
2 year


N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
