N.B. Image may differ with actual product's layout, color, size & dimension. No claim will be accepted for image mismatch.

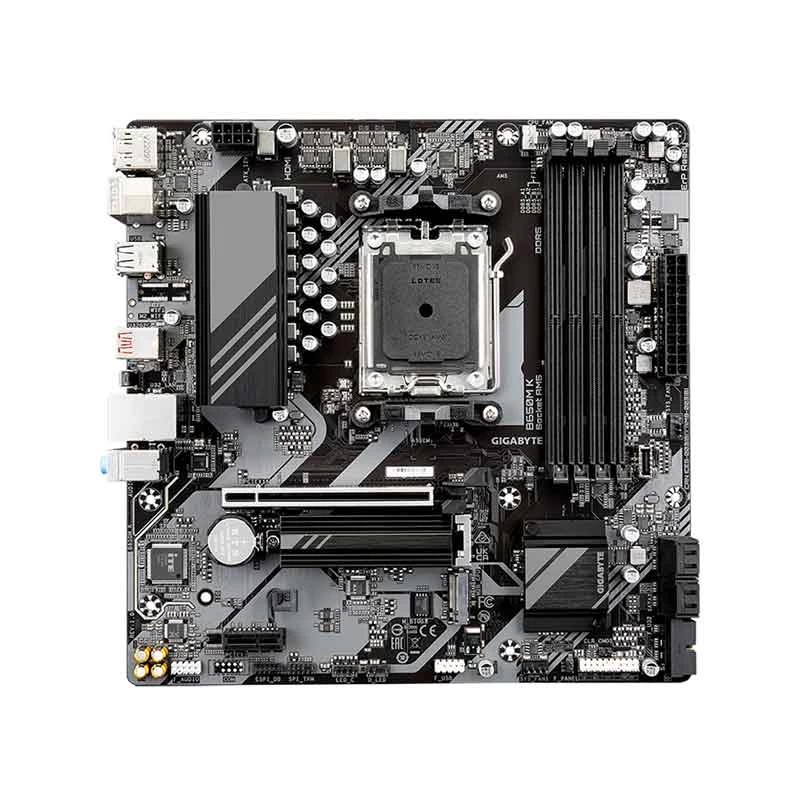

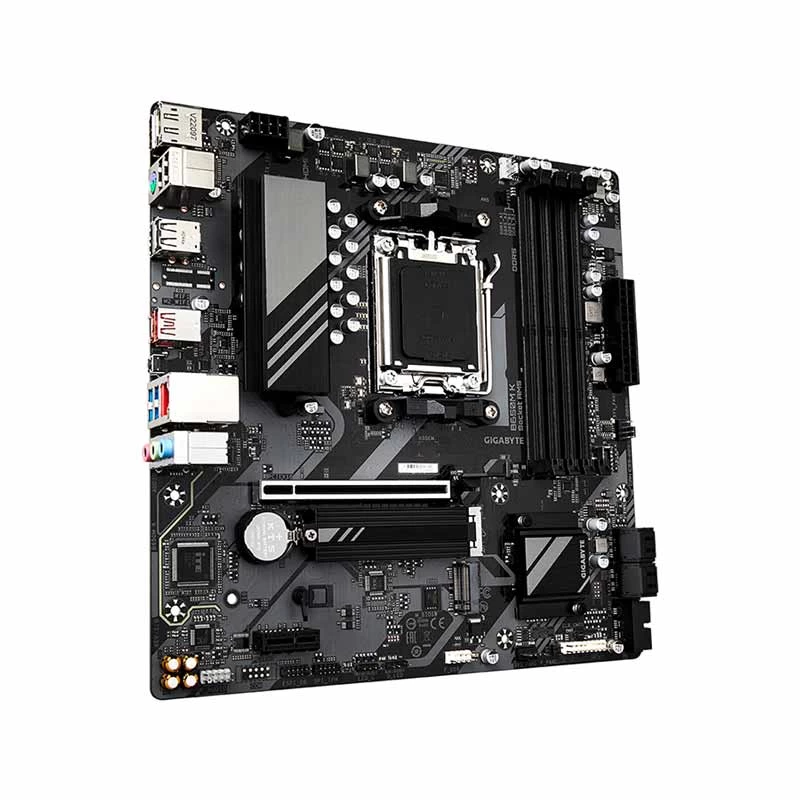

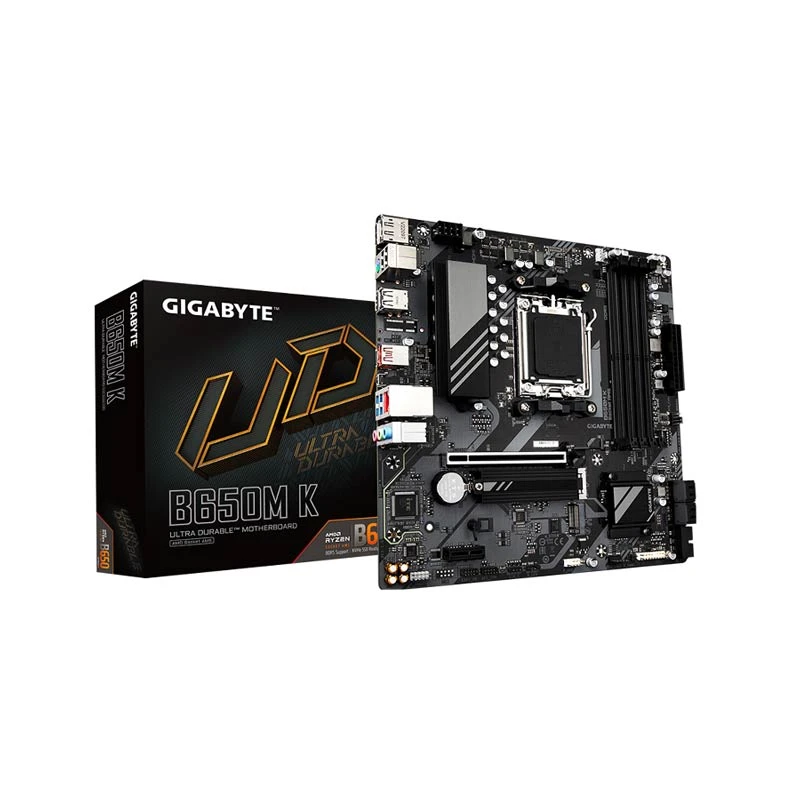

Gigabyte B650M K DDR5 AMD Motherboard

Product Id: 02.02.018.493

Brand Gigabyte

Regular Price Tk 19,530 Monthly EMI Tk 1,628
Special Price Tk 18,200

Quick Overview

  • Chipset - AMD B650
  • Memory Max. - 192GB
  • Memory Slot - 4
  • Sockets Supported - AM5
  • Supported CPU - AMD Ryzen 7000 Series Processors
  • Generation - Not Applicable
General
Brand
Gigabyte

Model
Gigabyte B650M K

Body Color
Black


CPU
Chipset Brand
AMD

Chipset
AMD B650

Sockets Supported
AM5

Built-in Processor
No

Supported CPU
AMD Ryzen 7000 Series Processors

Generation
Not Applicable


Memory Support
Memory Type
DDR5

Memory MHz
8000(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800MHz non-ECC & Un-buffered memory

Memory Channel
Dual

Memory Slot
4

Memory Max.
192GB

Optane Memory Support
No


Storage
Storage Interface
6.0Gb/s

M.2/SSD Expansion Slot
2

M.2/SSD Expansion Slot Details
2 x M.2 slots (1 x M.2 connector M key type 2580 support PCIe 4.0 x4/x2 SSD, 1 x M.2 connector M key type 25110/228 support PCIe 4.0 x4/x2 SSD)


Graphics
Graphics
Integrated

Graphics Chipset
Integrated With Processor

Multi-GPU Support
No

PCI Express Slot
1 x PCI Express x16 slot supporting PCIe 4.0 and running at x16, 1 x PCI Express x1 slot supporting PCIe 3.0 and running at x1


Audio & Video
Audio Chipset
Realtek Audio CODEC High Definition Audio

Audio Channel
2/4/5.1/7.1


Network & Connectivity
LAN Chipset
Realtek 2.5GbE LAN chip

LAN Speed (Mbps)
10/10/1000/2500Mbps

WiFi
No

Bluetooth
No


Ports
USB Port
4 x USB 2.0 Type-A, 1 x USB 3.2 Gen 2 Type-A, 2 x USB 3.2 Gen 1 Type-A, 1 x USB 3.2 Gen 2 Type-C

VGA Port
No

DVI Port
No

HDMI Port
1

DisplayPort (DP)
1

IDE Port
No

SATA Port
4 x SATA

Thunderbolt
No

TPM Port
1

COM Port
No


Technical Info
FireWire
No

CrossFire Support
No

Sli Support
No

Raid Support
0, 1, 10

RGB Support
RGB

RGB Connector
1 x RGB LED strip header

Approx. Power Consumption
60W

Form Factor
Micro-ATX


Bios Information
BIOS Type
1 x 256 Mbit flash

BIOS Model
AMI UEFI BIOS

BIOS Version
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0


Compatibility
Supported Operating System
Windows 10 / 11

Compatible Products
Compatible with AM5 Sockets Ryzen 7000 Series Desktop Processors.


Warranty
Warranty
3 Year

Warranty Details
3 year


Additional Info
Feature
H/W Monitoring (Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control).

Others

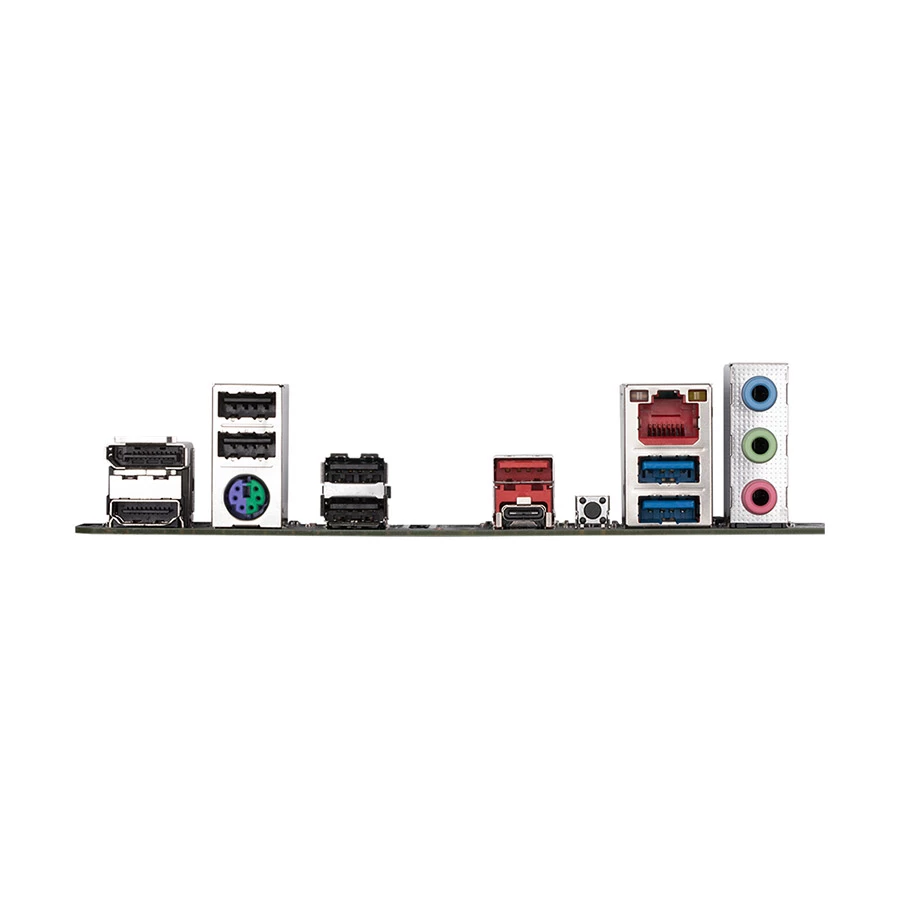

Back Panel Connectors: ( 1 x PS/2 keyboard/mouse port, 1 x Q-Flash Plus button, 1 x RJ-45 port, 3 x audio jacks), Internal I/O Connectors: (1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x reset jumper 1 x Clear CMOS jumper), I/O Controller: iTE I/O Controller Chip.

Country Of Origin
Taiwan

Made in/ Assemble
China


N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.

Details

QUESTION & ANSWER

Customer Questions

No questions asked yet.

Your Question

REVIEW

Customer Reviews
Looking at the details of the product, the product seems to be very good
By Tridib Saha . September, 2023
Budget gaming PC build
By Bithika Rani Debnath . September, 2023
Hope it will be stock very soon.
By Mr. Rejwan . September, 2023
No problems with build
By Abdul Jalil . September, 2023
Waiting for this product
By Bazalur Rahman . September, 2023
Amazing product
By Md Mostak Hossain . September, 2023
Super
By Alamgir Hossain . September, 2023
Great Quality
By Sirajul Islam . September, 2023
Good mainboard
By Nasimul Goni . September, 2023
