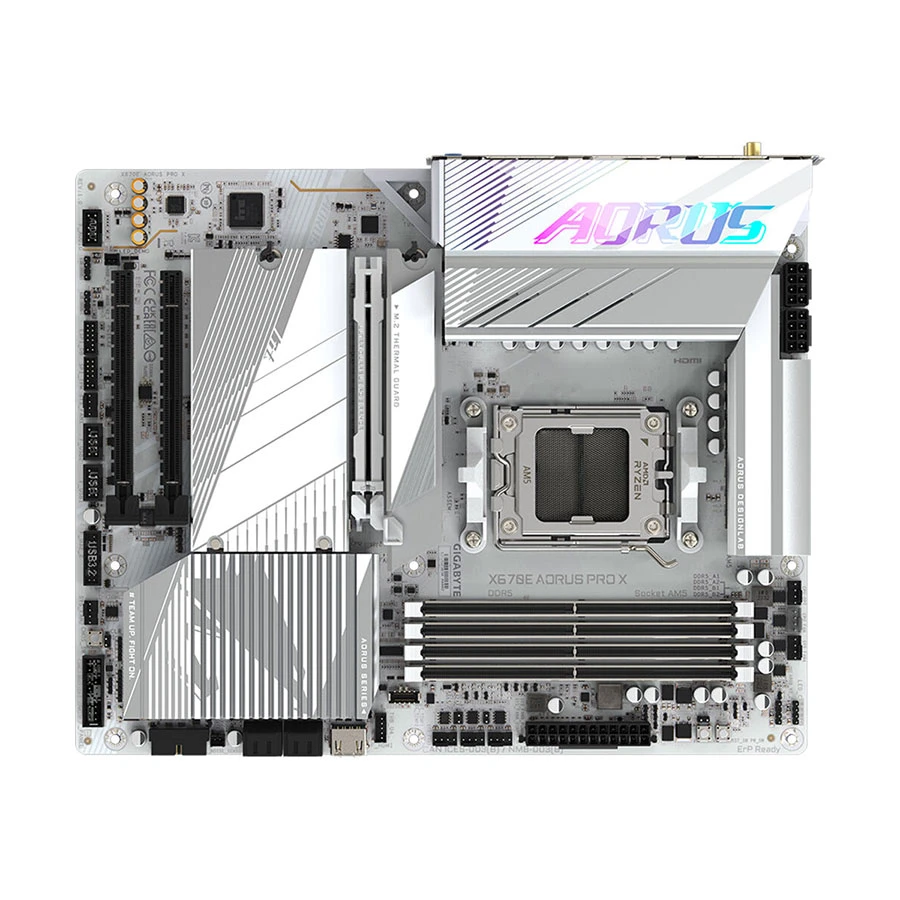

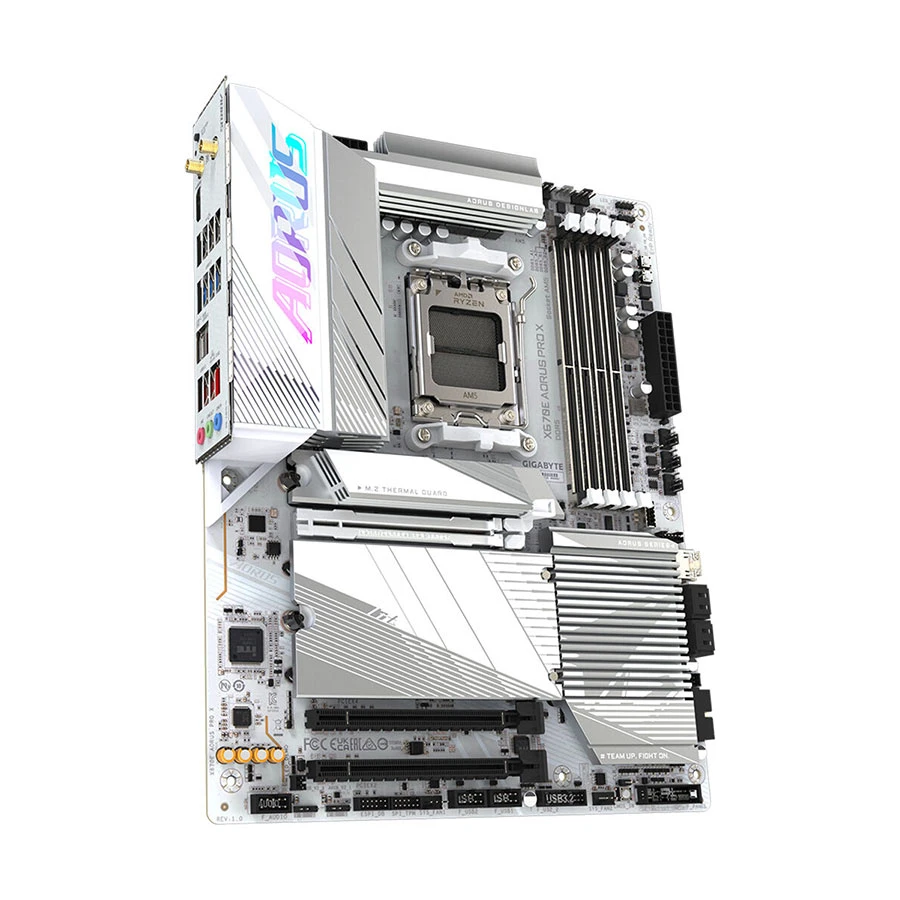

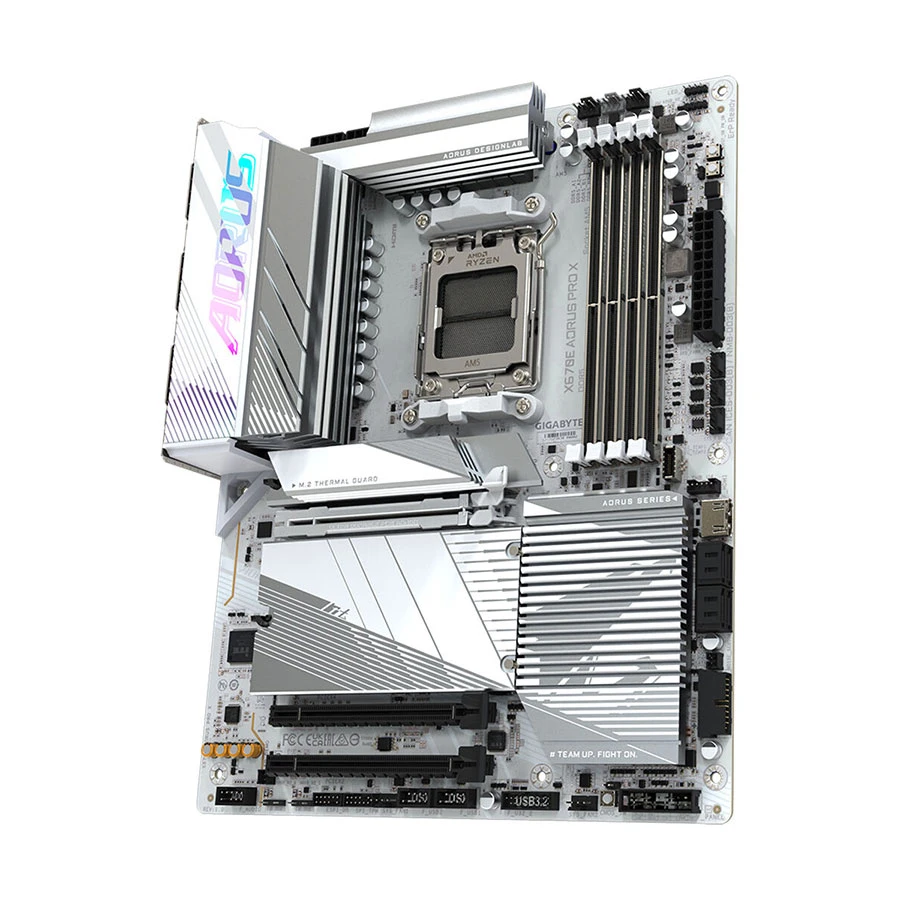

Gigabyte X670E AORUS PRO X (Wi-Fi 7) DDR5 AMD Gaming Motherboard

Item: Gigabyte X670E AORUS PRO X (Wi-Fi 7) DDR5 AMD Gaming Motherboard
Rating: 5
Author: Verified Buyer

7 reviews

Product Id: 02.02.018.514

Out Of Stock

See similar model

Quick Overview

Form Factor - ATX
Chipset - AMD X670
Sockets Supported - AM5
Supported CPU - Ryzen 7000 / Ryzen 8000 Series Processors
Generation - Not Applicable
Memory Slot - 4
Memory Max. - 256GB
Back-Connect Design - No
Body Color - White

Payment Method Shipping & Charge Order Procedure

Brand

Gigabyte

Model

Gigabyte X670E AORUS PRO X (Wi-Fi 7)

Chipset

AMD X670

Sockets Supported

AM5

Built-in Processor

Generation

Not Applicable

Back-Connect Design

Memory Type

DDR5

Memory Slot

Memory Max.

256GB

Optane Memory Support

Graphics

Integrated

Graphics Chipset

AMD Radeon Graphics support

M.2/SSD Expansion Slot

WiFi

Yes

Bluetooth

Bluetooth 5.3

Form Factor

ATX

Supported Operating System

Windows 11

Body Color

White

Warranty Details

3 year

General

Brand

Gigabyte

Model

Gigabyte X670E AORUS PRO X (Wi-Fi 7)

Body Color

White

CPU

Chipset Brand

AMD

Chipset

AMD X670

Sockets Supported

AM5

Built-in Processor

Supported CPU

Ryzen 7000 / Ryzen 8000 Series Processors

Generation

Not Applicable

Memory Support

Memory Type

DDR5

Memory MHz

8000(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6666(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800/ 4400 MT/s memory modules, non-ECC Un-buffered DIMM

Memory Channel

Dual

Memory Slot

Memory Max.

256GB

Optane Memory Support

Storage

Storage Interface

6.0Gb/s

M.2/SSD Expansion Slot

M.2/SSD Expansion Slot Details

4 x M.2 ((1 x M.2 (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/2580 SSDs), (1 x M.2 (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs), (2 x M.2 (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support)(M2C_SB, M2D_SB))

M.2/SSD Slot Gen

Up to Gen 5

Graphics

Integrated

Graphics Chipset

AMD Radeon Graphics support

Multi-GPU Support

PCI Express Slot

1 x PCI Express x16 slot (PCIEX16), integrated in the CPU, 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4), 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x2 (PCIEX2)

Audio & Video

Audio Chipset

Realtek Audio CODEC

Audio Channel

7.1

Network & Connectivity

LAN Chipset

Intel 2.5GbE LAN

LAN Speed (Mbps)

10/ 100/ 1000/ 2500Mbps

WiFi

Yes

WiFi Technology

Qualcomm Wi-Fi 7 QCNCM865

Bluetooth

Bluetooth 5.3

Ports

USB Port

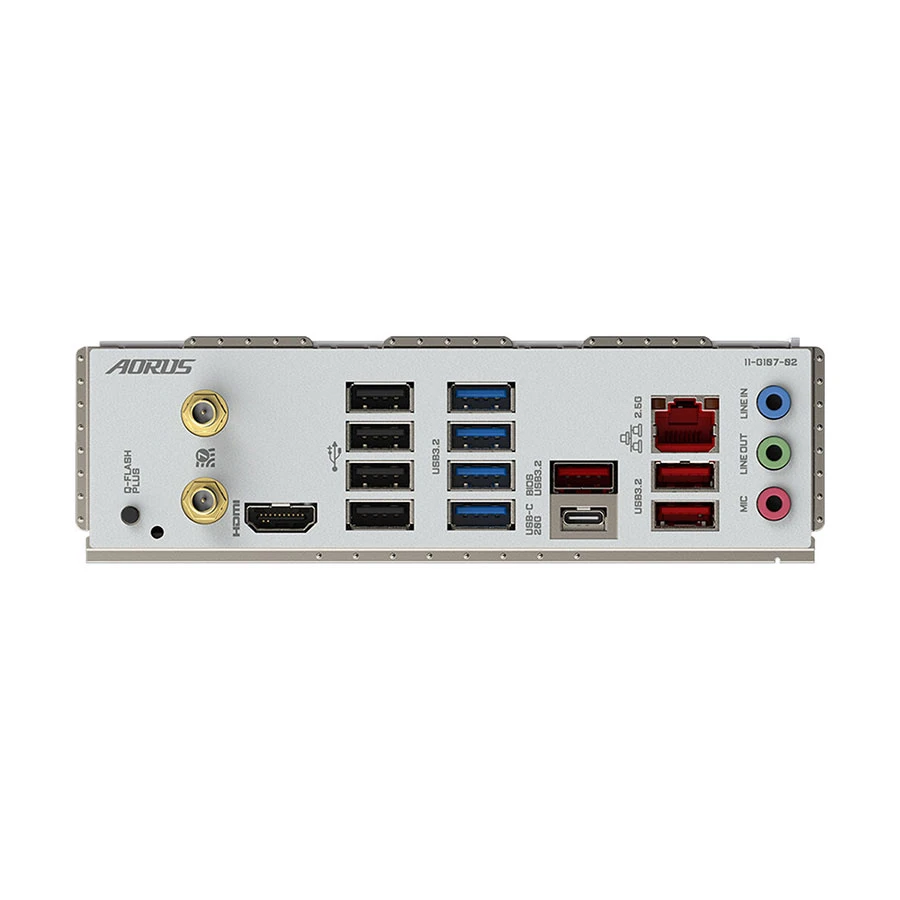

4 x USB 3.2 Gen 1 ports, 4 x USB 2.0/1.1 ports, 3 x USB 3.2 Gen 2 Type-A ports (red), 1 x USB Type-C port, with USB 3.2 Gen 2x2 support

VGA Port

DVI Port

HDMI Port

DisplayPort (DP)

IDE Port

SATA Port

Thunderbolt

TPM Port

Technical Info

Back-Connect Design

Cable Management

Front

Heatsink

Yes

FireWire

CrossFire Support

Sli Support

Raid Support

0 , 1 , 10

RGB Support

RGB

Approx. Power Consumption

70W

Form Factor

ATX

Bios Information

BIOS Type

1 x 256 Mbit flash

BIOS Model

AMI UEFI BIOS

BIOS Version

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Compatibility

Supported Operating System

Windows 11

Compatible Products

Ryzen 5 8600G, Ryzen 5 7500F, Ryzen 5 7600, Ryzen 7 7700, Ryzen 5 7600X, Ryzen 7000/ Ryzen 8000 Series

Warranty

Warranty Details

3 year

Additional Info

Feature

AMD Socket AM5: Supports AMD Ryzen 7000 Series Processors, Digital twin 16+2+2 phases VRM solution, Dual Channel DDR5: 4 x DIMMs with AMD EXPO & Intel XMP Memory Module Support, PCIe UD Slot X: PCIe 5.0 x16 slot with 10X strength for graphics card, EZ-Latch Click: M.2 heatsinks with screwless design, EZ-Latch Plus: M.2 slots with Quick Release & Screwless Design, Sensor Panel Link: Onboard video port for hassle-free in-chassis panel setup, UC BIOS: User-Centred intuitive UX with Quick Access function, Ultra-Fast Storage: 4 x M.2 slots, including 2 x PCIe 5.0 x4, Efficient Overall Thermal: VRM Thermal Armor Advanced & M.2 Thermal Guard XL, Fast Networking: 2.5GbE LAN & Wi-Fi 7 with Ultra-high gain antenna, Extended Connectivity: HDMI, Reliable Audio: 8-Ch HD Audio & Audiophile Grade Capacitors

Country Of Origin

Taiwan

Made in/ Assemble

China

Details

Features of Gigabyte X670E AORUS PRO X (Wi-Fi 7) Motherboard In Bangladesh

Power in number
All AORUS series gaming motherboards are equipped with an all-digital power design, which delivers the best stability under heavy workloads

Overall Thermal
Every AORUS motherboard is armored with the most advanced, full metal thermal design. These solid heatsinks are forged to keep your system cool while running fast.

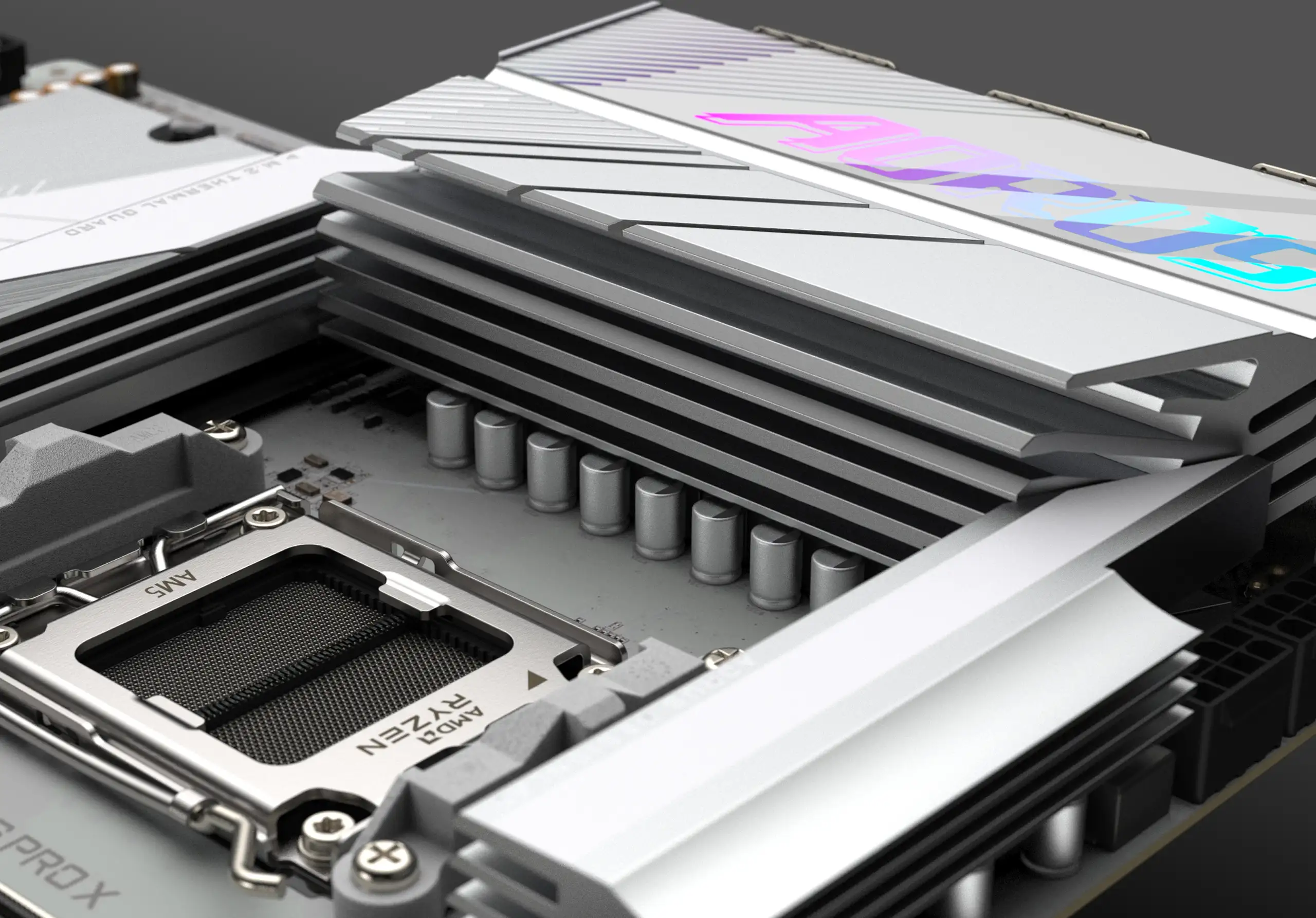

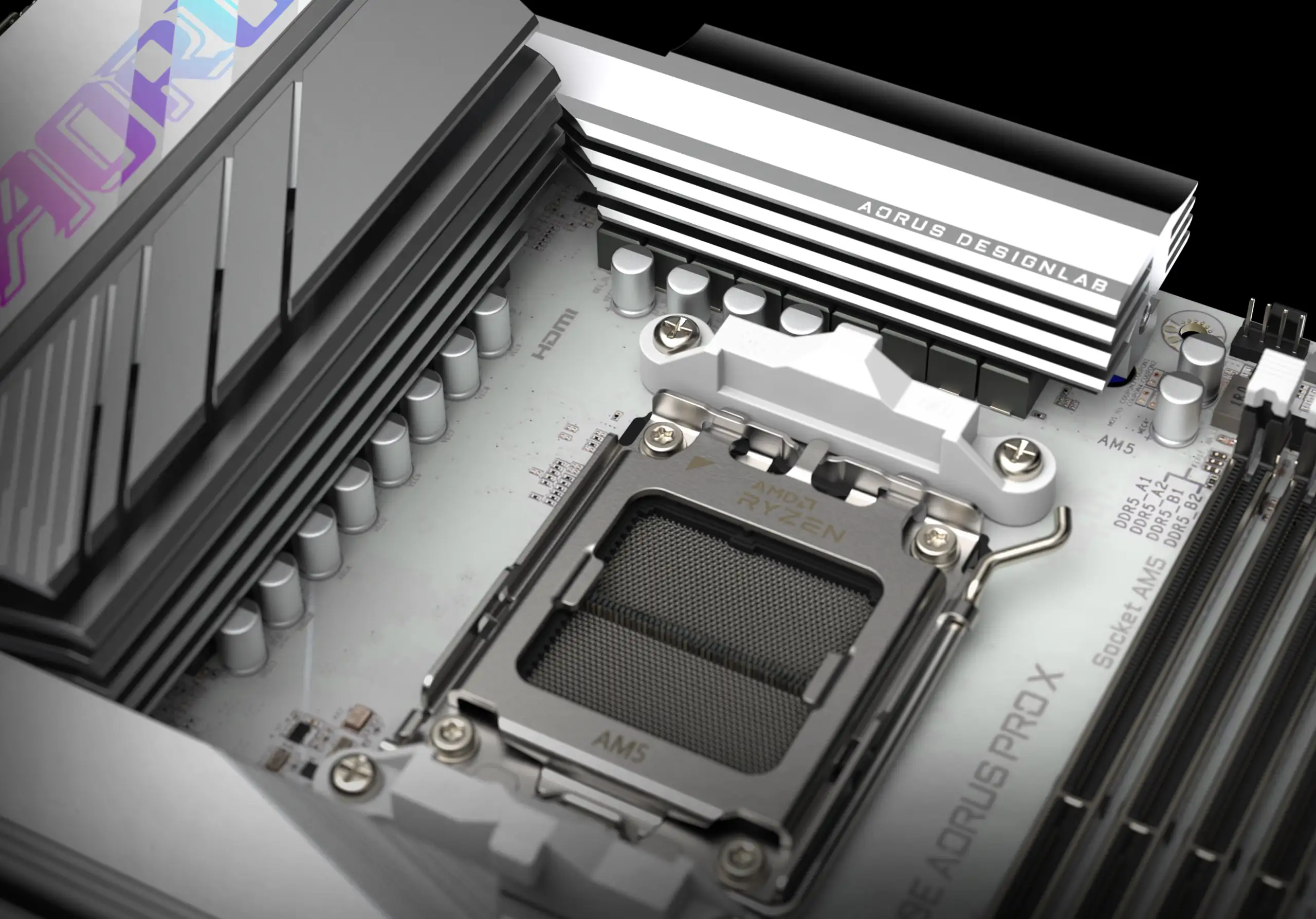

VRM Thermal Armor Advanced
These solid heatsinks are forged to keep your system cool.

Build effortless
Building your own PC is meant to be joyful and effortless. AORUS serious motherboard the most DIY-friendly ever.

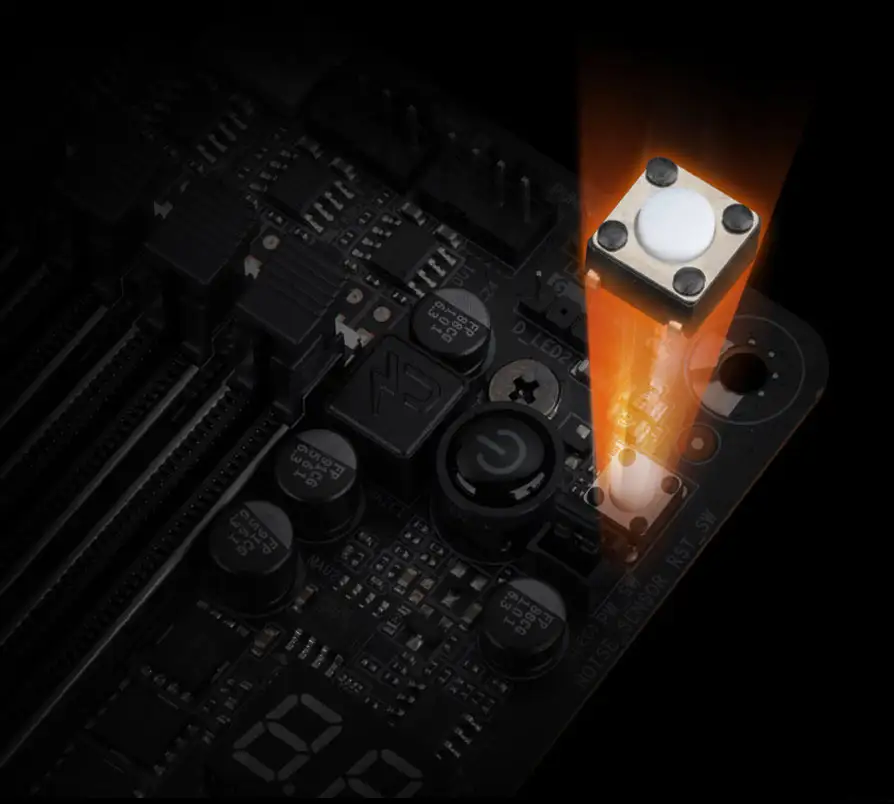

Multi-key Q-FLASH PLUS

Elevating Performance Together
AORUS series motherboard signifies our dedication to BIOS optimization. Through our community partnership, we're making next-gen performance more user-friendly.

What is the price of Gigabyte X670E AORUS PRO X (Wi-Fi 7) Motherboard In Bangladesh?

The price of Gigabyte X670E AORUS PRO X (Wi-Fi 7) Motherboard not mentioned for stock unavailability.The price may vary due to your customization and product availability. You can buy Gigabyte X670E AORUS PRO X (Wi-Fi 7) Motherboard from our website or visit our showrooms nearby.
