MSI MAG B860M MORTAR (Wi-Fi 7) DDR5 (Intel Core Ultra LGA1851 Socket) Micro-ATX Gaming Motherboard

Item: MSI MAG B860M MORTAR (Wi-Fi 7) DDR5 (Intel Core Ultra LGA1851 Socket) Micro-ATX Gaming Motherboard
Rating: 5
Author: Verified Buyer

Product Id: 02.01.033.547

Out Of Stock

See similar model

Quick Overview

Form Factor - Micro-ATX
Chipset - Intel B860
Sockets Supported - LGA1851
Supported CPU - Supports Intel Core Ultra Processors (Series 2)
Generation - Ultra
Memory Slot - 4
Memory Max. - 256GB
Back-Connect Design - No
Body Color - Black

Payment Method Shipping & Charge Order Procedure

Brand

MSI

Model

MSI MAG B860M MORTAR (Wi-Fi 7)

Chipset

Intel B860

Sockets Supported

LGA1851

Built-in Processor

Generation

Ultra

Back-Connect Design

Memory Type

DDR5

Memory Slot

Memory Max.

256GB

Optane Memory Support

Graphics

Integrated

Graphics Chipset

Integrated With Processor

M.2/SSD Expansion Slot

WiFi

Yes

Bluetooth

Bluetooth 5.4

Form Factor

Micro-ATX

Supported Operating System

Windows 11

Body Color

Black

Warranty

3 year

General

Brand

MSI

Model

MSI MAG B860M MORTAR (Wi-Fi 7)

Body Color

Black

CPU

Chipset Brand

Intel

Chipset

Intel B860

Sockets Supported

LGA1851

Built-in Processor

Supported CPU

Supports Intel Core Ultra Processors (Series 2)

Generation

Ultra

Memory Support

Memory Type

DDR5

Memory MHz

9066 - 6400 (OC) MT/s/ 6400 - 4800 (JEDEC) MT/s

Memory Channel

Dual

Memory Slot

Memory Max.

256GB

Optane Memory Support

Storage

Storage Interface

6.0Gb/s

M.2/SSD Expansion Slot

M.2/SSD Expansion Slot Details

3x M.2 (M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260/2242 devices, M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices, M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices)

M.2/SSD Slot Gen

Up to Gen 5

Graphics

Integrated

Graphics Chipset

Integrated With Processor

Multi-GPU Support

PCI Express Slot

1x PCI-E x16 slot, 1x PCI-E x4 slot

Audio & Video

Audio Chipset

Realtek ALC897 Codec

Audio Channel

7.1

Network & Connectivity

LAN Chipset

Intel Killer E5000 5Gbps LAN

LAN Speed (Mbps)

10/ 100/ 1000/ 2500/ 5000Mbps

WiFi

Yes

WiFi Technology

Intel Killer BE1750x Wi-Fi 7

Bluetooth

Bluetooth 5.4

Ports

USB Port

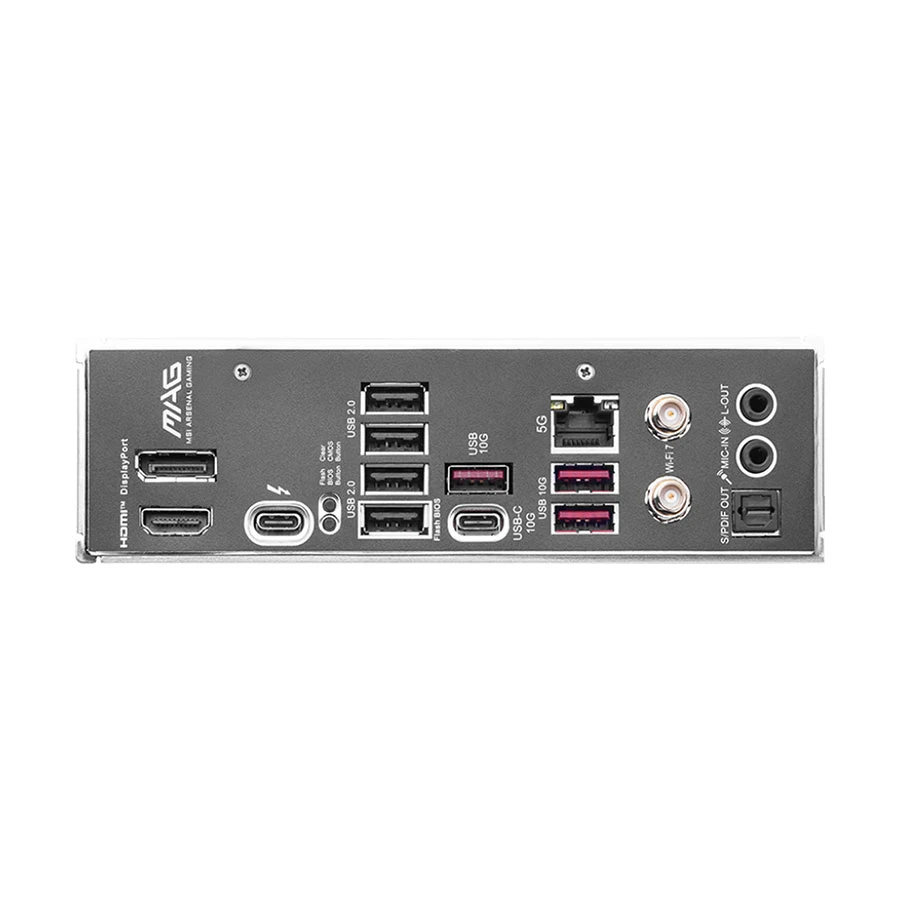

4x USB 2.0 Type-A, 3x USB 10Gbps Type A, 1x USB 10Gbps Type C, 1x Thunderbolt 4 40Gbps (Type-C)

VGA Port

DVI Port

HDMI Port

DisplayPort (DP)

SATA Port

4x SATA

Thunderbolt

TPM Port

Technical Info

Back-Connect Design

Cable Management

Front

Heatsink

Yes

CrossFire Support

Sli Support

Raid Support

0, 1, 5, 10

RGB Support

ARGB

RGB Connector

3x Addressable V2 RGB LED connector (JARGB_V2), 1x RGB LED connector(JRGB)

Approx. Power Consumption

60W

Form Factor

Micro-ATX

Compatibility

Supported Operating System

Windows 11

Compatible Products

Compatible with LGA1851 Sockets Intel Core Ultra Processors (Series 2)

Warranty

3 year

Additional Info

Feature

EZ PCIe Release, Extended Heatsink Design, EZ M.2 Shield Frozr II, Lightning Gen 5, Triple M.2 Connectors, 5G Network Solution.

Others

Internal IO: 1x Thunderbolt5 card connector(JTBT5, support RTD3), 1x Power Connector(ATX_PWR), 2x Power Connector(CPU_PWR), 1x Power Connector(PCIE_PWR 8pin), 1x CPU Fan, 1x Combo Fan (Pump_Sys Fan), 4x System Fan, 1x EZ Conn-header (JAF_1), 2x Front Panel (JFP), 1x Chassis Intrusion (JCI), 1x Front Audio (JAUD), 1x Tuning Controller connector(JDASH), 4x EZ Debug LED, 1x EZ Memory Detection LED, Back Panel Ports: 5G LAN, Wi-Fi / Bluetooth, Audio Connectors, S/PDIF-OUT.

Country Of Origin

Taiwan

Made in/ Assemble

China

Details

Features of MSI MAG B860M MORTAR (Wi-Fi 7) Motherboard In Bangladesh

What is the price of MSI MAG B860M MORTAR (Wi-Fi 7) Motherboard In Bangladesh?

The price of MSI MAG B860M MORTAR (Wi-Fi 7) Motherboard not mentioned for stock unavailability.The price may vary due to your customization and product availability. You can buy MSI MAG B860M MORTAR (Wi-Fi 7) Motherboard from our website or visit our showrooms nearby.
