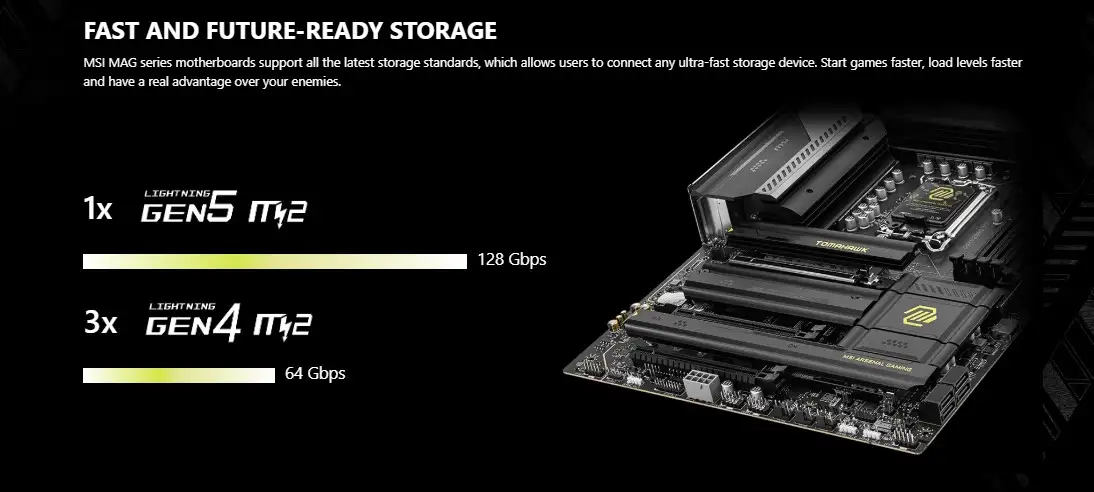

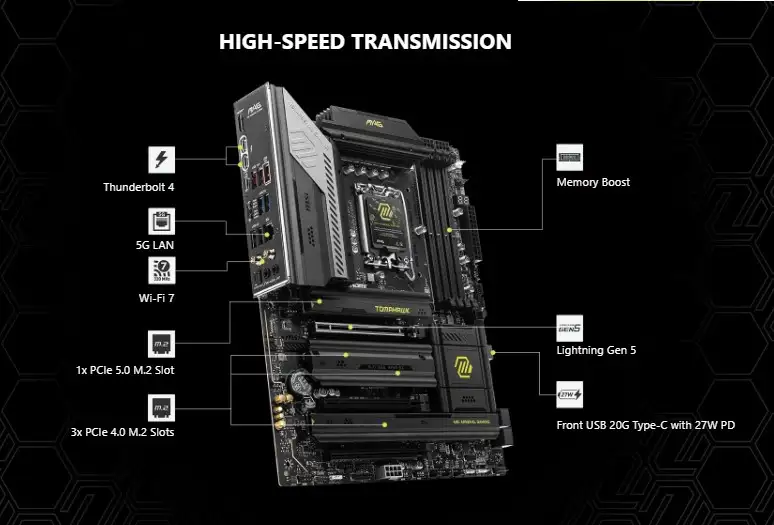

4 x M.2 ((1 x M.2, (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices, 1 x M.2, (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices, 1 x M.2, (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices, 1 x M.2, (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices))
Graphics
Graphics
Integrated
Graphics Chipset
Integrated With Processor
Multi-GPU Support
No

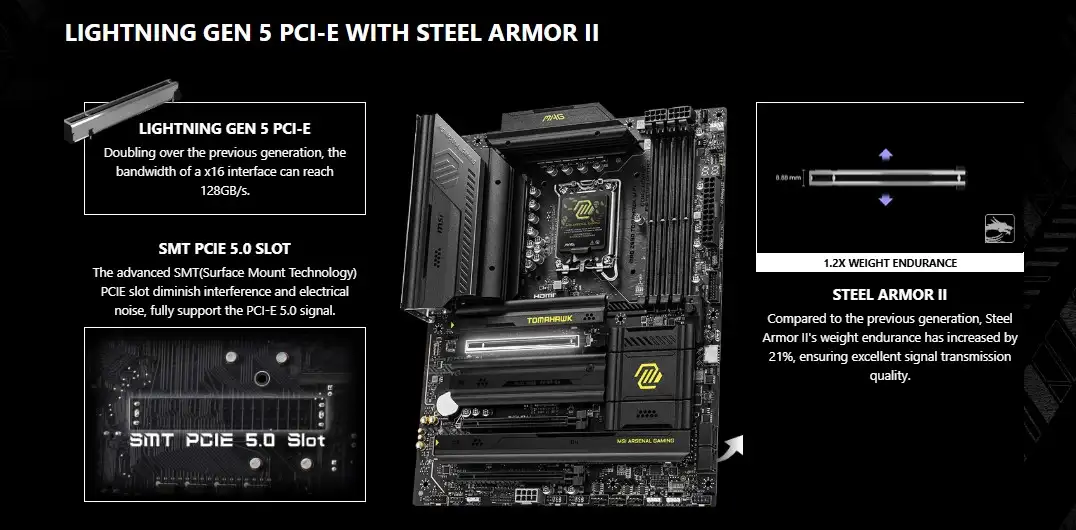

PCI Express Slot
3 x PCI-E x16 slot
Audio & Video
Audio Chipset
Realtek ALC1220P Codec
Audio Channel
7.1

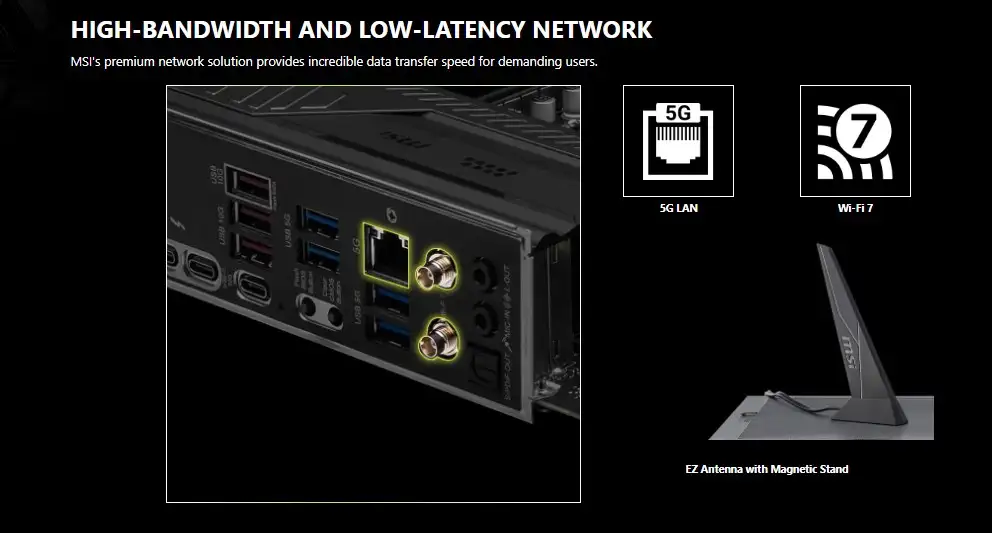

Network & Connectivity
LAN Chipset
Intel Killer E5000 5Gbps LAN
LAN Speed (Mbps)
100/ 1000/ 2500Mbps/ 5Gbps
WiFi
Yes
WiFi Technology
Wi-Fi 7
Bluetooth
Bluetooth 5.4
Ports
USB Port

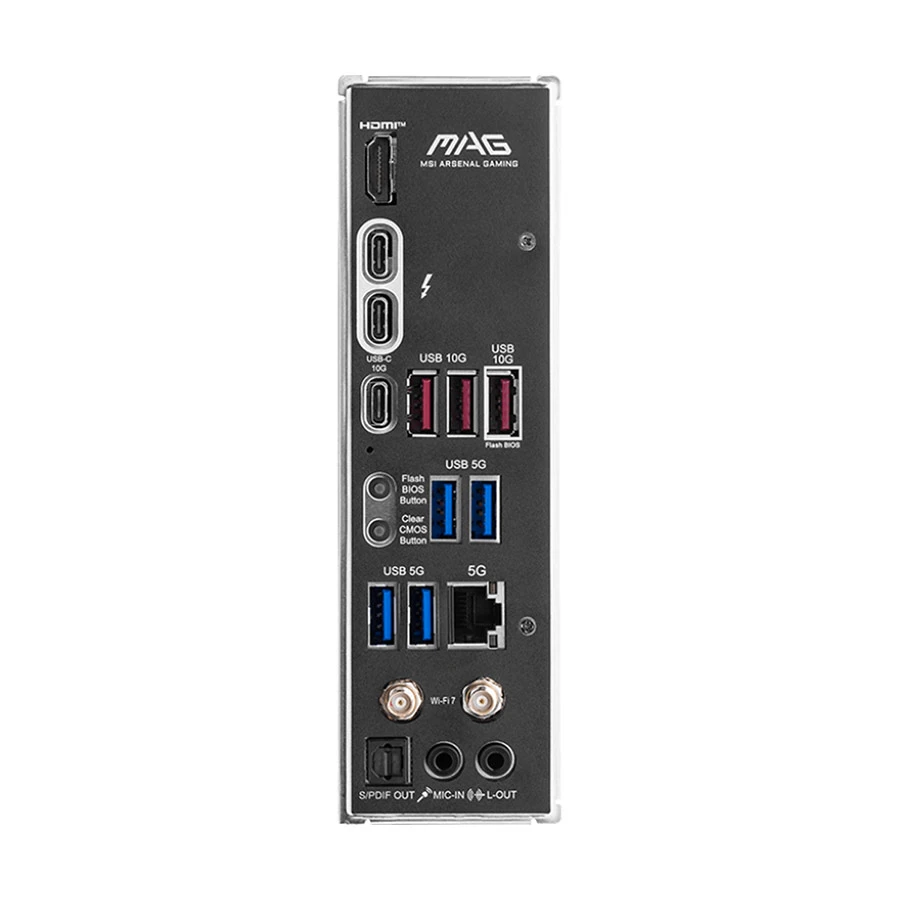

3 x USB 10Gbps Type-A, 2 x USB 5Gbps Type-A, 2 x Thunderbolt 4 40Gbps (Type-C), 1 x USB 10Gbps Type-C, 2 x USB 5Gbps Type-A

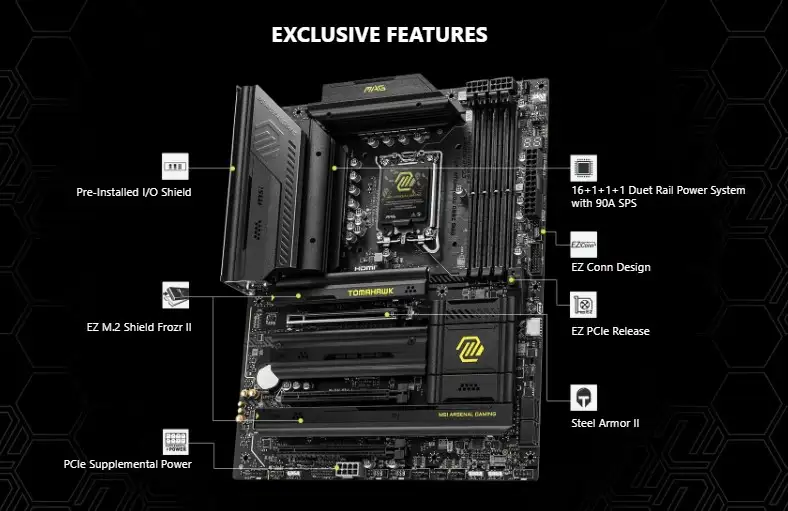

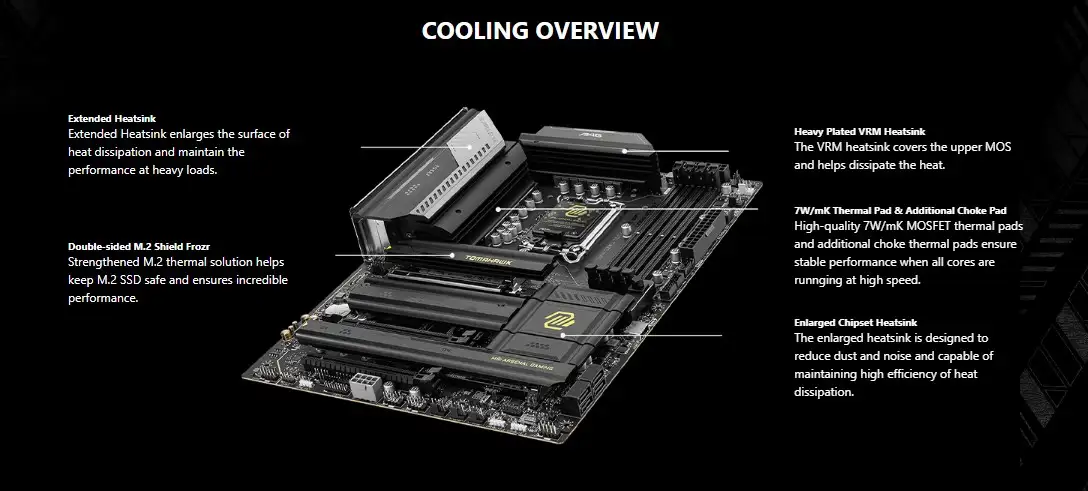

Thunderbolt port, EZ PCIe Release, EZ M.2 Shield Frozr II, Extended Heatsink Design, Lightning Gen 5, Quadruple M.2 Connectors, Wi-Fi 7, 5G Network Solution, Latest DDR5 Memory, Audio Boost 4
Others

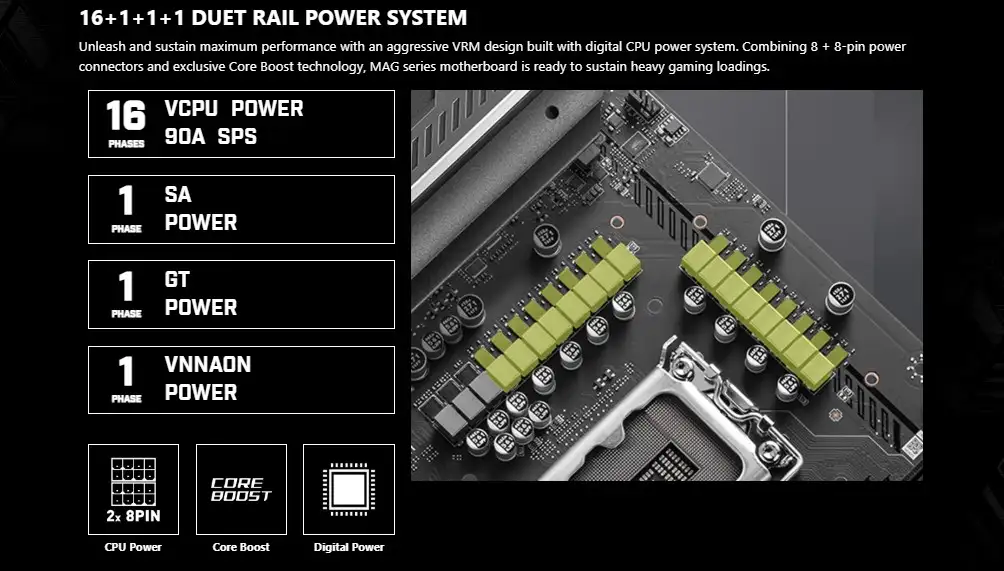

Internal IO: 1x Thunderbolt5 card connector(JTBT5, support RTD3), 1x Power Connector(ATX PWR), 2x Power Connector(CPU PWR), 1x Power Connector(PCIE PWR 8pin), 1x CPU Fan, 1x Combo Fan (Pump Sys Fan), 6x System Fan, 1x EZ Conn-header (JAF 2), 2x Front Panel (JFP), 1x Chassis Intrusion (JCI), 1x Front Audio (JAUD), 3x Addressable V2 RGB LED connector (JARGB V2), 1x RGB LED connector(JRGB), 1x TPM pin header(Support TPM 2.0), LED FEATURE: 4x EZ Debug LED, 1x EZ Digit Debug LED
Country Of Origin
Taiwan
Made in/ Assemble
China
N.B. Specification may differ
with actual product. In that case, Ryans will execute full refund within 5 days.
