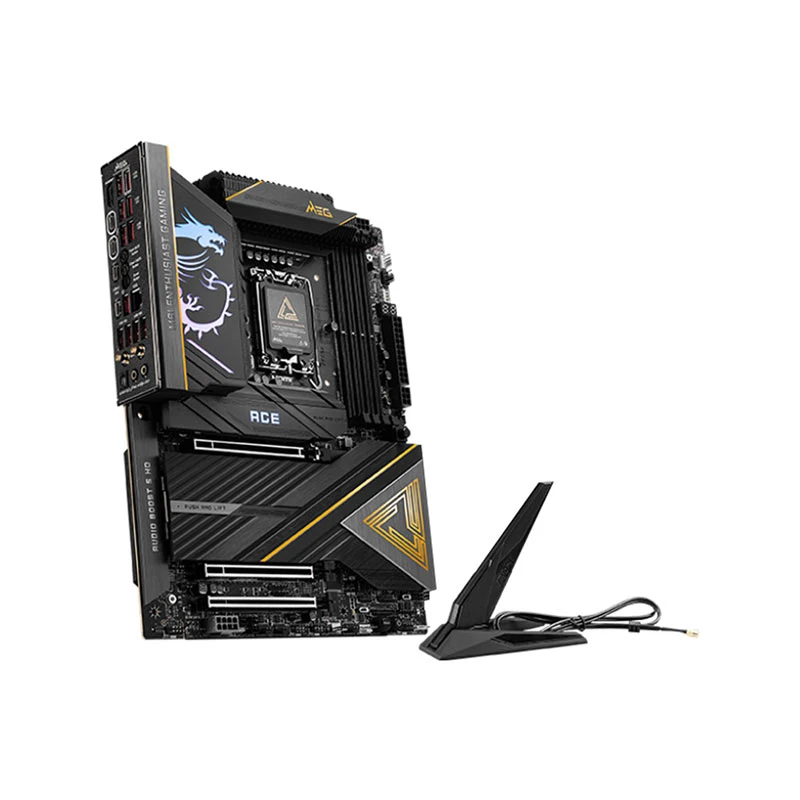

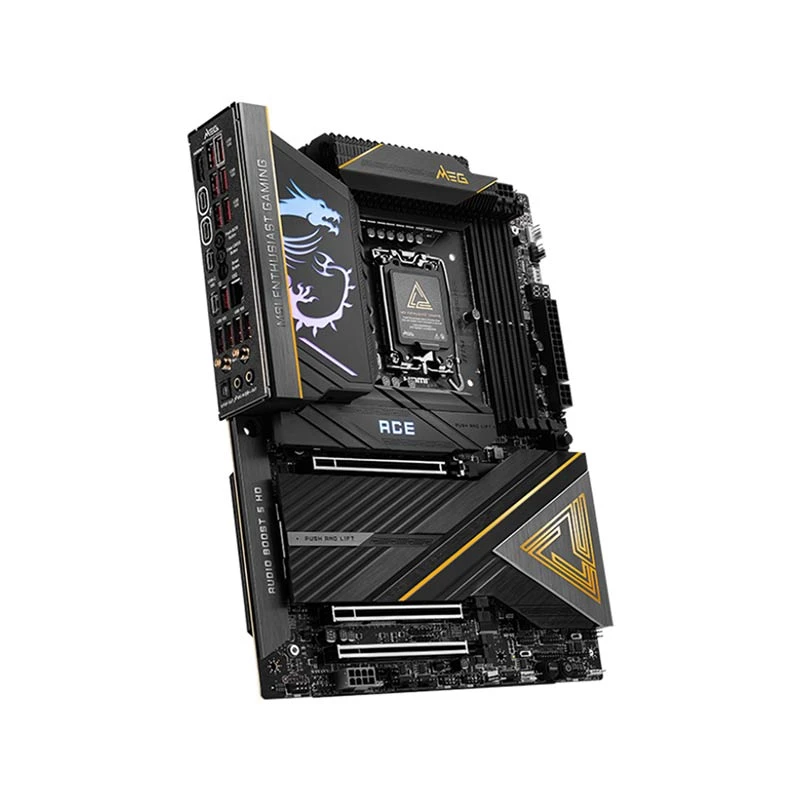

MSI MEG Z890 ACE (Wi-Fi 7) DDR5 Intel Gaming Motherboard

Item: MSI MEG Z890 ACE (Wi-Fi 7) DDR5 Intel Gaming Motherboard
Rating: 5
Author: Verified Buyer

Product Id: 02.01.033.538

Out Of Stock

See similar model

Quick Overview

Form Factor - ATX
Chipset - Intel Z890
Sockets Supported - LGA1851
Supported CPU - Intel Core Ultra Processors (Series 2)
Generation - Ultra
Memory Slot - 4
Memory Max. - 256GB
Back-Connect Design - No
Body Color - Black

Payment Method Shipping & Charge Order Procedure

Brand

MSI

Model

MSI MEG Z890 ACE (Wi-Fi 7)

Chipset

Intel Z890

Sockets Supported

LGA1851

Built-in Processor

Generation

Ultra

Back-Connect Design

Memory Type

DDR5

Memory Slot

Memory Max.

256GB

Optane Memory Support

Graphics

Integrated

Graphics Chipset

Integrated With Processor

M.2/SSD Expansion Slot

WiFi

Yes

Bluetooth

Bluetooth 5.4

Form Factor

ATX

Supported Operating System

Windows 11

Body Color

Black

Warranty

3 year

General

Brand

MSI

Model

MSI MEG Z890 ACE (Wi-Fi 7)

Body Color

Black

CPU

Chipset Brand

Intel

Chipset

Intel Z890

Sockets Supported

LGA1851

Built-in Processor

Supported CPU

Intel Core Ultra Processors (Series 2)

Generation

Ultra

Memory Support

Memory Type

DDR5

Memory MHz

9200+MT/s (OC)/ 8600+MT/s/ 8000(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6666(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) Non-ECC, Un-buffered memory

Memory Channel

Dual

Memory Slot

Memory Max.

256GB

Optane Memory Support

Storage

Storage Interface

6.0Gb/s

M.2/SSD Expansion Slot

M.2/SSD Expansion Slot Details

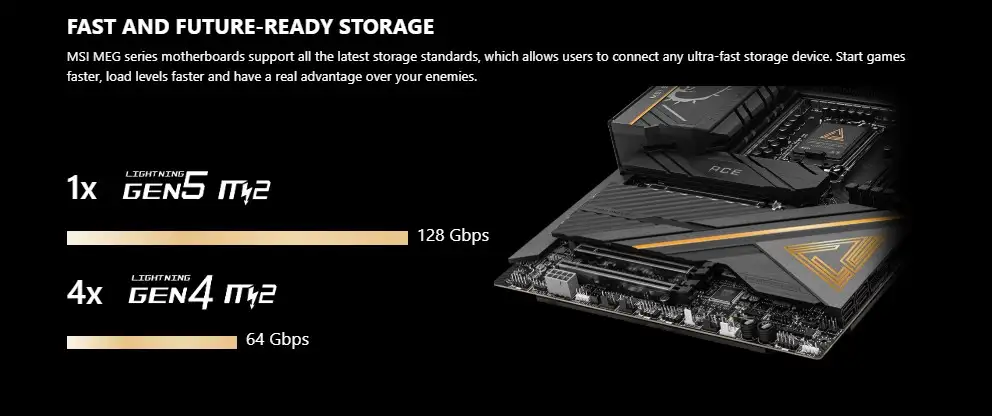

5 x M.2 ((1 x M.2 (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices), (1 x M.2 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices), (1 x M.2 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices), (1 x M.2 (From CPU+Chipset) supports up to PCIe 5.0 x4 + PCIe 4.0 x4 , supports 22110/2280 devices), 1 x M.2 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260 devices))

M.2/SSD Slot Gen

Up to Gen 5

Graphics

Integrated

Graphics Chipset

Integrated With Processor

Multi-GPU Support

PCI Express Slot

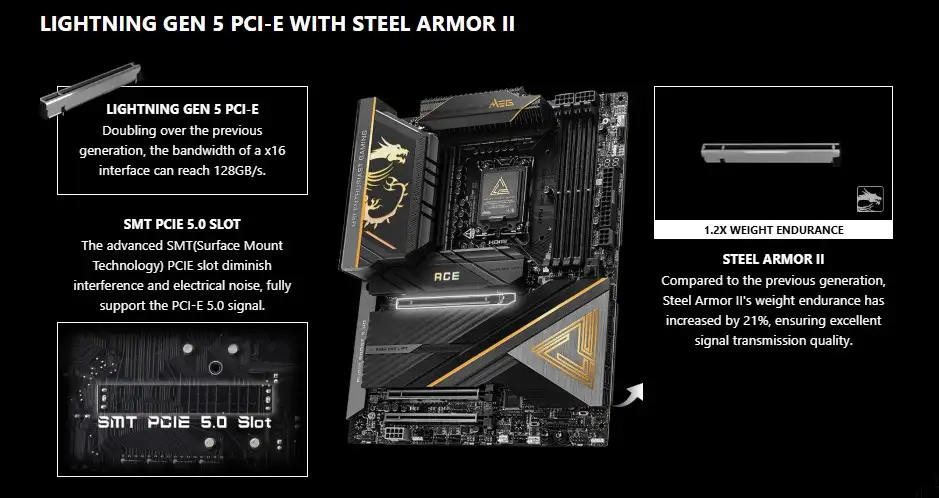

3 x PCI-E x16 slot

Audio & Video

Audio Chipset

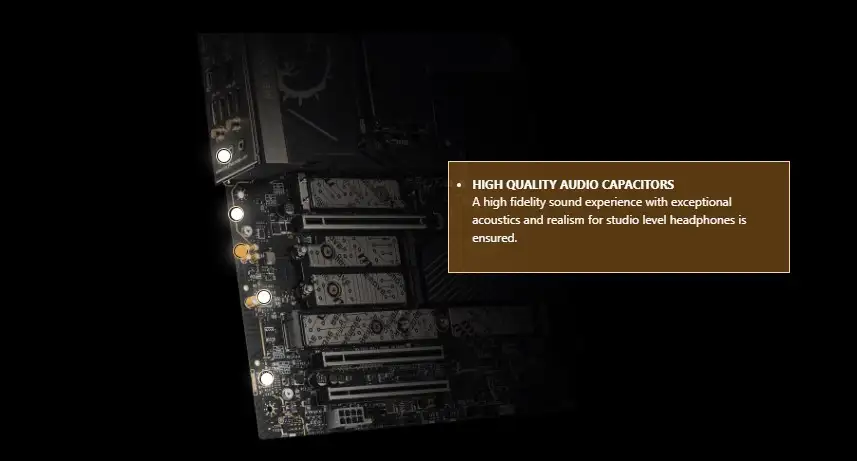

Realtek ALC4082 Codec + ESS9219Q Combo DAC/HPA

Audio Channel

7.1

Network & Connectivity

LAN Chipset

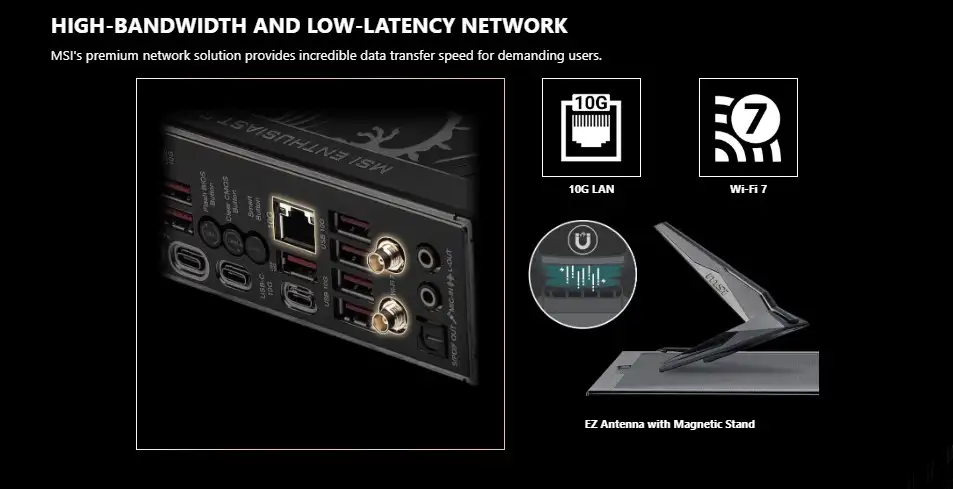

Marvell AQC113CS 10Gbps LAN

LAN Speed (Mbps)

100/ 1000/ 2.5Gbps/ 10Gbps

WiFi

Yes

WiFi Technology

Wi-Fi 7

Bluetooth

Bluetooth 5.4

Ports

USB Port

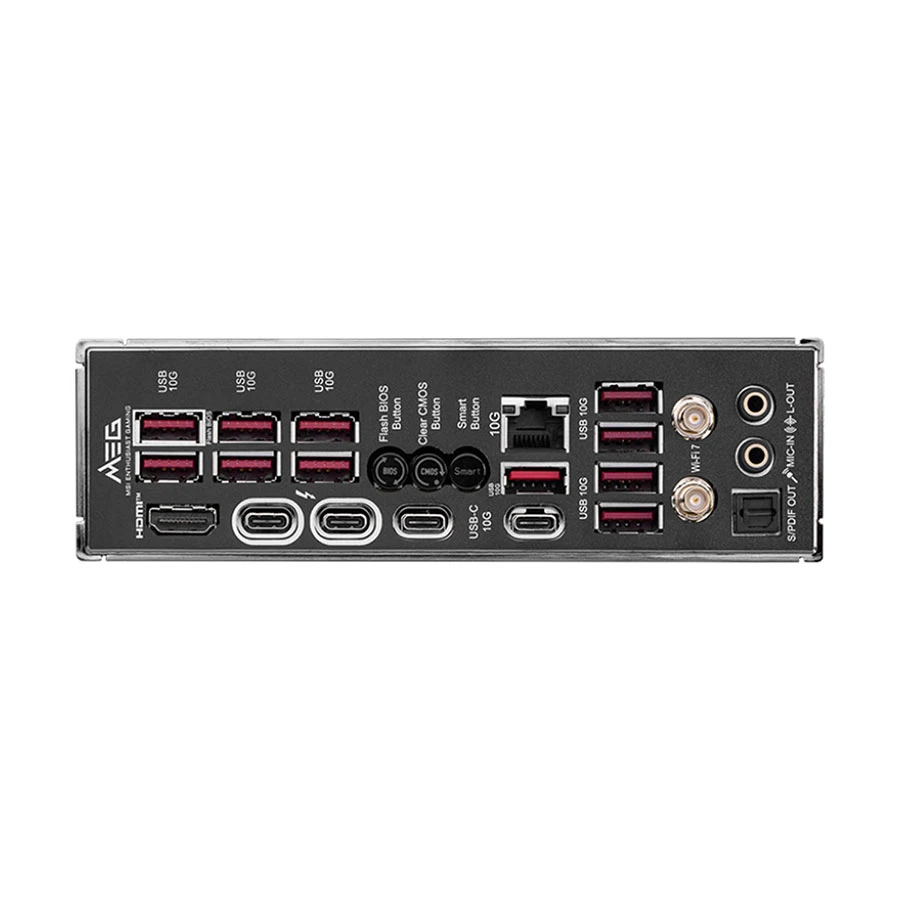

6 x USB 10Gbps (Type-A), 2 x USB 10Gbps (Type-C), 5 x USB 10Gbps (Type-A), 2 x Thunderbolt 4 40Gbps (Type-C)

VGA Port

DVI Port

HDMI Port

DisplayPort (DP)

SATA Port

Thunderbolt

TPM Port

Technical Info

Back-Connect Design

Cable Management

Front

Heatsink

Yes

FireWire

CrossFire Support

Sli Support

Raid Support

0, 1, 5, 10

RGB Support

ARGB

RGB Connector

1 x RGB LED connector(JRGB)

Approx. Power Consumption

70W

Form Factor

ATX

Compatibility

Supported Operating System

Windows 11

Compatible Products

Supports Intel Core Ultra Processors (Series 2) LGA 1851

Warranty

3 year

Additional Info

Feature

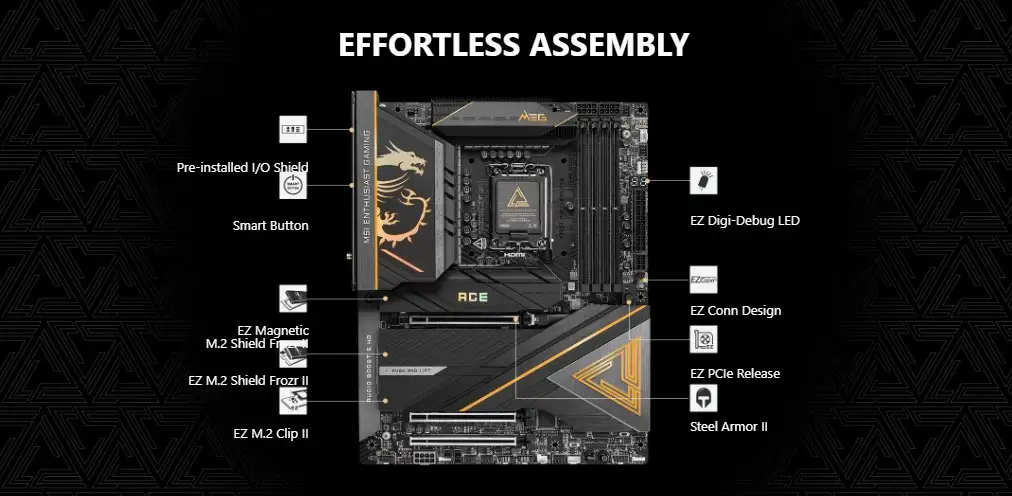

Ultra Power +, Frozr Design, Dual Thunderbolt 4 ports, 10G Super LAN, Wi-Fi 7, Quintuple M.2 Connectors, EZ Magnetic M.2 Shield Frozr II, EZ PCIe Release, Lightning Gen 5, Latest DDR5 Memory, Audio Boost 5 HD

Others

Internal IO: 1x Thunderbolt5 card connector(JTBT5, support RTD3), 1x Power Connector(ATX PWR), 2x Power Connector(CPU PWR), 1x Power Connector(PCIE PWR 8pin), 1x Front Type-C Quick Charge Connector(PD PWR1), 1x CPU Fan, 2x Combo Fan (Pump Sys Fan), 5x System Fan, 1x EZ Conn-header (JAF 2), 2x Front Panel (JFP), 1x Chassis Intrusion (JCI), 1x Water Flow connector, 1x Slow Mode Booting Jumper(JSLOW), 1x Front Audio (JAUD), 2x Thermal Sensor connectors(T SEN), 1x Tuning Controller connector(JDASH), 3x Addressable V2 RGB LED connector (JARGB V2), 1x RGB LED connector(JRGB), 1x TPM pin header(Support TPM 2.0), V-check point, LED FEATURE: 4x EZ Debug LED, 1x EZ Digit Debug LED, 1x EZ LED Control switch

Country Of Origin

Taiwan

Made in/ Assemble

China

Details

Features of MSI MEG Z890 ACE (Wi-Fi 7) Motherboard In Bangladesh

The MSI MEG Z890 ACE (Wi-Fi 7) DDR5 Intel Gaming Motherboard is designed for gamers and tech enthusiasts seeking performance and unmatched reliability. This motherboard offers ultra-fast wireless connectivity for seamless online gaming and streaming. Its support for DDR5 memory ensures faster data transfer rates and superior multitasking capabilities. With premium components, robust build quality, and advanced cooling solutions, the MEG Z890 ACE is a powerhouse for building high-performance gaming PCs.

Benefits of MSI MEG Z890 ACE Motherboard

Wi-Fi 7 Technology: Delivers blazing-fast wireless speeds and low latency.
DDR5 Support: Ensures enhanced performance and faster memory speeds.
PCIe 5.0 Compatibility: Provides higher bandwidth for GPUs and storage.
Advanced Cooling Solutions: Keeps your system stable during intense gaming sessions.
Premium Build Quality: Durable materials ensure long-lasting reliability.
Enhanced Audio Experience: High-definition audio for immersive gaming.
Comprehensive Connectivity: Multiple ports for versatile device compatibility.

Why Choose MSI Motherboard

The MSI MEG Z890 ACE motherboard is packed with features that cater to gamers and PC enthusiasts. Its Wi-Fi 7 technology ensures lag-free online gaming and smooth streaming, while DDR5 support enhances multitasking and performance. PCIe 5.0 compatibility future-proofs your system, enabling support for next-gen GPUs and SSDs.

This motherboard’s advanced cooling solutions, including multiple heatsinks and thermal pads, maintain optimal temperatures during high loads. It also offers robust overclocking capabilities, allowing users to push their systems to the limit. The high-definition audio system ensures immersive sound for gaming and media consumption.

The MEG Z890 ACE stands out with its durable design, making it a reliable choice for building a high-performance gaming rig. Its user-friendly BIOS interface and extensive connectivity options make it a versatile and powerful addition to any gaming setup.

Why Buy from Ryans Computers

At Ryans Computers, we provide genuine products like the MSI MEG Z890 ACE Motherboard, backed by expert advice and reliable customer support. Our goal is to ensure you get the best value for your investment.

When you shop with us, you enjoy fast delivery, secure payment options, and a hassle-free experience. Explore more online at Ryans Computers or visit one of Our Branches to get personalized assistance for your gaming PC needs.

Conclusion

The MSI MEG Z890 ACE (Wi-Fi 7) DDR5 Intel Gaming Motherboard is a top-tier choice for gamers and enthusiasts looking to build a future-proof and high-performance PC. Its innovative features, robust build, and superior connectivity make it an excellent investment for both casual and competitive gamers.

FAQs

1. Does the MSI MEG Z890 ACE support DDR5 memory?

Yes, it supports DDR5 memory for faster performance and improved multitasking.

2. What are the key benefits of Wi-Fi 7 technology?

Wi-Fi 7 offers faster speeds, reduced latency, and more stable connections compared to previous generations.

3. Can this motherboard handle overclocking?

Yes, it is designed with robust overclocking capabilities for advanced users.

4. How many PCIe slots does the MEG Z890 ACE have?

It includes multiple PCIe slots, including PCIe 5.0, for high-bandwidth components like GPUs and SSDs.

5. Is the motherboard suitable for professional use?

Absolutely, its advanced features and high reliability make it ideal for gaming and professional workloads.

What is the price of MSI MEG Z890 ACE (Wi-Fi 7) Motherboard In Bangladesh?

The price of MSI MEG Z890 ACE (Wi-Fi 7) Motherboard not mentioned for stock unavailability.The price may vary due to your customization and product availability. You can buy MSI MEG Z890 ACE (Wi-Fi 7) Motherboard from our website or visit our showrooms nearby.
Looking to purchase office, corporate, or institutional equipment? Ryans Computers is here to help. We provide customized solutions tailored to your needs, backed by fast delivery and dependable after-sales service. Our expert Ryans Care team is always ready to support you with troubleshooting, technical assistance, and configuration services—so you can focus on what matters most.

Video

Intel Z890 Series Motherboards - An Endless Inspiration | Gaming Motherboard | MSI

QUESTION & ANSWER

Customer Questions

what is the graphics card details for this mother board

Asked By Zicomgroup

Dear Customer,
Integrated With Processor.
Thnak You.

Answered By Ryans Computers Ltd. , 21 May 2026

Where is the bus speed details of this motherboard?

Asked By Md. Saad Huq

Dear customer, this model Memory Type-DDR5 &

Memory MHz-9200+MT/s (OC)/ 8600+MT/s/ 8000(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6666(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) Non-ECC, Un-buffered memory

Thank you.

Answered By Ryans Computers Ltd. , 17 Jan 2025
