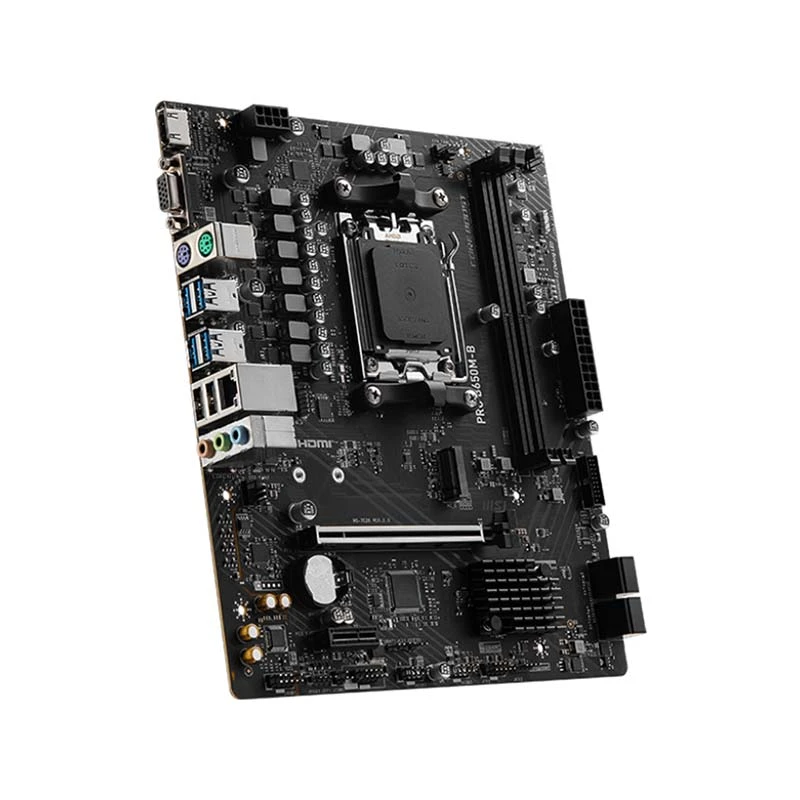

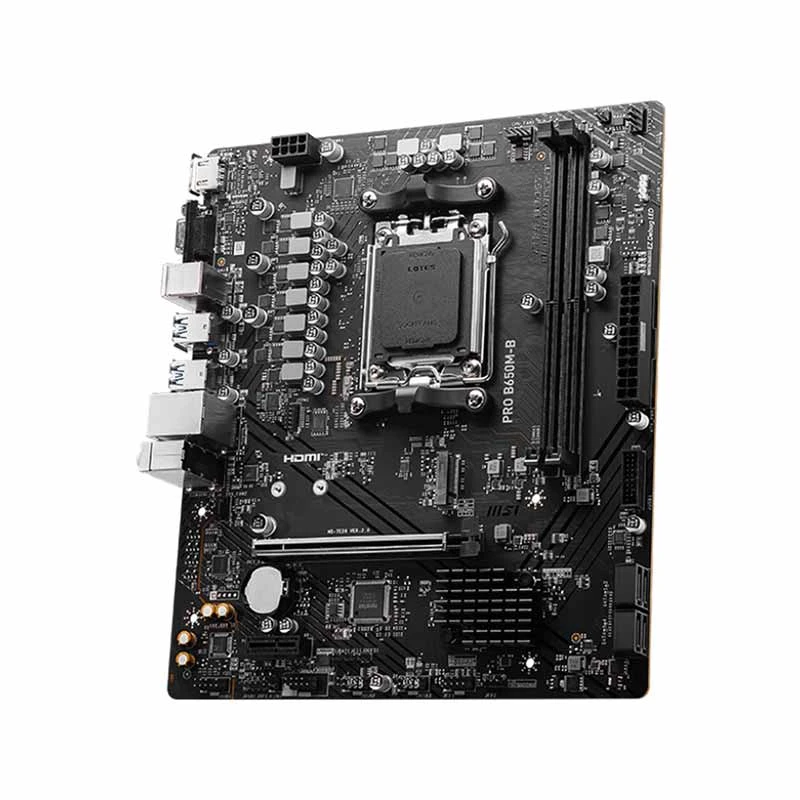

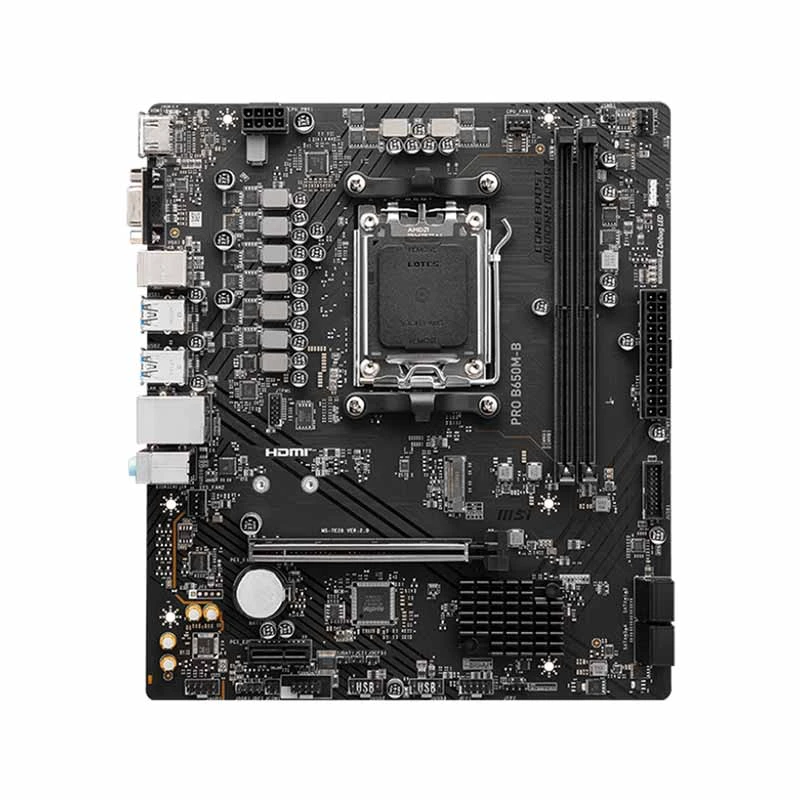

MSI PRO B650M-B DDR5 AMD Motherboard (Bundle with PC)
Product Id: 02.02.033.503
Brand
MSI
Regular Price Tk 14,870
Monthly EMI Tk 1,239
Special Price Tk 13,800
Quick Overview
- Chipset - AMD B650
- Sockets Supported - AM5
- Supported CPU - Supports AMD Ryzen 7000 Series Desktop Processors
- Generation - Not Applicable
- Memory Slot - 2
- Memory Max. - 96GB
General
Brand
MSI
Model
MSI PRO B650M-B
Body Color
Black
CPU
Chipset Brand
AMD
Chipset
AMD B650
Sockets Supported
AM5
Built-in Processor
No
Supported CPU
Supports AMD Ryzen 7000 Series Desktop Processors
Generation
Not Applicable
Memory Support
Memory Type
DDR5
Memory MHz
6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz Non-ECC, Unbuffered.
Memory Channel
Dual
Memory Slot
2
Memory Slot (Additional Info)
2 x DDR5
Memory Max.
96GB
Optane Memory Support
No
Storage
Storage Interface
6.0Gb/s
M.2/SSD Expansion Slot
1
M.2/SSD Expansion Slot Details
1 x M.2 Slot (supports up to PCIe 4.0 x4 , supports 2280/2260)
Graphics
Graphics
Integrated
Graphics Chipset
Integrated With Processor
Multi-GPU Support
No
PCI Express Slot
1x PCI-E x16 slot, 1x PCI-E x1 slot, PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU), PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
Audio & Video
Audio Chipset
Realtek ALC897 Codec
Audio Channel
7.1
Network & Connectivity
LAN Chipset
Realtek RTL8125BG
LAN Speed (Mbps)
10/ 10/ 1000/ 2500Mbps
WiFi
No
Bluetooth
No
Ports
USB Port
4 x USB 3.2 Gen1 Type A, 2 x USB 2.0
VGA Port
1
DVI Port
No
HDMI Port
1
DisplayPort (DP)
No
SATA Port
4
Thunderbolt
No
Technical Info
CrossFire Support
No
Sli Support
No
Raid Support
0 , 1 , 10
RGB Support
RGB
RGB Connector
1 x Addressable V2 RGB LED connector (JARGB_V2), 1 x RGB LED connector(JRGB)
Approx. Power Consumption
60W
Form Factor
Micro-ATX
Compatibility
Supported Operating System
Windows 11 / 10 64-bit
Compatible Products
Supports AMD Ryzen 7000 Series Desktop Processors
Warranty
Warranty
3 Year
Warranty Details
3 year
Additional Info
Others

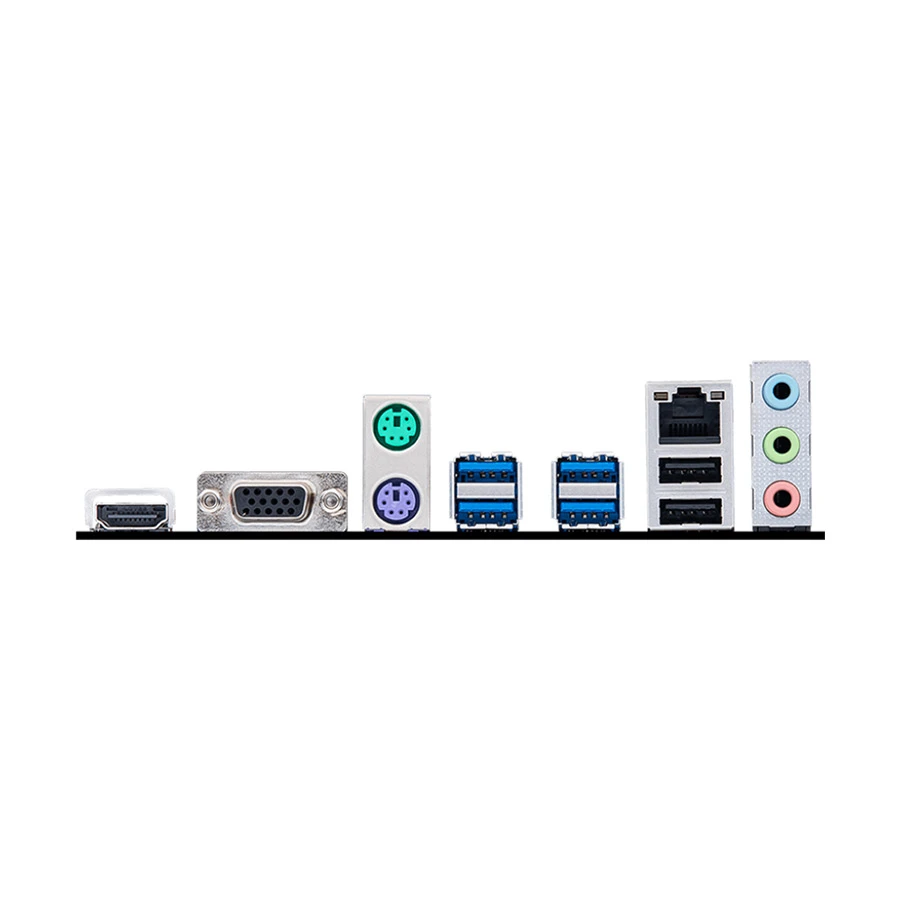

Max. overclocking frequency: 1DPC 1R Max speed up to 6800+ MHz, 1DPC 2R Max speed up to 6000+ MHz. Supports AMD EXPO. HDMI 2.1, maximum resolution of 4K 60Hz. VGA maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz. Internal IO: 1x Power Connector(ATX_PWR), 1x Power Connector(CPU_PWR), 1x CPU Fan, 2x System Fan, 2x Front Panel (JFP), 1x Chassis Intrusion (JCI), 1x Front Audio (JAUD), 1x Com Port (JCOM), 1x Addressable V2 RGB LED connector (JARGB_V2), 1x RGB LED connector(JRGB), 1x TPM pin header(Support TPM 2.0), 4x USB 2.0 ports, 2x USB 3.2 Gen1 Type A ports. LED FEATURE: 4x EZ Debug LED. BACK PANEL PORTS: HDMI, VGA, Keyboard/Mouse, USB 3.2 Gen 1 5Gbps (Type-A), LAN port, Audio connectors, USB 2.0. PCB Info: 215 x 243.84mm.
Country Of Origin
Taiwan
Made in/ Assemble
China
N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
Details
Features of MSI PRO B650M-B Motherboard In Bangladesh

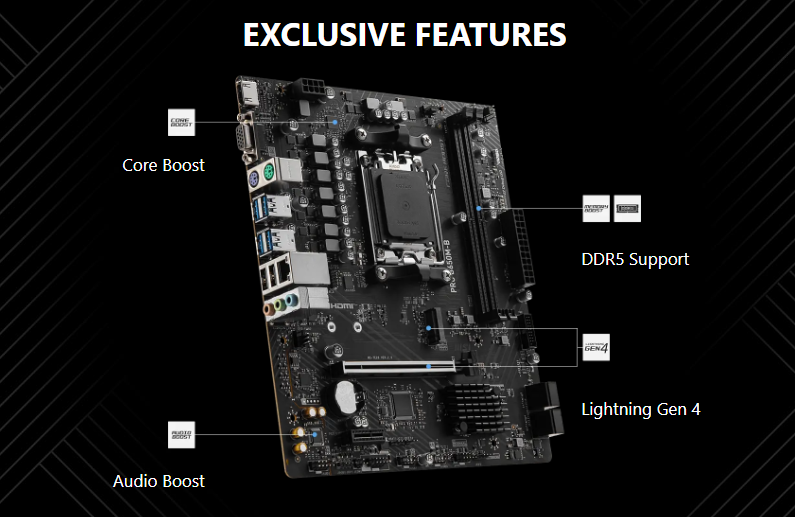

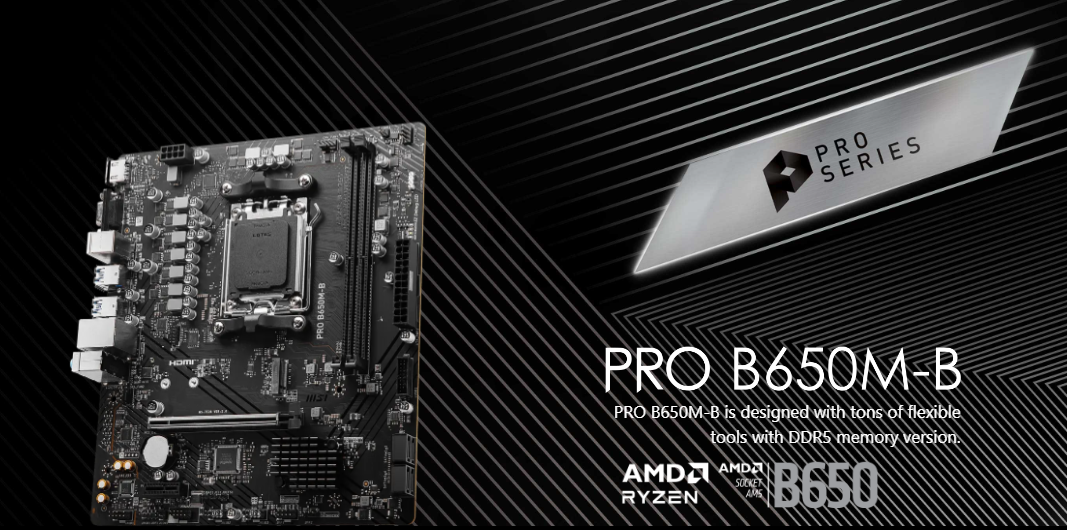

PRO B650M-B
- Supports AMD Ryzen™ 8000 / 7000 Series Desktop Processors
- Supports DDR5 Memory, Dual Channel DDR5 6800+MHz (OC)
- Core Boost : With premium layout and digital power design to support more cores and provide better performance
- Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
- Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen 4 x4 M.2
- 2.5G LAN: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection

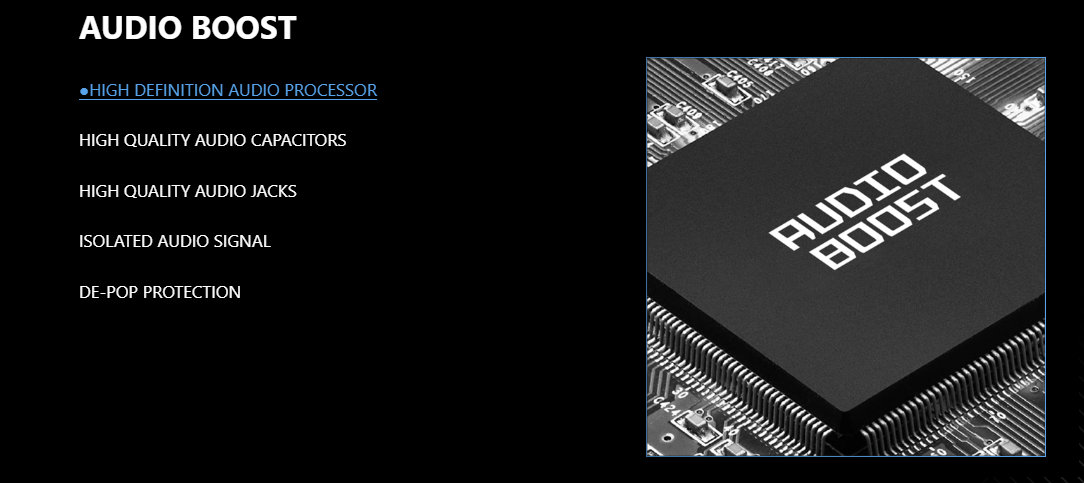

- AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
- Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength
BUSINESS ELEGANCE
The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.

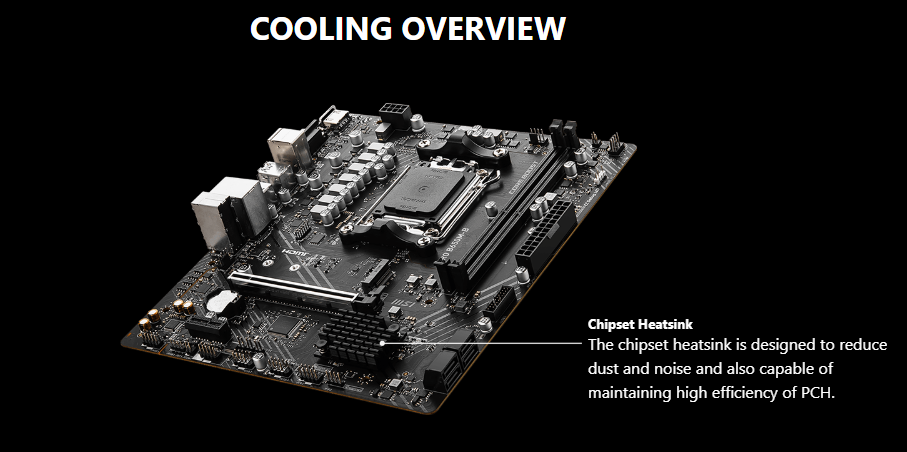

MSI motherboards let you manage speeds and temperatures for all your system and CPU fans in BIOS and software with a simplified graphical interface. You can also set up to 4 temperature targets, which will adjust the fan speeds automatically.

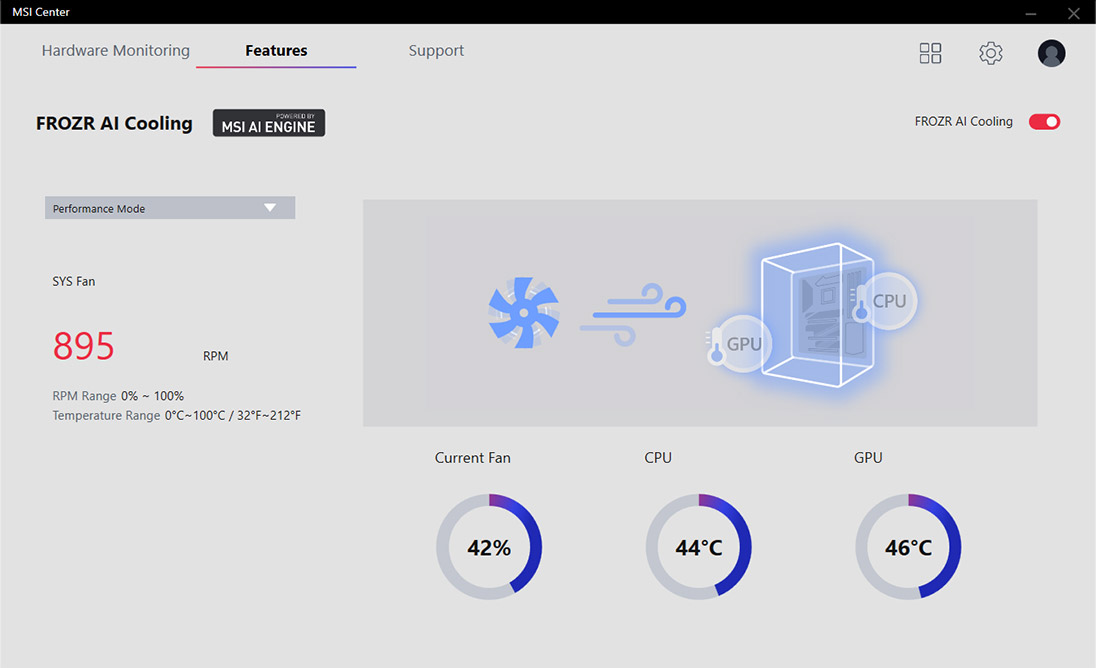

Detecting CPU & GPU temperatures and automatically adjusting fan duty of system fans to a proper value by adopting MSI AI ENGINE.

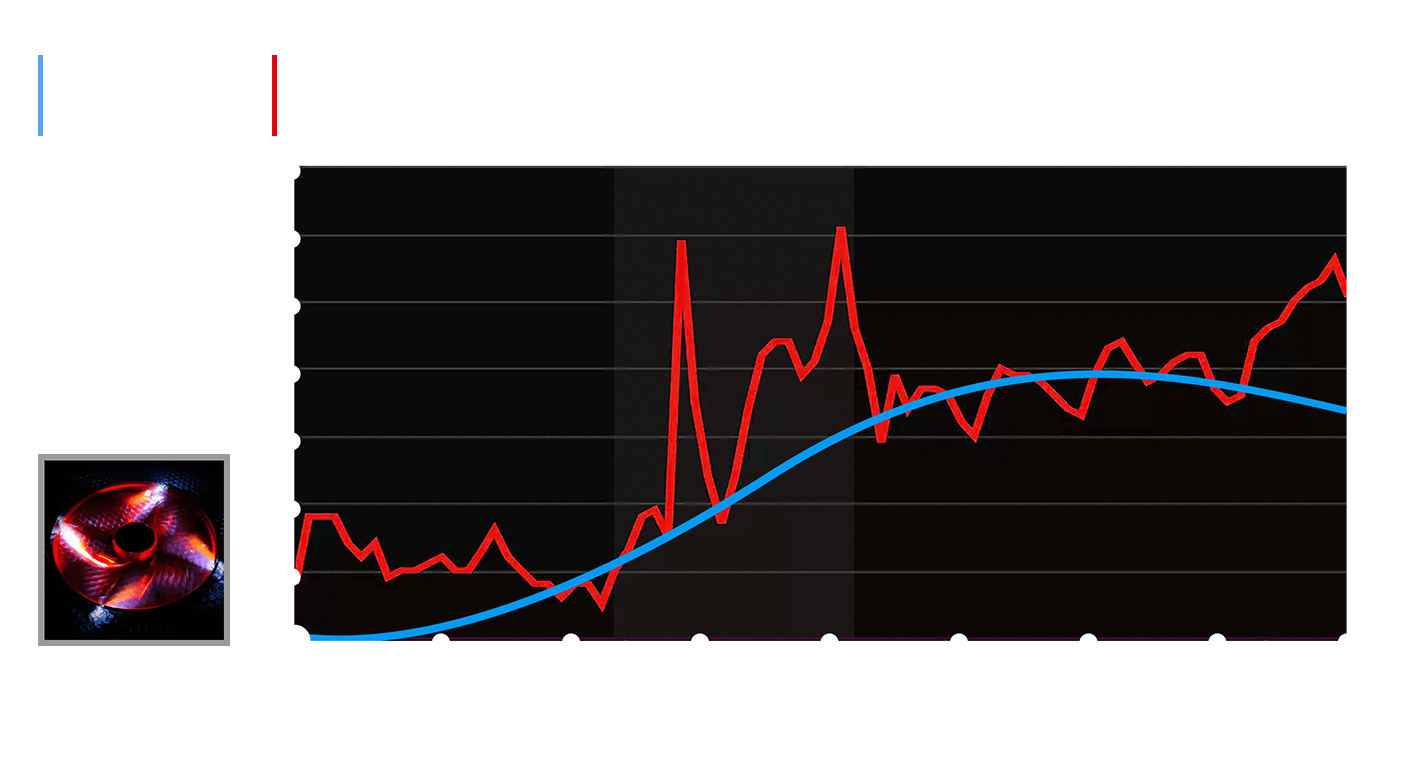

MSI fan headers automatically detect fans running in DC or PWM mode for optimal tuning of fan speeds and silence. Hysteresis also makes your fans spin up fluently to make sure your system stays silent, no matter what.

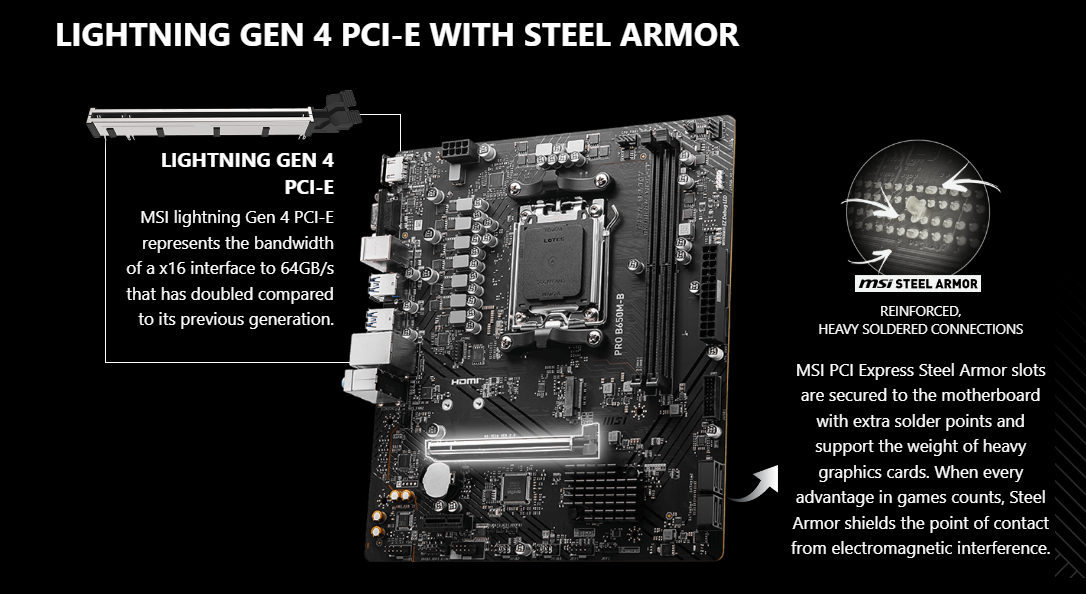

LIGHTNING GEN 4 PCI-E WITH STEEL ARMOR

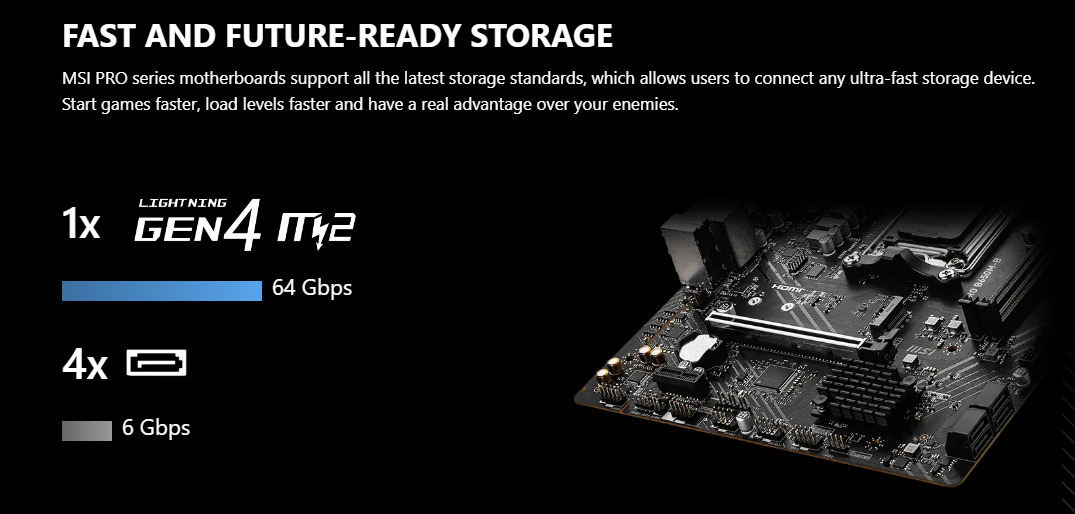

FAST AND FUTURE-READY STORAGE
MSI PRO series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.

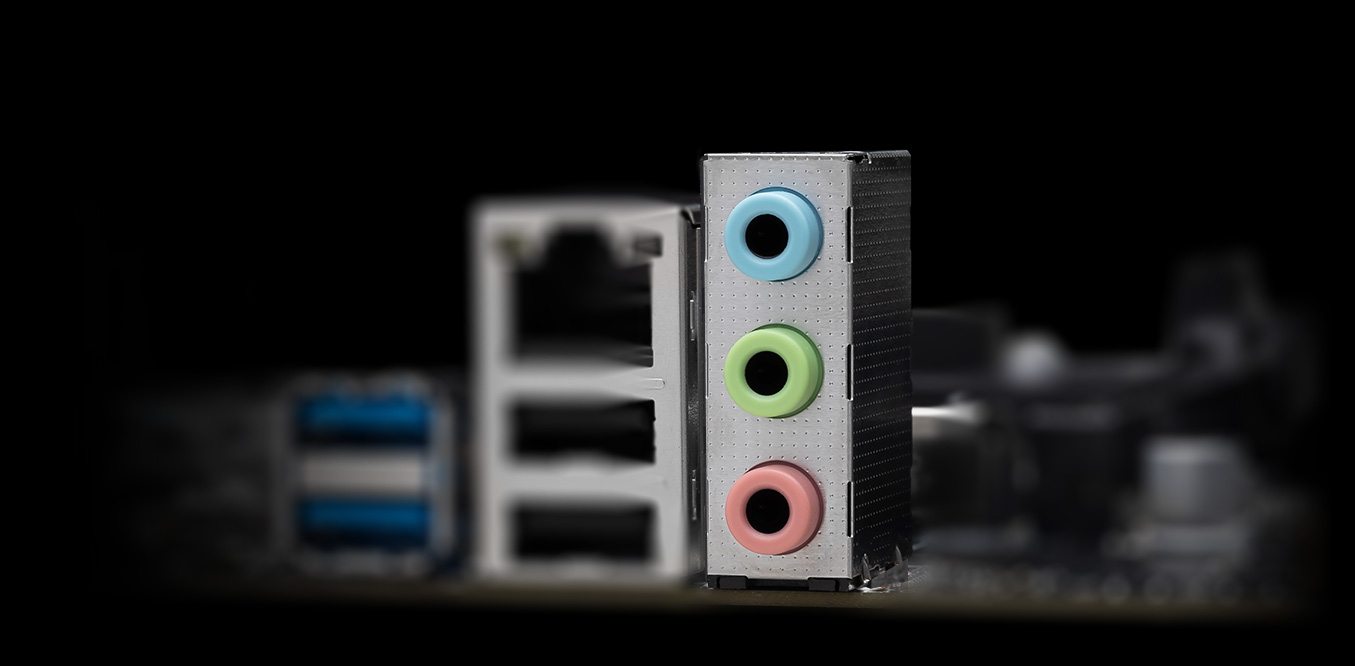

THE ISOLATED ANALOGY STRUCTURE FOR AUDIO CONNECTORS
To provide clear voice, MSI develops a unique structure – Isolated Analogy Structure. The external metal framework of the audio connectors is separated from the internal layout, which ensures the sound quality crisp.
What is the price of MSI PRO B650M-B Motherboard In Bangladesh?
The price of MSI PRO B650M-B Motherboard starts from 13,800 . The price may vary due to your customization and product availability. You can buy MSI PRO B650M-B Motherboard from our website or visit our showrooms nearby.
