4 x M.2 (1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode, 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode, 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode, 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2230/2242/2260/2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes)
Graphics
Graphics
Integrated
Graphics Chipset
Intel Xe LPG Graphics Architecture
PCI Express Slot
1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode, 2 x PCIe 4.0 x4 Slots (PCIE3 and PCIE4), support x4 mode, 1 x PCIe 4.0 x1 Slot (PCIE2)
Audio & Video
Audio Chipset
Realtek ALC897 Audio Codec
Audio Channel
7.1
Network & Connectivity
LAN Chipset
Dragon RTL8125BG 2.5 Gigabit LAN
LAN Speed (Mbps)
10/ 100/ 1000/ 2500Mb/s
WiFi
Yes
WiFi Technology
802.11axe Wi-Fi 6E
Bluetooth
Bluetooth 5.3
Ports
USB Port
4 x USB 2.0 x 2 x USB 3.2 Gen 1, 1 x USB 3.2 Gen 2 Type-A, 1 x USB 3.2 Gen 2x2 Type-C
VGA Port
No
DVI Port
No
HDMI Port
1
DisplayPort (DP)
1
SATA Port
4 x SATA3
Thunderbolt
1
TPM Port
1
Technical Info
Back-Connect Design
No
Cable Management
Front
Heatsink
No
CrossFire Support
No
Sli Support
No
Raid Support
0, 1, 5, 10
RGB Support
ARGB
RGB Connector
1 x RGB LED Header, 3 x Addressable LED Headers
Approx. Power Consumption
70W
Form Factor
ATX
Bios Information
BIOS Type
256Mb
BIOS Model
AMI UEFI Legal BIOS
Compatibility
Supported Operating System
Windows 11
Compatible Products
Compatible with LGA1851 Sockets Intel Core Ultra Processors (Series 2)
Warranty
Warranty Details
3 year
Additional Info
Feature
PCIe Gen5 (Graphics, M.2), Dual Channel DDR5, Thunderbolt 4 Type-C Port (40 Gb/s), 16+1+1+1+1 Power Phase, Dr. MOS for VCore+GT, Memory OC Shield, 2.5G LAN, 802.11axe Wi-Fi 6E Module, BIOS Flashback Button, ASRock Auto Driver Installer, Supports Intel Hybrid Technology, Supports Intel Turbo Boost Max 3.0 Technology, Supports Intel Thermal Velocity Boost (TVB), Supports Intel Adaptive Boost Technology (ABT), Integrated NPU for dedicated AI acceleration, Supports DDR5 non-ECC, un-buffered memory, Supports Clocked Unbuffered DIMM (CUDIMM), Supports Intel Extreme Memory Profile (XMP) 3.0x, Smart Auto Adjust Bandwidth Control, Visual User Friendly UI, Visual Network Usage Statistics, Optimized Default Setting for Game, Browser, and Streaming Modes, User Customized Priority Control, Supports IEEE 802.11a/b/g/n/ac/ax/axe, Supports Dual-Band 2x2 with extended 6GHz band support, 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology, Supports MU-MIMO, Software: ASRock Motherboard Utility (A-Tuning), ASRock Dragon 2.5G LAN Software, ASRock Polychrome SYNC, UEFI: ASRock EZ Mode, ASRock Full HD UEFI, ASRock My Favorites in UEFI, ASRock Auto Driver Installer, ASRock Instant Flash.
Others

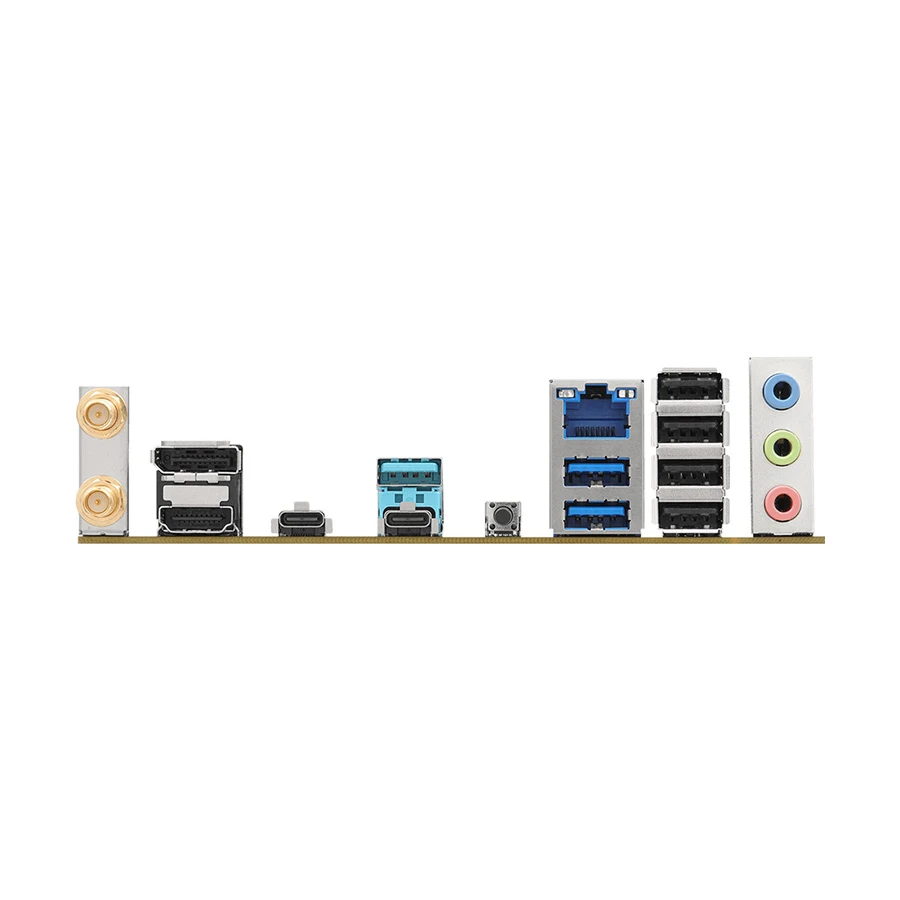

Rear Panel I/O: 2 x Antenna Ports, 1 x Thunderbolt 4 Type-C Port (40 Gb/s for USB4 protocol; 40Gb/s for Thunderbolt protocol), 1 x RJ-45 LAN Port, 1 x BIOS Flashback Button, HD Audio Jacks: Line in / Front Speaker / Microphone, Connector: 1 x SPI TPM Header, 1 x Power LED and Speaker Header, 2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control), 5 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control), 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control), 1 x 24 pin ATX Power Connector, 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector), 1 x Front Panel Audio Connector, 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s), Certifications: FCC, CE, ErP/EuP ready (ErP/EuP ready power supply is required).
Country Of Origin
Taiwan
Made in/ Assemble
China
N.B. Specification may differ
with actual product. In that case, Ryans will execute full refund within 5 days.
