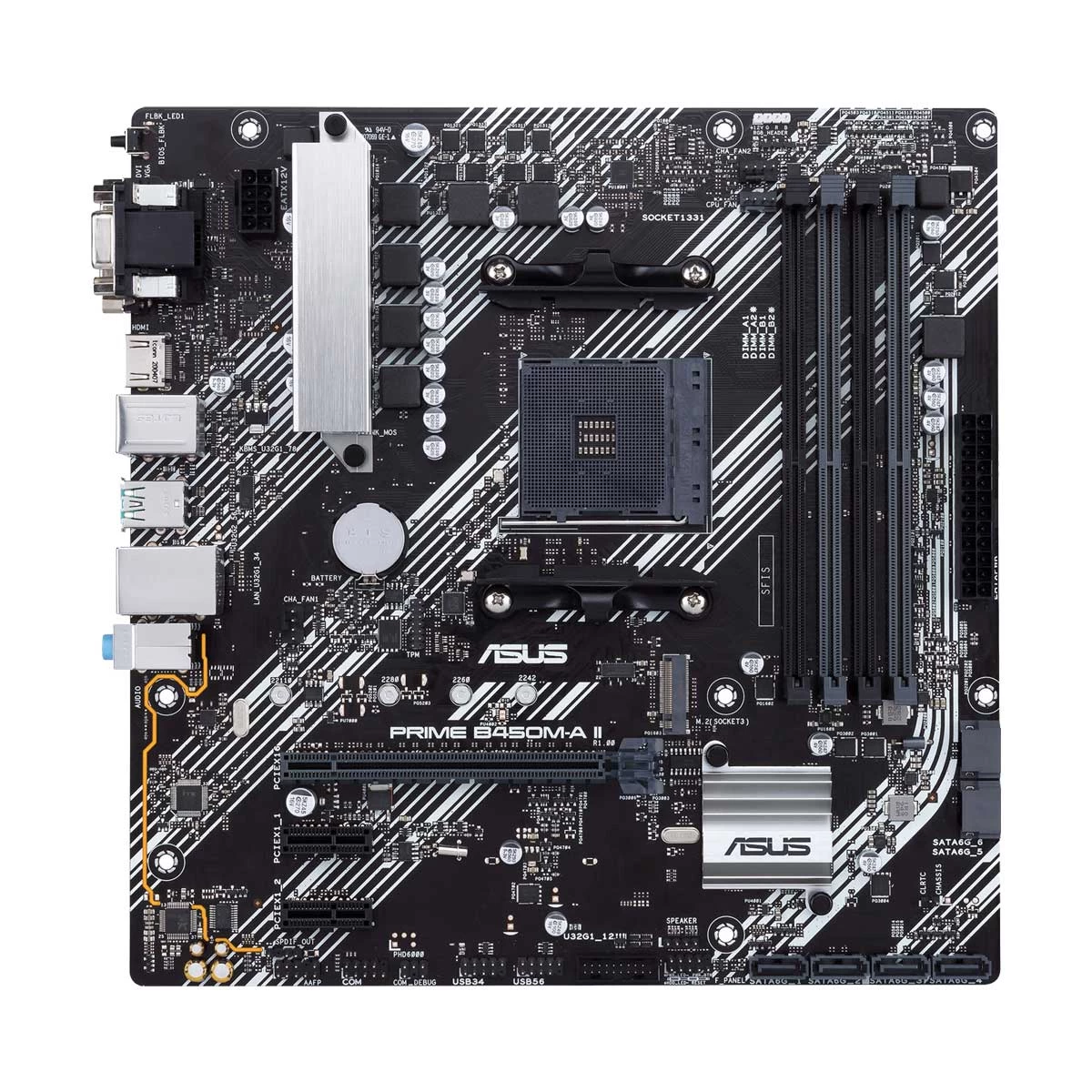

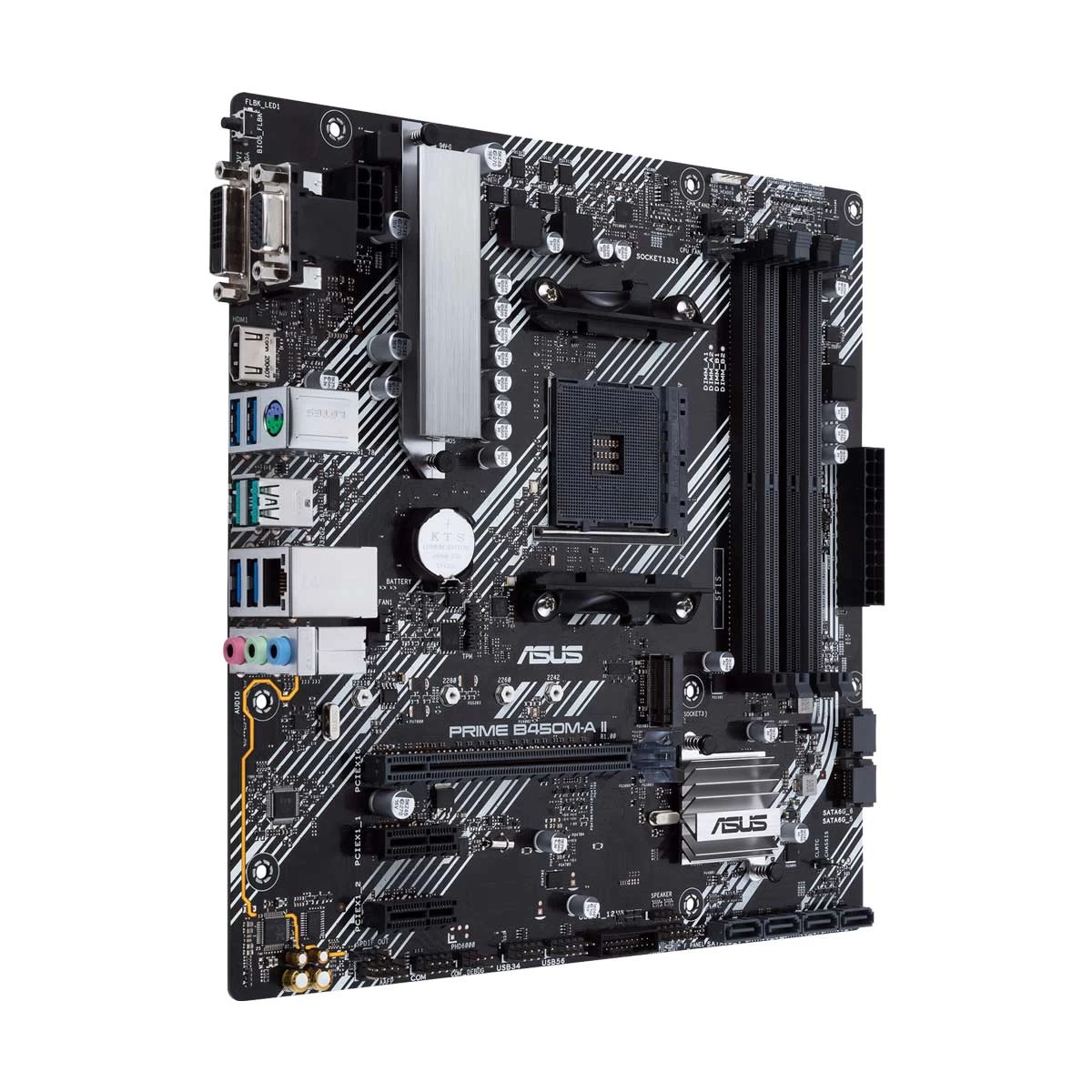

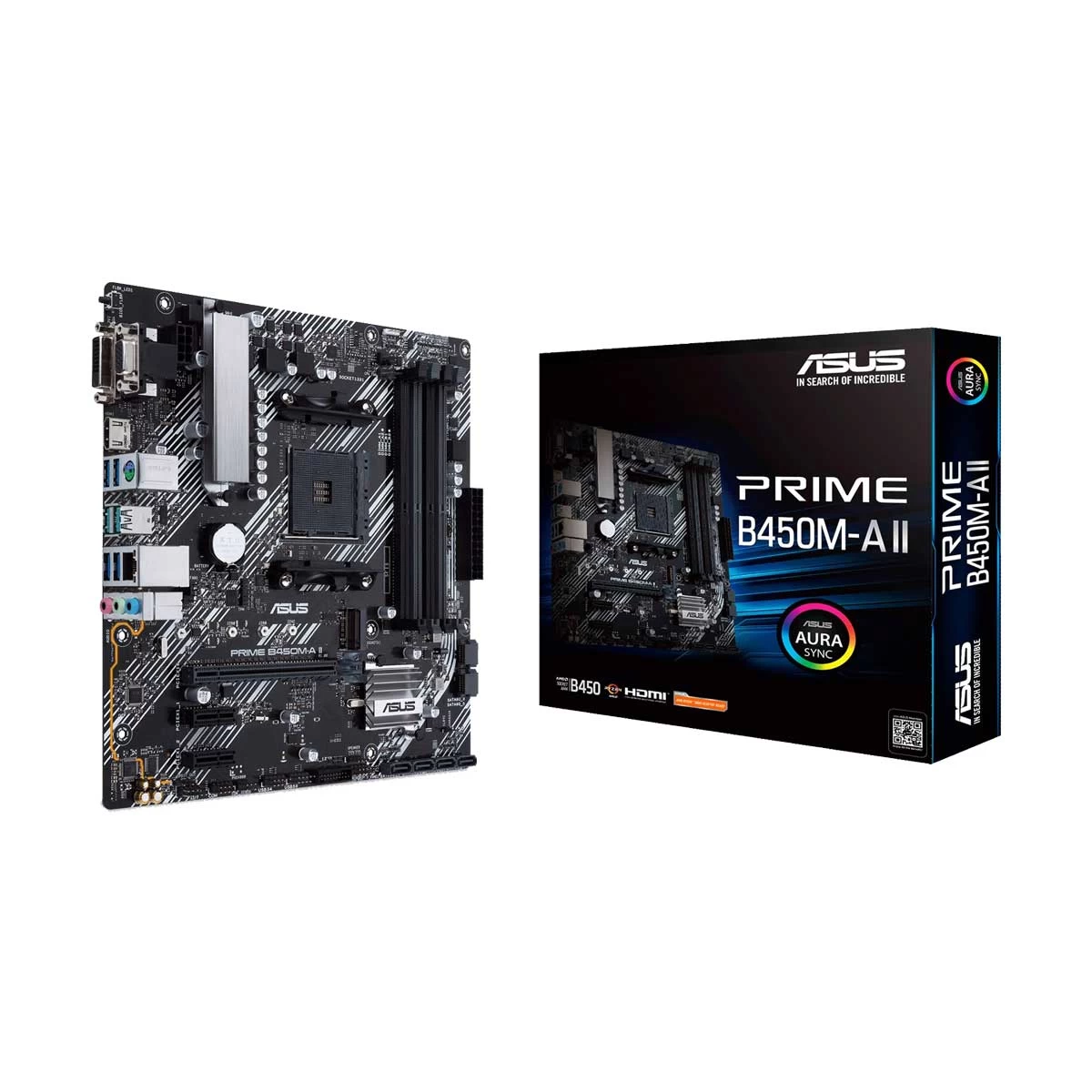

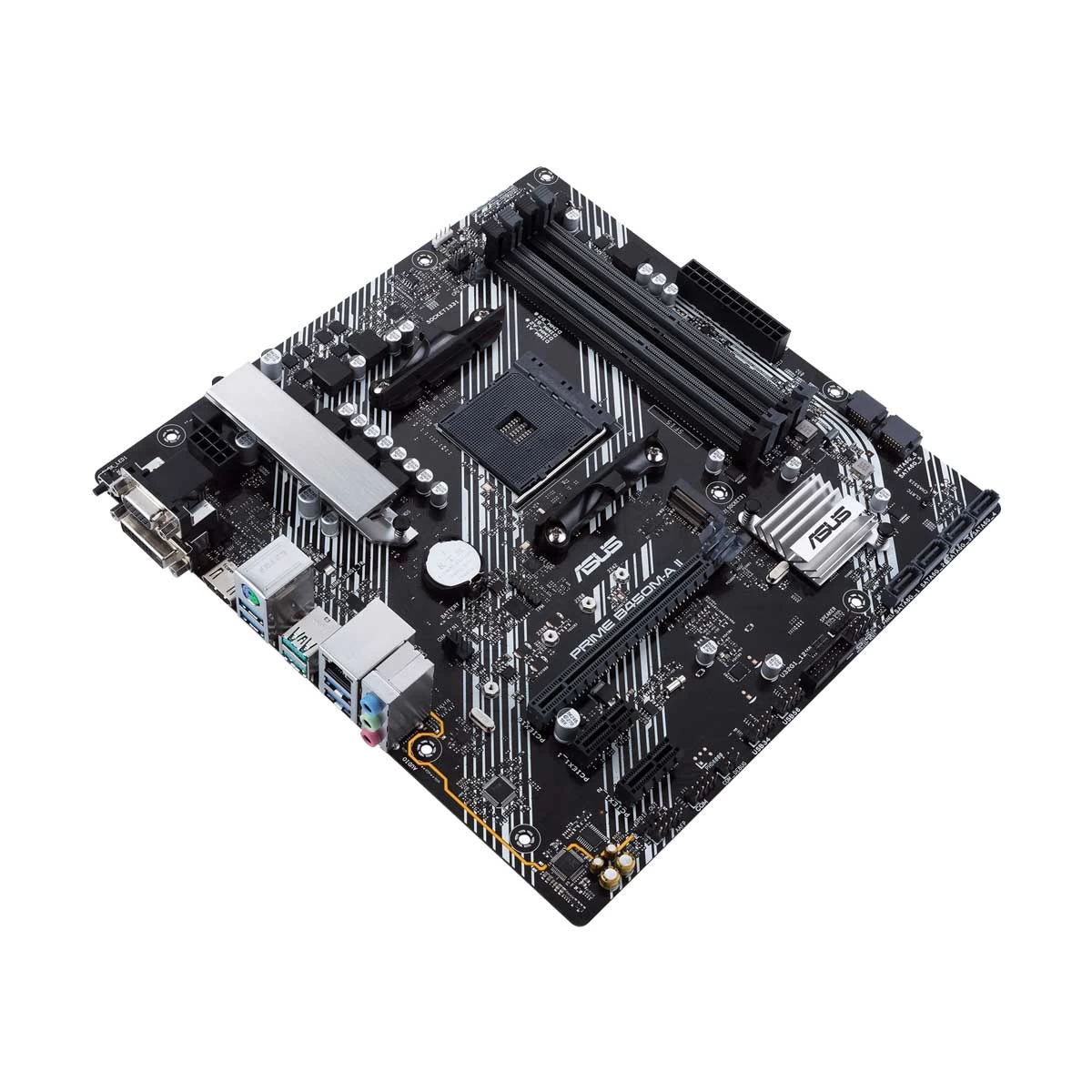

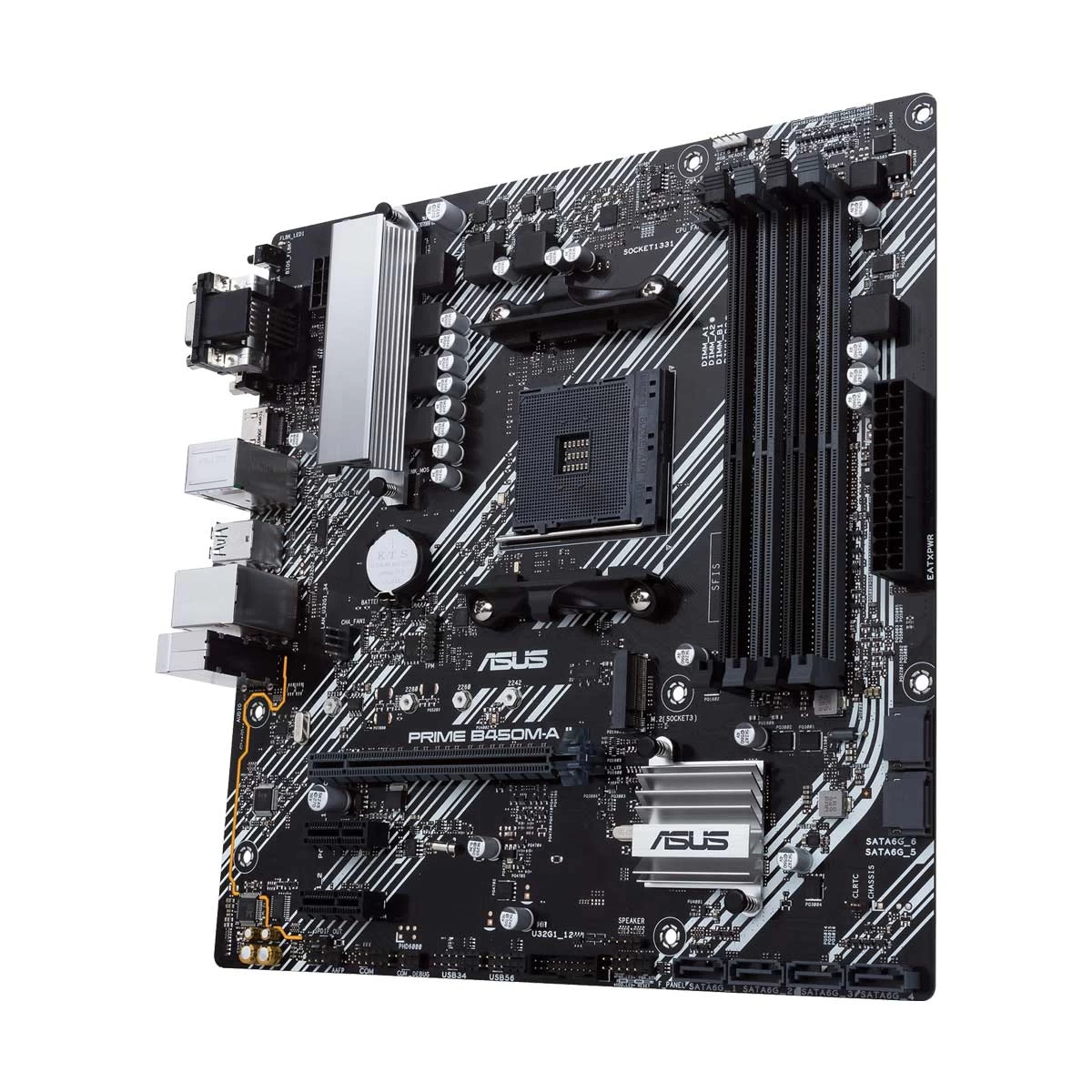

Asus PRIME B450M-A II DDR4 AMD AM4 Socket Motherboard

Product Id: 02.02.006.309

Brand Asus

Regular Price Tk 13,560 Monthly EMI Tk 1,130
Special Price Tk 12,600

Quick Overview

  • Chipset - AMD B450
  • Memory Max. - 128GB
  • Memory Slot - 4
  • Sockets Supported - AM4
  • Supported CPU - AMD Ryzen 1st/2nd/3rd Generation / Ryzen with Radeon Vega Graphics Processors & Athlon with Radeon Vega Graphics
  • Generation - 3rd
General
Brand
Asus

Model
Asus PRIME B450M-A II

Body Color
Black


CPU
Chipset Brand
AMD

Chipset
AMD B450

Sockets Supported
AM4

Built-in Processor
No

Supported CPU
AMD Ryzen 1st/2nd/3rd Generation / Ryzen with Radeon Vega Graphics Processors & Athlon with Radeon Vega Graphics

Generation
3rd


Memory Support
Memory Type
DDR4

Memory MHz
4400(O.C)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3300(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133MHz

Memory Channel
Dual

Memory Slot
4

Memory Slot (Additional Info)
4 (3rd/2nd/1st Gen AMD Ryzen/ 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors)

Memory Max.
128GB

Memory Max. (Additional Info)
128GB (3rd/2nd/1st Gen AMD Ryzen/ 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors)

Optane Memory Support
No


Storage
Storage Interface
6.0Gb/s

M.2/SSD Expansion Slot
1

M.2/SSD Expansion Slot Details
1 x M.2 Socket 3 (M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode))


Graphics
Graphics
Integrated

Graphics Chipset
AMD Vega Graphics support

PCI Express Slot
1 x PCIe 3.0 x16 (x16 mode), 1 x PCIe 3.0 x16 (x8 mode), 1 x PCIe 3.0 x16 (x4 mode), 2 x PCIe 2.0 x1


Audio & Video
Audio Chipset
Realtek ALC887/897

Audio Channel
7.1


Network & Connectivity
LAN Chipset
Realtek RTL8111H

WiFi
No

Bluetooth
No

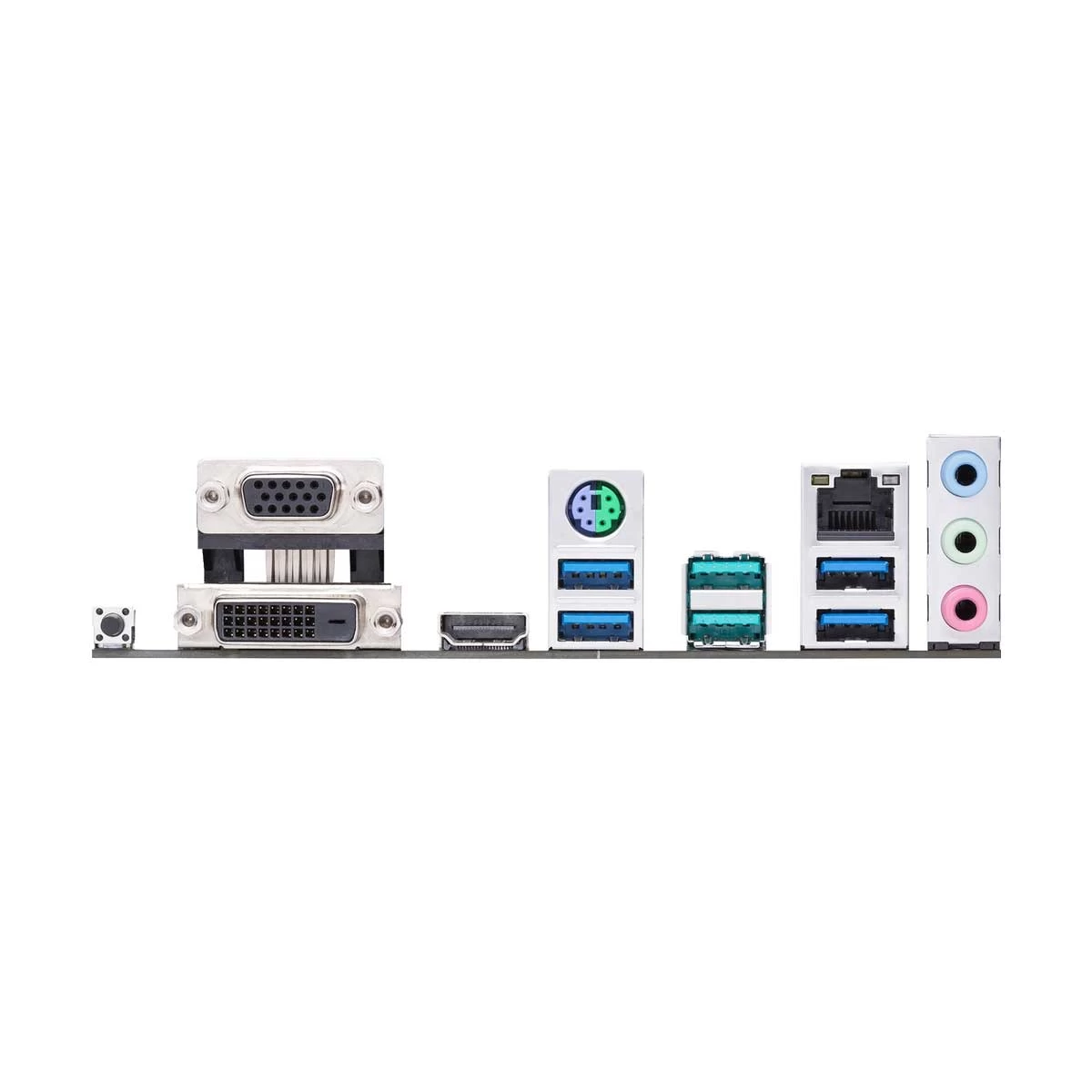

Ports
USB Port
2 x USB3.2 Gen 2 Type-A, 6 x USB3.2 Gen 1 Type-A, 4 x USB2.0

VGA Port
1

DVI Port
1

HDMI Port
1

SATA Port
6 x SATA

Thunderbolt
No

TPM Port
1

COM Port
2


Technical Info
CrossFire Support
No

Sli Support
No

Raid Support
0,1,10

RGB Support
RGB

RGB Sync
Aura Sync

RGB Connector
1 x RGB Header

Approx. Power Consumption
60W

Form Factor
Micro-ATX


Bios Information
BIOS Type
256 Mb Flash ROM

BIOS Model
UEFI AMI BIOS


Compatibility
Supported Operating System
Windows 10 / 7


Warranty
Warranty
3 Year

Warranty Details
3 Years Replacement Warranty


Additional Info
Feature
Comprehensive cooling VRM heatsink, PCH heatsink, and Fan Xpert 2+, Ultrafast connectivity, M.2 support, 1 Gb Ethernet, and USB 3.2 Gen 2 Type-A, 5X Protection III, Multiple hardware safeguards for all-around system protection, Aura Sync RGB Lighting, Onboard connector for RGB LED strips, easily synced with an ever-growing portfolio of Aura Sync-capable hardware, micro ATX motherboard with M.2 support, HDMI/DVI-D/D-Sub, SATA 6 Gbps, 1 Gb Ethernet, USB 3.2 Gen 2 Type-A, BIOS FlashBack, and Aura Sync RGB lighting support, AI Suite 3, TurboV EVO, EPU, DIGI+ VRM, Fan Xpert 2+, PC Cleaner, ASUS CPU-Z, AI Charger, ASUS EZ Installer, UEFI BIOS, ASUS EZ DIY, ASUS 5X PROTECTION III, ASUS Q-Design, ASUS Thermal Solution, ASUS EZ DIY, AURA Sync, ASUS Lighting Control, LED-illuminated design, Audio Shielding, Dedicated audio PCB layers, Premium Japanese audio capacitors

Others
1 x CPU Fan connector(s) (1 x 4 -pin), 2 x Chassis Fan connector(s) (2 x 4 -pin), 1 x SPI TPM header, 1 x COM port(s) connector(s), 1 x S/PDIF out header(s), 1 x Front panel audio connector(s) (AAFP), 1 x System panel(s), 1 x Clear CMOS jumper(s), 1 x COM port header, 1 x Speaker connector, 1 x RGB Header, 3 x Audio jack(s), 1 x BIOS FlashBack Button(s)

Country Of Origin
Taiwan

Made in/ Assemble
China


N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
