Brand

Asus

Model

Asus PRIME B650M-A II

Chipset

AMD B650

Sockets Supported

AM5

Built-in Processor

Generation

Not Applicable

Back-Connect Design

Memory Type

DDR5

Memory Slot

Memory Max.

192GB

Optane Memory Support

Graphics

Integrated

Graphics Chipset

Integrated With Processor

M.2/SSD Expansion Slot

WiFi

Bluetooth

Form Factor

Micro-ATX

Supported Operating System

Windows 10, Windows 11

Body Color

Black

Warranty Details

3 Year Replacement

General

Brand

Asus

Model

Asus PRIME B650M-A II

Body Color

Black

CPU

Chipset Brand

AMD

Chipset

AMD B650

Sockets Supported

AM5

Built-in Processor

Supported CPU

Ryzen 9000 & 8000 & 7000 Series Desktop Processors

Generation

Not Applicable

Memory Support

Memory Type

DDR5

Memory MHz

7600+(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC and Non-ECC, Un-buffered Memory

Memory Channel

Dual

Memory Slot

Memory Max.

192GB

Optane Memory Support

Storage

Storage Interface

6.0Gb/s

M.2/SSD Expansion Slot

M.2/SSD Expansion Slot Details

2 x M.2 (1 x M.2 type 2242/2260/2280 (supports PCIe 5.0 x4 mode), (1 x M.2 type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

Graphics

Integrated

Graphics Chipset

Integrated With Processor

Multi-GPU Support

PCI Express Slot

1 x PCIe 4.0 x16 slot, 1 x PCIe 4.0 x16 slot, 2 x PCIe 4.0 x16 slots

Audio & Video

Audio Chipset

Realtek 7.1 Surround Sound High Definition Audio CODEC

Audio Channel

7.1

Network & Connectivity

LAN Chipset

Realtek 2.5Gb Ethernet

LAN Speed (Mbps)

10/ 10/ 1000/ 2500Mbps

WiFi

Bluetooth

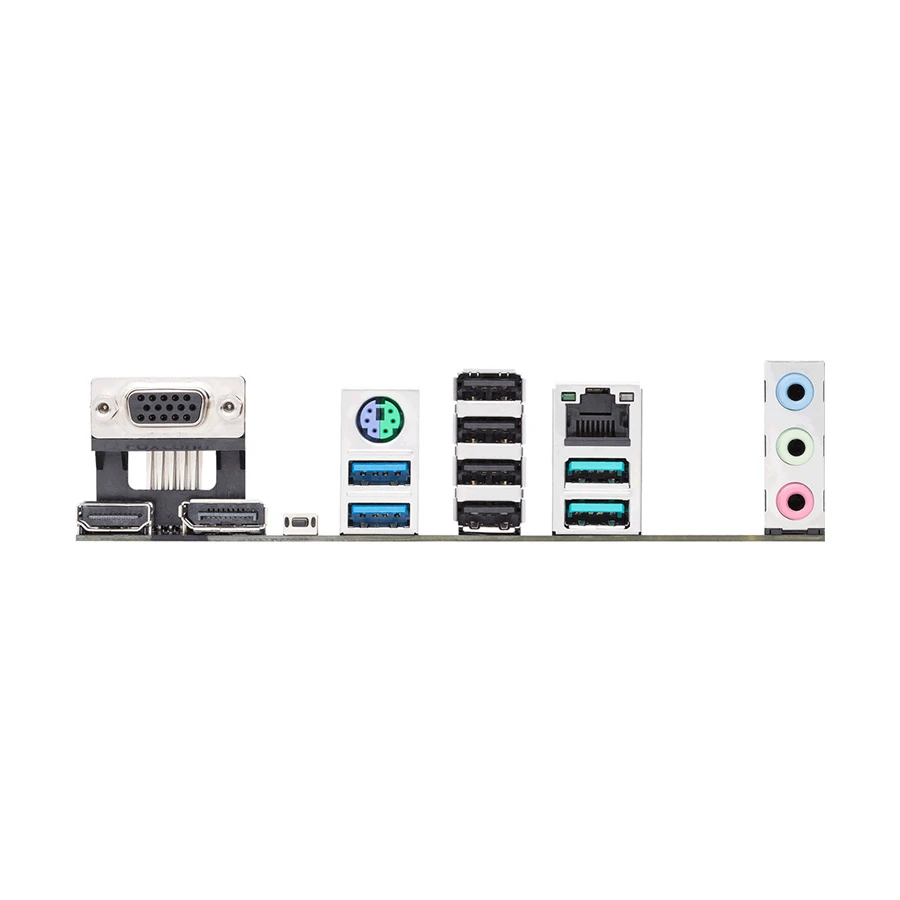

Ports

USB Port

2 x USB 3.2 Gen 2 ports (2 x Type-A), 2 x USB 3.2 Gen 1 ports (2 x Type-A), 4 x USB 2.0 ports (4 x Type-A)

VGA Port

DVI Port

HDMI Port

DisplayPort (DP)

SATA Port

Thunderbolt

COM Port

Technical Info

Back-Connect Design

Cable Management

Front

Heatsink

Yes

FireWire

CrossFire Support

Sli Support

Raid Support

0/1/10

RGB Support

RGB

RGB Sync

Aura Sync

Form Factor

Micro-ATX

Bios Information

BIOS Type

256 Mb Flash ROM

BIOS Model

UEFI AMI BIOS

Compatibility

Supported Operating System

Windows 10, Windows 11

Compatible Products

AMD AM5 Socket Ryzen 9000 & 8000 & 7000 Series Desktop Processors

Warranty

Warranty Details

3 Year Replacement

Additional Info

Feature

Ready for Advanced AI PC: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications, AM5 Socket for AMD Ryzen Desktop Processors, Ultrafast Connectivity: M.2 PCIe 5.0, Realtek 2.5Gb Ethernet, USB 3.2 Gen 2 ports, front USB 3.2 Gen 1 Type-C, ASUS OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking, Comprehensive Cooling: VRM heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+, Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware

Others

Manageability: WOL by PME, PXE, Accessories: Cables- 2 x SATA 6Gb/s cables, Miscellaneous- 1 x I/O Shield, 1 x Screw Package for M.2 SSD, Documentation, 1 x User guide

Country Of Origin

Taiwan

Made in/ Assemble

China

N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.

Details

Features of Asus PRIME B650M-A II Motherboard In Bangladesh

Asus PRIME B650M-A II DDR5 AMD AM5 Socket Motherboard Price in Bangladesh

The Asus PRIME B650M-A II is an excellent motherboard choice for users who want to build a high-performance PC with AMD’s latest Ryzen 9000, 8000, and 7000 Series processors. With DDR5 support and advanced connectivity features, it provides the foundation for powerful gaming, content creation, and professional workloads. Its compact Micro-ATX design ensures it fits seamlessly into a variety of PC builds, making it an ideal choice for both enthusiasts and professionals.

Benefits of Asus PRIME B650M-A II Motherboard

This motherboard is designed for next-generation performance with the latest AM5 socket compatibility, allowing users to utilize the power of Ryzen 9000, 8000, and 7000 series processors. The DDR5 memory support and dual M.2 slots (with PCIe 5.0 and PCIe 4.0) ensure that users experience fast data transfer rates and high-capacity storage. Realtek 2.5Gb Ethernet delivers superior networking speeds, making it ideal for online gaming and data-heavy applications.

Why Choose Asus PRIME B650M-A II Motherboard?

Future-Proof Design: AM5 socket and DDR5 memory support, ensuring compatibility with the latest and upcoming Ryzen processors.
High-Speed Connectivity: PCIe 5.0 and 2.5Gb Ethernet provide fast data transfer and network speeds.

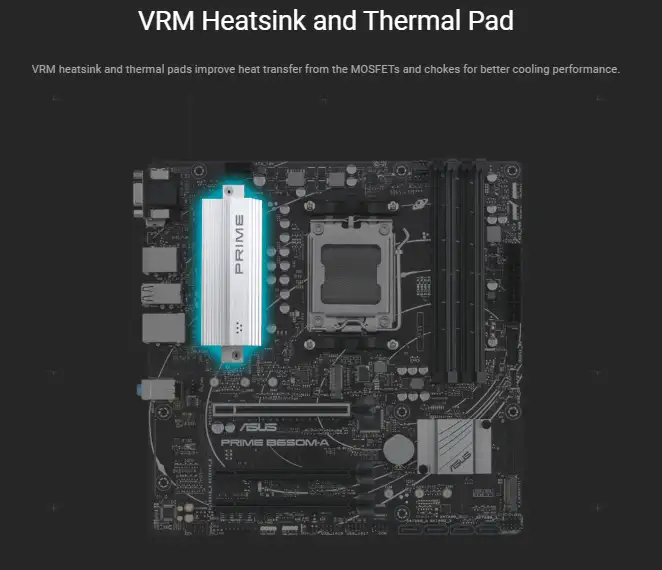

Efficient Cooling: Equipped with VRM heatsinks, hybrid fan headers, and Fan Xpert 2+ to maintain optimal temperature under heavy workloads.
Comprehensive RGB Options: Supports Aura Sync RGB lighting, allowing users to customize their system’s aesthetics.
Enhanced Audio Experience: Powered by Realtek 7.1 Surround Sound for an immersive audio experience.

FAQs

1. What processors are compatible with the Asus PRIME B650M-A II? It supports AMD Ryzen 9000, 8000, and 7000 series desktop processors.

2. How much memory does the motherboard support? It supports up to 192GB of DDR5 memory.

3. Does the motherboard have built-in Wi-Fi? No, this model does not include built-in Wi-Fi.

4. What is the form factor of the Asus PRIME B650M-A II? It comes in a Micro-ATX form factor, suitable for smaller PC builds.

Conclusion

The Asus PRIME B650M-A II DDR5 AMD AM5 Socket Motherboard is an excellent choice for users looking to future-proof their system with the latest technology. With features like DDR5 support, PCIe 5.0, and 2.5Gb Ethernet, it delivers both performance and versatility, making it a top choice for gamers, creators, and professionals. Buy it now from Ryans.

What is the price of Asus PRIME B650M-A II Motherboard In Bangladesh?

The price of Asus PRIME B650M-A II Motherboard starts from 18,400 . The price may vary due to your customization and product availability. You can buy Asus PRIME B650M-A II Motherboard from our website or visit our showrooms nearby.
