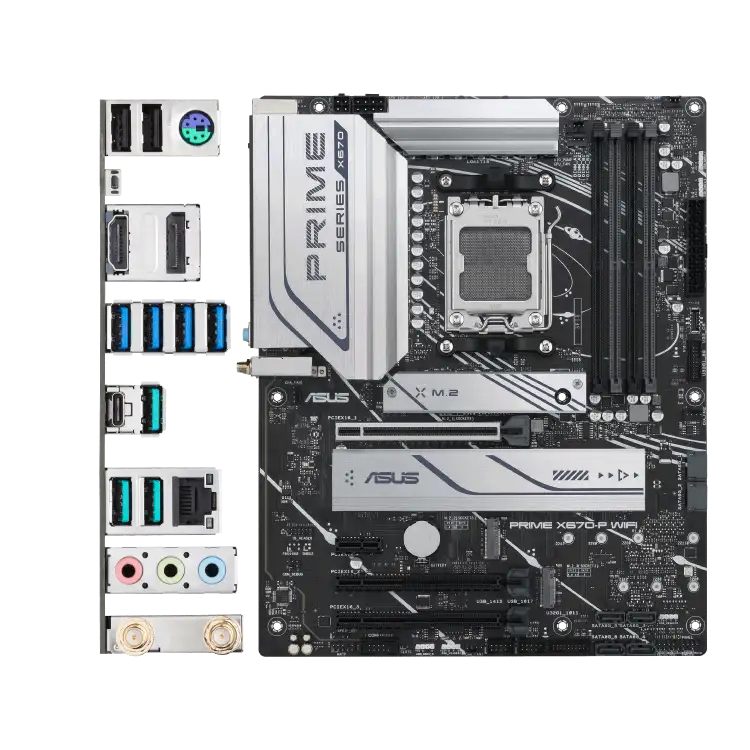

ASUS PRIME X670-P-CSM (Wi-Fi 6) DDR5 AMD AM5 Socket Motherboard
3 x M.2 (1 x slot (Key M), type 2242/2260/2280 supports PCIe 5.0 x4 mode), (2 x slot (Key M), type 2242/2260/2280/22110 supports PCIe 4.0 x4 mode)
M.2/SSD Slot Gen
Up to Gen 5
Graphics
Graphics
Integrated
Graphics Chipset
Integrated With Processor
Multi-GPU Support
No
PCI Express Slot
1 x PCIe 4.0 x16 slot (supports x16 mode), 2 x PCIe 4.0 x16 slots (support x4 mode), 1 x PCIe 3.0 x1 slot, 1 x PCIe 3.0 x1 slot
Audio & Video
Audio Chipset
High Definition Audio CODEC
Audio Channel
7.1
Network & Connectivity
LAN Chipset
Realtek GbE LAN
LAN Speed (Mbps)
10/100/1000/2500 Mbps
WiFi
Yes
WiFi Technology
Wi-Fi 6
Bluetooth
Bluetooth 5.2
Ports
USB Port
1 x USB 3.2 Gen 2x2 port Type-C, 3 x USB 3.2 Gen 2 ports Type-A, 4 x USB 3.2 Gen 1 ports Type-A, 2 x USB 2.0 ports Type-A
VGA Port
No
DVI Port
No
HDMI Port
1
DisplayPort (DP)
1
IDE Port
No
SATA Port
6 x SATA
Thunderbolt
1
TPM Port
Yes
COM Port
Yes
Technical Info
Back-Connect Design
No
Cable Management
Front
DirectX Support
No
Heatsink
Yes
FireWire
No
CrossFire Support
No
Sli Support
No
Raid Support
0/1/10
RGB Support
RGB
RGB Sync
Aura Sync
RGB Connector
2 x Aura RGB headers
Approx. Power Consumption
70W
Form Factor
ATX
Bios Information
BIOS Type
256 Mb Flash ROM
BIOS Model
UEFI AMI BIOS
Compatibility
Supported Operating System
Windows 10/11
Compatible Products
Ryzen 7000 Series Desktop Processors
Warranty
Warranty
3 Years Replacement Warranty
Additional Info
Feature
ASUS Prime series motherboards are expertly engineered to unleash the full potential of AMD Ryzen 7000-series processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME X670-P WIFI-CSM provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.
Others
Internal I/O Connectors: (1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector 3 x Addressable Gen 2 headers 2 x Aura RGB headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x SPI TPM header (14-1pin) 1 x 20-5 pin System Panel header 1 x Thunderbolt??? (USB4??) header)
Country Of Origin
Taiwan
Made in/ Assemble
China
N.B. Specification may differ
with actual product. In that case, Ryans will execute full refund within 5 days.
