Asus PRIME X670E-PRO WIFI-CSM (Wi-Fi 6E) DDR5 AMD Gaming Motherboard
Product Id: 02.02.006.496
Brand
Asus
Regular Price Tk 54,580
Monthly EMI Tk 4,548
Special Price Tk 50,500
Quick Overview
- Chipset - AMD X670
- Memory Max. - 192GB
- Memory Slot - 4
- Sockets Supported - AM5
- Supported CPU - AMD AM5 Socket Ryzen Series Desktop Processors
- Generation - Not Applicable
General
Brand
Asus
Model
Asus PRIME X670E-PRO WIFI-CSM (Wi-Fi 6E)
Body Color
Black & White
CPU
Chipset Brand
AMD
Chipset
AMD X670
Sockets Supported
AM5
Built-in Processor
No
Supported CPU
AMD AM5 Socket Ryzen Series Desktop Processors
Generation
Not Applicable
Memory Support
Memory Type
DDR5
Memory MHz
8000+(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800MHz ECC & Non-ECC, Un-buffered Memory
Memory Channel
Dual
Memory Slot
4
Memory Max.
192GB
Optane Memory Support
No
Storage
Storage Interface
6.0Gb/s
M.2/SSD Expansion Slot
4
M.2/SSD Expansion Slot Details
4 x M.2 slots (1 x M.2 Key M type 2242/2260/2280 supports PCIe 5.0 x4 mode, 1 x M.2 Key M type 2242/2260/2280 supports PCIe 4.0 x4 mode, 1 x M.2 Key M type 2242/2260/2280/22110 supports PCIe 3.0 x4 & SATA modes, 1 x M.2 Key M type 2242/2260/2280 supports PCIe 4.0 x4 mode.
Graphics
Graphics
Integrated
Graphics Chipset
Integrated With Processor
Multi-GPU Support
No
PCI Express Slot
1 x PCIe 5.0 x16 slot, 1 x PCIe 4.0 x16 slot (supports x4 mode), 1 x PCIe 4.0 x4 slots.
Audio & Video
Audio Chipset
Realtek S1220A
Audio Channel
7.1
Network & Connectivity
LAN Chipset
Realtek 2.5Gb Ethernet
LAN Speed (Mbps)
10/100/1000/2500Mbps
WiFi
Yes
WiFi Technology
Wi-Fi 6E
Bluetooth
Bluetooth 5.2
Ports
USB Port
1 x USB 3.2 Gen 2x2 Type-C, 1 x USB 3.2 Gen 2 Type-C, 3 x USB 3.2 Gen 2 Type-A, 1 x USB 3.2 Gen 1 Type-C, 4 x USB 3.2 Gen 1 Type-A.
VGA Port
No
DVI Port
No
HDMI Port
1
DisplayPort (DP)
1
IDE Port
No
SATA Port
No
Thunderbolt
No
TPM Port
Yes
COM Port
Yes
Technical Info
FireWire
No
CrossFire Support
No
Sli Support
No
Raid Support
0, 1, 10
RGB Support
ARGB
RGB Sync
AURA Sync
RGB Connector
2 x Addressable Gen 2 headers, 1 x AURA RGB header
Approx. Power Consumption
70W
Form Factor
ATX
Bios Information
BIOS Type
1 x 256 Mbit flash
BIOS Model
AMI UEFI BIOS
Compatibility
Supported Operating System
Windows 10 / 11
Compatible Products
AM5 Socket AMD Processor
Warranty
Warranty
3 Year
Warranty Details
3 Year Replacement
Additional Info
Feature
Audio Features: (Power pre-regulator reduces power input noise to ensure consistent performance, Premium audio capacitors, Dedicated audio PCB layers, Audio cover, Unique de-pop circuit, Impedance sense for front and rear headphone outputs, Internal audio Amplifier to enhance the highest quality sound for headphone and speakers, Supports Jack-detection, Multi-streaming, Front Panel Jack-retasking, High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in), Supports up to 32-Bit/192 kHz playback.
Others
Back Panel I/O Ports: (1 x Wi-Fi Module, 5 x Audio jacks, 1 x BIOS FlashBack button), Internal I/O Connectors: (1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers 1 x W_PUMP+ header1 x 24-pin Main Power connector 2 x 8-pin +12V Power connectors1 x Clear CMOS button 1 x COM Port header 1 x CPU Over Voltage jumper 1 x Front Panel Audio header (AAFP) 1 x Power button 1 x SPI TPM header (14-1pin) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thermal Sensor header 1 x Thunderbolt header), Manageability: WOL by PME, PXE, Accessories: (2 x SATA 6Gb/s cables, 1 x ASUS Wi-Fi moving antenna, 2 x Rubber packages for M.2, 2 x Screw packages for M.2 SSD, 1 x Q-connector, 1 x ACC Express Activation Key Card, 1 x User guide).
Country Of Origin
Taiwan
Made in/ Assemble
China
N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
Details
Features of Asus PRIME X670E-PRO WIFI-CSM (Wi-Fi 6E) Motherboard In Bangladesh
 1_1713531276.png)

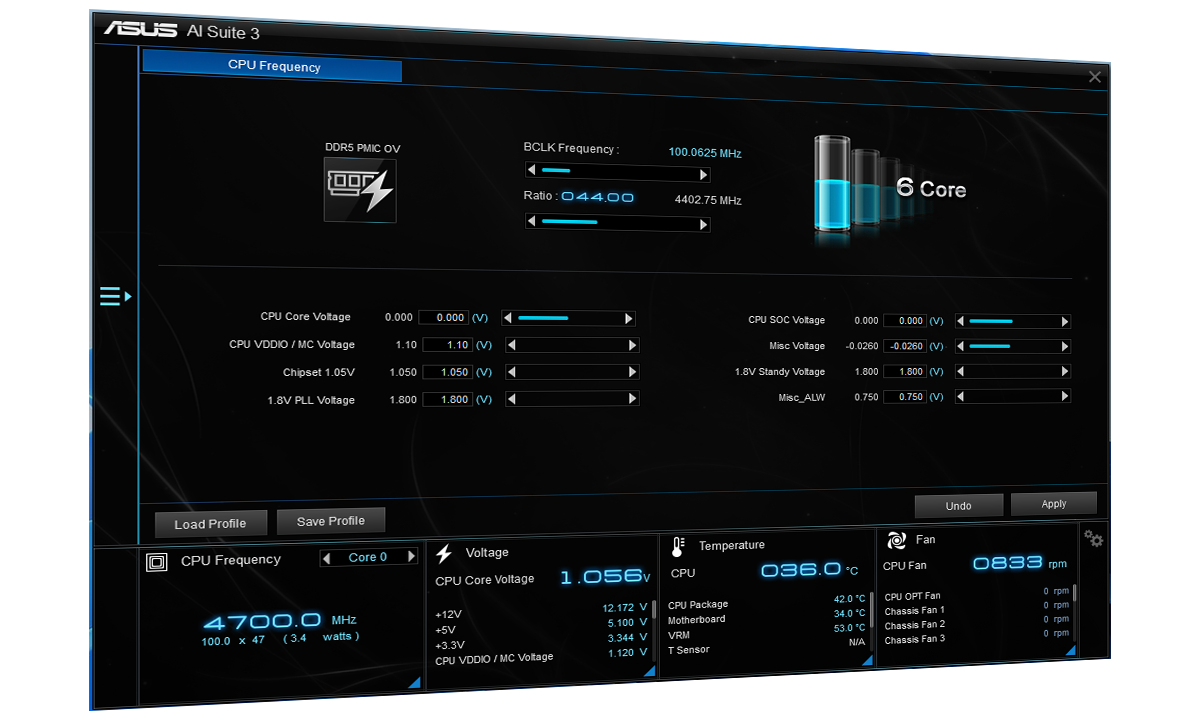

CPU Performance Boost
The TurboV Processing Unit (TPU) is an intelligent system-tuning utility that automatically fine-tunes voltages, monitors system stats and adjusts overclocking parameters for optimal performance.
 2_1713531276.png)

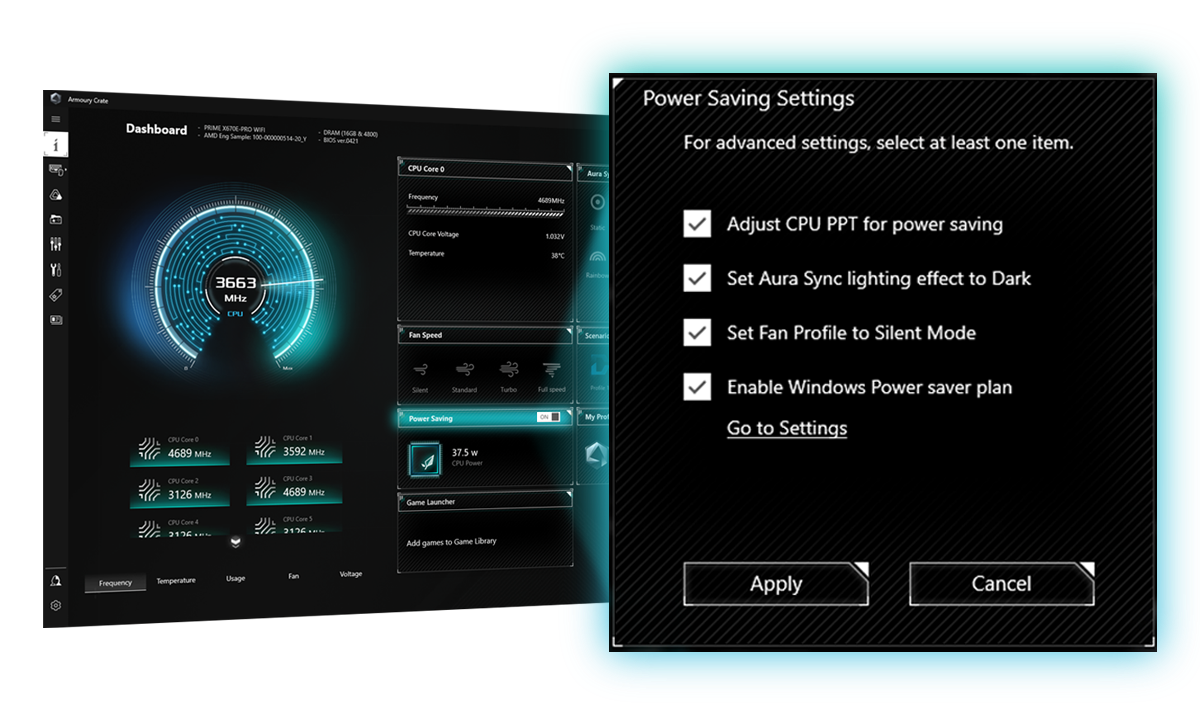

All-Around Energy Efficiency
The Power Saving function contains several settings can easily optimize power consumption and maximize energy savings. You can enable a CPU power limit, darken Aura lighting, and set the fan profile to a power saving mode. You can also toggle the Power Saver plan that is built into Microsoft Windows.
 3_1713531276.png)

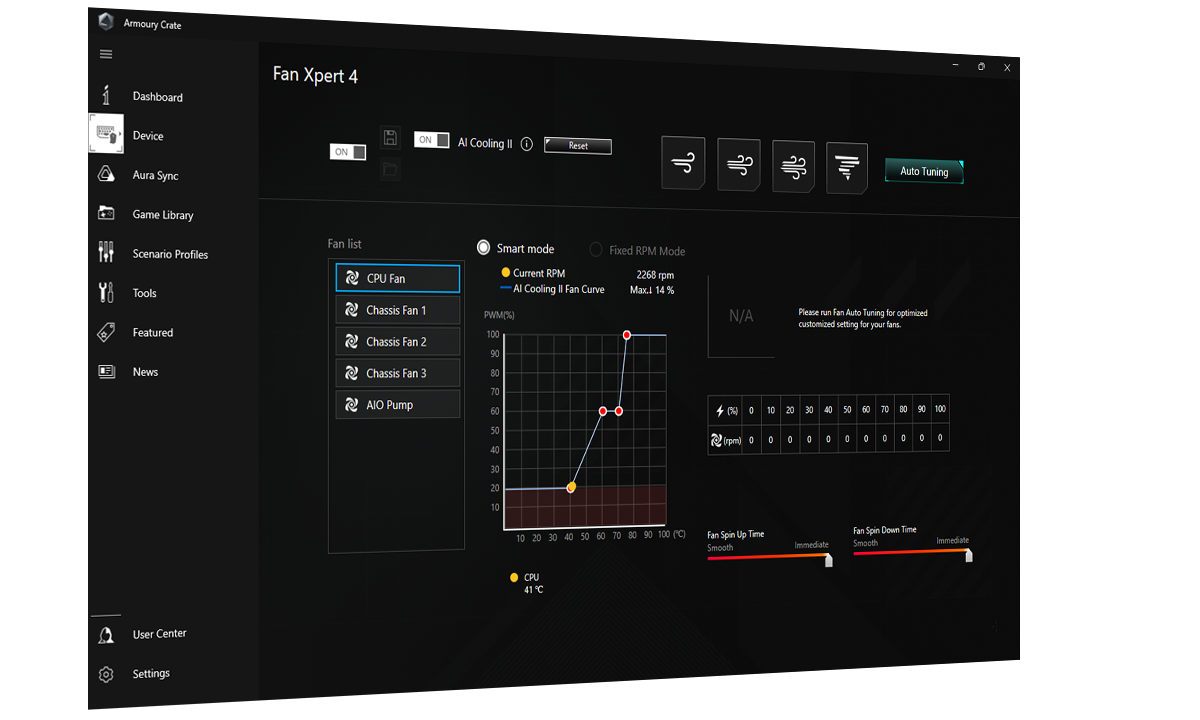

Flexible Air- and Liquid-Cooling Controls
ASUS Fan Xpert 4 software provides comprehensive control over fans, water pumps and all-in-one (AIO) coolers. Whether cooling with air or water, an Auto-Tuning mode intelligently configures all parameters with a single click. There’s also an Extreme Quiet mode that reduces all fan speeds to below the default minimum to keep your system whisper-quiet when performing light tasks. Fans, water pumps and AIO coolers can also be controlled via the UEFI BIOS.
 4_1713531276.png)
Precise Digital Power Control
The Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, automatically switching frequency and power-efficiency settings. It also allows you to fine-tune your CPU for ultimate stability and performance.
 5_1713531276.png)

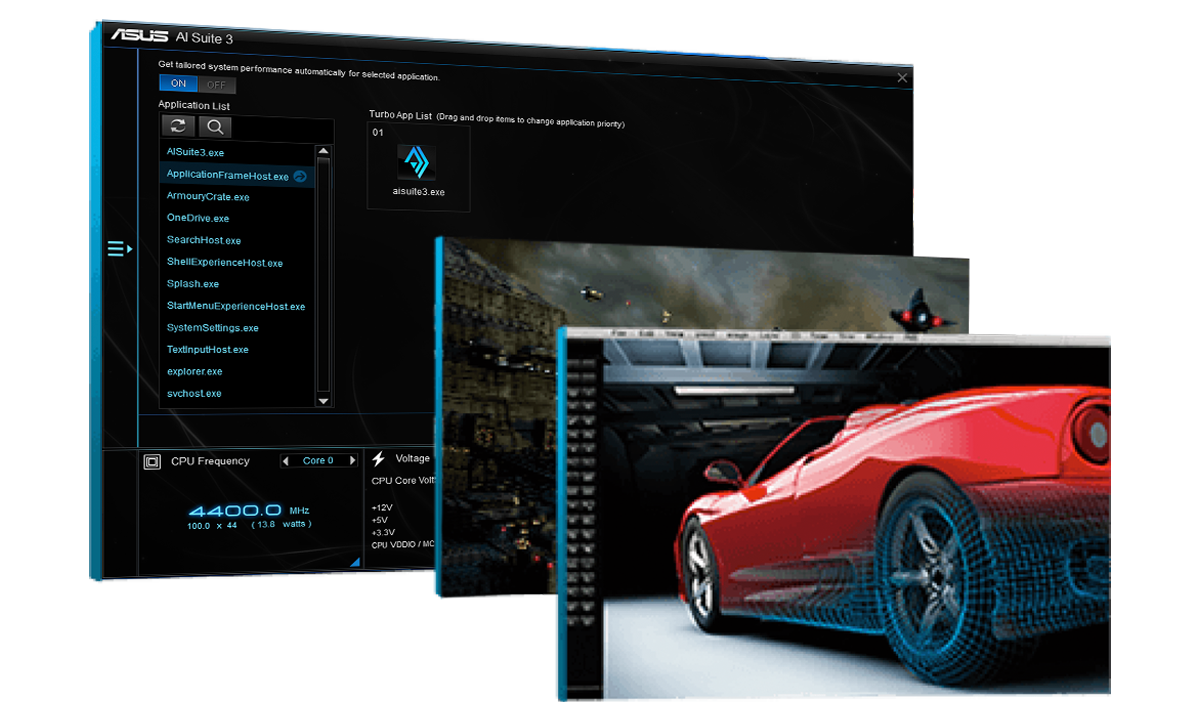

App-Specific Optimization
Turbo App allows you to define CPU overclocking, apply fan profiles, prioritize network data and optimize audio settings at the app level, so your system is set up exactly as needed.
 6_1713531276.png)

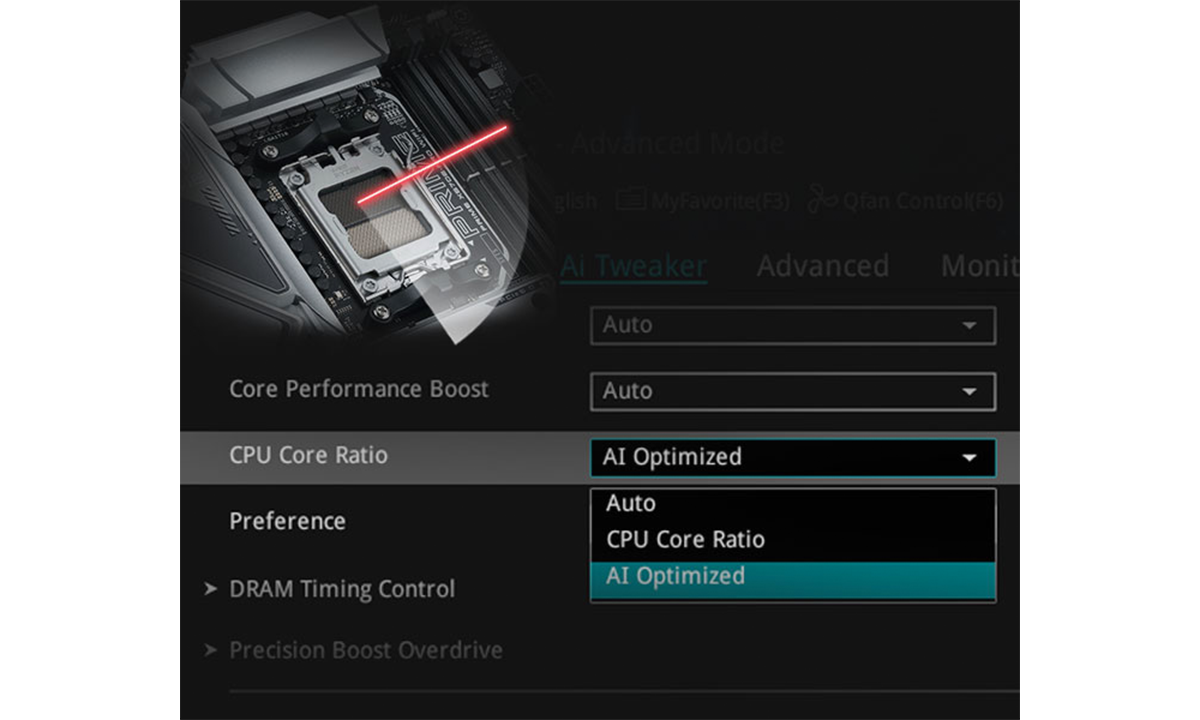

AI Overclocking
Tuning is now faster and smarter than ever before. ASUS AI Overclocking profiles the CPU and cooling to predict the optimal configuration and push the system to its limits. Predicted values can be engaged automatically or used as a launching ground for further experimentation.
 7_1713531276.png)

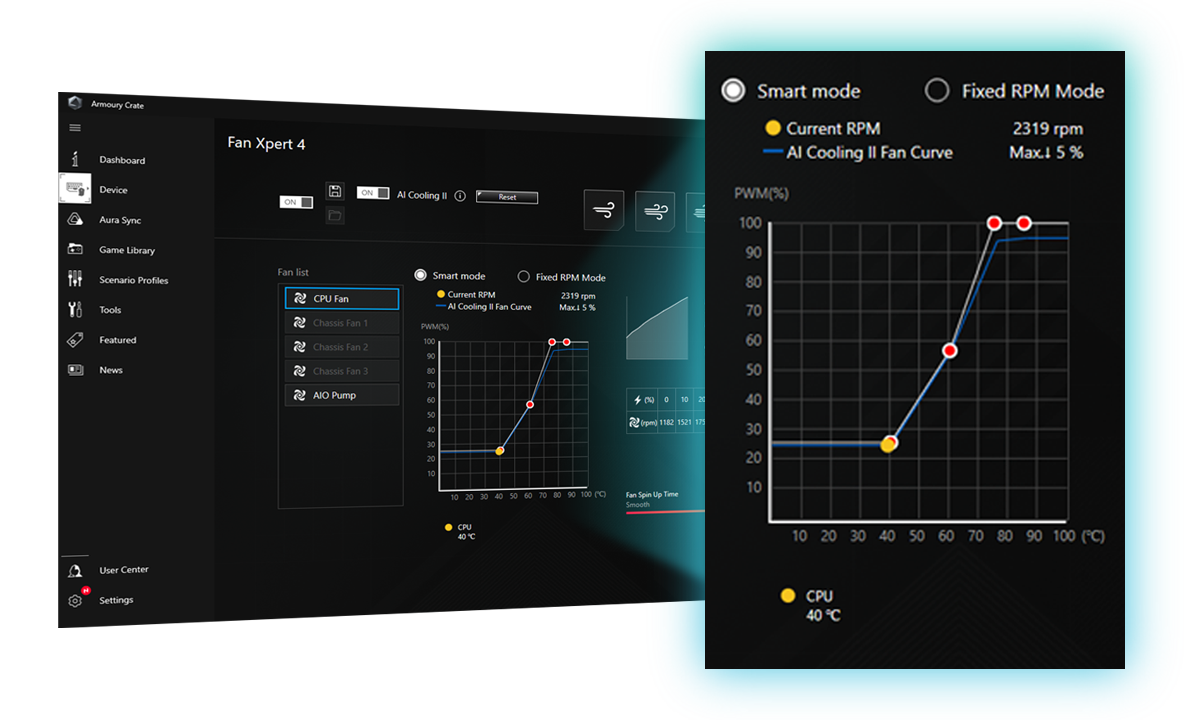

AI Cooling ll
AI Cooling II balances the thermals and acoustics of any build with a single click. A proprietary ASUS algorithm slashes unnecessary noise while running a quick stress test, and then it monitors CPU temperatures to dynamically adjust fans to optimal speeds.
 8_1713531276.jpg)

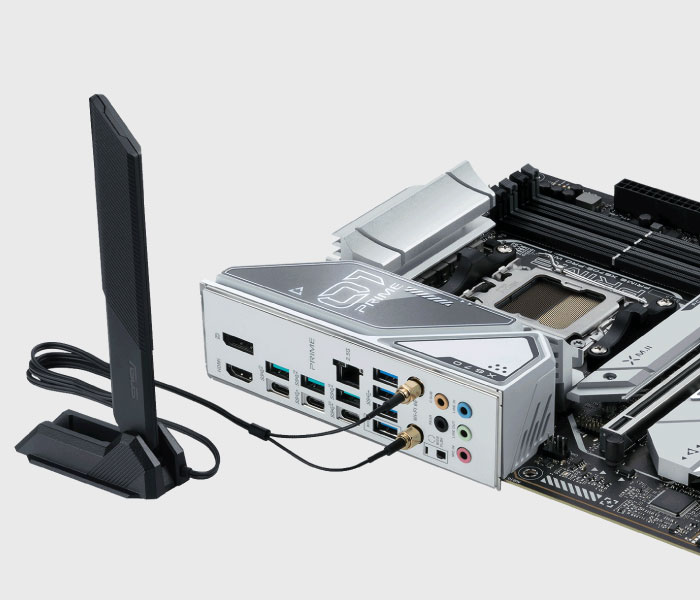

WiFi 6E
Built-in WiFi 6E technology takes advantage of the newly available radio spectrum in the 6 GHz band. With triple the bandwidth of the 2.4/5/6 GHz band, WiFi 6E delivers ultrafast wireless networking speeds with improved capacity and better performance in dense wireless environments.
What is the price of Asus PRIME X670E-PRO WIFI-CSM (Wi-Fi 6E) Motherboard In Bangladesh?
The price of Asus PRIME X670E-PRO WIFI-CSM (Wi-Fi 6E) Motherboard starts from 50,500 . The price may vary due to your customization and product availability. You can buy Asus PRIME X670E-PRO WIFI-CSM (Wi-Fi 6E) Motherboard from our website or visit our showrooms nearby.
