AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors
Memory Support
Memory Type
DDR5
Memory MHz
8200+MT/s(OC) with Ryzen 9000 Series Processors, 8600+MT/s(OC) with Ryzen 8000 Series Processors, 8000+MT/s(OC) with Ryzen 7000 Series Processors, ECC and Non-ECC, Un-buffered Memory
Memory Channel
Dual
Memory Slot
4
Memory Max.
256GB
Optane Memory Support
No
Storage
Storage Interface
6.0Gb/s
M.2/SSD Expansion Slot
5
M.2/SSD Expansion Slot Details
5 x M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode), M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode), M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode), M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode), M.2_2 slot (Key M), type 2242/2260/2280 (Not supports), M.2_3 slot (Key M), type 2242/2260/2280 (Not supports), M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode), M.2_5 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode), 4 x SATA 6Gb/s ports When M.2_2 is enabled, PCIEX16_1 will run x8 mode, and M.2_3 will run x4.
M.2/SSD Slot Gen
Up to Gen 5
Graphics
Graphics
Integrated
Graphics Chipset
Integrated With Processor
Multi-GPU Support
No
PCI Express Slot
1 x PCIe 5.0 x16 slots with Q-Release Slim (supports x16 or x8/x4/x4 modes, 1 x PCIe 4.0 x16 slots with Q-Release Slim (Total bandwidth for x8), 1 x PCIe 4.0 x16 slot with Q-Release Slim (Total bandwidth for x4), AMD X870E Chipset: 1 x PCIe 4.0 x4 slot
Audio & Video
Audio Chipset
ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082
Audio Channel
7.1
Network & Connectivity
LAN Chipset
1 x Intel 2.5Gb Ethernet, 1 x Realtek 5Gb Ethernet
LAN Speed (Mbps)
100/ 1000/ 2500Mbps/ 5Gbps
WiFi
Yes
WiFi Technology
Wi-Fi 7 (802.11be)
Bluetooth
Bluetooth 5.4
Ports
USB Port
Rear USB: 2 x USB4 (40Gbps) ports (2 x USB Type-C), 8 x USB 10Gbps ports (6 x Type-A + 2 x USB Type-C), Front USB: 2 x USB 20Gbps connector (supports USB Type-C), 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports, 2 x USB 2.0 headers support 4 additional USB 2.0 ports USB Type-C
VGA Port
No
DVI Port
No
HDMI Port
1
DisplayPort (DP)
No
IDE Port
No
SATA Port
4 x SATA
Thunderbolt
No
TPM Port
No
COM Port
No
Technical Info

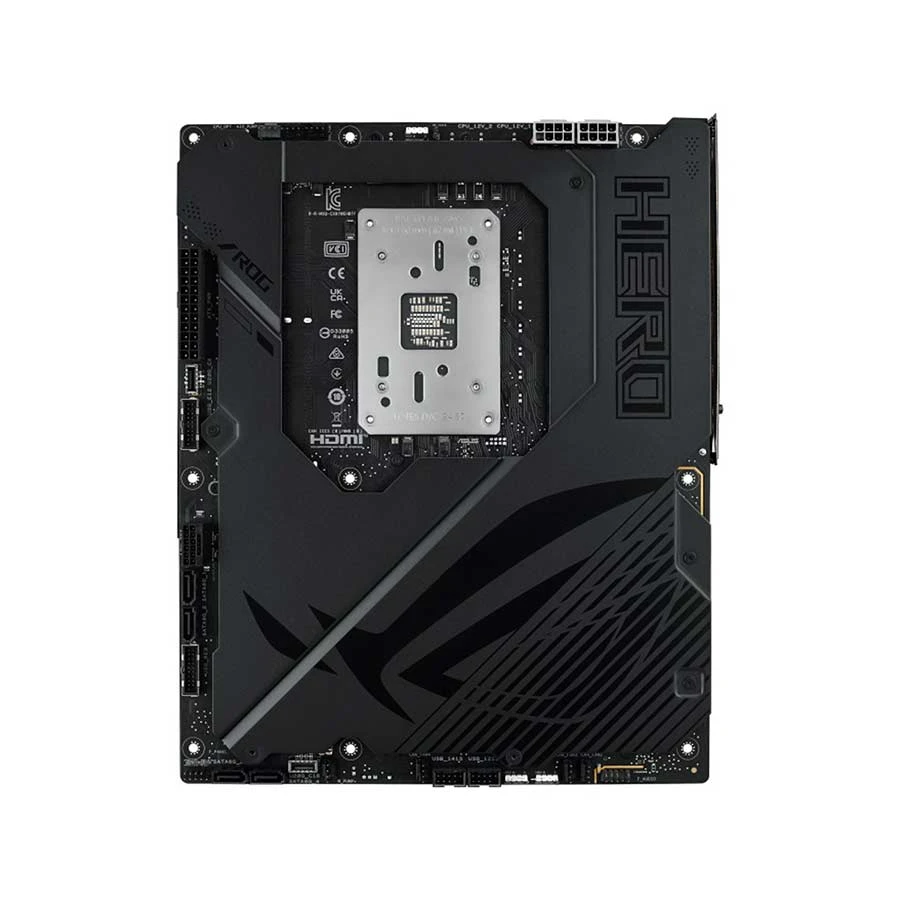

Back-Connect Design
Yes
Cable Management
Back
Heatsink
Yes
CrossFire Support
No
Sli Support
No
Raid Support
0 , 1 , 5, 10
RGB Support
ARGB
RGB Sync
Aura Sync
RGB Connector
3 x Addressable Gen2 headers
Approx. Power Consumption
70W
Form Factor
ATX
Bios Information
BIOS Type
256Mb Flash ROM
BIOS Model
UEFI AMI BIOS
Compatibility
Supported Operating System
Windows 11
Compatible Products
AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors
Warranty
Warranty
3 Year Replacement
Additional Info
Feature
Extreme OC Kit: FlexKey button, Start button, Extreme Engine Digi+ : 10K Black metallic capacitors, MicroFine alloy choke, ASUS Q-Design: M.2 Q-Latch, M.2 Q-Release, M.2 Q-Slide, Q-Release Slim (with PCIe SafeSlot), Q-Antenna, Q-Code, Q-Connector, Q-Dashboard, Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]), Q-Slot, ASUS Thermal Solution : M.2 heatsink backplate, M.2 heatsink, VRM heatsink design, Metal backplate, ASUS EZ DIY: Backplate, BIOS FlashBack button, Clear CMOS button, ProCool II, Pre-mounted I/O shield, SafeSlot, SafeDIMM
Others

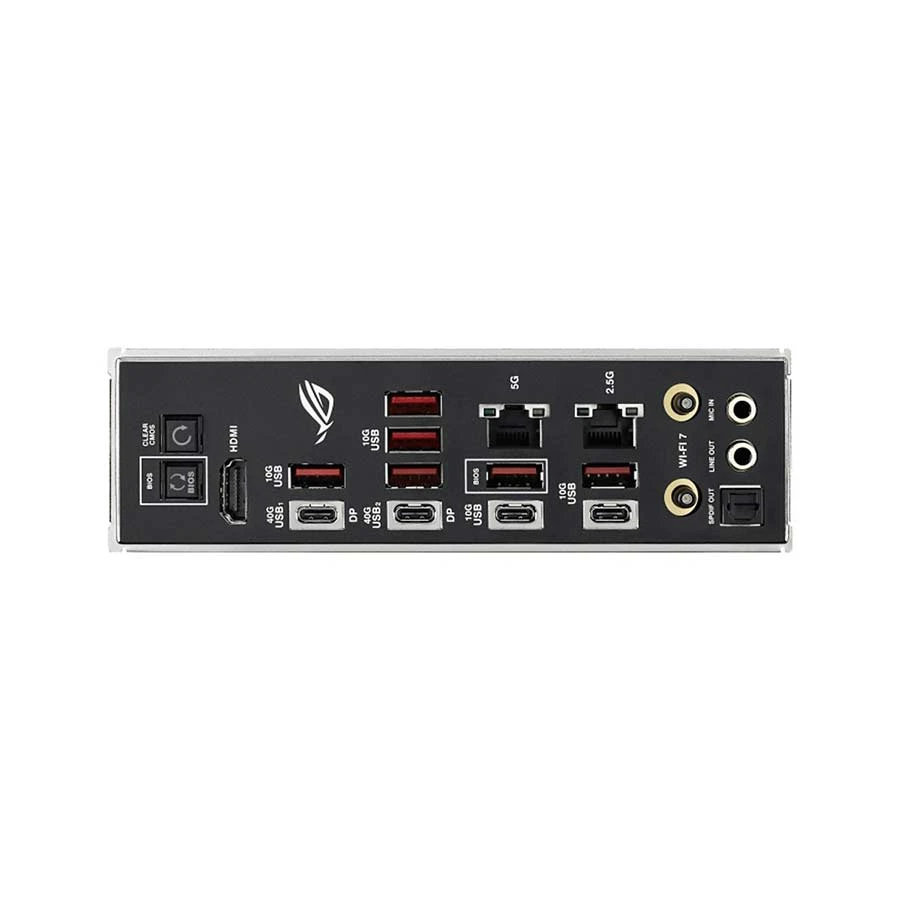

Form Factor: 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ), Back Panel I/O Ports: 1 x Wi-Fi module, 2 x Gold-plated audio jacks, 1 x Optical S/PDIF out port, 1 x BIOS FlashBack button, 1 x Clear CMOS button, Internal I/O Connectors, Fan and Cooling Related: 1 x 4-pin CPU Fan header, 1 x 4-pin CPU OPT Fan header, 1 x 4-pin AIO Pump header, 4 x 4-pin Chassis Fan headers, 1 x W_PUMP+ header, Power Related: 1 x 24-pin Main Power connector, 2 x 8-pin +12V CPU Power connector, 1 x Graphics card high power slot, 1 x 12V-2X6 Auxiliary power connector, Miscellaneous: 1 x Alteration PCIe mode switch, 1 x FlexKey button, 1 x Front Panel Audio header (F_AUDIO), 1 x Start button, 1 x 10-1 pin System Panel header, 1 x Thermal Sensor header
Country Of Origin
Taiwan
Made in/ Assemble
China
N.B. Specification may differ
with actual product. In that case, Ryans will execute full refund within 5 days.
