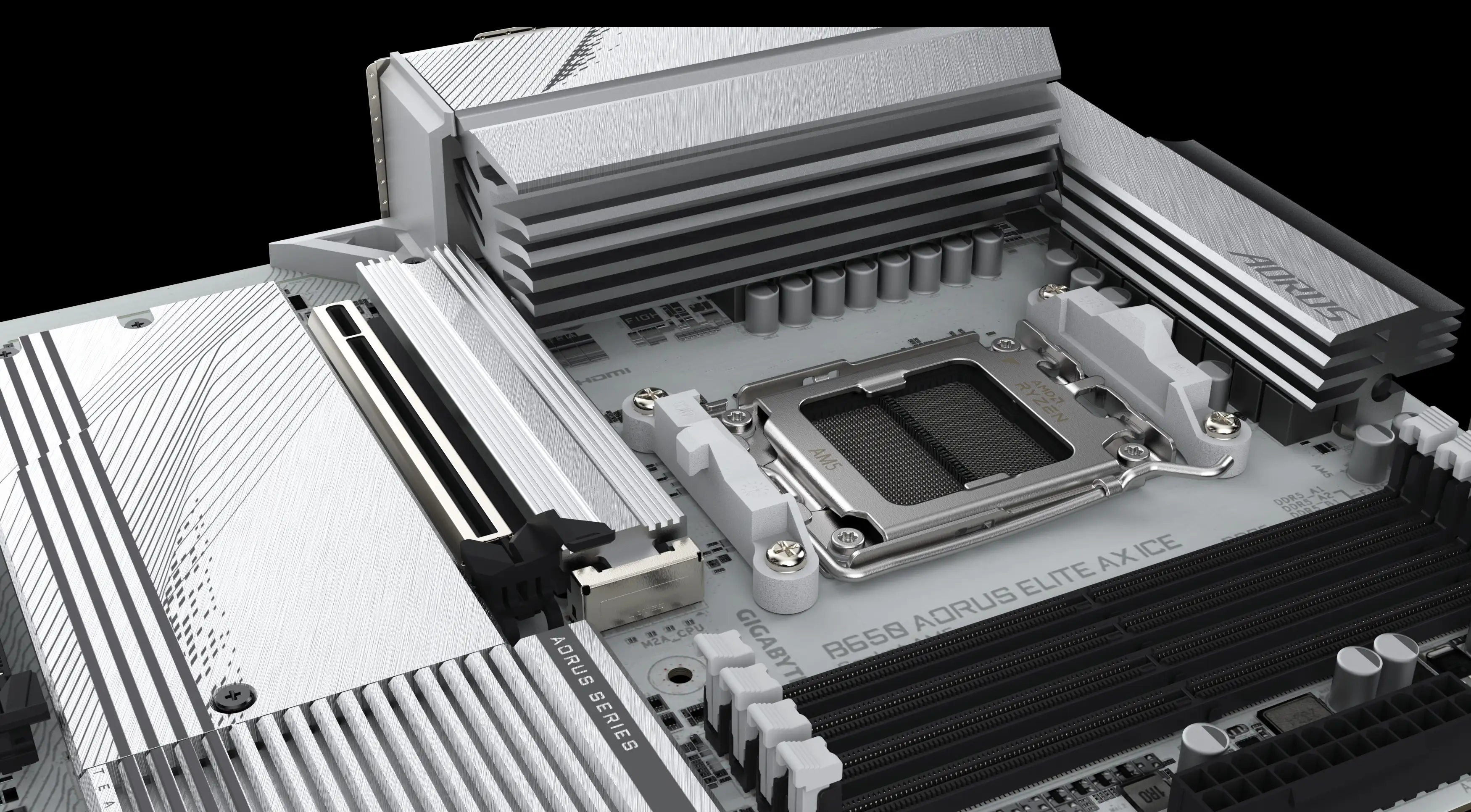

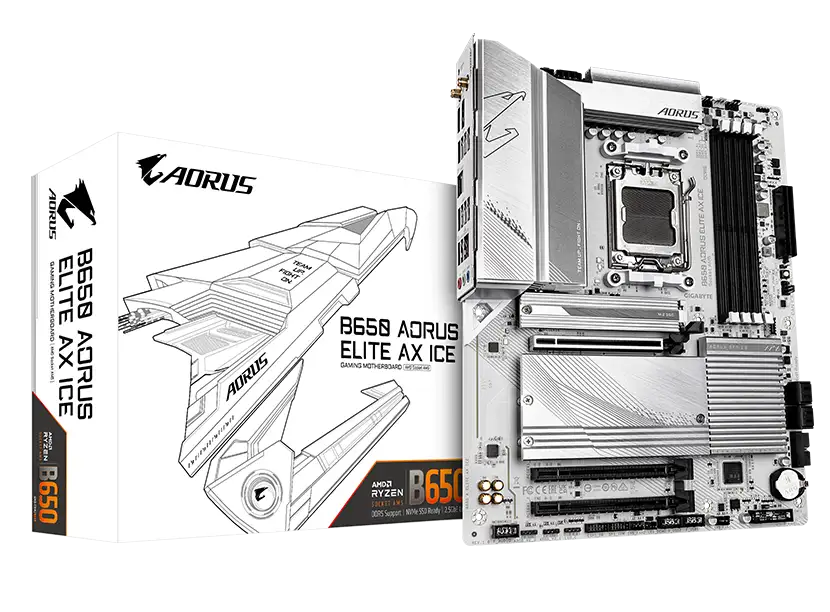

Gigabyte B650 AORUS ELITE AX ICE (Wi-Fi 6E) DDR5 Gaming Motherboard

Product Id: 02.02.018.507

Brand Gigabyte

Regular Price Tk 38,520 Monthly EMI Tk 3,210
Special Price Tk 35,700

Quick Overview

  • Chipset - AMD B650
  • Memory Max. - 192GB
  • Memory Slot - 4
  • Sockets Supported - AM5
  • Supported CPU - Ryzen 7000/ Ryzen 8000 Series Processors
  • Generation - Not Applicable
General
Brand
Gigabyte

Model
Gigabyte B650 AORUS ELITE AX ICE (Wi-Fi 6E)

Body Color
White


CPU
Chipset Brand
AMD

Chipset
AMD B650

Sockets Supported
AM5

Built-in Processor
No

Supported CPU
Ryzen 7000/ Ryzen 8000 Series Processors

Generation
Not Applicable


Memory Support
Memory Type
DDR5

Memory MHz
8000(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6666(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800/ 4400 MT/s memory modules, non-ECC Un-buffered DIMM

Memory Channel
Dual

Memory Slot
4

Memory Max.
192GB

Optane Memory Support
No


Storage
Storage Interface
6.0Gb/s

M.2/SSD Expansion Slot
2

M.2/SSD Expansion Slot Details
3


Graphics
Graphics
Integrated

Graphics Chipset
AMD Radeon Graphics support

Multi-GPU Support
No

PCI Express Slot
1 x PCI Express x16 slot (PCIEX16), integrated in the CPU, 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1/2)


Audio & Video
Audio Chipset
Realtek Audio CODEC

Audio Channel
7.1


Network & Connectivity
LAN Chipset
Realtek 2.5GbE LAN chip

LAN Speed (Mbps)
10/ 100/ 1000/ 2500Mbps

WiFi
Yes

WiFi Technology
Realtek Wi-Fi 6E RTL8852CE

Bluetooth
Bluetooth 5.3


Ports
USB Port
1 x USB Type-C port, with USB 3.2 Gen 2 support, 2 x USB 3.2 Gen 2 Type-A ports (red), 5 x USB 3.2 Gen 1 ports, 4 x USB 2.0/1.1 ports

VGA Port
No

DVI Port
No

HDMI Port
1

DisplayPort (DP)
1

IDE Port
No

SATA Port
4

Thunderbolt
No

TPM Port
1


Technical Info
FireWire
No

CrossFire Support
No

Sli Support
No

RGB Support
RGB

Approx. Power Consumption
70W

Form Factor
ATX


Bios Information
BIOS Type
1 x 256 Mbit flash

BIOS Model
AMI UEFI BIOS

BIOS Version
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0


Compatibility
Supported Operating System
Windows 10, Windows 11

Compatible Products
Ryzen 5 8600G, Ryzen 5 7500F, Ryzen 5 7600, Ryzen 7 7700, Ryzen 5 7600X, Ryzen 7000/ Ryzen 8000 Series


Warranty
Warranty
3 Year

Warranty Details
3 year


Additional Info
Feature
AMD Socket AM5 Supports AMD Ryzen 7000/ Ryzen 8000 Series Processors, Unparalleled Performance Twin 12+2+2 Phases Digital VRM Solution, Dual Channel DDR5 4 x DIMMs with AMD EXPO & Intel XMP Memory Module Support, Superfast Storage 1 x PCIe 5.0 x4 and 2 x PCIe 4.0 x4 M.2 Connectors, Advanced Thermal Design & M.2 Thermal Guard To Ensure VRM Power Stability & 25110 M.2 SSD Performance, EZ-Latch PCIe x16 Slot & M.2 Connectors with Quick Release & Screwless Design, Fast Networks 2.5GbE LAN & Wi-Fi 6E, Extended Connectivity HDMI, DP, Front USB-C 20Gb/s, Rear USB-C 10Gb/s

Country Of Origin
Taiwan

Made in/ Assemble
China


N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
