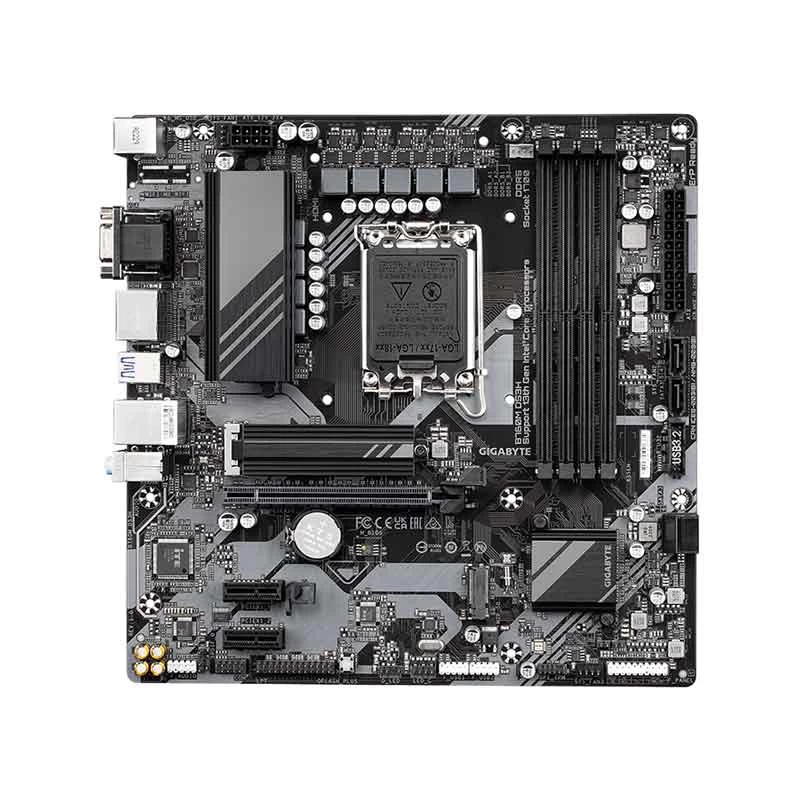

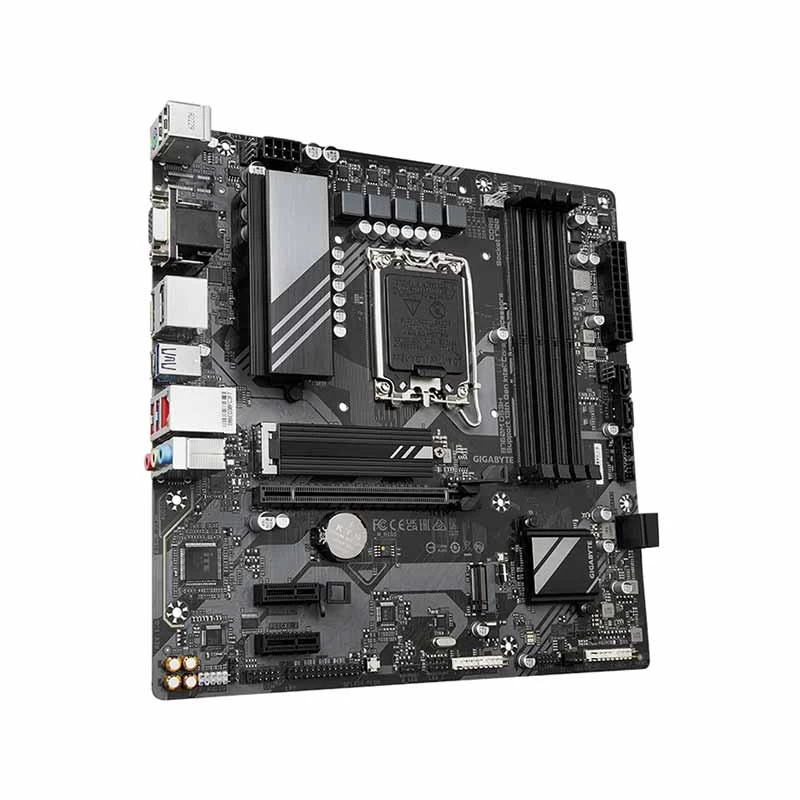

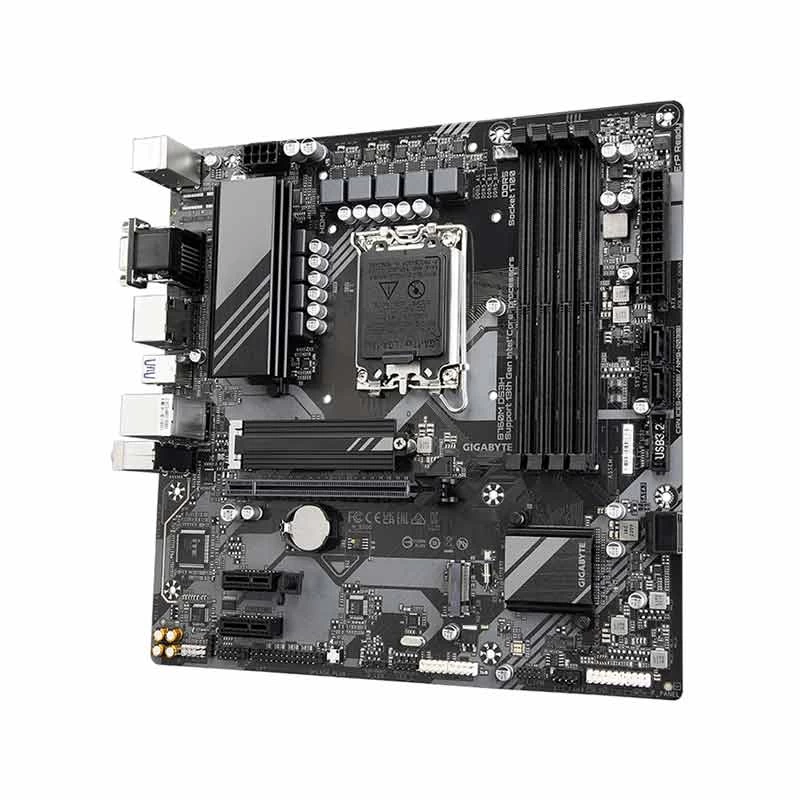

Gigabyte B760M DS3H DDR5 12th/13th Gen Intel Motherboard

Product Id: 02.01.018.476

Brand Gigabyte

Regular Price Tk 18,770 Monthly EMI Tk 1,564
Special Price Tk 17,500

Quick Overview

  • Chipset - Intel B760
  • Memory Max. - 192GB
  • Memory Slot - 4
  • Sockets Supported - LGA1700
  • Supported CPU - 12th / 13th / 14th Generation Intel Core i9/ i7/ i5/ i3 processors and Intel Pentium processors/ Intel Gold processors/ Intel Celeron processors.
  • Generation - 12th/13th/14th
General
Brand
Gigabyte

Model
Gigabyte B760M DS3H

Body Color
Black


CPU
Chipset Brand
Intel

Chipset
Intel B760

Sockets Supported
LGA1700

Built-in Processor
No

Supported CPU
12th / 13th / 14th Generation Intel Core i9/ i7/ i5/ i3 processors and Intel Pentium processors/ Intel Gold processors/ Intel Celeron processors.

Generation
12th/13th/14th


Memory Support
Memory Type
DDR5

Memory MHz
7600(O.C.)/ 7400(O.C.)/ 7200(O.C.)/ 7000(O.C.)/ 6800(O.C.)/ 6600(O.C.)/ 6400(O.C.)/ 6200(O.C.)/ 6000(O.C.)/ 5800(O.C.)/ 5600(O.C.)/ 5400(O.C.)/ 5200(O.C.)/ 4800/ 4000MHz ECC & non-ECC Un-buffered

Memory Channel
Dual

Memory Slot
4

Memory Slot (Additional Info)
4 x DDR5 DIMM

Memory Max.
192GB

Memory Max. (Additional Info)
Up to 192 GB (48 GB single DIMM capacity)

Optane Memory Support
No


Storage
Storage Interface
6.0Gb/s

M.2/SSD Expansion Slot
2

M.2/SSD Expansion Slot Details
2 x M.2 (1 x M.2 M key type 2280 support PCIe 4.0 x4/x2 SSD), (1 x M.2 M key type 2280 support PCIe 4.0 x4/x2 SSD)


Graphics
Graphics
Integrated

Graphics Chipset
Intel HD Graphics support

Multi-GPU Support
No

PCI Express Slot
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16, 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1


Audio & Video
Audio Chipset
Realtek Audio CODEC High Definition Audio

Audio Channel
2/4/5.1/7.1


Network & Connectivity
LAN Chipset
Realtek 2.5GbE LAN chip

LAN Speed (Mbps)
10/100/1000/2500 Mb/s

WiFi
No

Bluetooth
No

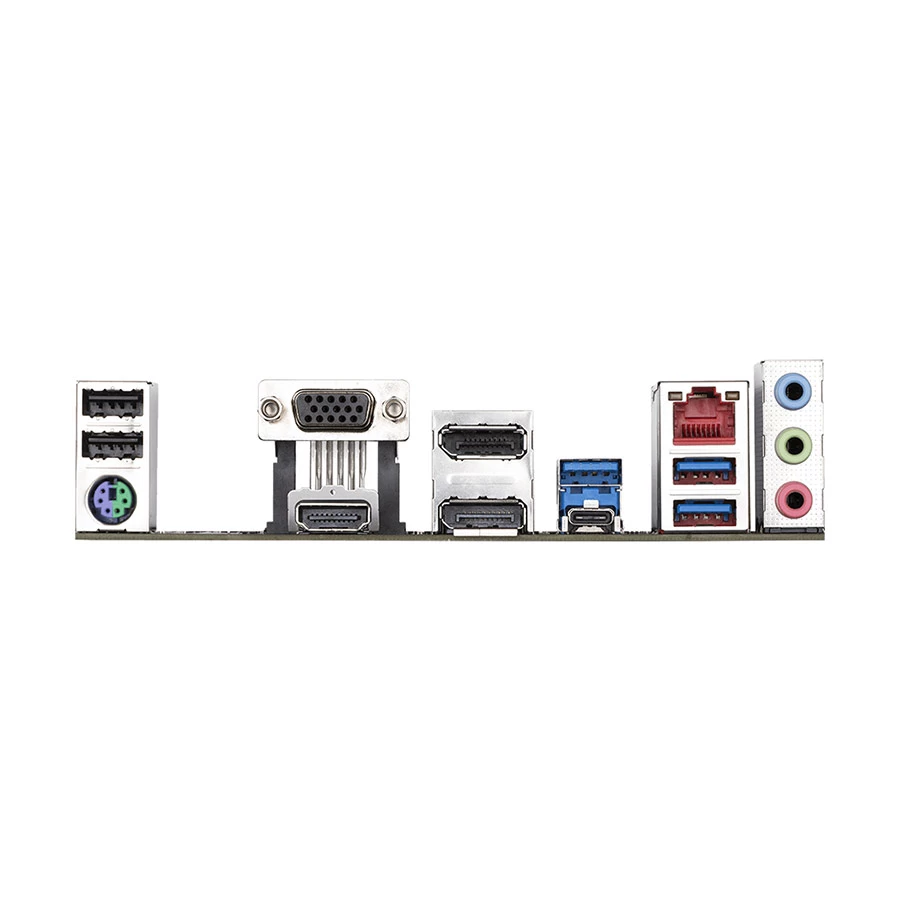

Ports
USB Port
1 x USB 3.2 Gen 2 Type-C, 2 x USB 2.0 Type-A, 3 x USB 3.2 Gen 1

VGA Port
No

DVI Port
No

HDMI Port
1

DisplayPort (DP)
2

IDE Port
No

SATA Port
4

Thunderbolt
No

TPM Port
1

COM Port
No


Technical Info
DirectX Support
No

FireWire
No

CrossFire Support
No

Sli Support
No

Raid Support
0, 1, 5, 10

RGB Support
RGB

RGB Connector
1 x RGB LED strip header

Approx. Power Consumption
60W

Form Factor
Micro-ATX


Bios Information
BIOS Type
1 x 128 Mbit flash

BIOS Model
AMI UEFI BIOS

BIOS Version
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0


Compatibility
Supported Operating System
Windows 10/ 11

Compatible Products
Intel Core i9/ i7/ i5/ i3, Pentium, Celeron processors. (12th/13th/14th Gen) LGA1700 socket.


Warranty
Warranty
3 Year

Warranty Details
3 year


Additional Info
Feature
6+2+1 Phases Hybrid Digital VRM Design, Enlarged Surface Design of MOSFET Heatsink greatly improves heat dissipation,

Others
Memory - Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode), Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules, Support for Extreme Memory Profile (XMP) memory modules, Onboard Graphics - 1 x D-Sub port, supporting a maximum resolution of 1920x1200 at60 Hz km, Internal I/O Connectors - 1 x 24-pin ATX main power connector, 1 x 8-pin ATX 12V power connector, 1 x CPU fan header, 3 x system fan headers, 1 x addressable LED strip header, 1 x front panel header, 1 x serial port header, 1 x parallel port header, 1 x S/PDIF Out header, 1 x Q-Flash Plus button, 1 x reset jumper, 1 x Clear CMOS jumperBack Panel Connectors - 1 x PS/2 keyboard/mouse port, 1 x D-Sub port, 1 x RJ-45 port, 3 x audio jacks, I/O Controller - iTE I/O Controller Chip, Voltage detection, Temperature detection, Fan speed detection, Water cooling flow rate detection, Fan fail warning, Fan speed control, BIOS - PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Country Of Origin
Taiwan

Made in/ Assemble
China


N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
