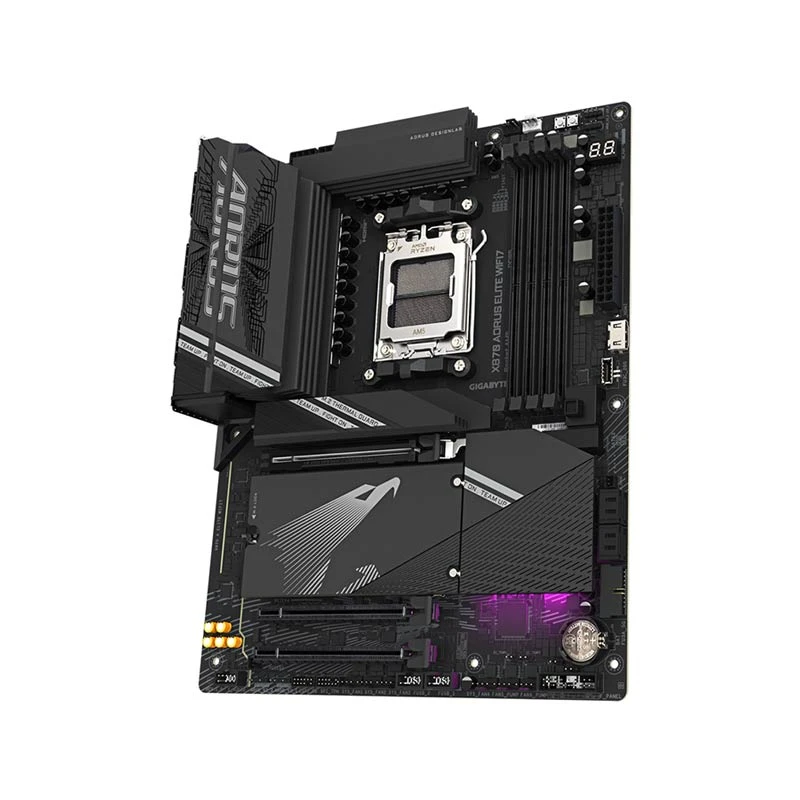

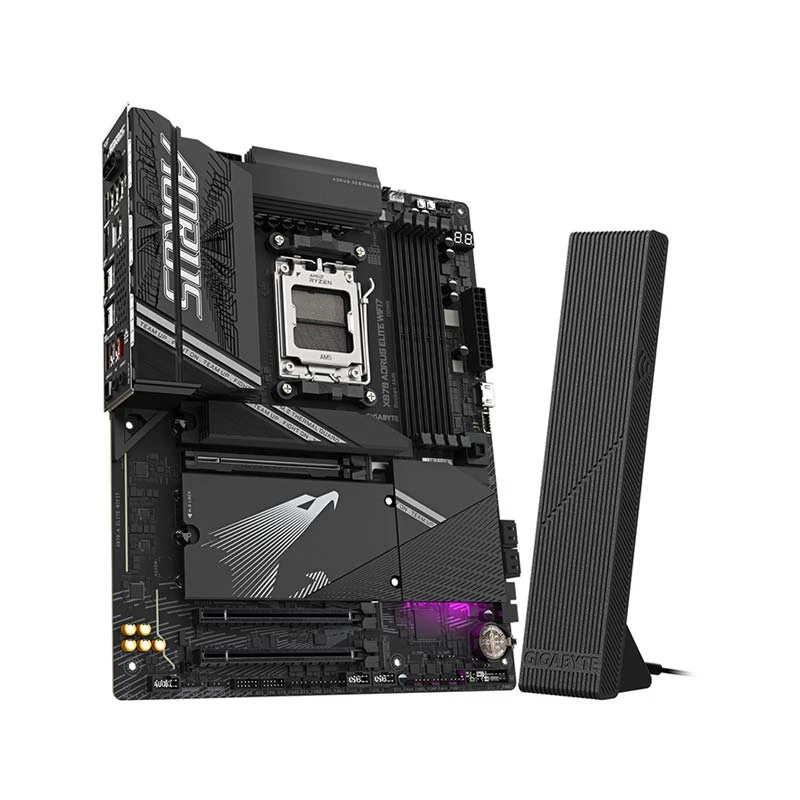

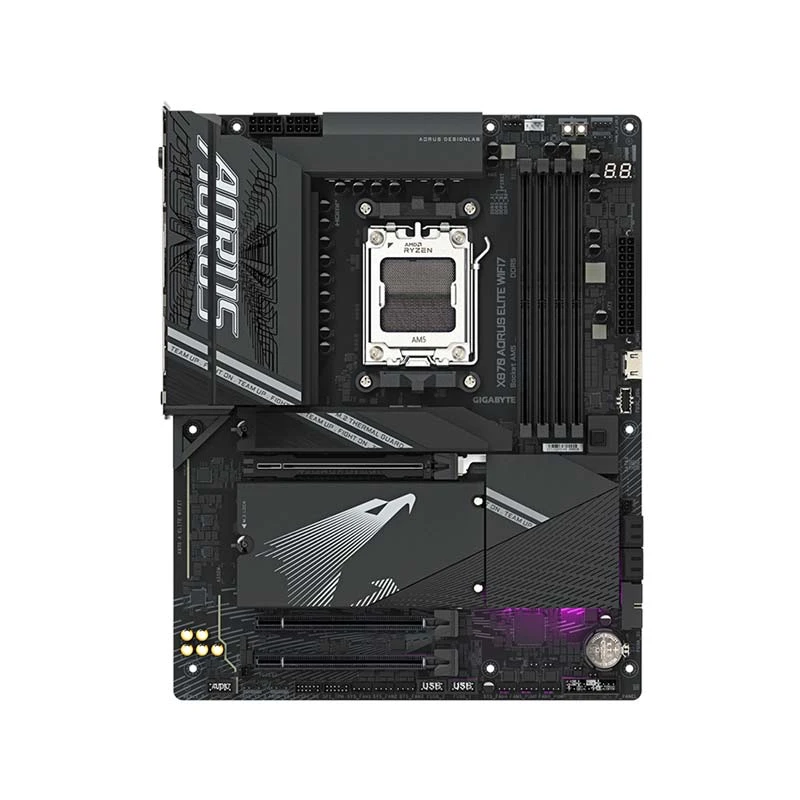

Gigabyte X870 AORUS ELITE (Wi-Fi 7) DDR5 AMD Gaming Motherboard

Item: Gigabyte X870 AORUS ELITE (Wi-Fi 7) DDR5 AMD Gaming Motherboard
Rating: 5
Author: Verified Buyer

14 reviews

Product Id: 02.02.018.541

Out Of Stock

See similar model

Quick Overview

Form Factor - ATX
Chipset - AMD X870

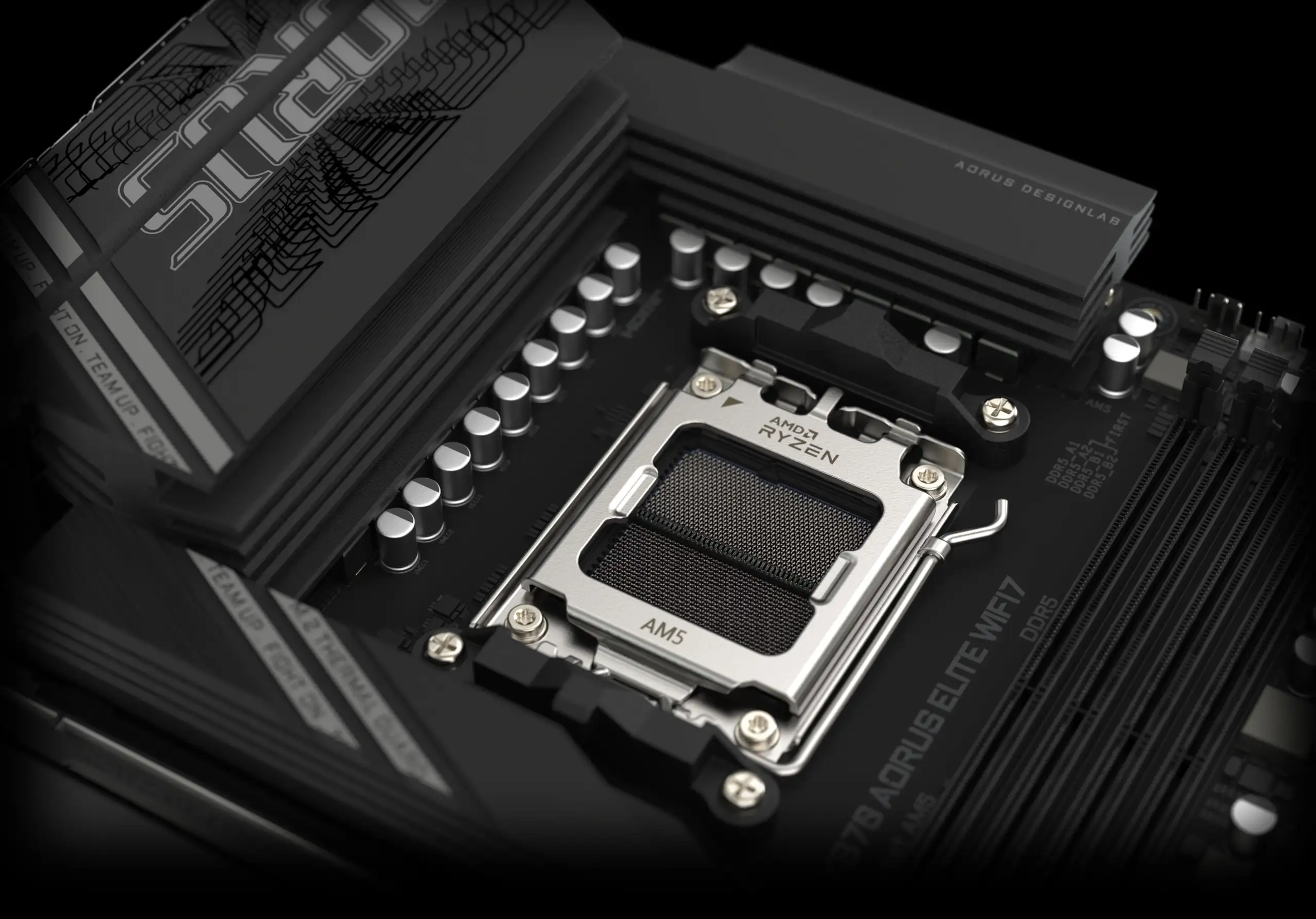

Sockets Supported - AM5
Supported CPU - AMD Ryzen 9000 Series/ AMD Ryzen 8000 Series / AMD Ryzen 7000 Series Processors
Generation - Not Applicable
Memory Slot - 4
Memory Max. - 256GB
Back-Connect Design - No
Body Color - Black

Payment Method Shipping & Charge Order Procedure

Brand

Gigabyte

Model

Gigabyte X870 AORUS ELITE (Wi-Fi 7)

Chipset

AMD X870

Sockets Supported

AM5

Built-in Processor

Generation

Not Applicable

Back-Connect Design

Memory Type

DDR5

Memory Slot

Memory Max.

256GB

Optane Memory Support

Graphics

Integrated

Graphics Chipset

AMD Radeon Graphics support

M.2/SSD Expansion Slot

WiFi

Yes

Bluetooth

Bluetooth 5.4

Form Factor

ATX

Supported Operating System

Windows 11

Body Color

Black

Warranty

3 year

General

Brand

Gigabyte

Model

Gigabyte X870 AORUS ELITE (Wi-Fi 7)

Body Color

Black

Part No

X870 A ELITE WIFI7

CPU

Chipset Brand

AMD

Chipset

AMD X870

Sockets Supported

AM5

Built-in Processor

Supported CPU

AMD Ryzen 9000 Series/ AMD Ryzen 8000 Series / AMD Ryzen 7000 Series Processors

Generation

Not Applicable

Memory Support

Memory Type

DDR5

Memory MHz

8200(OC) / 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules non-ECC Un-buffered DIMM

Memory Channel

Dual

Memory Slot

Memory Max.

256GB

Optane Memory Support

Storage

Storage Interface

6.0Gb/s

M.2/SSD Expansion Slot

M.2/SSD Expansion Slot Details

4 x M.2 (1 x M.2 , integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs), (2 x M.2 connectors (M2B_CPU, M2C_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs, (1 x M.2 connector (M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD)

M.2/SSD Slot Gen

Up to Gen 5

Graphics

Integrated

Graphics Chipset

AMD Radeon Graphics support

Multi-GPU Support

PCI Express Slot

1 x PCI Express x16 slot (PCIEX16), 1 x PCI Express x16 slot, 1 x PCI Express x16 slot

Audio & Video

Audio Chipset

High Definition Audio Realtek ALC1220 CODEC

Audio Channel

7.1

Network & Connectivity

LAN Chipset

Realtek 2.5GbE LAN chip

LAN Speed (Mbps)

100/ 1000/ 2500Mbps

WiFi

Yes

WiFi Technology

Wi-Fi 7

Bluetooth

Bluetooth 5.4

Ports

USB Port

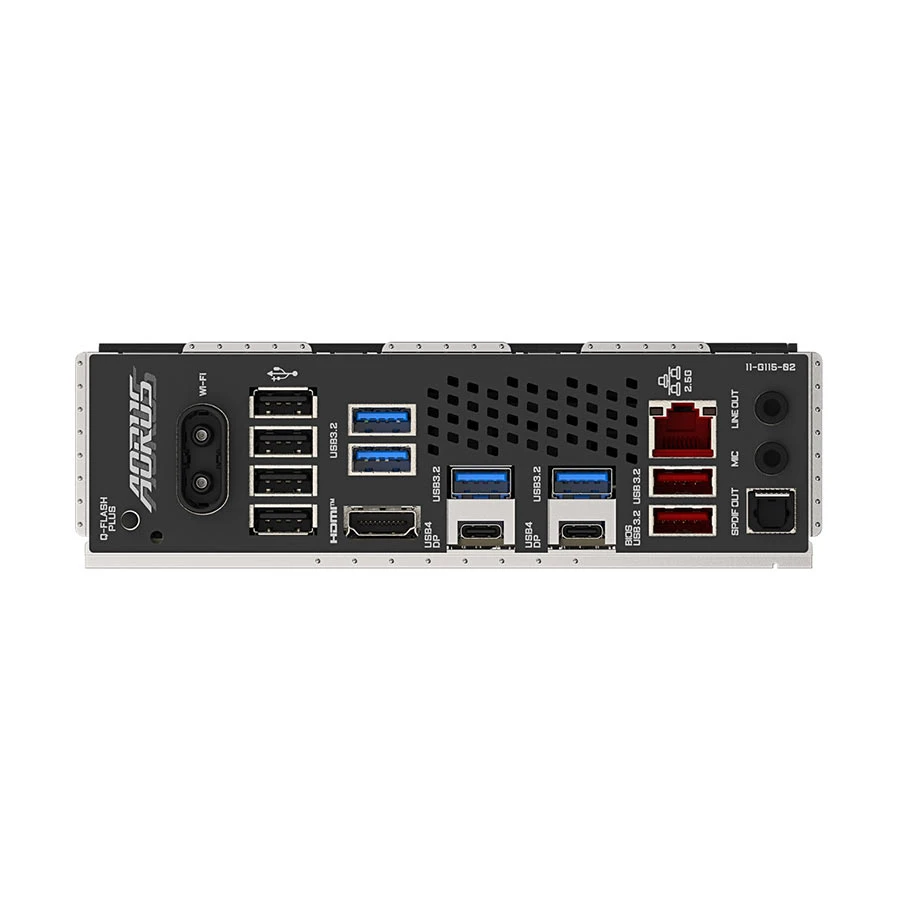

2 x USB4 USB Type-C ports (DisplayPort (Note)), 2 x USB 3.2 Gen 2 Type-A ports (red), 4 x USB 3.2 Gen 1 ports, 4 x USB 2.0/1.1 ports

VGA Port

DVI Port

HDMI Port

DisplayPort (DP)

SATA Port

Thunderbolt

TPM Port

Technical Info

Back-Connect Design

Cable Management

Front

Heatsink

Yes

FireWire

CrossFire Support

Sli Support

Raid Support

0, 1, 5, 10

RGB Support

RGB

RGB Connector

1 x RGB LED strip header

Approx. Power Consumption

70W

Form Factor

ATX

Bios Information

BIOS Type

1 x 256 Mbit flash

BIOS Model

AMI UEFI BIOS

BIOS Version

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Compatibility

Supported Operating System

Windows 11

Compatible Products

AMD Socket AM5, support for: AMD Ryzen 9000 Series Processors/ AMD Ryzen 8000 Series Processors/ AMD Ryzen 7000 Series Processors

Warranty

3 year

Additional Info

Feature

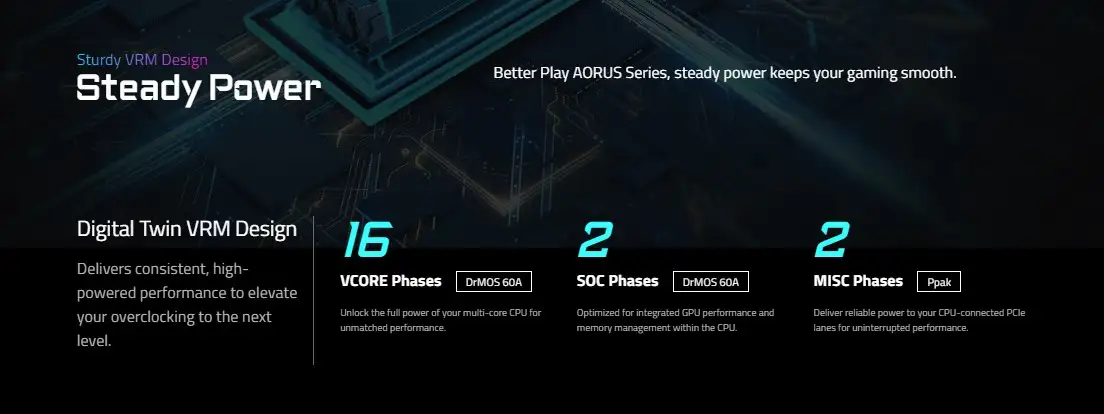

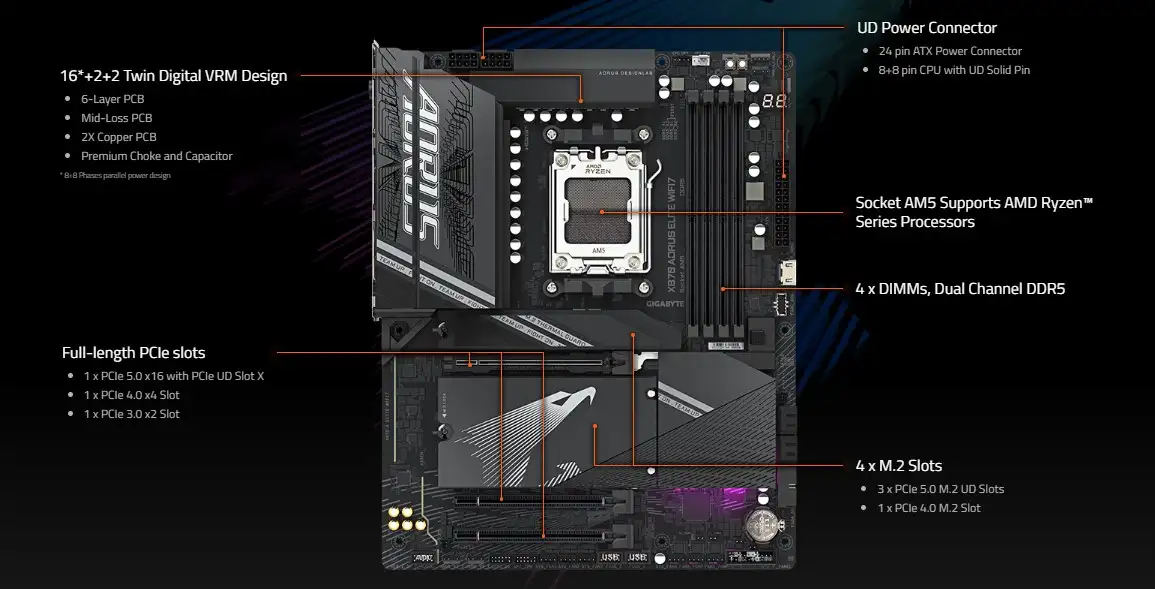

AMD Socket AM5: Supports AMD Ryzen 9000 / 8000 / 7000 Series Processors, Digital twin 16+2+2 phases VRM solution, Dual Channel DDR5: 4x DIMMs with AMD EXPO Memory Module Support, WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation EZ-Latch Plus: PCIe and M.2 slots with Quick Release & Screwless Design, EZ-Latch Click:M.2 heatsinks with screwless design, Sensor Panel Link:Onboard video port for hassle-free in-chassis panel setup, Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW, Ultra-Fast Storage:4 x M.2 slots, including 3 x PCIe 5.0 x4, Efficient Thermal:VRM Thermal Armor Advanced & M.2 Thermal Guard L, Fast Networking:2.5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna, Extended Connectivity:Dual USB4 Type-C with DP-Alt, HDMI, Reliable Audio:Realtek ALC1220 HD Audio & Audiophile Grade Capacitors, Ultra Durable PCIe Armor: The metal back plate of PCIe x16 slot for enhanced durability, PCIe UD Slot X: PCIe 5.0 x16 slot with 10X strength for graphics card

Others

Internal I/O Connectors: 1 x 24-pin ATX main power connector, 2 x 8-pin ATX 12V power connectors, 1 x CPU fan header, 1 x CPU fan/water cooling pump header, 4 x system fan headers, 2 x system fan/water cooling pump headers, 3 x addressable RGB Gen2 LED strip headers, 1 x RGB LED strip header, 4 x M.2 Socket 3 connectors, 4 x SATA 6Gb/s connectors, 1 x front panel header, 1 x front panel audio header, 1 x USB Type-C header, with USB 3.2 Gen 2x2 support, 1 x USB 3.2 Gen 1 header, 2 x USB 2.0/1.1 headers 1 x noise detection header, 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only), 1 x HDMI port (Note), 1 x power button, 1 x reset button, 2 x temperature sensor headers, 1 x reset jumper, 1 x Clear CMOS jumper, I/O Controller: iTE I/O Controller Chip, H/W Monitoring, Voltage detection, Temperature detection, Fan speed detection, Water cooling flow rate detection, Fan fail warning, Fan speed control, Noise detection, Unique Features: Support for GIGABYTE Control Center (GCC), Support for Q-Flash, Support for Q-Flash Plus, Support Smart Backup

Country Of Origin

Taiwan

Made in/ Assemble

China

Details

Features of Gigabyte X870 AORUS ELITE (Wi-Fi 7) Motherboard In Bangladesh

Gigabyte has once again raised the bar with their latest offering, the X870 AORUS ELITE (Wi-Fi 7) DDR5 AMD Gaming Motherboard. This cutting-edge motherboard is designed to deliver exceptional performance and expandability for gamers and enthusiasts.

With its impressive feature set and cutting-edge technology, the Gigabyte X870 AORUS ELITE (Wi-Fi 7) DDR5 AMD Gaming Motherboard is a top-tier option for anyone seeking a powerful and customizable PC platform.

What Makes the X870 AORUS ELITE Special?

The X870 AORUS ELITE is packed with features that make it a top choice for demanding users:

Powerful Performance: The AMD X870 chipset and support for the latest AMD Ryzen processors ensure lightning-fast performance for gaming, content creation, and other resource-intensive tasks.
Blazing-Fast Connectivity: Wi-Fi 7 technology delivers incredibly fast wireless speeds, while Bluetooth 5.4 provides reliable connectivity for your peripherals.
Robust Cooling: Advanced thermal solutions, including high-quality heatsinks and intelligent fan control, keep your system cool and stable even under heavy load.
Extensive Customization: RGB Fusion 2.0 allows you to personalize your system with stunning lighting effects.
Durable Design: Premium components and rigorous testing ensure long-lasting reliability.

Who Should Buy an X870 AORUS ELITE?

The X870 AORUS ELITE is perfect for:

Gamers: Whether you're a casual or hardcore gamer, this motherboard can handle the most demanding titles.
Content Creators: Video editors, graphic designers, and streamers will appreciate the powerful performance and fast connectivity.
Enthusiasts: If you're looking to build a high-performance PC for any purpose, the X870 AORUS ELITE is an excellent choice.

What is the price of Gigabyte X870 AORUS ELITE (Wi-Fi 7) Motherboard In Bangladesh?

The price of Gigabyte X870 AORUS ELITE (Wi-Fi 7) Motherboard not mentioned for stock unavailability.The price may vary due to your customization and product availability. You can buy Gigabyte X870 AORUS ELITE (Wi-Fi 7) Motherboard from our website or visit our showrooms nearby.
Looking to purchase office, corporate, or institutional equipment? Ryans Computers is here to help. We provide customized solutions tailored to your needs, backed by fast delivery and dependable after-sales service. Our expert Ryans Care team is always ready to support you with troubleshooting, technical assistance, and configuration services—so you can focus on what matters most.

Video

AORUS X870E/X870 Series Motherboards - AI Performance, Infinite Power | Official Trailer

QUESTION & ANSWER

Customer Questions

I want to buy this from Rajshahi Branch What should I do now?

Asked By MD SAGOR UDDIN

Dear customer, this is a pre-order product. If you confirm, the branch will be available within a maximum of one day. For detailed information, please contact the helpline number. Thank you. 16 810 , 09609016810

Answered By Ryans Computers Ltd. , 06 Nov 2024
