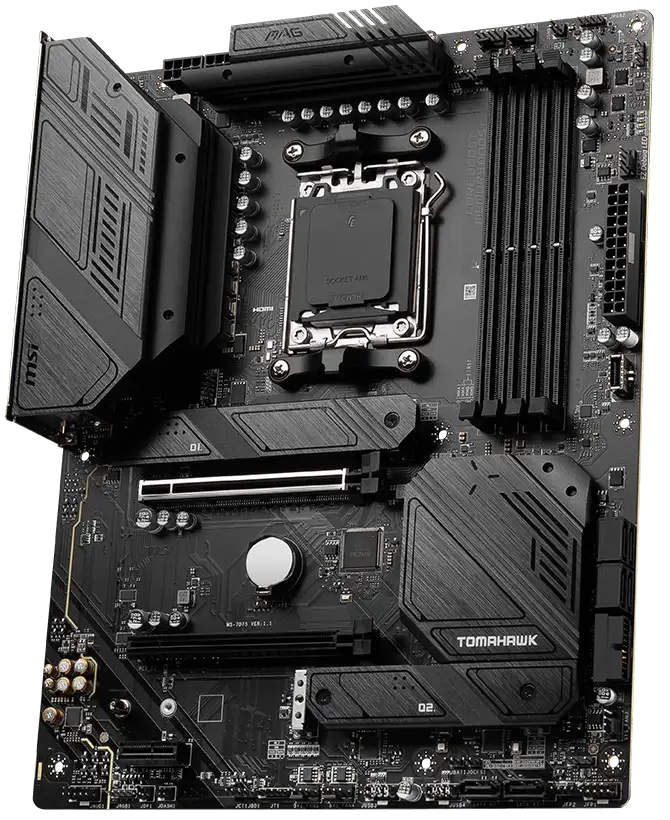

MSI MAG B650 TOMAHAWK (Wi-Fi 6E) DDR5 Gaming Motherboard

Item: MSI MAG B650 TOMAHAWK (Wi-Fi 6E) DDR5 Gaming Motherboard
Rating: 5
Author: Verified Buyer

10 reviews

Product Id: 02.02.033.382

Out Of Stock

See similar model

Quick Overview

Form Factor - ATX
Chipset - AMD B650
Sockets Supported - AM5
Supported CPU - Supports AM5 Sockets AMD Ryzen 7000 Series Desktop Processors
Generation - Not Applicable
Memory Slot - 4
Memory Max. - 192GB
Back-Connect Design - No
Body Color - Black

Payment Method Shipping & Charge Order Procedure

Brand

MSI

Model

MSI MAG B650 TOMAHAWK (Wi-Fi 6E)

Chipset

AMD B650

Sockets Supported

AM5

Built-in Processor

Generation

Not Applicable

Back-Connect Design

Memory Type

DDR5

Memory Slot

Memory Max.

192GB

Optane Memory Support

Graphics

Integrated

Graphics Chipset

Integrated With Processor

M.2/SSD Expansion Slot

WiFi

Yes

Bluetooth

Bluetooth 5.3

Form Factor

ATX

Supported Operating System

Windows 10 / 11

Body Color

Black

Warranty

3 year

General

Brand

MSI

Model

MSI MAG B650 TOMAHAWK (Wi-Fi 6E)

Body Color

Black

CPU

Chipset Brand

AMD

Chipset

AMD B650

Sockets Supported

AM5

Built-in Processor

Supported CPU

Supports AM5 Sockets AMD Ryzen 7000 Series Desktop Processors

Generation

Not Applicable

Memory Support

Memory Type

DDR5

Memory MHz

6000+(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz

Memory Channel

Dual

Memory Slot

Memory Slot (Additional Info)

4 x DIMMs

Memory Max.

192GB

Optane Memory Support

Storage

Storage Interface

6.0Gb/s

M.2/SSD Expansion Slot

M.2/SSD Expansion Slot Details

3 x M.2 ( 1 x supports up to PCIe 4.0 x4 supports 2280/2260 devices, 1 x supports up to PCIe 4.0 x4 supports 2280/2260 devices, 1 x supports up to PCIe 4.0 x4 supports 2280/2260 devices)

M.2/SSD Slot Gen

Up to Gen 4

Graphics

Integrated

Graphics Chipset

Integrated With Processor

Multi-GPU Support

PCI Express Slot

2x PCIe 4.0 x16 slots, 1x PCIe 3.0 x1 slot

Audio & Video

Audio Chipset

Realtek ALC4080 Codec

Audio Channel

7.1

Network & Connectivity

LAN Chipset

Realtek RTL8125B 2.5Gbps LAN

LAN Speed (Mbps)

10/10/1000/2500 Mbps

WiFi

Yes

WiFi Technology

AMD Wi-Fi 6E

Bluetooth

Bluetooth 5.3

Ports

USB Port

2 x USB 2.0 Type-A, 4 x USB 3.2 Gen 1 Type-A, 2 x USB 3.2 Gen 2 Type-A, 1 x USB 3.2 Gen 2x2 Type-C

VGA Port

DVI Port

HDMI Port

DisplayPort (DP)

IDE Port

SATA Port

Thunderbolt

TPM Port

COM Port

Technical Info

Back-Connect Design

Cable Management

Front

Heatsink

Yes

FireWire

CrossFire Support

Sli Support

Raid Support

0 , 1 , 10

RGB Support

ARGB

RGB Connector

2 x Addressable V2 RGB LED connector (JARGB V2), 2 x RGB LED connector(JRGB)

Approx. Power Consumption

70W

Form Factor

ATX

Compatibility

Supported Operating System

Windows 10 / 11

Warranty

3 year

Additional Info

Feature

A huge step of DDR performance enhancement with the latest DDR5 memory and MSI Memory Boost technology, Gen4 PCI-E and M.2 solution with up to 64GB/s bandwidth for maximum transfer speed, M.2 thermal accessory keeps M.2 SSDs safe while preventing throttling, making them run faster, The latest wireless solution supports 6GHz spectrum, MU-MIMO and BSS color technology, delivering speeds up to 2400Mbps, Built-in USB 3.2 Gen 2x2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1, Audio Boost 5, Memory Boost.

Others

Connector: (1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 6x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 2x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0)),

Country Of Origin

Taiwan

Made in/ Assemble

China

Details

Features of MSI MAG B650 TOMAHAWK (Wi-Fi 6E) Motherboard In Bangladesh

MAG B650 TOMAHAWK WIFI

Supports AMD Ryzen™ 7000 Series Desktop Processors

Supports DDR5 Memory, up to 6000+(OC) MHz

Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works

2.5G LAN and AMD Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection

Lightning M.2: Running at PCIe Gen 4 maximizes performance for NVMe based SSDs

Lightning USB 20G: Built-in USB 3.2 Gen 2x2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1

AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience

What is the price of MSI MAG B650 TOMAHAWK (Wi-Fi 6E) Motherboard In Bangladesh?

The price of MSI MAG B650 TOMAHAWK (Wi-Fi 6E) Motherboard not mentioned for stock unavailability.The price may vary due to your customization and product availability. You can buy MSI MAG B650 TOMAHAWK (Wi-Fi 6E) Motherboard from our website or visit our showrooms nearby.
