MSI MAG B850 TOMAHAWK MAX (Wi-Fi 7) DDR5 AMD AM5 Socket Gaming Motherboard #MAG B850 TOMAHAWK MAX WIFI

Item: MSI MAG B850 TOMAHAWK MAX (Wi-Fi 7) DDR5 AMD AM5 Socket Gaming Motherboard #MAG B850 TOMAHAWK MAX WIFI
Rating: 1
Author: shohan

Product Id: 02.02.033.566

Coming Soon

Quick Overview

Chipset - AMD B850
Sockets Supported - AM5
Supported CPU - AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors
Generation - Not Applicable
Memory Slot - 4
Memory Max. - 256GB
Back-Connect Design - No

Payment Method Shipping & Charge Order Procedure

Brand

MSI

Model

MSI MAG B850 TOMAHAWK MAX (Wi-Fi 7)

Chipset

AMD B850

Sockets Supported

AM5

Built-in Processor

Generation

Not Applicable

Back-Connect Design

Memory Type

DDR5

Memory Slot

Memory Max.

256GB

Optane Memory Support

Graphics

Integrated

Graphics Chipset

Integrated With Processor

M.2/SSD Expansion Slot

WiFi

Yes

Bluetooth

Bluetooth 5.4

Form Factor

ATX

Supported Operating System

Windows 11

Body Color

Black

Warranty Details

3 year

General

Brand

MSI

Model

MSI MAG B850 TOMAHAWK MAX (Wi-Fi 7)

Body Color

Black

Part No

MAG B850 TOMAHAWK MAX WIFI

CPU

Chipset Brand

AMD

Chipset

AMD B850

Sockets Supported

AM5

Built-in Processor

Supported CPU

AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors

Generation

Not Applicable

Memory Support

Memory Type

DDR5

Memory MHz

8400 - 5600 (OC) MT/s/ 5600 - 4800 (JEDEC) MT/s

Memory Channel

Dual

Memory Slot

Memory Max.

256GB

Optane Memory Support

Storage

Storage Interface

6.0Gb/s

M.2/SSD Expansion Slot

M.2/SSD Expansion Slot Details

4 x M.2 (M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices, M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices, M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices, M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices)

Graphics

Integrated

Graphics Chipset

Integrated With Processor

Multi-GPU Support

PCI Express Slot

3x PCI-E x16 (PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU), PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset), PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset))

Audio & Video

Audio Chipset

Realtek ALC4080 Codec

Audio Channel

7.1

Network & Connectivity

LAN Chipset

Realtek 8126VB 5G LAN

LAN Speed (Mbps)

10/100/1000/2500/5000 Mbps

WiFi

Yes

WiFi Technology

Wi-Fi 7 Solution

Bluetooth

Bluetooth 5.4

Ports

USB Port

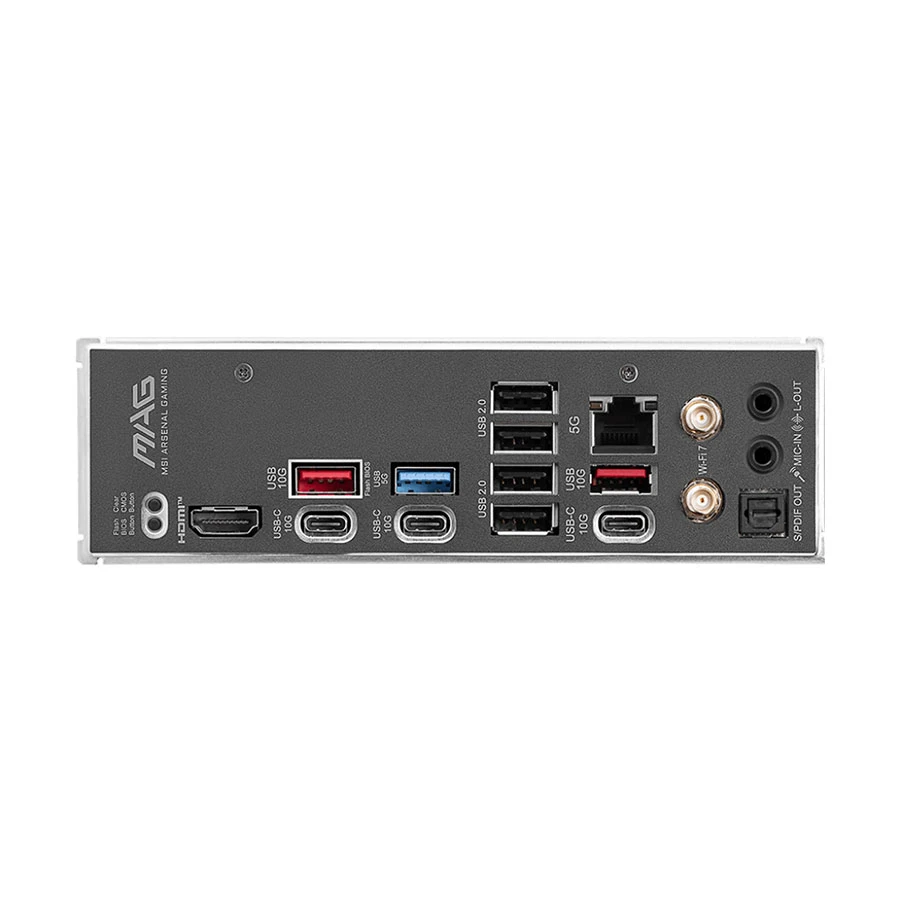

4x USB 2.0 Type-A, 1x USB 5Gbps Type-A, 2x USB 10Gbps Type-A, 3x USB 10Gbps Type-C

VGA Port

DVI Port

HDMI Port

DisplayPort (DP)

SATA Port

4 x SATA

Thunderbolt

TPM Port

Technical Info

Back-Connect Design

Cable Management

Front

Heatsink

Yes

CrossFire Support

Sli Support

Raid Support

0, 1, 10

RGB Support

ARGB

RGB Connector

3x Addressable V2 RGB LED connector (JARGB_V2), 1x RGB LED connector(JRGB)

Approx. Power Consumption

70W

Form Factor

ATX

Compatibility

Supported Operating System

Windows 11

Compatible Products

AMD AM5 Socket Ryzen 9000 & 8000 & 7000 Series Processors

Warranty

Warranty Details

3 year

Additional Info

Feature

EZ PCIe Release, EZ M.2 Shield Frozr II, Lightning Gen 5, Quadruple M.2 Connectors, Extended Heatsink Design, 5G Network Solution, Core Boost, Audio Boost 5.

Others

1DPC 1R Max speed up to 8400+ MT/s, 1DPC 2R Max speed up to 6400+ MT/s, 2DPC 1R Max speed up to 6400+ MT/s, 2DPC 2R Max speed up to 4800+ MT/s, Audio: 7.1-Channel USB High Performance Audio, Supports up to 32-bit/384kHz playback on front panel, Supports S/PDIF output, Internal IO: 1x Power Connector(ATX_PWR), 2x Power Connector(CPU_PWR), 1x Power Connector(PCIE_PWR 8pin), 1x CPU Fan, 1x Combo Fan (Pump_Sys Fan), 6x System Fan, 1x EZ Conn-header (JAF_2), 2x Front Panel (JFP), 1x Chassis Intrusion (JCI), 1x Front Audio (JAUD), 1x TPM pin header(Support TPM 2.0), The Wireless module is pre-installed in the M.2 (Key-E) slot, Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps, Supports 802.11 a/ b/ g/ n/ ac/ ax/ be, LED Feature: 4x EZ Debug LED, 1x EZ Memory Detection LED.

Details

Features of MSI MAG B850 TOMAHAWK MAX (Wi-Fi 7) Motherboard In Bangladesh

EXCLUSIVE FEATURES

THERMAL SOLUTION

CONNECTIVITY

What is the price of MSI MAG B850 TOMAHAWK MAX (Wi-Fi 7) Motherboard In Bangladesh?

The price of MSI MAG B850 TOMAHAWK MAX (Wi-Fi 7) Motherboard not mentioned for stock unavailability.The price may vary due to your customization and product availability. You can buy MSI MAG B850 TOMAHAWK MAX (Wi-Fi 7) Motherboard from our website or visit our showrooms nearby.
