2 x M.2 Slots ( 1 x M.2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices, 1 x M.2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices)
M.2/SSD Slot Gen
Up to Gen 4
Graphics
Graphics
Integrated
Graphics Chipset
Integrated With Processor
Multi-GPU Support
No
PCI Express Slot
1 x PCI-E x16 slot, 2 x PCI-E x1 slot
Audio & Video
Audio Chipset
Realtek ALC897 Codec
Audio Channel
7.1
Network & Connectivity
LAN Chipset
Realtek 8125BG 2.5G LAN
LAN Speed (Mbps)
10/100/1000/2500Mbps
WiFi
No
Bluetooth
No
Ports
USB Port
4 x USB 2.0 Type-A, 2 x USB 3.2 Gen 1 Type-A, 2 x USB 3.2 Gen 2 Type-A
VGA Port
1
DVI Port
No
HDMI Port
1
DisplayPort (DP)
1
IDE Port
No
SATA Port
4 x SATA
Thunderbolt
No
TPM Port
1
COM Port
1
Technical Info
Back-Connect Design
No
Cable Management
Front
Heatsink
Yes
FireWire
No
CrossFire Support
No
Sli Support
No
Raid Support
0, 1, 10
RGB Support
ARGB
RGB Connector
2 x Addressable V2 RGB LED connector (JARGB V2), 2 x RGB LED connector(JRGB)
Approx. Power Consumption
60W
Form Factor
Micro-ATX
Compatibility
Supported Operating System
Windows 10 / 11
Compatible Products
Socket AM5 Ryzen 8000/ 7000 Series Processors
Warranty
Warranty
3 year
Additional Info
Others

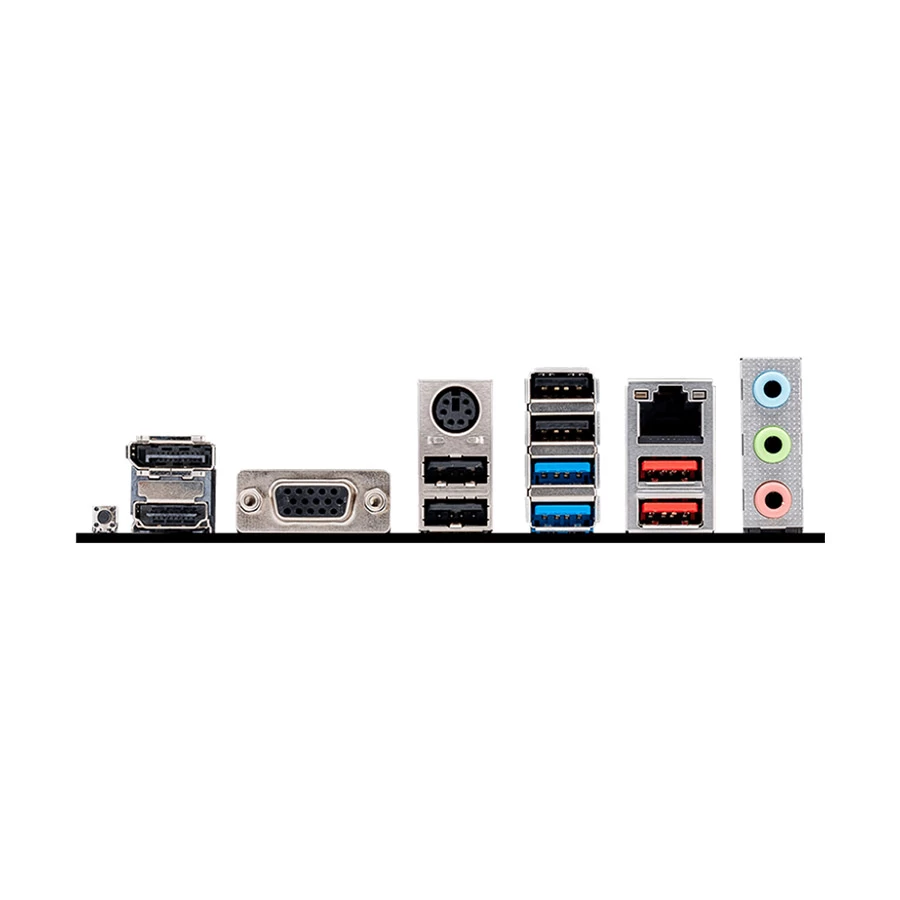

Back Panel Ports: (Keyboard / Mouse, Audio connectors, Flash BIOS Button), Internal Connectors: (1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 3x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 2x Addressable V2 RGB LED connector (JARGB_V2) 2x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0))
Country Of Origin
Taiwan
Made in/ Assemble
China
N.B. Specification may differ
with actual product. In that case, Ryans will execute full refund within 5 days.
Details
QUESTION & ANSWER
Customer Questions
Q:
Can I use it with gigabyte rtx 4060 oc 8 gb
Asked By Reshab Hossain
A:
Dear customer, Yes you can use thank you.
Answered By Ryans Computers Ltd.
, 17 Apr 2026
Q:
Gigabyte GeForce RTX 5060 Ti WINDFORCE OC 16G
16GB GDDR7 Graphics Card can i pair this
this good for it or not
Asked By imtiaz
A:
Dear sir, That would be great, you can take it as you like, Thank you.
Answered By Ryans Computers Ltd.
, 21 Sep 2025
Q:
R5 8600g er sathe pair korle bios update dite hbe?
Asked By TR Shoron
A:
প্রিয় গ্রাহক, না এই বোর্ডগুলো এখন বায়োস আপডেট হয়ে এসেছে ,নতুন করে বায়োস আপডেট দিতে হবে না । ধন্যবাদ ।
Answered By Ryans Computers Ltd.
, 25 Aug 2025
Q:
Will it support a 71 Surround System?
Asked By Asif
A:
Dear customer supported please contact the helpline number for detailed information. 16810 Thank you
Answered By Ryans Computers Ltd.
, 30 Jul 2025
Q:
Arc770 GPU ta support korbe ?
Asked By Radian
A:
Dear Customer, The graphics card you provided can be used on this motherboard, Thanks.
