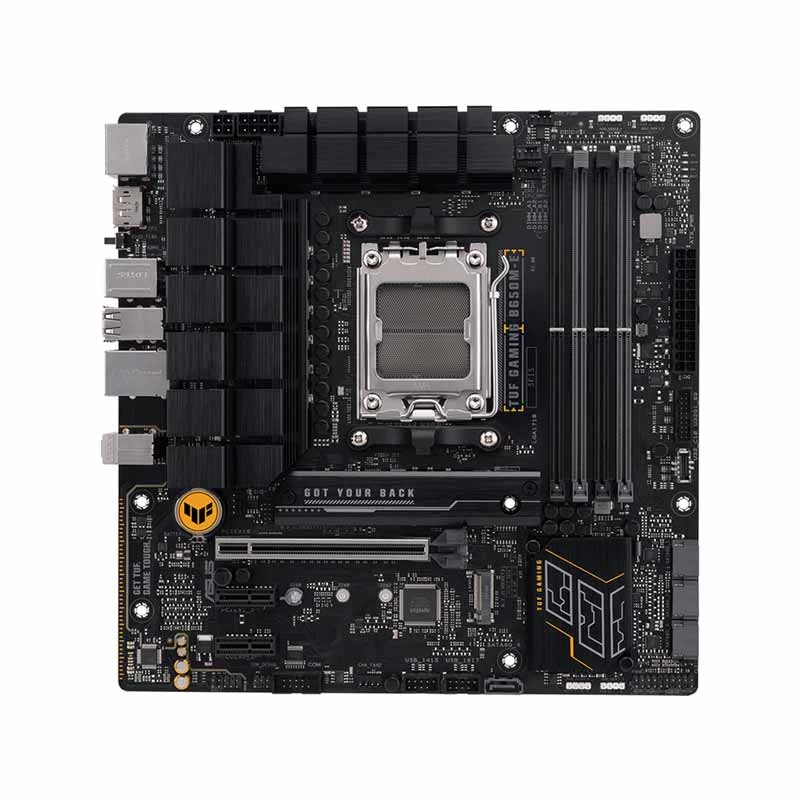

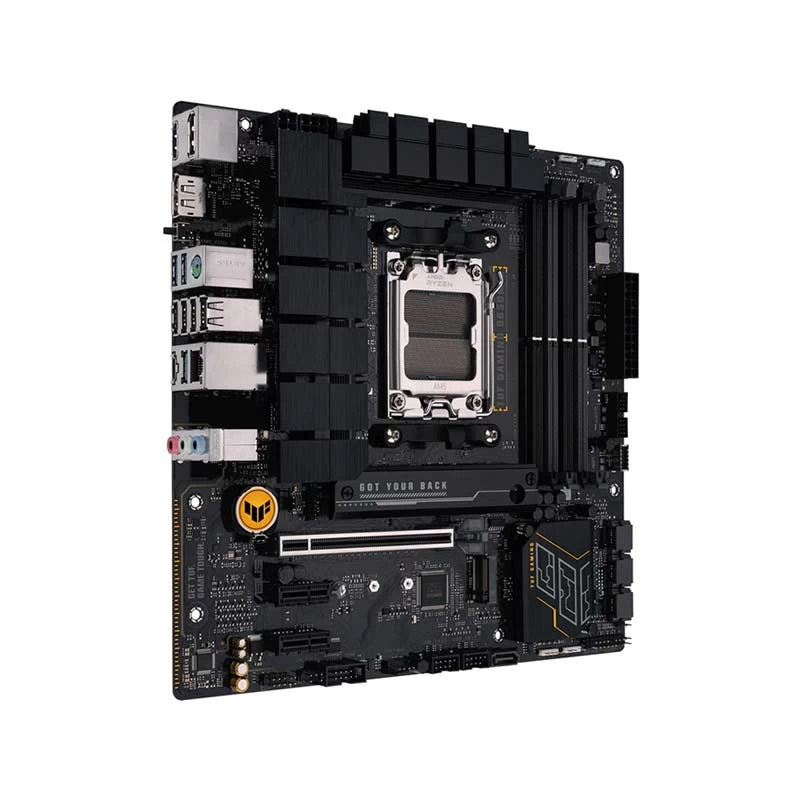

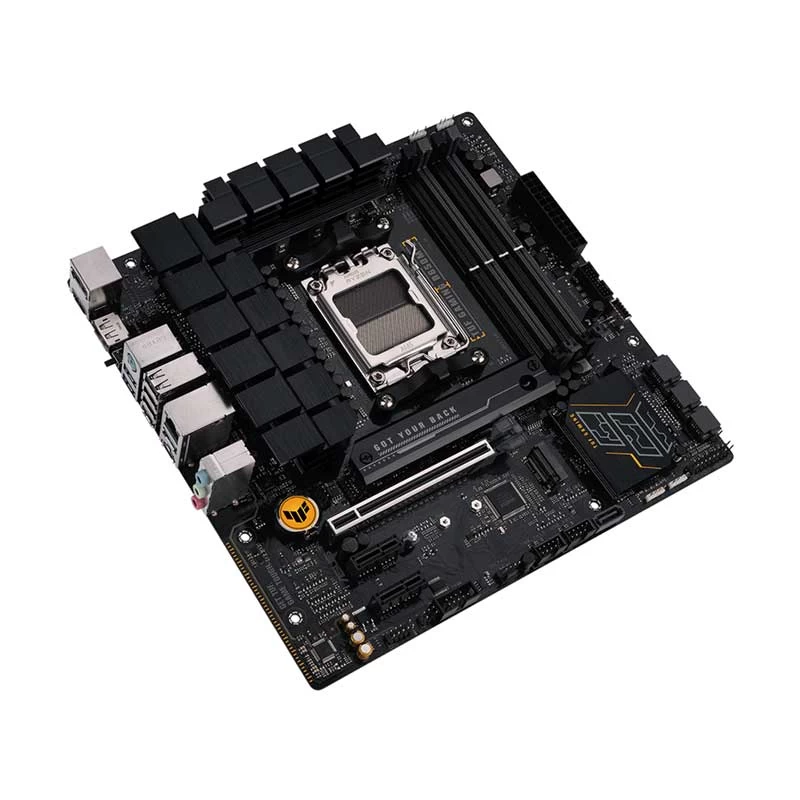

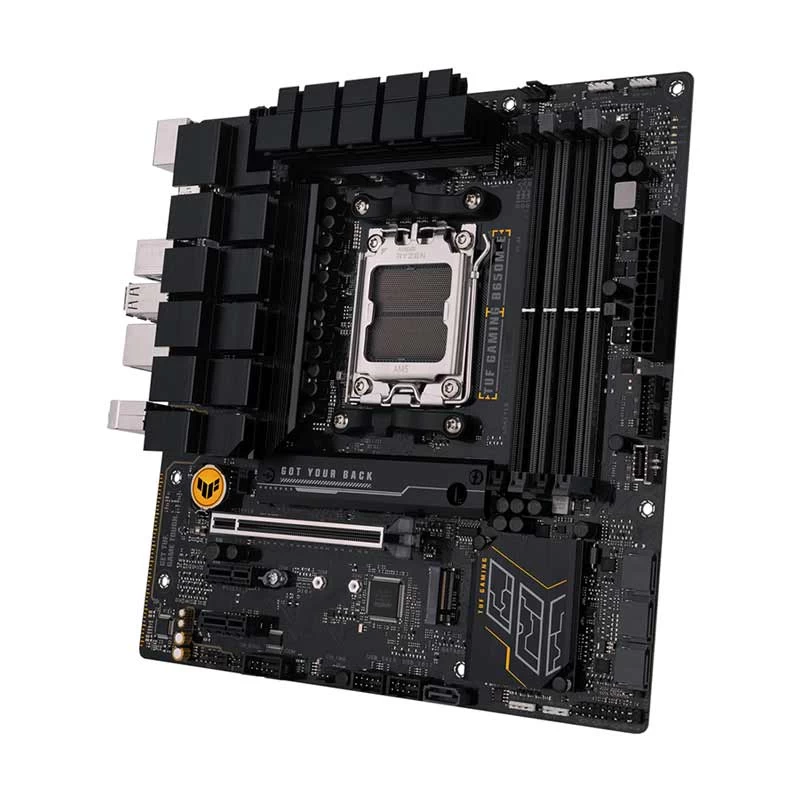

Asus TUF GAMING B650M-E DDR5 AMD Motherboard
Product Id: 02.02.006.474
Brand
Asus
Regular Price Tk 31,680
Monthly EMI Tk 2,640
Special Price Tk 29,300
Quick Overview
- Chipset - AMD B650
- Memory Max. - 128GB
- Memory Slot - 4
- Sockets Supported - AM5
- Supported CPU - AMD Ryzen 7000 Series Desktop Processors
- Generation - Not Applicable
General
Brand
Asus
Model
Asus TUF GAMING B650M-E
Body Color
Black
CPU
Chipset Brand
AMD
Chipset
AMD B650
Sockets Supported
AM5
Built-in Processor
No
Supported CPU
AMD Ryzen 7000 Series Desktop Processors
Generation
Not Applicable
Memory Support
Memory Type
DDR5
Memory MHz
6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC and Non-ECC, Un-buffered Memory
Memory Channel
Dual
Memory Slot
4
Memory Max.
128GB
Optane Memory Support
No
Storage
Storage Interface
6.0Gb/s
M.2/SSD Expansion Slot
2
M.2/SSD Expansion Slot Details
2 x M.2 (1 x M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode), 1 x M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode))
Graphics
Graphics
Integrated
Graphics Chipset
Integrated With Processor
Multi-GPU Support
No
PCI Express Slot
1 x PCIe 4.0 x 16 (AMD Ryzen 7000 Series Desktop Processors), 2 x PCIe 4.0 x 1 (AMD B650 Chipset)
Audio & Video
Audio Chipset
Realtek High Definition Audio CODEC
Audio Channel
7.1
Network & Connectivity
LAN Chipset
Realtek 2.5Gb Ethernet
LAN Speed (Mbps)
10/ 100/ 1000/ 2500Mbps
WiFi
No
Ports
USB Port
4 x USB 2.0 Type-A, 2 x USB 3.2 Gen 1 Type-A, 1 x USB 3.2 Gen 2 Type-A, 1 x USB 3.2 Gen 2 Type-C
VGA Port
No
DVI Port
No
HDMI Port
1
DisplayPort (DP)
2
SATA Port
4 x SATA
Thunderbolt
No
COM Port
1
Technical Info
CrossFire Support
No
Sli Support
No
Raid Support
0, 1, 10
RGB Support
RGB
RGB Sync
Aura Sync
RGB Connector
1 x Aura RGB header
Approx. Power Consumption
60W
Form Factor
Micro-ATX
Bios Information
BIOS Type
256 Mb Flash ROM
BIOS Model
UEFI AMI BIOS
Compatibility
Supported Operating System
Windows 11, 10
Compatible Products
Ryzen 7000 Series Processors
Warranty
Warranty
3 Year
Warranty Details
3 Years Replacement Warranty
Additional Info
Feature
Audio Features: Audio Shielding, Premium audio capacitors, Dedicated audio PCB layers, ASUS TUF PROTECTION, ASUS Q-Design, ASUS Thermal Solution, ASUS EZ DIY, Aura Sync, ASUS Exclusive Software.
Others
Internal I/O Connectors: 1 x 4-pin CPU Fan header, 1 x 4-pin CPU OPT Fan header, 1 x 4-pin AIO Pump header, 2 x 4-pin Chassis Fan headers, 1 x 24-pin Main Power connector, 1 x 8-pin +12V Power connector, 1 x 4-pin +12V Power connector, 3 x Addressable Gen 2 headers, 1 x Clear CMOS header, 1 x Front Panel Audio header (AAFP), 1 x 20-3 pin System Panel header with Chassis intrude function, Back Panel I/O Ports: 3 x Audio jacks, 1 x BIOS FlashBack button, 1 x PS/2 Keyboard/Mouse combo port.
Country Of Origin
Taiwan
Made in/ Assemble
China
N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
Details
Features of Asus TUF GAMING B650M-E Motherboard In Bangladesh
CPU Performance Boost
AMD Precision Boost Overdrive(PBO) pushes the CPU current and voltage budget to opportunistically increase performance. By aggressively tuning the PBO parameters, AMD‘s algorithm can leverage the motherboard’s robust power solution to ramp up performance even higher.

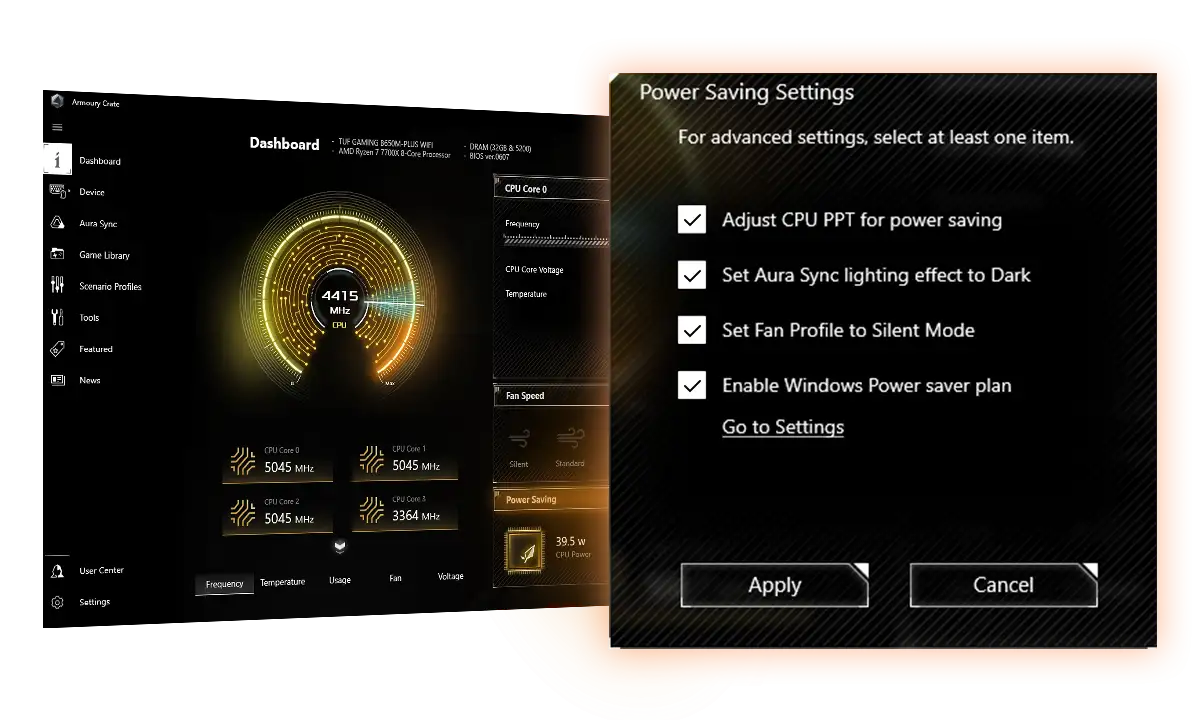

All-Around Energy Efficiency
The Power Saving function contains several settings can easily optimize power consumption and maximize energy savings. You can enable a CPU power limit, darken Aura lighting, and set the fan profile to a power saving mode. You can also toggle the Power Saver plan that is built into Microsoft Windows.

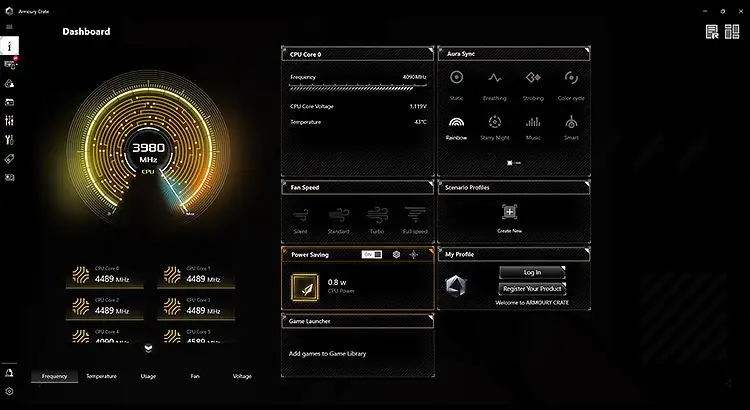

Armoury Crate
The ASUS-exclusive Armoury Crate centralizes easy control of supported gaming products. A single intuitive interface lets you customize RGB lighting for all compatible devices and link them to Aura Sync for unified illumination. It also offers information and control for a select and growing hardware ecosystem, with input device settings, Fan Xpert 2+ and Two-Way AI Noise Cancelation. Armoury Crate even features product registration, and a news section to stay in touch with the gaming community.

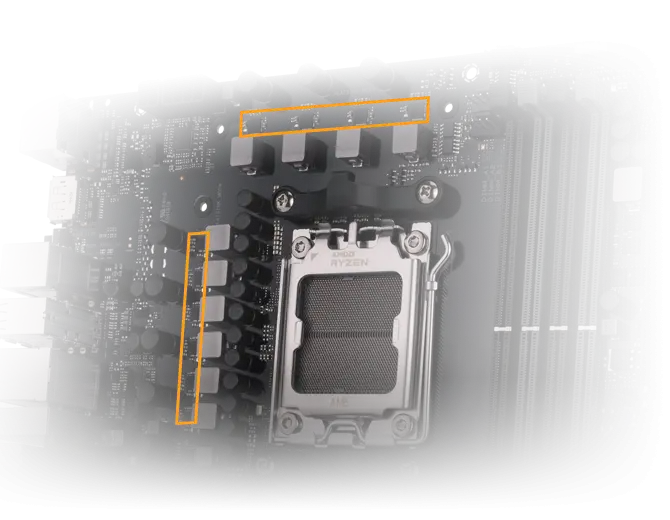

Teamed Power Stages
8+2 power stages are each rated to handle 60 amperes, combining high-side and low-side MOSFETS and drivers into a single package to deliver power, efficiency and stable performance for all compatible AMD processors.
Digi+ VRM
The integrated Digi+ voltage-regulator module (VRM) is one of the finest in the industry, optimized for ultra-smooth and ultra-clean power delivery to the CPU at all times.
Build With Confidence
TUF GAMING Alliance is a collaboration between ASUS and trusted PC component brands to ensure compatibility across a wide range of parts, such as PC cases, power supplies, CPU coolers, memory kits and more. With new partnerships and components being added regularly, the TUF GAMING Alliance will continue to grow even stronger.
2.5 Gb Ethernet
2.5 Gb on-board Ethernet kicks your LAN connection up a notch with a bandwidth improvement of up to 2.5X. Using your existing LAN cable, you can take advantage this networking upgrade to experience smoother, lag-free gaming, immediately stream high-resolution videos and enjoy faster file transfers.
Realtek 7.1 Surround Sound
The unique audio codec designed in close collaboration with Realtek for TUF GAMING B650 motherboards features an unprecedented 98 dB signal-to-noise ratio for the stereo line out, providing pristine audio quality.
Addressable Gen 2 RGB Header
Three addressable Gen 2 RGB headers will support up to 500 LEDs on Gen 2 RGB devices, empowering Aura Sync to automatically tailor lighting effects across your whole system. The new headers also offer full backward compatibility with existing Aura Sync gear.
What is the price of Asus TUF GAMING B650M-E Motherboard In Bangladesh?
The price of Asus TUF GAMING B650M-E Motherboard starts from 29,300 . The price may vary due to your customization and product availability. You can buy Asus TUF GAMING B650M-E Motherboard from our website or visit our showrooms nearby.
