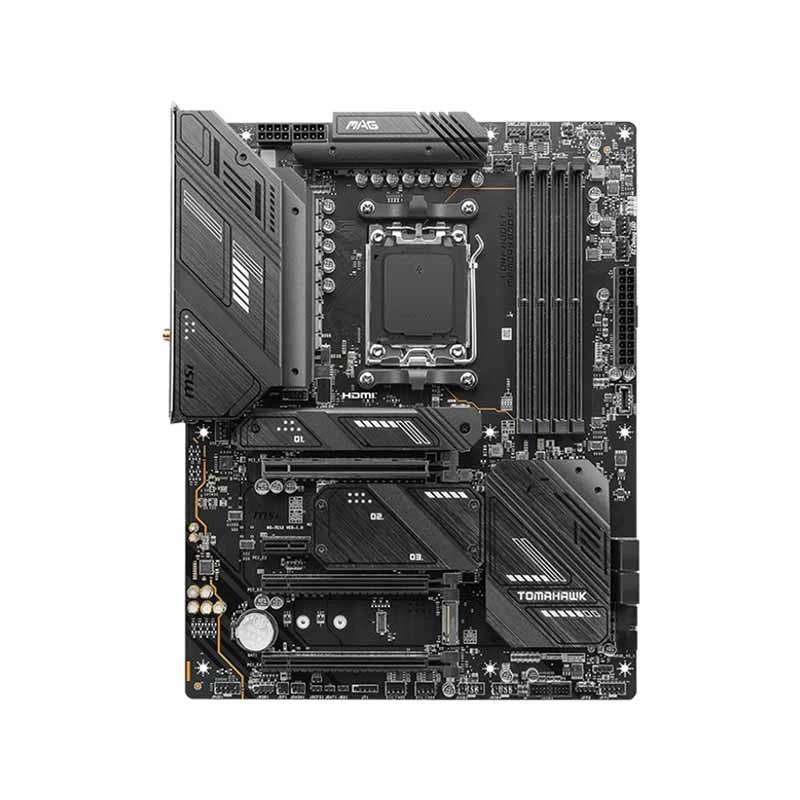

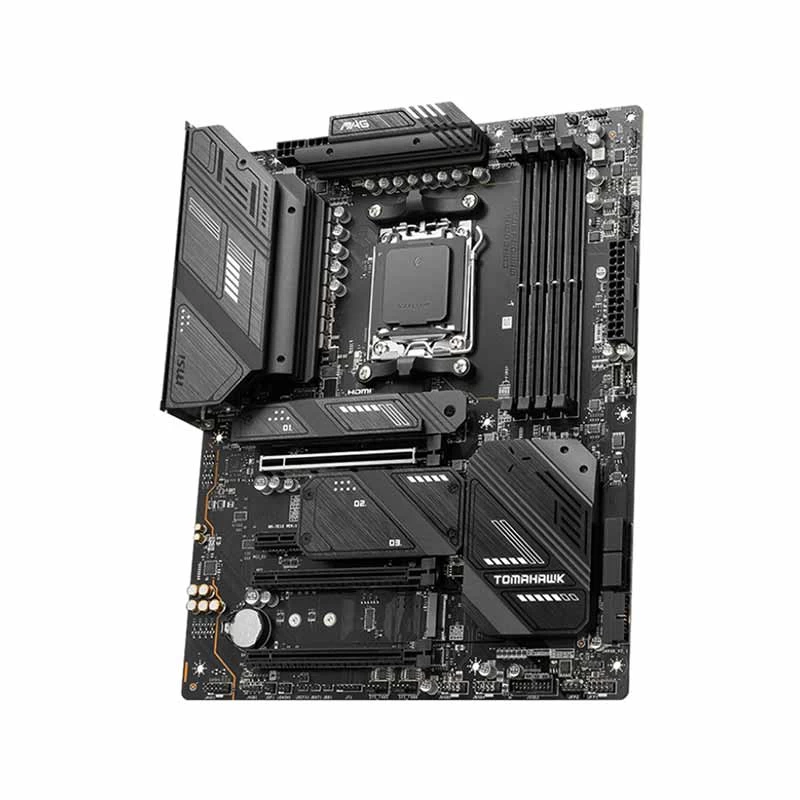

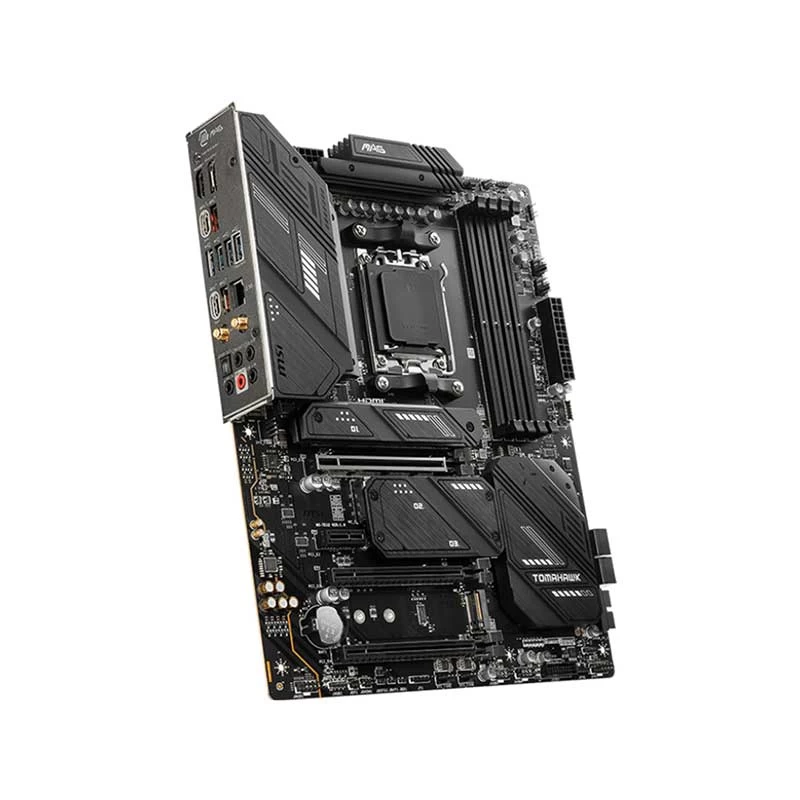

MSI MAG X670E TOMAHAWK (Wi-Fi 6E) DDR5 AMD Gaming Motherboard

Product Id: 02.02.033.390

Brand MSI

Regular Price Tk 0
Special Price Tk 0
Out Of Stock

See similar model

Quick Overview

  • Chipset - AMD X670
  • Memory Max. - 192GB
  • Memory Slot - 4
  • Sockets Supported - AM5
  • Supported CPU - Supports AMD Ryzen 7000 Series Desktop Processors
  • Generation - Not Applicable
General
Brand
MSI

Model
MSI MAG X670E TOMAHAWK (Wi-Fi 6E)

Body Color
Black


CPU
Chipset Brand
AMD

Chipset
AMD X670

Sockets Supported
AM5

Built-in Processor
No

Supported CPU
Supports AMD Ryzen 7000 Series Desktop Processors

Generation
Not Applicable


Memory Support
Memory Type
DDR5

Memory MHz
6000+(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz Supports non-ECC, un-buffered

Memory Channel
Dual

Memory Slot
4

Memory Slot (Additional Info)
4x DDR5

Memory Max.
192GB

Memory Max. (Additional Info)
Maximum Memory Capacity 192GB

Optane Memory Support
No


Storage
Storage Interface
6.0Gb/s

M.2/SSD Expansion Slot
4

M.2/SSD Expansion Slot Details
4 x M.2 (M.2_1 supports 22110/2280 devices, supports up to PCIe 5.0 x4 (From CPU)), (M.2_2 supports 2280/2260 devices, supports up to PCIe 4.0 x4 (From Chipset)), (M.2_3 supports 2280/2260 devices, supports up to PCIe 4.0 x4 (From Chipset)), (M.2_4 supports 2280/2260 devices, supports up to PCIe 4.0 x4 (From Chipset))


Graphics
Graphics
Integrated

Graphics Chipset
Integrated With Processor

PCI Express Slot
3x PCI-E x16 slot Supports x16/x4/x2, 1x PCI-E x1 slot


Audio & Video
Audio Chipset
Realtek ALC1200 Codec High Definition Audio

Audio Channel
7.1


Network & Connectivity
LAN Chipset
Realtek RTL8125BG 2.5Gbps LAN

LAN Speed (Mbps)
10/100/1000/2500 Mb/s

WiFi
Yes

WiFi Technology
AMD Wi-Fi 6E Supports 802.11 a/ b/ g/ n/ ac/ ax, MU-MIMO TX/RX, 20MHz, 40MHz, 80MHz bandwidth in 2.4GHz/ 5GHz or 6GHz bands

Bluetooth
Bluetooth 5.3


Ports
USB Port
1 x USB 3.2 Gen 2x2 Type-C, 1 x USB 3.2 Gen 2 Type-C, 2 x USB 3.2 Gen 2 Type-A, 4 x USB 3.2 Gen 1 Type-A

VGA Port
No

DVI Port
No

HDMI Port
1

DisplayPort (DP)
1

IDE Port
No

SATA Port
4

Thunderbolt
No

TPM Port
1

COM Port
No


Technical Info
DirectX Support
No

FireWire
No

CrossFire Support
No

Sli Support
No

Raid Support
0,1,10

RGB Support
ARGB

RGB Connector
2x Addressable V2 RGB LED, 2x RGB LED

Approx. Power Consumption
70W

Form Factor
ATX


Compatibility
Supported Operating System
Windows 10/ 11


Warranty
Warranty
3 Year

Warranty Details
3 year


Additional Info
Feature

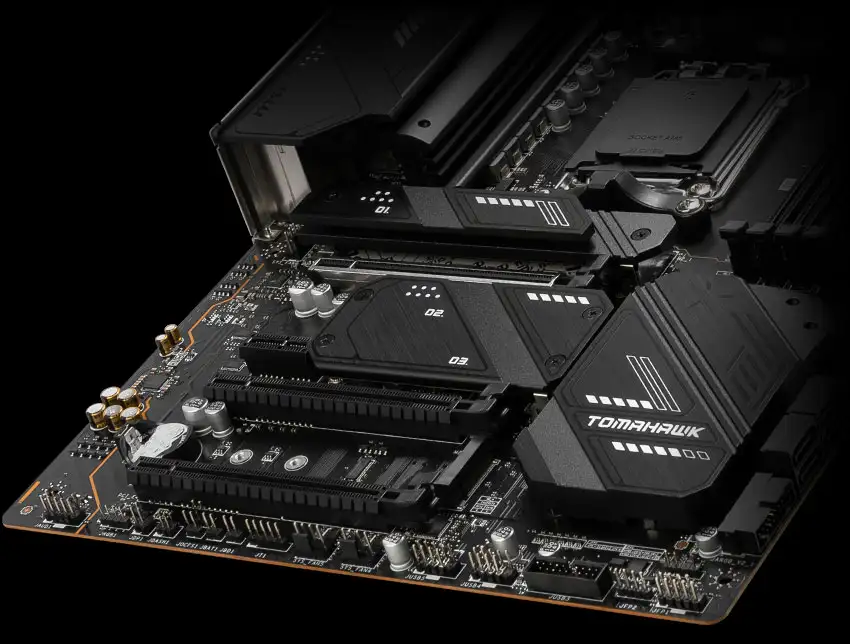

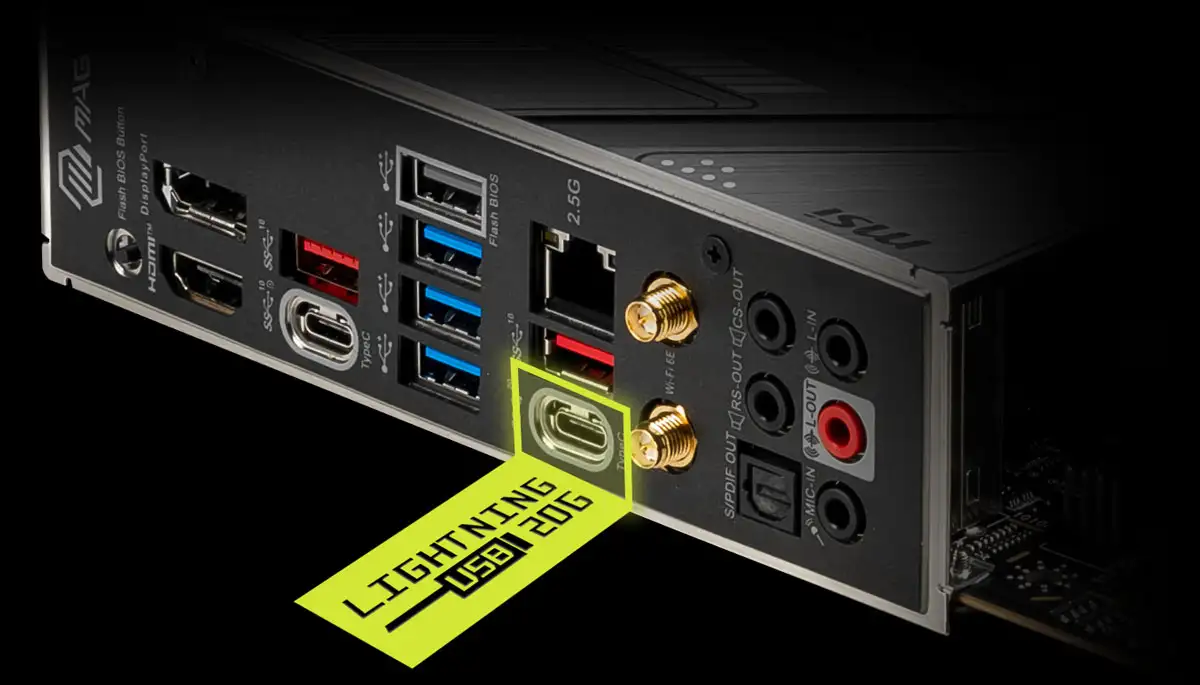

Enhanced Power Design: 14+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost, Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen5 M.2, USB 3.2 Gen 2x2, Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works, AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience, High Quality PCB: 8-layer PCB made by 2oz thickened copper and server grade level material

Others

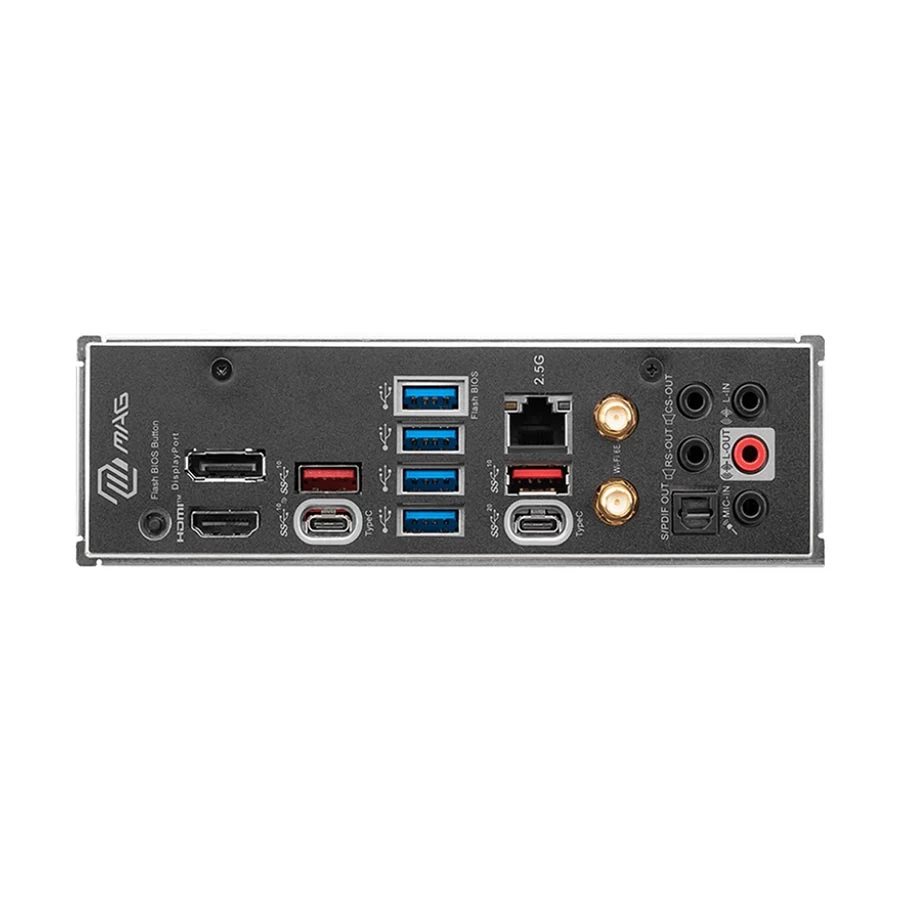

MEMORY - Max. overclocking frequency: 1DPC 1R Max speed up to 6000+ MHz, 1DPC 2R Max speed up to 6000+ MHz, 2DPC 1R Max speed up to 6000+ MHz, 2DPC 2R Max speed up to 5400+ MHz, Supports AMD EXPO, INTERNAL I/O - 1x Power Connector(ATX_PWR), 2x Power Connector(CPU_PWR), 1x CPU Fan, 1x Pump Fan, 6x System Fan, 2x Front Panel (JFP), 1x Chassis Intrusion (JCI), 1x Front Audio (JAUD), 1x Tuning Controller connector(JDASH), 4x USB 2.0 ports, 4x USB 3.2 Gen1 Type A ports, 1x USB 3.2 Gen2 Type C ports, LED FEATURE - 4x EZ Debug LED, BACK PANEL PORTS - 2.5G LAN, Wi-Fi / Bluetooth, Audio Connectors, Flash BIOS Button, S/PDIF-Out

Country Of Origin
Taiwan

Made in/ Assemble
China


N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.

Details

Video

MAG X670E TOMAHAWK WIFI - Gaming Without Concessions | Gaming Motherboard | MSI
