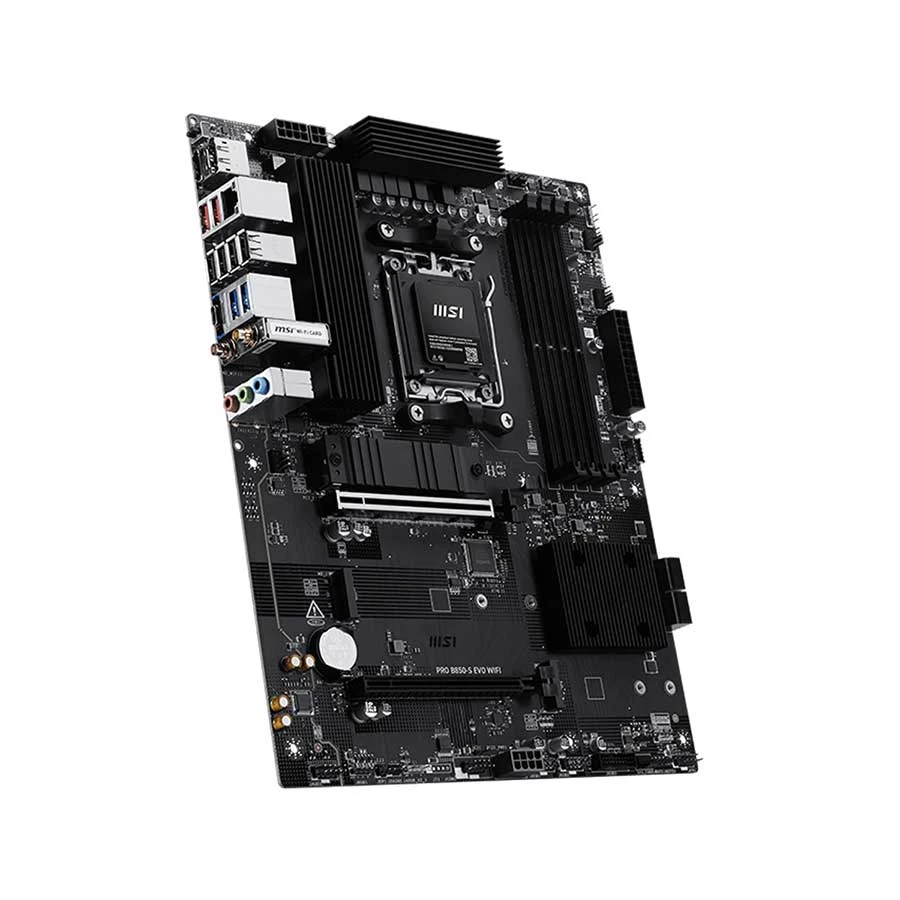

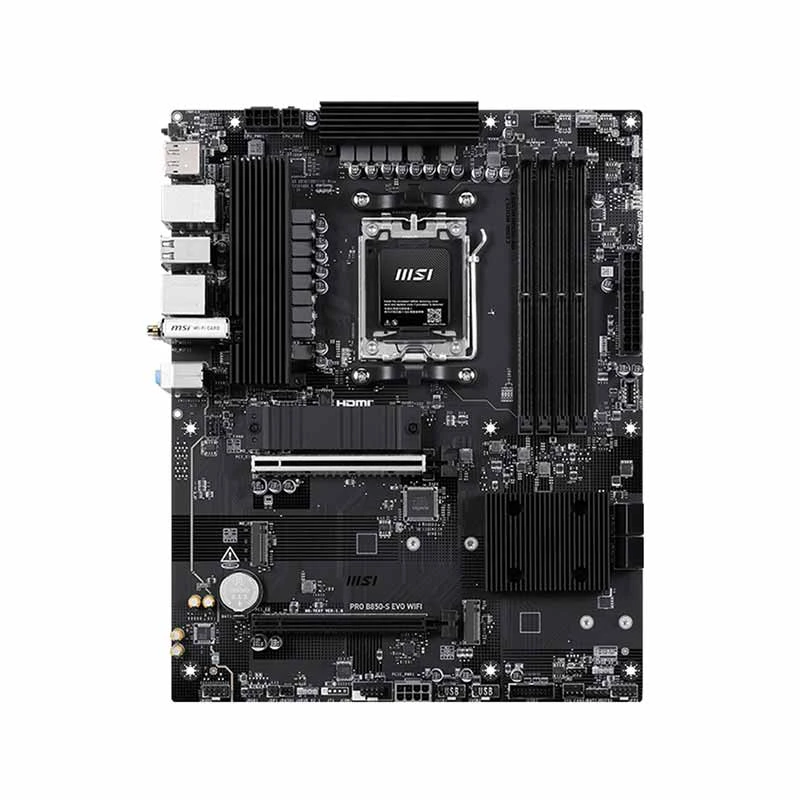

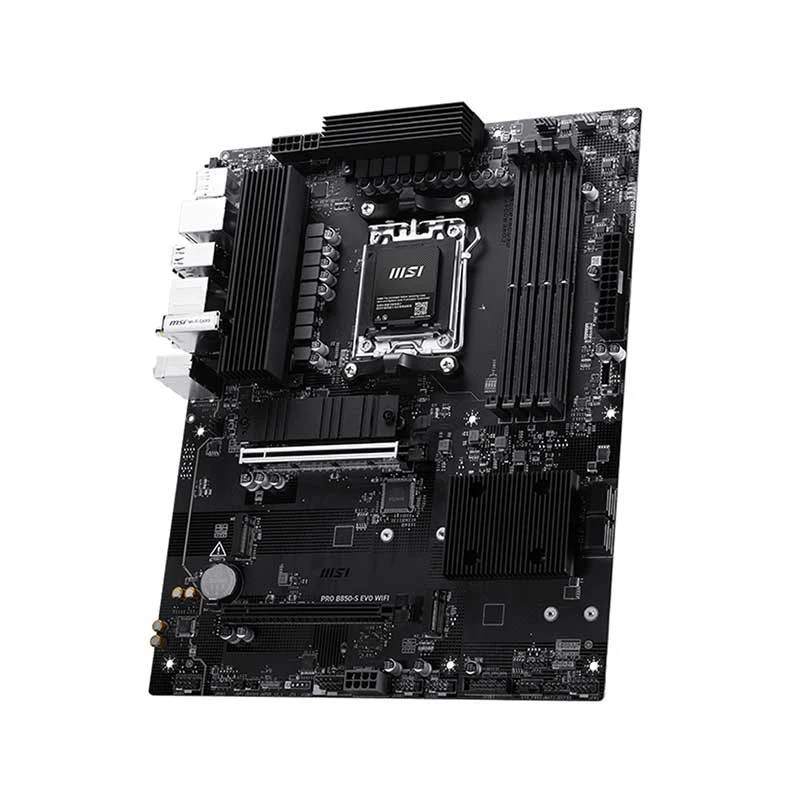

MSI PRO B850-S EVO Wi-Fi 7 DDR5 AMD AM5 ATX Motherboard

Item: MSI PRO B850-S EVO Wi-Fi 7 DDR5 AMD AM5 ATX Motherboard
Rating: 5
Author: Verified Buyer

Product Id: 02.02.033.612

Out Of Stock

Quick Overview

Form Factor - ATX
Chipset - AMD B850
Sockets Supported - AM5
Supported CPU - AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors
Generation - Not Applicable
Memory Slot - 4
Memory Max. - 256GB
Back-Connect Design - No
Body Color - Black

Payment Method Shipping & Charge Order Procedure

Brand

MSI

Model

MSI PRO B850-S EVO (Wi-Fi 7)

Chipset

AMD B850

Sockets Supported

AM5

Built-in Processor

Generation

Not Applicable

Back-Connect Design

Memory Type

DDR5

Memory Slot

Memory Max.

256GB

Optane Memory Support

Graphics

integrated

Graphics Chipset

Integrated With Processor

M.2/SSD Expansion Slot

WiFi

Yes

Bluetooth

Bluetooth 5.4

Form Factor

ATX

Supported Operating System

Windows 11

Body Color

Black

Warranty

3 year

General

Brand

MSI

Model

MSI PRO B850-S EVO (Wi-Fi 7)

Body Color

Black

Part No

PRO B850-S EVO WIFI

CPU

Chipset Brand

AMD

Chipset

AMD B850

Sockets Supported

AM5

Built-in Processor

Supported CPU

AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors

Generation

Not Applicable

Memory Support

Memory Type

DDR5

Memory MHz

8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s

Memory Channel

Dual

Memory Slot

Memory Max.

256GB

Optane Memory Support

Storage

Storage Interface

6.0Gb/s

M.2/SSD Expansion Slot

M.2/SSD Expansion Slot Details

3 x M.2 (M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices, M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280 devices, M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices)

M.2/SSD Slot Gen

Up to Gen 5

Graphics

integrated

Graphics Chipset

Integrated With Processor

Multi-GPU Support

PCI Express Slot

2 x PCI-E x16 slot

Audio & Video

Audio Chipset

Realtek ALC897

Audio Channel

7.1

Network & Connectivity

LAN Chipset

Realtek 8126VB 5G LAN

LAN Speed (Mbps)

10/ 100/ 1000/ 2500/ 5000Mbps

WiFi

Yes

WiFi Technology

Wi-Fi 7 (802.11 a/ b/ g/ n/ ac/ ax/ be) (MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (160MHz) up to 2.9Gbps)

Bluetooth

Bluetooth 5.4

Ports

USB Port

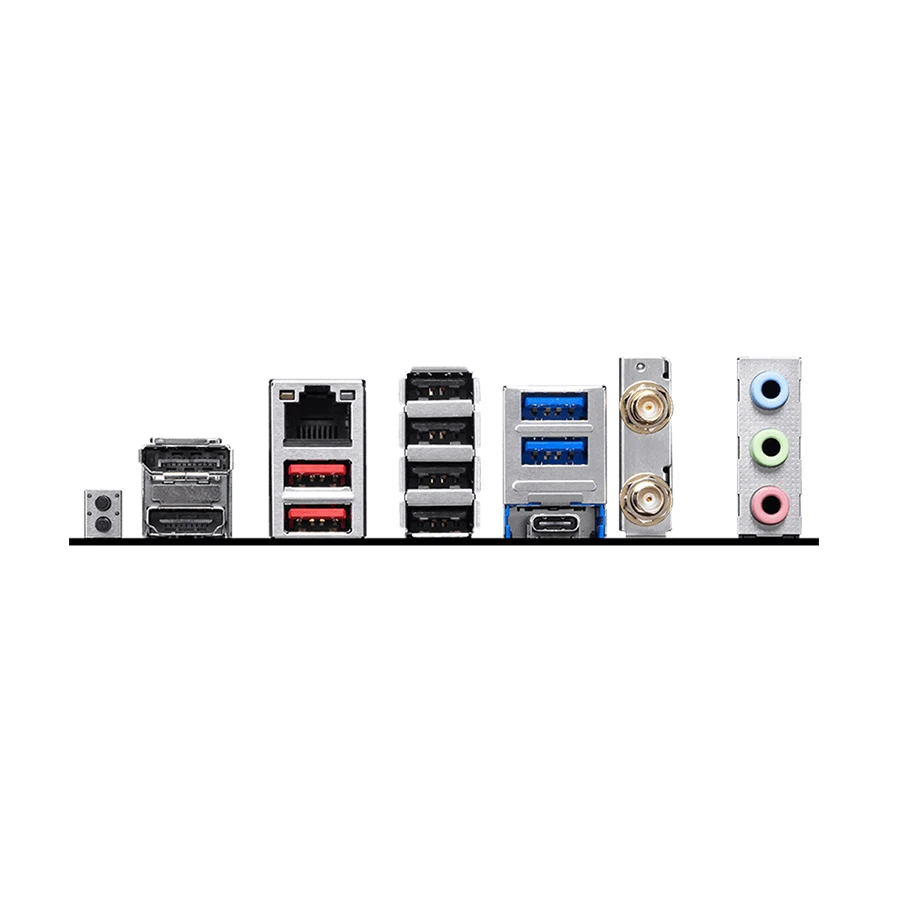

4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 2x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Rear) 1x USB 10Gbps Type C (Front)

VGA Port

DVI Port

HDMI Port

DisplayPort (DP)

SATA Port

4 x SATA

Thunderbolt

TPM Port

COM Port

Technical Info

Back-Connect Design

Cable Management

Front

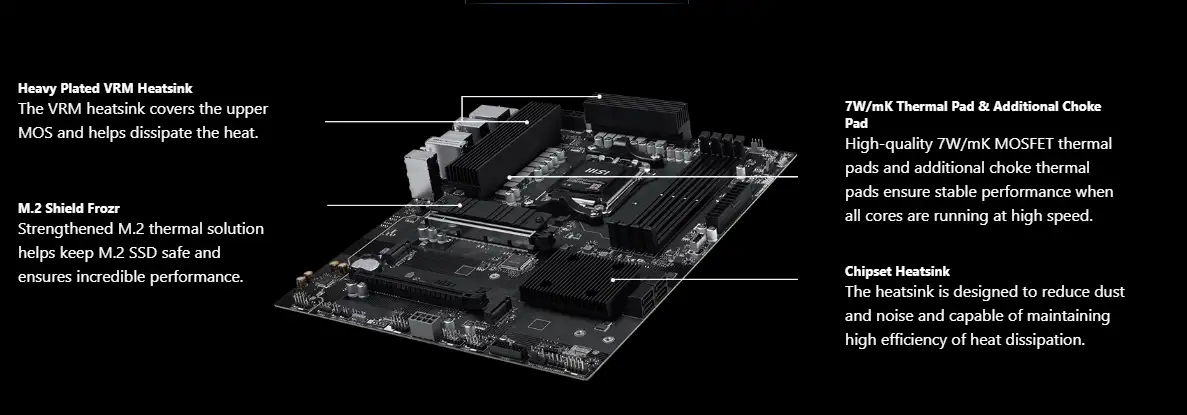

Heatsink

Yes

CrossFire Support

Sli Support

Raid Support

0, 1, 5, 10 (SATA), 0, 1 (M.2)

RGB Support

ARGB

RGB Connector

3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB)

Approx. Power Consumption

70W

Form Factor

ATX

Bios Information

BIOS Type

64MB BIOS

Compatibility

Supported Operating System

Windows 11

Compatible Products

AM5 Socket AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors

Warranty

3 year

Additional Info

Feature

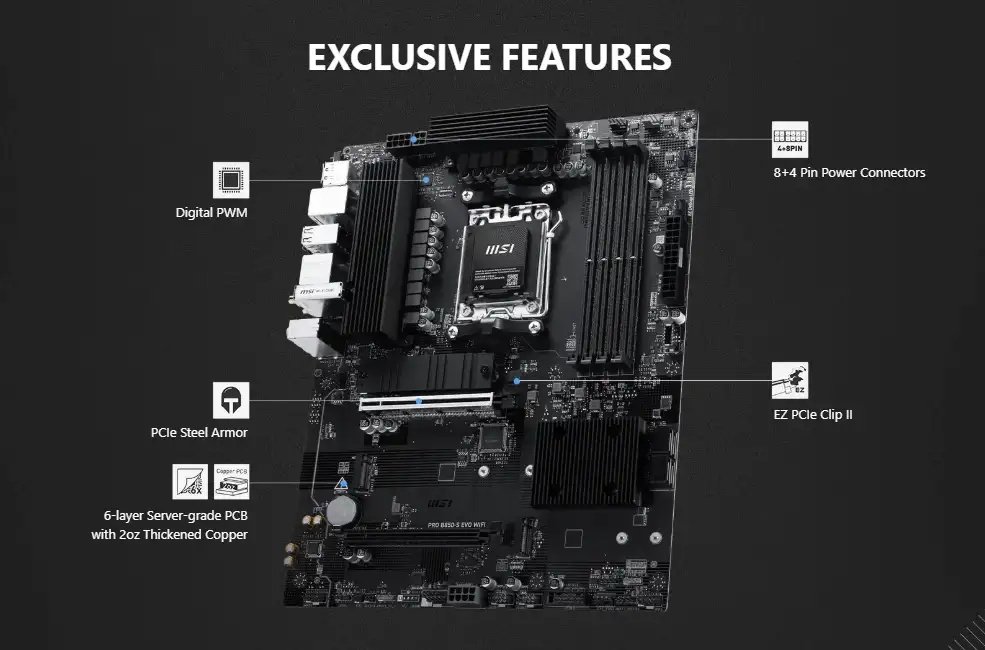

64MB BIOS A larger BIOS ROM capacity allows the motherboard to support next-level CPU upgrades with better compatibility. Wi-Fi 7 Wi-Fi 7 is the latest wireless solution that takes a huge leap forward with multiple improvements to meet the traffic demand brought and the growing number of wireless devices. 5G Network Solution Featuring premium 5G LAN to deliver better network experience. EZ Antenna EZ Antenna makes the process effortless by simply attaching fasteners to the motherboard without rotation. EZ PCIe Clip II Allows for easy removal of the graphics card by pressing the taillike lock with one finger, even in the cramped case spaces. Latest DDR5 Memory A huge step of DDR performance enhancement with the latest DDR5 memory and MSI Memory Boost technology. Lightning Gen 5 The latest PCIe 5.0 solution with up to 128GB/s bandwidth for maximum transfer speed. USB 10Gbps Type-C Lightning-fast data transfer and effortless connectivity for modern peripherals. Frozr AI Cooling Detect CPU & GPU temperatures and automatically adjust system fan duty to a proper value.

Others

Internal IO: 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 4x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x Tuning Controller connector(JDASH), LED FEATURE: 4x EZ Debug LED 1x EZ Memory Detection LED

Country Of Origin

Taiwan

Made in/ Assemble

China

Details

Features of MSI PRO B850-S EVO (Wi-Fi 7) Motherboard In Bangladesh

What is the price of MSI PRO B850-S EVO (Wi-Fi 7) Motherboard In Bangladesh?

The price of MSI PRO B850-S EVO (Wi-Fi 7) Motherboard not mentioned for stock unavailability.The price may vary due to your customization and product availability. You can buy MSI PRO B850-S EVO (Wi-Fi 7) Motherboard from our website or visit our showrooms nearby.
