AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors
Generation
Not Applicable
Memory Support
Memory Type
DDR5
Memory MHz
8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s
Memory Channel
Dual
Memory Slot
4
Memory Max.
256GB
Optane Memory Support
No
Storage
Storage Interface
6.0Gb/s
M.2/SSD Expansion Slot
2
M.2/SSD Expansion Slot Details
2 x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x 4 , supports 22110/2280 devices, M.2_2 Source (From CPU) supports up to PCIe 4.0 x 4 , supports 2280/2260 devices
M.2/SSD Slot Gen
Up to Gen 5
Graphics
Graphics
integrated
Graphics Chipset
Integrated With Processor
Multi-GPU Support
No
PCI Express Slot
2 x PCI-E x16 slot (1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU), PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset), PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
Audio & Video
Audio Chipset
Realtek ALC897
Audio Channel
7.1
Network & Connectivity
LAN Chipset
Realtek 8125 2.5G LAN
LAN Speed (Mbps)
10/ 100/ 1000/ 2500Mbps
WiFi
Yes
WiFi Technology
802.11 a/ b/ g/ n/ ac/ ax
Bluetooth
Bluetooth 5.3
Ports
USB Port

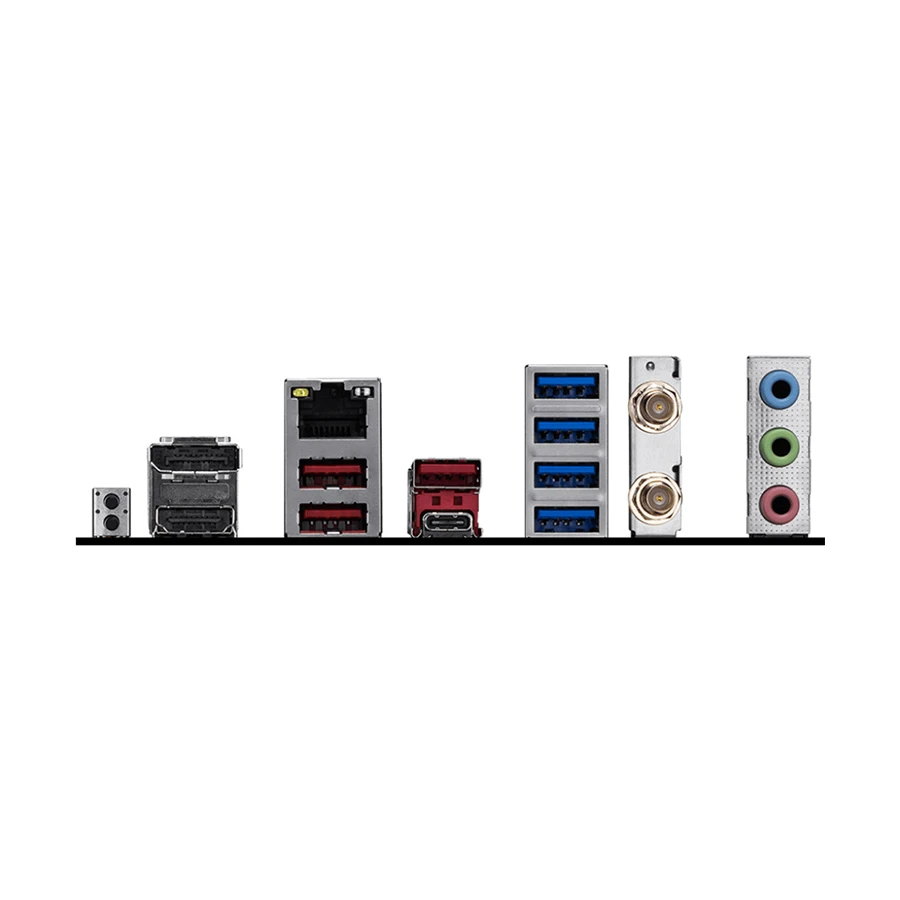

4 x USB 2.0 (Front), 4 x USB 5Gbps Type A (Rear), 2 x USB 5Gbps Type A (Front), 3 x USB 10Gbps Type A (Rear), 1 x USB 10Gbps Type C (Rear), 1 x USB 10Gbps Type C (Front)
VGA Port
No
DVI Port
No
HDMI Port
1
DisplayPort (DP)
1
SATA Port
4 x SATA
Thunderbolt
No
TPM Port
1
COM Port
1
Technical Info
Back-Connect Design
No
Cable Management
Front
Heatsink
Yes
CrossFire Support
No
Sli Support
No
Raid Support
0 , 1 , 10
RGB Support
ARGB
RGB Connector
3 x Addressable V2 RGB LED connector (JARGB_V2), 1 x RGB LED connector(JRGB)
5G Network Solution: EZ M.2 CLIP II, Lightning Gen 5, Extended Heatsink Design, 7W/mK Thermal Pad, EZ Antenna with Magnetic Stand, 12 + 2 + 1 DRPS POWER DESIGN
Others
Form Factor size: 243.84mm x 304.8mm, Operating System: Support for Windows 11 64-bit, 1 x Power Connector(ATX_PWR), 2 x Power Connector(CPU_PWR), 1 x CPU Fan, 1 Combo Fan (Pump_Sys Fan), 4 x System Fan, 2 x Front Panel (JFP), 1 x Chassis Intrusion (JCI), 1 x Front Audio (JAUD), 1 x Com Port (JCOM), 1 x Tuning Controller connector(JDASH)m 3 x Addressable V2 RGB LED connector (JARGB_V2),1 x RGB LED connector(JRGB), 1 x TPM pin header(Support TPM 2.0)
Country Of Origin
Taiwan
Made in/ Assemble
China
