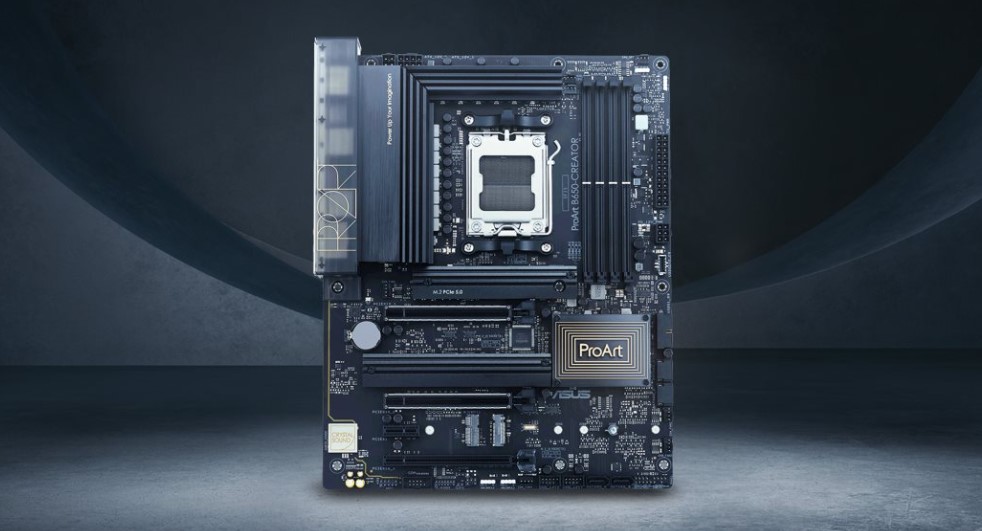

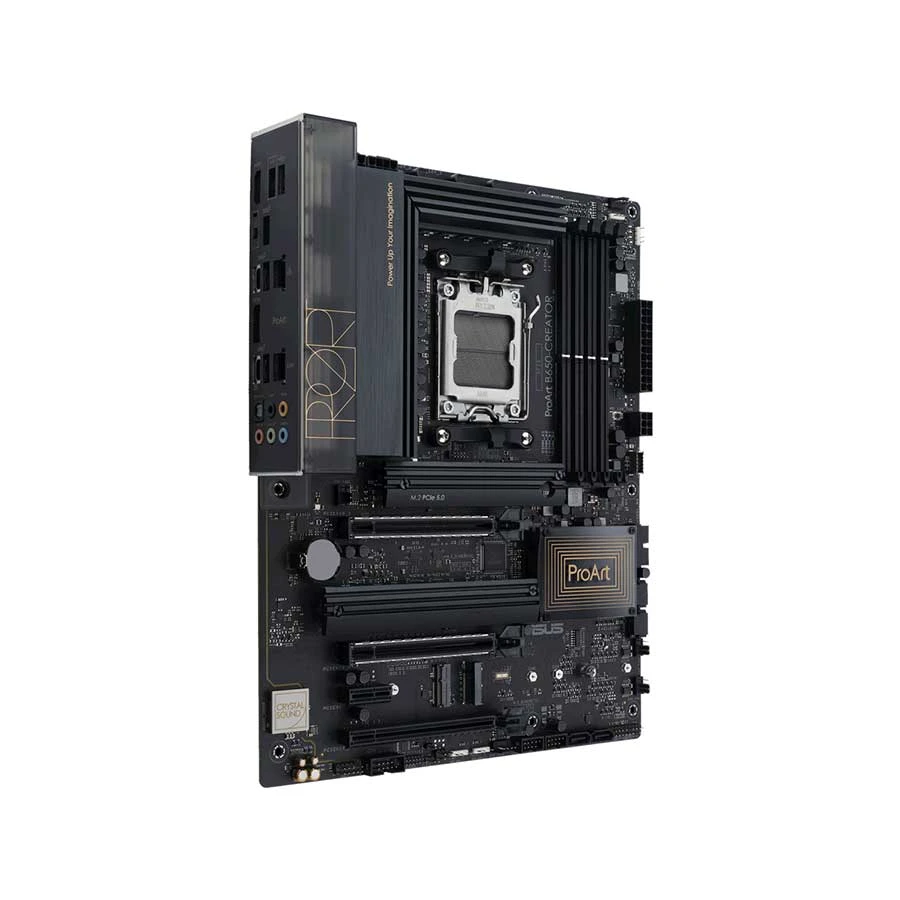

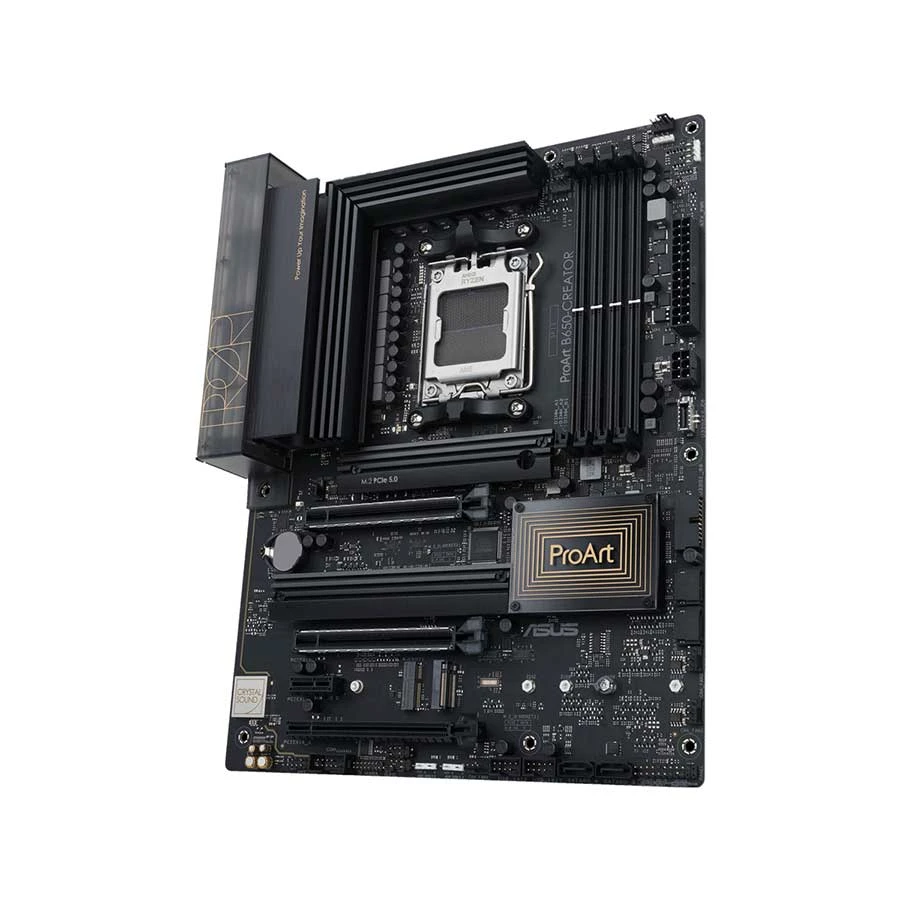

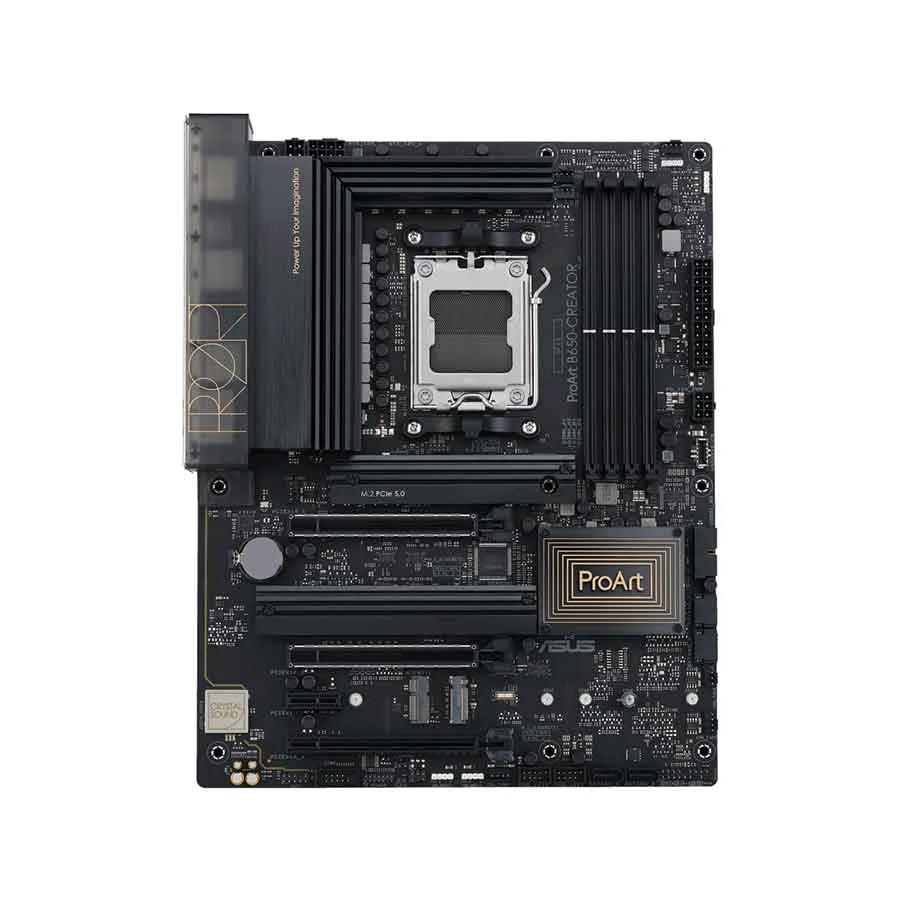

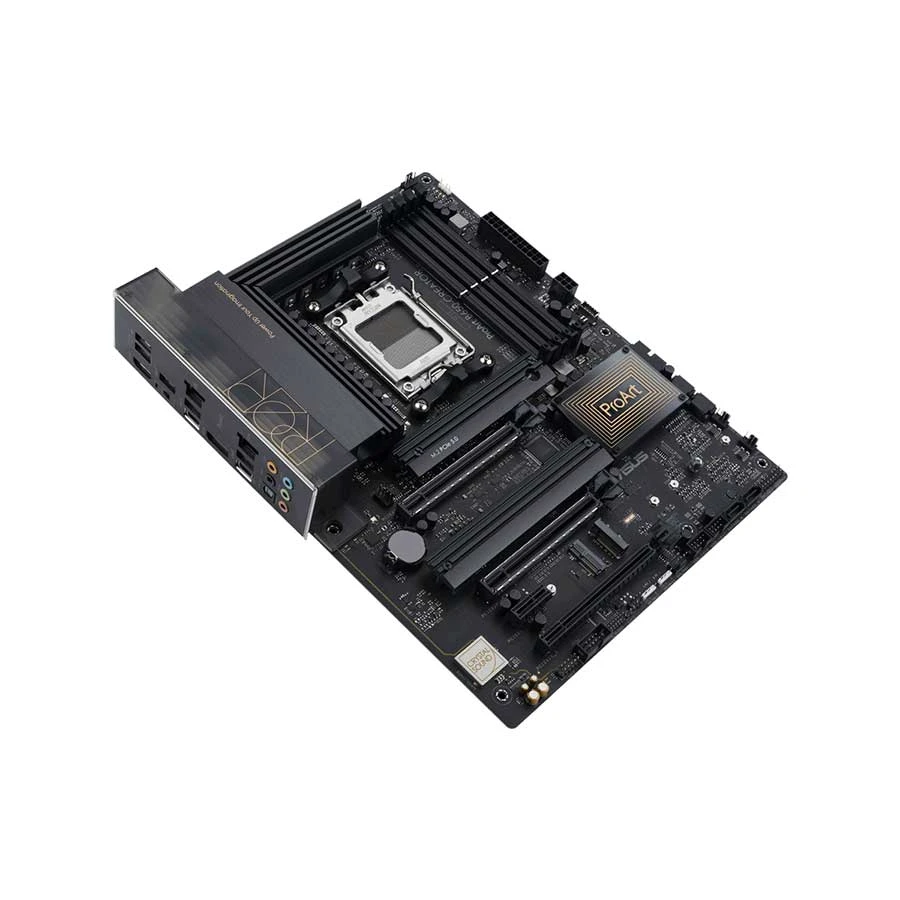

Asus ProArt B650-CREATOR DDR5 AMD AM5 Socket Motherboard

Product Id: 02.02.006.482

Brand Asus

Regular Price Tk 0
Special Price Tk 0
Out Of Stock

See similar model

Quick Overview

  • Chipset - AMD B650
  • Memory Max. - 192GB
  • Sockets Supported - AM5
  • Supported CPU - AMD Ryzen 7000 Series Desktop Processors
  • Generation - Not Applicable
General
Brand
Asus

Model
Asus ProArt B650-CREATOR

Body Color
Black


CPU
Chipset Brand
AMD

Chipset
AMD B650

Sockets Supported
AM5

Built-in Processor
No

Supported CPU
AMD Ryzen 7000 Series Desktop Processors

Generation
Not Applicable


Memory Support
Memory Type
DDR5

Memory MHz
7600+(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC & Non-ECC, Un-buffered Memory

Memory Channel
2

Memory Max.
192GB

Optane Memory Support
No


Storage
Storage Interface
6.0Gb/s

M.2/SSD Expansion Slot
3

M.2/SSD Expansion Slot Details

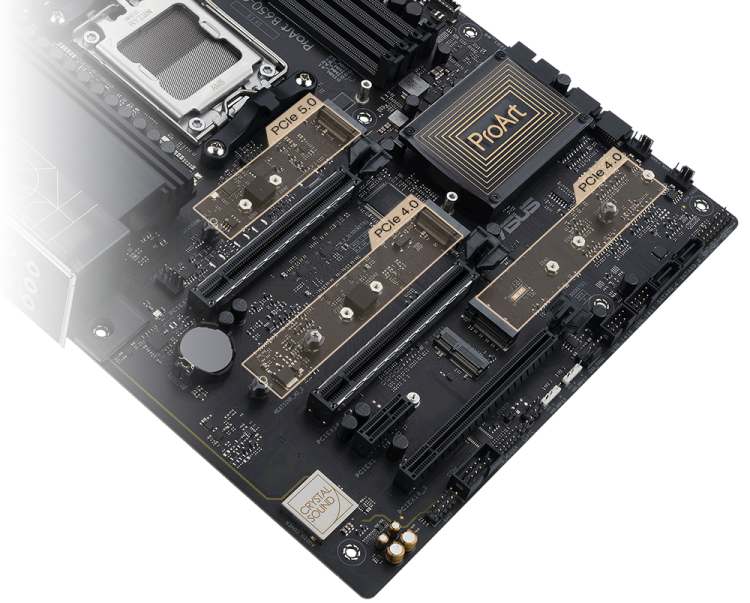

3 x M.2 Slot (1 x M.2 Key M type 2242/2260/2280 supports PCIe 5.0 x4 mode, 1 x M.2 Key M type 2242/2260/2280/22110 supports PCIe 4.0 x4 mode, 1 x M.2 Key M type 2242/2260/2280/22110 supports PCIe 4.0 x4 mode)


Graphics
Graphics
Integrated

Graphics Chipset
Integrated With Processor

Multi-GPU Support
No

PCI Express Slot

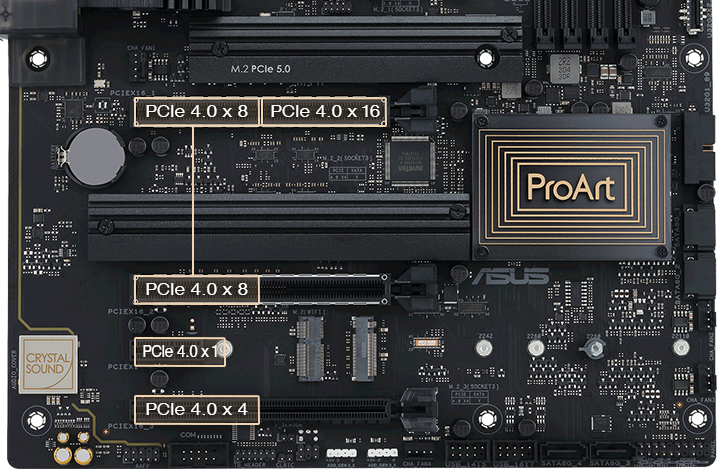

2 x PCIe 4.0 x16 slots (support x16 or x8/x8 modes), 1 x PCIe 4.0 x16 slot (supports x4 mode), 1 x PCIe 4.0 x1 slot


Audio & Video
Audio Chipset
Realtek 7.1 Surround Sound High Definition Audio CODEC

Audio Channel
7.1


Network & Connectivity
LAN Chipset

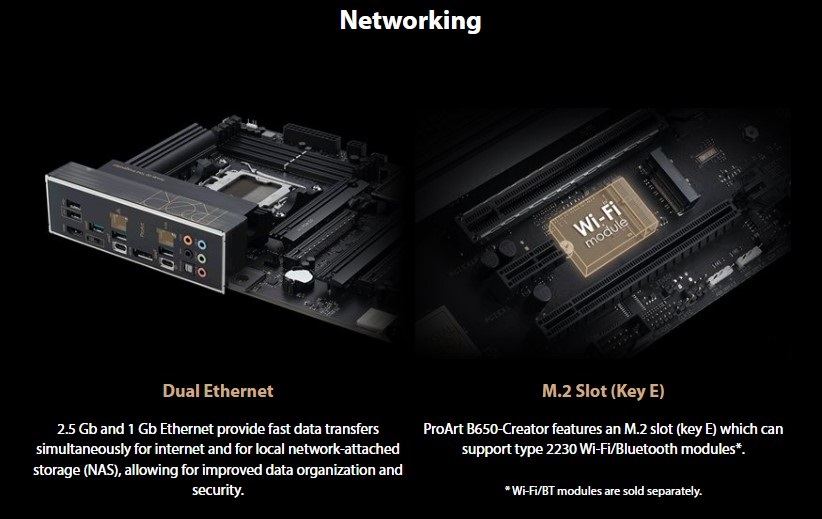

1 x Realtek 2.5Gb Ethernet, 1 x Realtek 1Gb Ethernet

LAN Speed (Mbps)
10/100/1000/2500 Mbps

WiFi
No

Bluetooth
No


Ports
USB Port
1 x USB 3.2 Gen 2 Type-C, 3 x USB 3.2 Gen 2 Type-A, 1 x USB 3.2 Gen 2 Type-C, 2 x USB 2.0 Type-A

VGA Port
No

DVI Port
No

HDMI Port
1

DisplayPort (DP)
1

IDE Port
No

SATA Port
4 x SATA

Thunderbolt
1

TPM Port
No

COM Port
No


Technical Info
FireWire
No

CrossFire Support
No

Sli Support
No

Raid Support
0, 1, 10

RGB Support
ARGB

RGB Sync
AURA Sync

RGB Connector
1 x Aura RGB header, 3 x Addressable Gen 2 headers

Approx. Power Consumption
70W

Form Factor
ATX


Bios Information
BIOS Type
256 Mb Flash ROM

BIOS Model
UEFI AMI BIOS


Compatibility
Supported Operating System
Windows 10 / 11

Compatible Products
Compatible with AM5 Sockets Ryzen 7000 Series Desktop Processors.


Warranty
Warranty
3 Year

Warranty Details
3 year


Additional Info
Feature

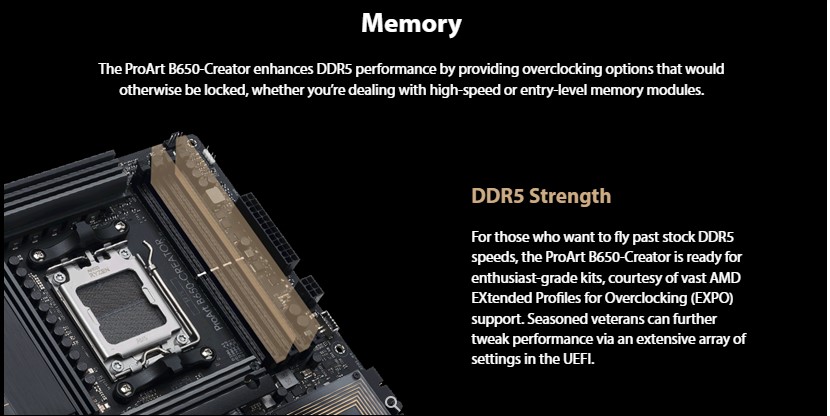

Supports AMD Extended Profiles for Overclocking (EXPO) OptiMem II, 1 x USB Type-C port supports DisplayPort output. Supports 4K@60Hz as specified in HDMI 2.1, Support max. 8K@60Hz as specified in DisplayPort 1.4. DisplayPort resolution support depends on graphic cards resolution, ASUS LANGuard, Audio ( Realtek 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking Supports up to 24-Bit/192 kHz playback, Audio Features ( Power pre-regulator reduces power input noise to ensure consistent performance, Rear optical S/PDIF out port, Premium audio capacitors, Dedicated audio PCB layers, Audio cover, Unique de-pop circuit), ASUS 5X PROTECTION III (DIGI+ VRM (Digital power design with DrMOS) Enhanced DRAM Overcurrent Protection, ESD Guards, LANGuard, Overvoltage Protection, Safeslot, Stainless-Steel Back I/O), ASUS Thermal Solution, M.2 heatsinks, VRM heatsink design.

Others

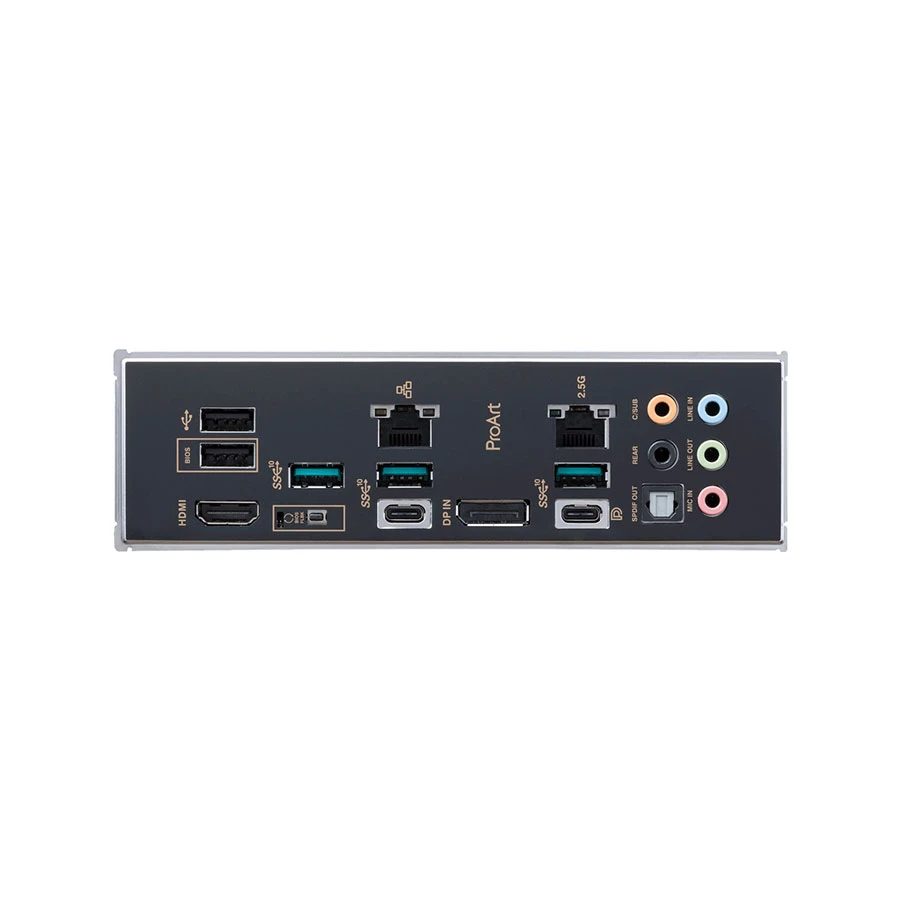

Back Panel I/O Ports: (5 x Audio jacks, 1 x Optical S/PDIF out port, 1 x BIOS FlashBack button), Internal I/O Connectors: (1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector 1 x 6-pin PCIe Power connector 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x M.2 slot (Key E) 1 x 20-5 pin System Panel header 1 x Thermal Sensor header 1 x Thunderbolt (USB4) header).

Country Of Origin
Taiwan

Made in/ Assemble
China


N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
