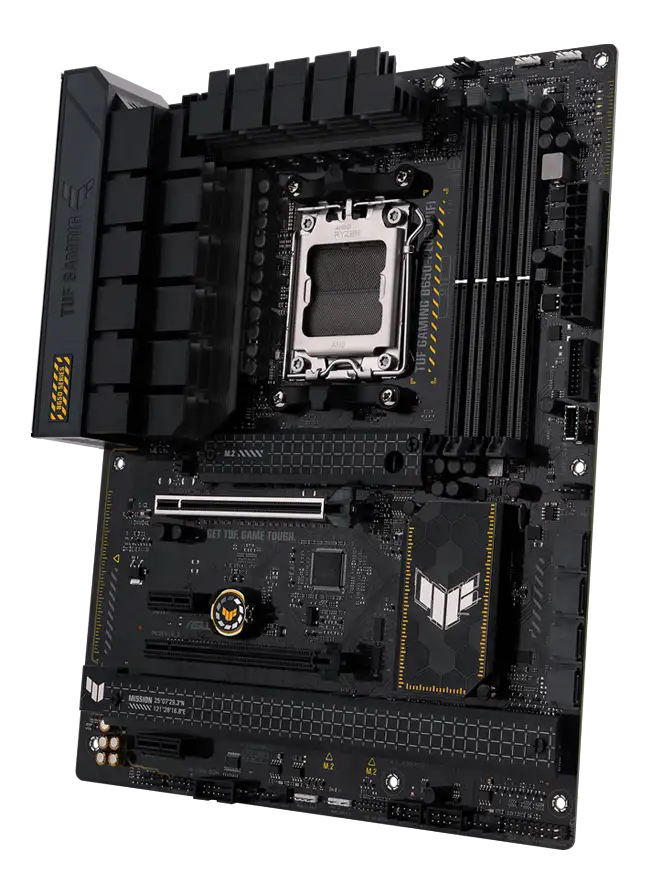

Asus TUF GAMING B650-PLUS (Wi-Fi 6) DDR5 Motherboard

Product Id: 02.02.006.455

Brand Asus

Regular Price Tk 0
Special Price Tk 0
Out Of Stock

See similar model

Quick Overview

  • Chipset - AMD B650
  • Sockets Supported - AM5
  • Supported CPU - AMD Ryzen 7000 / 8000 Series Desktop Processors
  • Generation - Not Applicable
  • Memory Slot - 4
  • Memory Max. - 128GB
General
Brand
Asus

Model
Asus TUF GAMING B650-PLUS (Wi-Fi 6)

Body Color
Black


CPU
Chipset Brand
AMD

Chipset
AMD B650

Sockets Supported
AM5

Built-in Processor
No

Supported CPU
AMD Ryzen 7000 / 8000 Series Desktop Processors

Generation
Not Applicable


Memory Support
Memory Type
DDR5

Memory MHz
6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800MHz ECC & Non-ECC

Memory Channel
Dual

Memory Slot
4

Memory Slot (Additional Info)
4 x DIMM

Memory Max.
128GB

Optane Memory Support
No


Storage
Storage Interface
6.0Gb/s

M.2/SSD Expansion Slot
3

M.2/SSD Expansion Slot Details
3 (1 x M.2 type 2242/2260/2280(supports PCIe 5.0 x4 mode), 1 x M.2 type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode), 1 x M.2 type 2242/2260/2280 (supports PCIe 4.0 x4 mode)


Graphics
Graphics
Integrated

Graphics Chipset
Integrated With Processor

Multi-GPU Support
No

PCI Express Slot
1 x PCIe 4.0/3.0 x16 slot(s), 2 x PCIe 4.0/3.0 x1 slots


Audio & Video
Audio Chipset
Realtek 7.1 Surround Sound High Definition Audio CODEC

Audio Channel
7.1


Network & Connectivity
LAN Chipset
Realtek 2.5Gb Ethernet

WiFi
Yes

WiFi Technology
2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)

Bluetooth
Bluetooth 5.2


Ports
USB Port
Rear: 1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C), 3 x USB 3.2 Gen 2 port(s) (2 x Type-A + 1 x USB Type-C), 4 x USB 2.0 port(s) (4 x Type-A), Front: 1 x USB 3.2Gen 1 connector (supports USB Type-C), 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports, 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports

VGA Port
No

DVI Port
No

HDMI Port
1

DisplayPort (DP)
1

IDE Port
No

SATA Port
4 x SATA

Thunderbolt
1

TPM Port
No

COM Port
1


Technical Info
FireWire
No

CrossFire Support
No

Sli Support
No

Raid Support
0 , 1 , 10

RGB Support
RGB

RGB Sync
Aura Sync

RGB Connector
1 x Aura RGB header

Approx. Power Consumption
70W

Form Factor
ATX


Bios Information
BIOS Type
256 Mb Flash ROM

BIOS Model
UEFI AMI BIOS


Compatibility
Supported Operating System
Windows 11, Windows 10 64-bit

Compatible Products
AMD Ryzen 7000 / 8000 Series Desktop Processors


Warranty
Warranty
3 Year

Warranty Details
3 Years Replacement Warranty


Additional Info
Feature
12+2 power stages (rated 60A) with enlarged VRM heatsinks, PCIe 5.0 for M.2 storage, DDR5 memory module support, USB 3.2 Gen 2x2 Type-C and a front-panel USB 3.2 Gen 1 Type-C header, 2.5 Gb Ethernet, WiFi 6, Two-Way AI Noise Cancelation

Others
5 x Audio jacks,1 x BIOS FlashBack button, Fan and Cooling related: 1 x 4-pin CPU Fan header(s), 1 x 4-pin CPU OPT Fan header(s), 1 x 4-pin AIO Pump header(s), 4 x 4-pin Chassis Fan header(s), Power related: 1 x 24-pin Main Power connector, 1 x 8-pin +12V Power connector, 1 x 4-pin +12V Power connector, Miscellaneous: 3 x Addressable Gen 2 header(s), 1 x Aura RGB header(s), 1 x Clear CMOS header, 1 x COM Port header, 1 x Front Panel Audio header (AAFP), 20-3 pin System Panel header with Chassis intrude function, 1 x Thunderbolt (USB4) header, ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Country Of Origin
Taiwan

Made in/ Assemble
China


N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
