4 x M.2 (M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode), M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode), M.2_3 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode), M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes))
Graphics
Graphics
Integrated
Graphics Chipset
Integrated With Processor
Multi-GPU Support
No
PCI Express Slot
1 x PCIe 5.0 x16, 1 x PCIe 4.0 x16 (supports x4 mode), 1 x PCIe 4.0 x4, 2 x PCIe 4.0 x1
Audio & Video
Audio Chipset
Realtek ALC1220P
Audio Channel
7.1
Network & Connectivity
LAN Chipset
1 x Intel 2.5Gb Ethernet
LAN Speed (Mbps)
10/ 100/ 1000/ 2500Mbps
WiFi
Yes
WiFi Technology
Wi-Fi 7 (802.11be)
Bluetooth
Bluetooth 5.4
Ports
USB Port
3 x USB 5Gbps Type-A, 3 x USB 10Gbps Type-A, 1 x USB 20Gbps USB Type-C, 1 x Thunderbolt 4 USB Type-C
VGA Port
No
DVI Port
No
HDMI Port
1
DisplayPort (DP)
1
IDE Port
No
SATA Port
4 x SATA
Thunderbolt
1
TPM Port
No
COM Port
No
Technical Info
Back-Connect Design
No
Cable Management
Front
Heatsink
Yes
CrossFire Support
No
Sli Support
No
Raid Support
0, 1, 5, 10
RGB Support
ARGB
RGB Sync
Aura Sync
RGB Connector
3 x Addressable Gen 2 headers
Approx. Power Consumption
70W
Form Factor
ATX
Bios Information
BIOS Type
256 Mb Flash ROM
BIOS Model
UEFI AMI BIOS
Compatibility
Supported Operating System
Windows 11
Warranty
Warranty Details
3 Year Replacement
Additional Info
Feature
Audio: 7.1 Surround Sound High Definition Audio CODEC, Audio Shielding, Rear optical S/PDIF out port, Premium audio capacitors, Dedicated audio PCB layers, Audio cover, Unique de-pop circuit, Asus TUF Protection: DIGI+ VRM (- Digital power design with DrMOS), ESD Guards, TUF LANGuard, Overvoltage protection, SafeSlot, Stainless-steel back I/O, M.2 Q-Latch, M.2 Q-Release, M.2 Q-Slide, PCIe Slot Q-Release, Q-Antenna, Q-Dashboard, Q-DIMM, Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]), Q-Slot, M.2 heatsink backplate, M.2 heatsink, VRM heatsink design, ASUS EZ DIY: BIOS FlashBack button, BIOS FlashBack LED, CPU Socket lever protector, ProCool, Pre-mounted I/O shield, SafeDIMM, Aura Sync: Addressable Gen 2 headers, Software Features, ASUS Exclusive Software: Armoury Crate, Aura Creator, Aura Sync, Fan Xpert 4 (with AI Cooling II), Power Saving, ASUS DriverHub, ASUS GlideX, TurboV Core, TUF GAMING CPU-Z, DTS Audio Processing, Adobe Creative Cloud (Free Trial), Norton 360 for Gamers (60 Days Free Trial, WinRAR (40 Days Free Trial), UEFI BIOS, ASUS EZ DIY, ASUS CrashFree BIOS 3, ASUS EZ Flash, ASUS UEFI BIOS EZ Mode, ASUS MyHotkey, NPU Boost.
Others

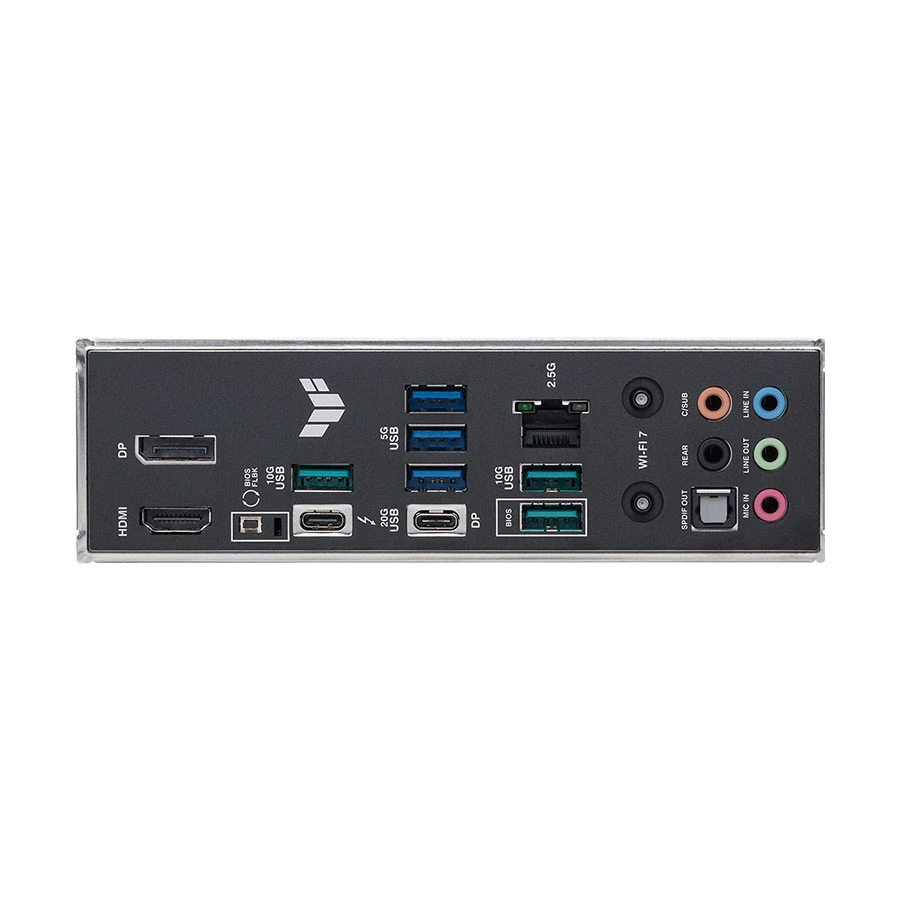

Back Panel I/O Ports: 1 x Wi-Fi module, 1 x Intel 2.5Gb Ethernet port, 5 x Audio jacks, 1 x Optical S/PDIF out port, 1 x BIOS FlashBack button, Internal I/O Connectors: Fan and Cooling Related: 1 x 4-pin CPU Fan header, 1 x 4-pin CPU Fan header, 1 x 4-pin AIO Pump header, 4 x 4-pin Chassis Fan headers, Power Related: 1 x 24-pin Main Power connector, 2 x 8-pin +12V CPU Power connector, Miscellaneous: 1 x Clear CMOS header, 1 x Chassis Intrusion header, 1 x Front Panel Audio header (F_AUDIO), 1 x 10-1 pin Front System Panel header, Manageability: WOL by PME, PXE.
Country Of Origin
Taiwan
Made in/ Assemble
China
