N.B. Image may differ with actual product's layout, color, size & dimension. No claim will be accepted for image mismatch. Product data used in this website is based solely on its manufacturer provided information, authenticity and accuracy are their responsibility only.

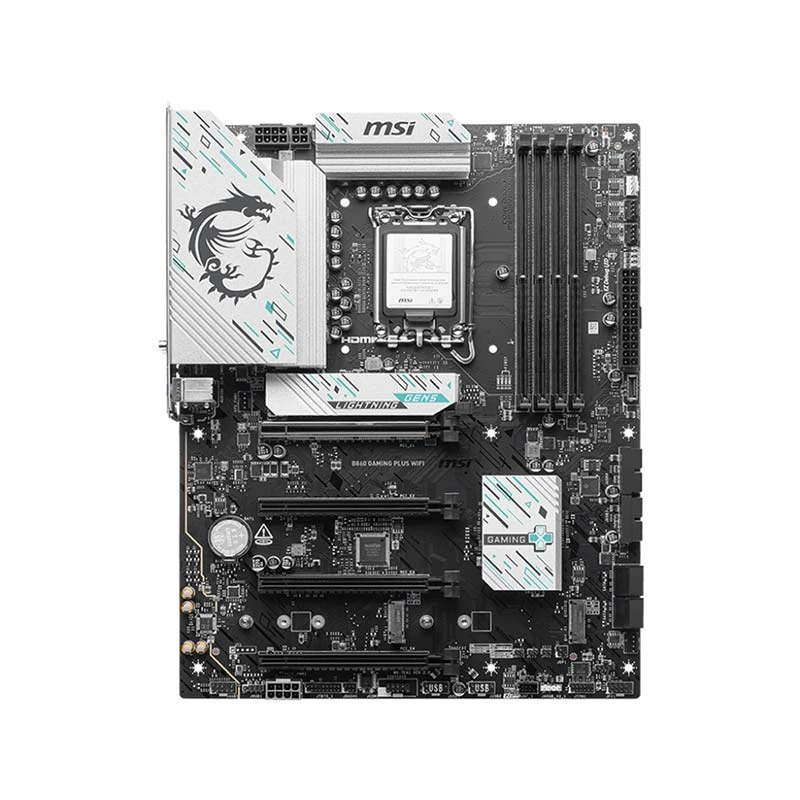

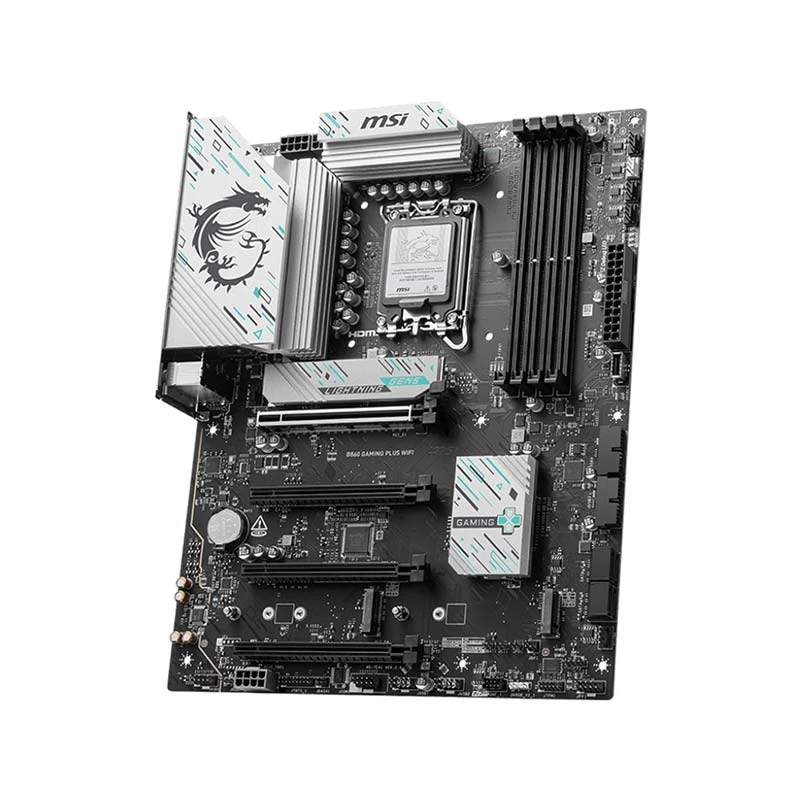

MSI B860 GAMING PLUS (Wi-Fi 7) DDR5 ATX Motherboard
3 x M.2 (M.2_1 Source (From CPU) supports up to PCIe 5.0x4 , supports 2280/2260 devices, M.2_2 Source (From Chipset) supports up to PCIe 4.0x4 , supports 2280/2260/2242 devices, M.2_3 Source (From Chipset) supports up to PCIe 4.0x2 , supports 2280/2260 devices.)
Graphics
Graphics
Integrated
Graphics Chipset
Integrated with Processor
Multi-GPU Support
No
PCI Express Slot
4 x PCI-E x16 slot
Audio & Video
Audio Chipset
Realtek ALC897 Codec
Audio Channel
7.1
Network & Connectivity
LAN Chipset
1 x 5G LAN
LAN Speed (Mbps)
5Gbps
WiFi
Yes
WiFi Technology
Wi-Fi 7 (802.11 a/ b/ g/ n/ ac/ ax/ be)
Bluetooth
Bluetooth 5.4
Ports
USB Port
4 x USB 2.0 (Rear), 2 x USB 5Gbps Type A (Rear), 2 x USB 10Gbps Type A (Rear), 1 x Thunderbolt 4 40Gbps (Type-C)
VGA Port
No
DVI Port
No
HDMI Port
1
DisplayPort (DP)
1
IDE Port
No
SATA Port
4
Thunderbolt
1
TPM Port
1 x TPM pin header(Support TPM 2.0)
COM Port
1 x Com Port (JCOM)
Technical Info
Back-Connect Design
No
Cable Management
Front
Heatsink
Yes
CrossFire Support
No
Sli Support
No
Raid Support
0, 1, 5, 10
RGB Support
ARGB
RGB Connector
2 x Addressable V2 RGB LED connector (JARGB_V2), 1 x RGB LED connector(JRGB)
Approx. Power Consumption
70W
Form Factor
ATX
Compatibility
Supported Operating System
Windows 11 64-bit
Compatible Products
Supports Intel Core Ultra Processors (Series 2)
Warranty
Warranty Details
3 year
Additional Info
Feature
Support Intel Core Ultra Processors (Series 2) for LGA 1851 socket. Supports DDR5 Memory, Dual Channel DDR5 8800+ MT/s (OC). Ultra Connect: Thunderbolt 4 port, Intel Killer 5G LAN & Intel Killer Wi-Fi 7 Solution - the latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission. Ultra Performance: 12+1+1+1 Duet Rail Power System with P-PAK, 8+4-pin CPU power connectors, Core Boost, Memory Boost, and 6-layer server-grade level PCB. Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience. Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2, Front USB Type-C. EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Clip II and EZ Antenna. Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience.
Others

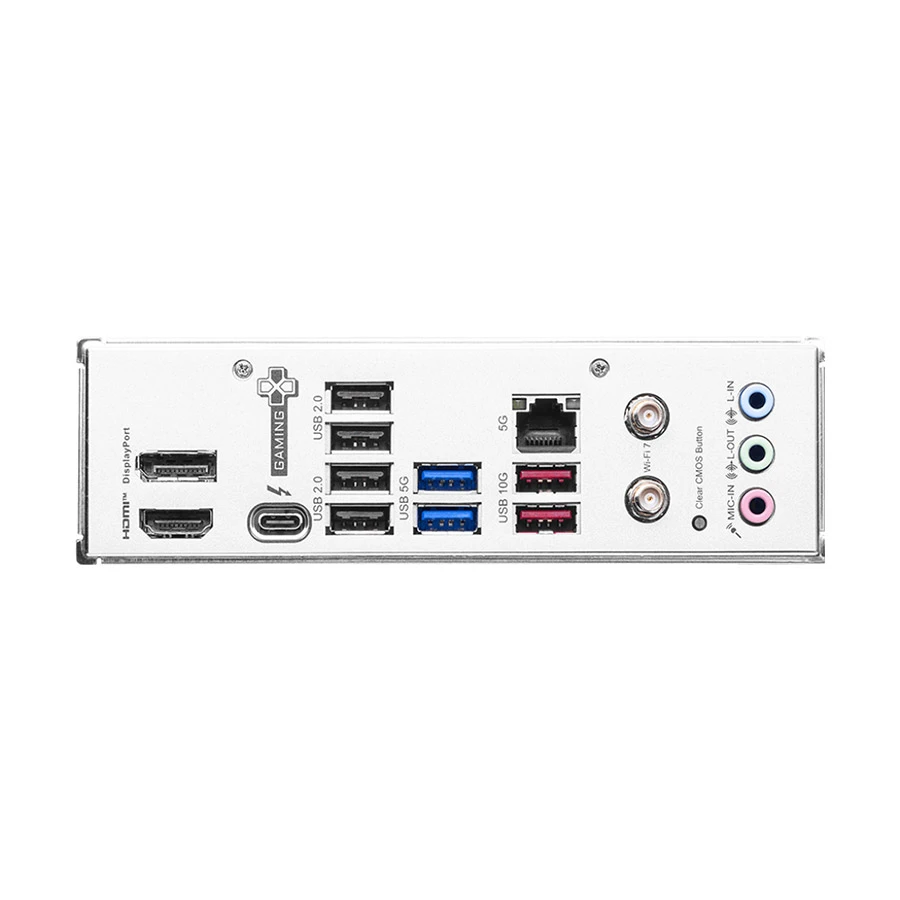

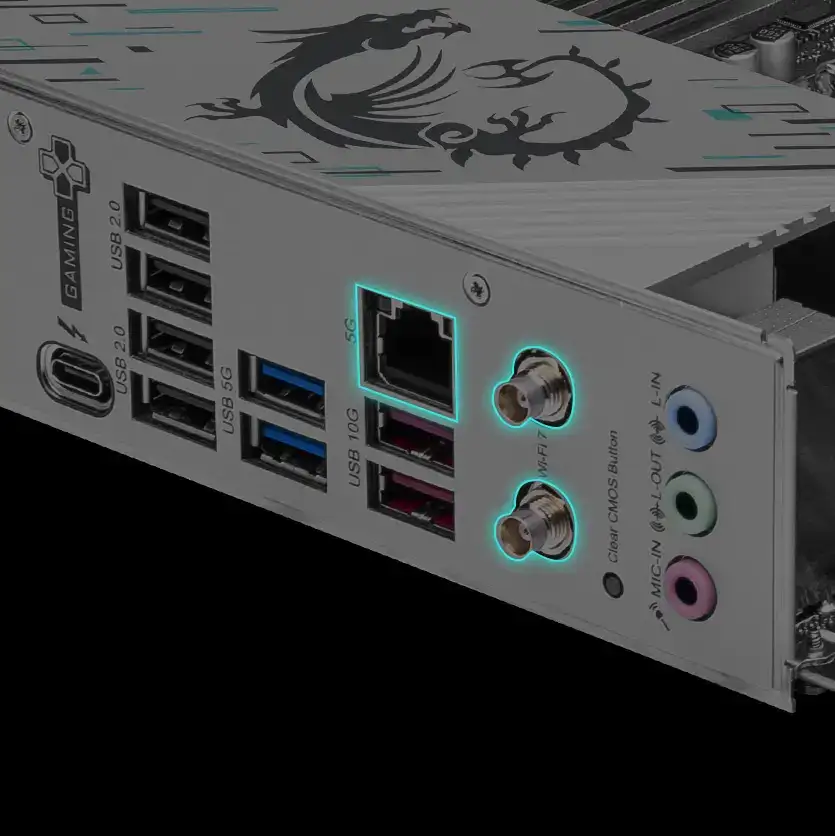

HDMI 2.1 max 4K 60Hz. DisplayPort 1.4 max 4K 60Hz. Thunderbolt 4 supporting DP 2.1 with UHBR20 over USB Type-C, with a max 4K@120Hz/8K@60Hz. 4x PCI-E x16 slot: PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU). PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset). PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset). PCI_E4 Gen PCIe 4.0 supports up to x1 (From Chipset). LAN: Intel Killer E5000 5Gbps LAN. Internal IO: 1x Thunderbolt5 card connector(JTBT5, support RTD3), 1x Power Connector(ATX_PWR), 2x Power Connector(CPU_PWR), 1x Power Connector(PCIE_PWR 8pin), 1x CPU Fan, 1x Combo Fan (Pump_Sys Fan), 4x System Fan, 1x EZ Conn-header (JAF_1), 2x Front Panel (JFP), 1x Chassis Intrusion (JCI), 1x Front Audio (JAUD), 1x Com Port (JCOM), 1x Tuning Controller connector(JDASH), 2x Addressable V2 RGB LED connector (JARGB_V2), 1x RGB LED connector(JRGB), 1x TPM pin header(Support TPM 2.0), 4x USB 2.0 port, 4x USB 5Gbps Type A ports, 1x USB 10Gbps Type C ports. BACK PANEL: Display Port, USB 2.0, 5G LAN, Wi-Fi / Bluetooth, Audio Connectors, HDMI, Thunderbolt 4 40Gbps (Type-C), USB 5Gbps (Type-A), USB 10Gbps (Type-A), Clear CMOS Button.
Country Of Origin
Taiwan
Made in/ Assemble
China
N.B. Specification may differ
with actual product. In that case, Ryans will execute full refund within 5 days.
