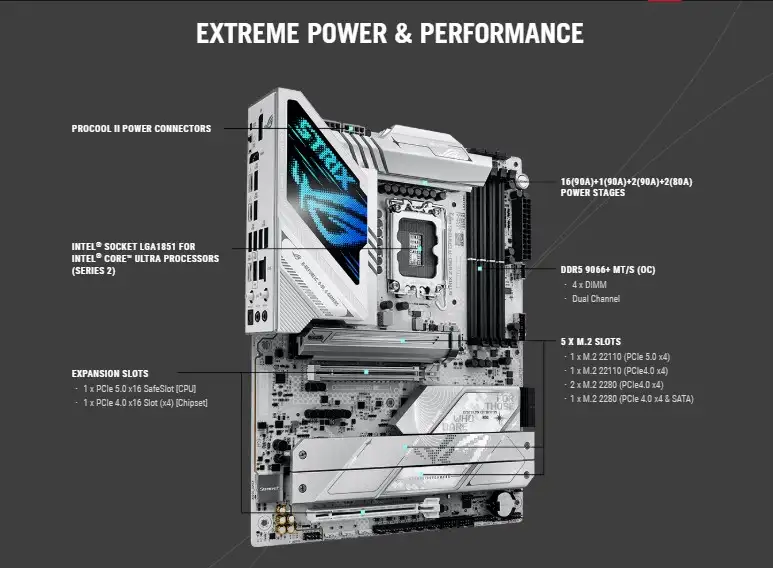

5 x M.2 (M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode), M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode), M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode), M.2_4 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode), M.2_5 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes))
Graphics
Graphics
Integrated
Graphics Chipset
Integrated With Processor
Multi-GPU Support
No
PCI Express Slot
1 x PCIe 5.0 x16, 1 x PCIe 4.0 x16 (supports x4 mode)
Audio & Video
Audio Chipset
CODEC ALC4080
Audio Channel
7.1
Network & Connectivity
LAN Chipset
1 x Intel 2.5Gb Ethernet
LAN Speed (Mbps)
10/ 10/ 1000/ 2500Mbps
WiFi
Yes
WiFi Technology
Wi-Fi 7 (802.11be)
Bluetooth
Bluetooth 5.4
Ports
USB Port
2 x USB 5Gbps Type-A, 5 x USB Type-A, 1 x USB Type-C, 2 x Thunderbolt 4 ports (2 x USB Type-C)
VGA Port
No
DVI Port
No
HDMI Port
1
DisplayPort (DP)
1
IDE Port
No
SATA Port
4 x SATA
Thunderbolt
2
TPM Port
No
COM Port
No
Technical Info
Back-Connect Design
No
Cable Management
Front
Heatsink
Yes
CrossFire Support
No
Sli Support
No
Raid Support
0, 1, 5, 10
RGB Support
ARGB
RGB Sync
Aura Sync
RGB Connector
3 x Addressable Gen 2 headers
Approx. Power Consumption
70W
Form Factor
ATX
Bios Information
BIOS Type
256 Mb
BIOS Model
UEFI AMI BIOS
Compatibility
Supported Operating System
Windows 11
Warranty
Warranty Details
3 Year Replacement
Additional Info
Feature

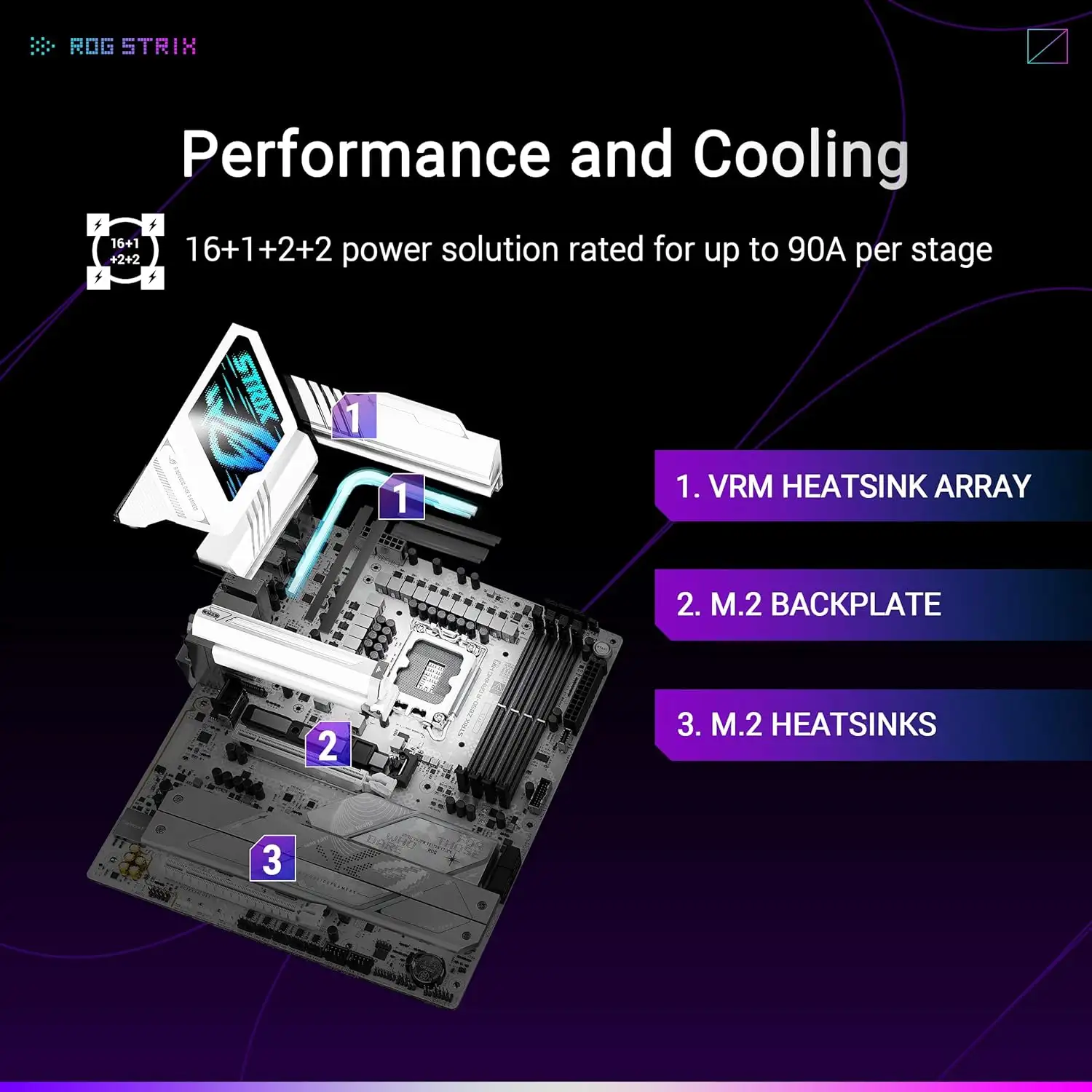

Audio: ROG SupremeFX 7.1 Surround Sound High Definition Audio, SupremeFX Shielding Technology, Savitech SV3H712 AMP, Rear optical S/PDIF out port, Premium audio capacitors, Audio cover, Extreme Engine Digi+: 5K Black metallic capacitors, ASUS Q-Design: M.2 Q-Latch, M.2 Q-Release, M.2 Q-Slide, PCIe Slot Q-Release Slim (with PCIe SafeSlot), Q-Antenna, Q-Dashboard, Q-DIMM- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]), Q-SlotASUS, Thermal Solution: M.2 heatsink backplate, M.2 heatsink, ASUS EZ DIY: BIOS FlashBack button, BIOS FlashBack LED, Clear CMOS button, CPU Socket lever protector, ProCool II, Pre-mounted I/O shield, SafeSlot, SafeDIMM, Aura Sync: Addressable Gen 2 headers, Software Features: ROG Exclusive Software, ROG CPU-Z, Dolby Atmos, ASUS Exclusive Software: Armoury Crate, Aura Creator, Aura Sync, Fan Xpert 4 (with AI Cooling II), GameFirst, Power Saving, HWiNFO: ASUS AI Advisor, ASUS DriverHub, ASUS GlideX, USB Wattage Watcher, TurboV Core, UEFI BIOS, AI Overclocking Guide, NPU Boost, ASUS EZ DIY: ASUS CrashFree BIOS 3, ASUS EZ Flash, ASUS UEFI BIOS EZ Mode, ASUS MyHotkey, FlexKey.
Others

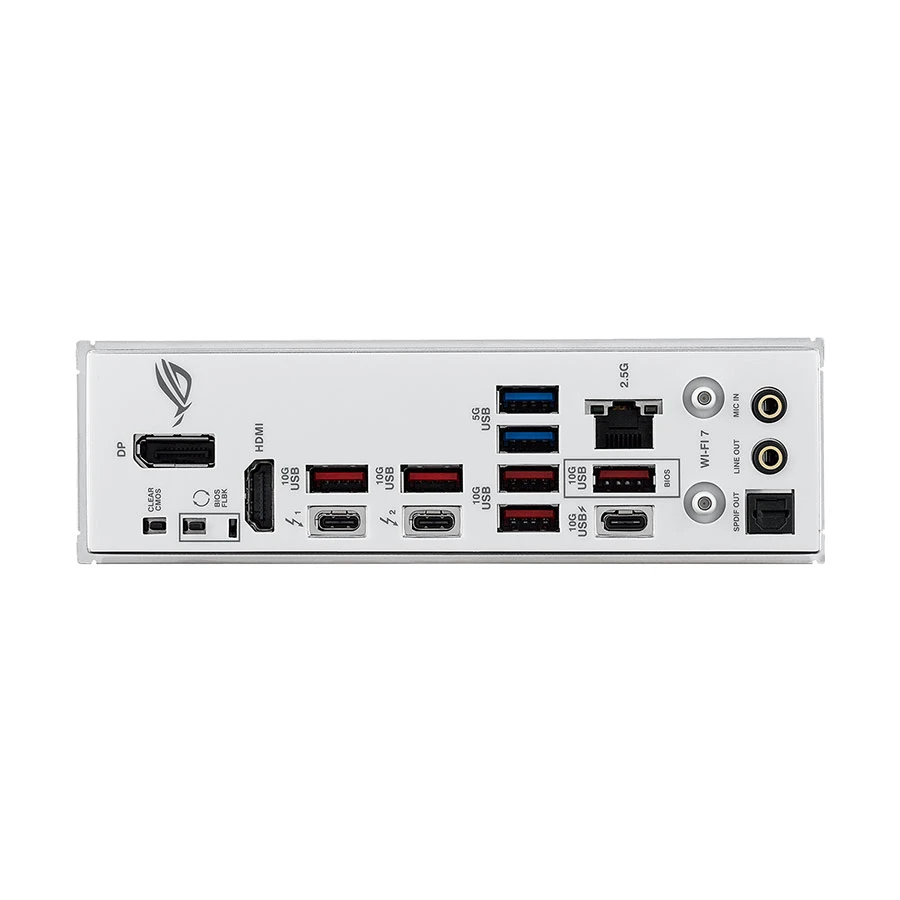

Back Panel I/O Ports: 1 x Wi-Fi module, 1 x Intet 2.5Gb Ethernet port, 2 x Audio jacks, 1 x Optical S/PDIF out port, 1 x BIOS FlashBack button, 1 x Clear CMOS button, Internal I/O Connectors: Fan and Cooling Related: 1 x 4-pin CPU Fan header, 1 x 4-pin CPU OPT Fan header, 1 x 4-pin AIO Pump header, 5 x 4-pin Chassis Fan headers, Power Related: 1 x 24-pin Main Power connector, 2 x 8-pin +12V CPU Power connectors, Miscellaneous: 3 x Addressable Gen 2 headers, 1 x Chassis Intrusion header, 1 x CPU Over voltage jumper, 1 x Front Panel Audio header (F_AUDIO), 1 x Start button, 1 x 10-1 pin Front System Panel header, 1 x Thermal Sensor header, Manageability: WOL by PME, PXE.
Country Of Origin
Taiwan
Made in/ Assemble
China
N.B. Specification may differ
with actual product. In that case, Ryans will execute full refund within 5 days.
